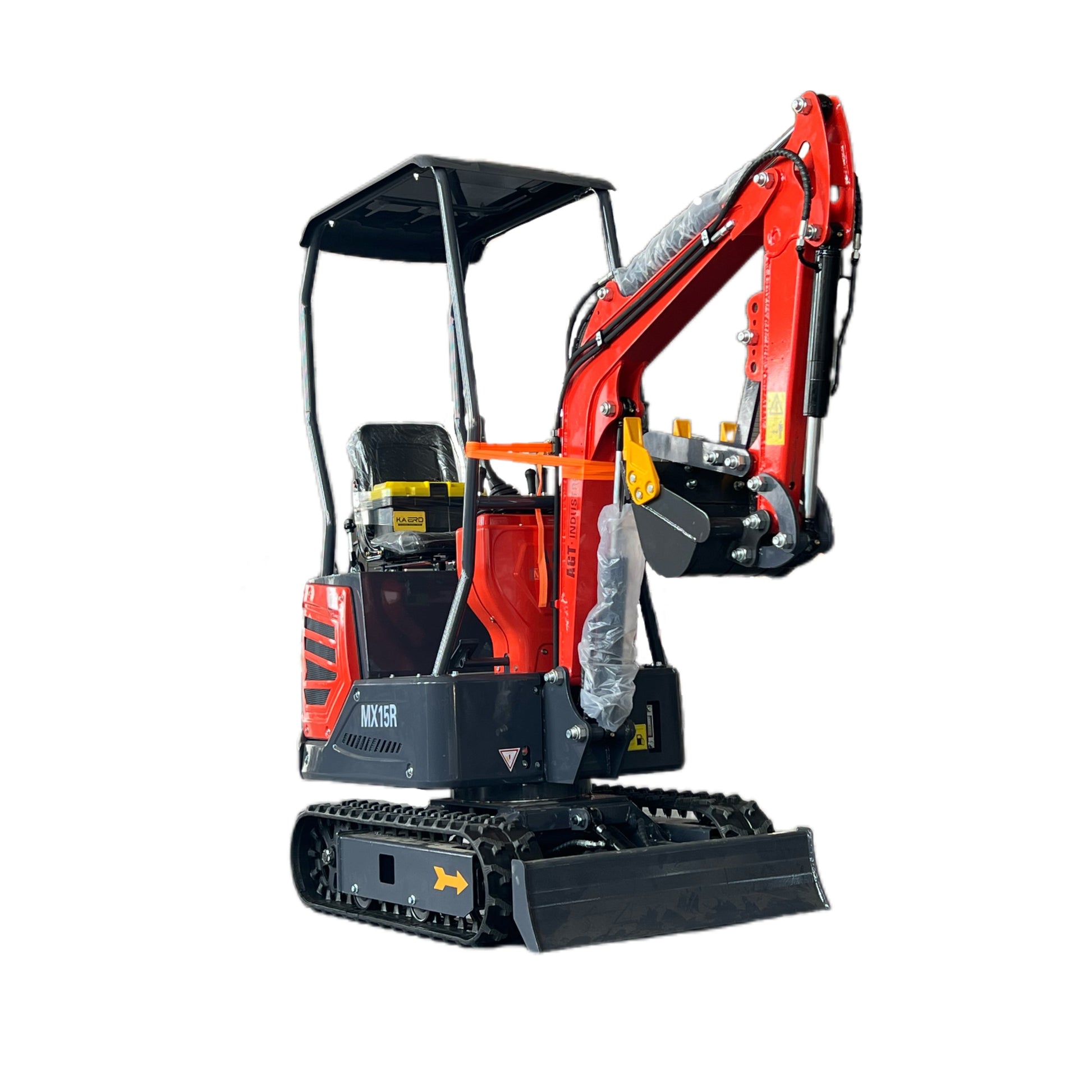

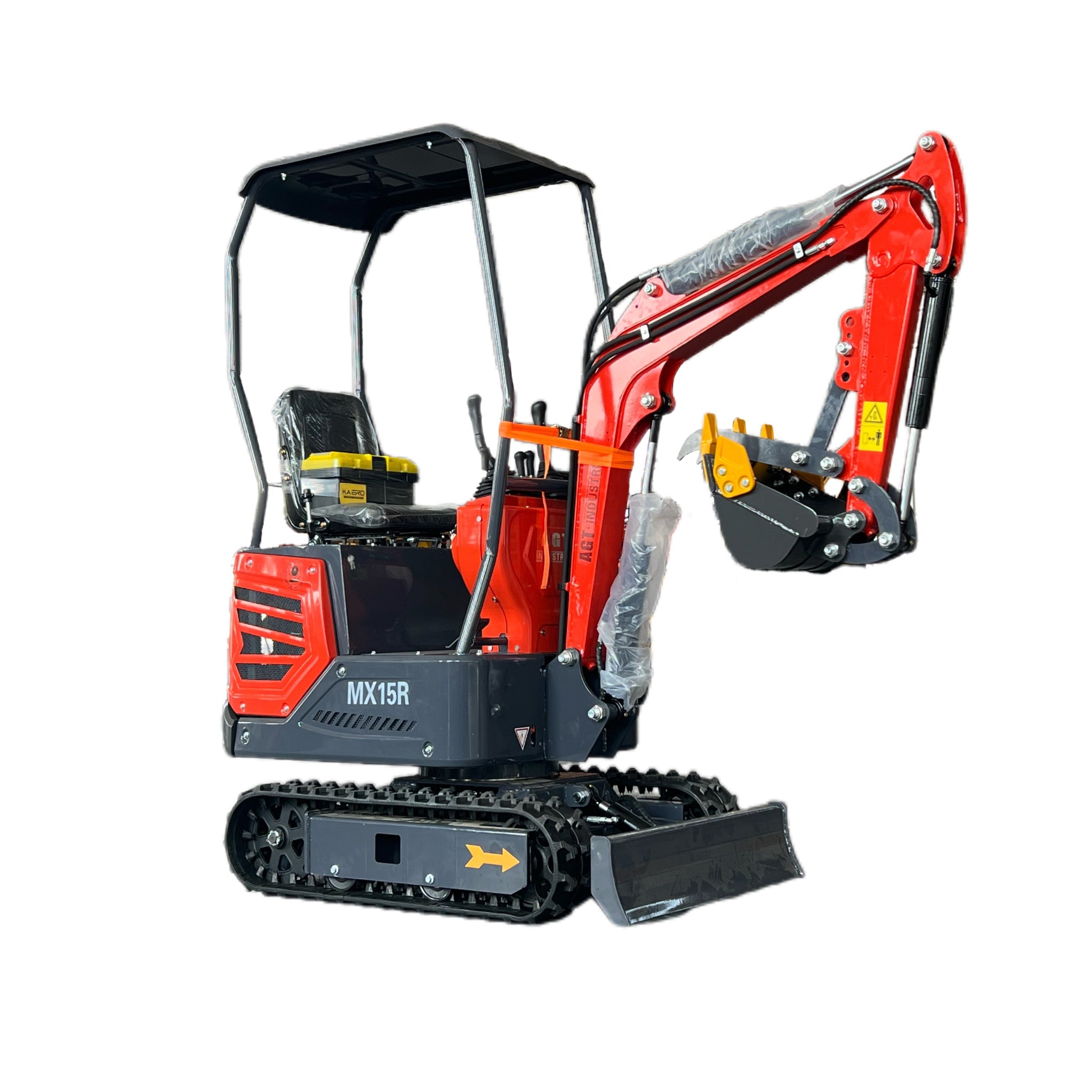

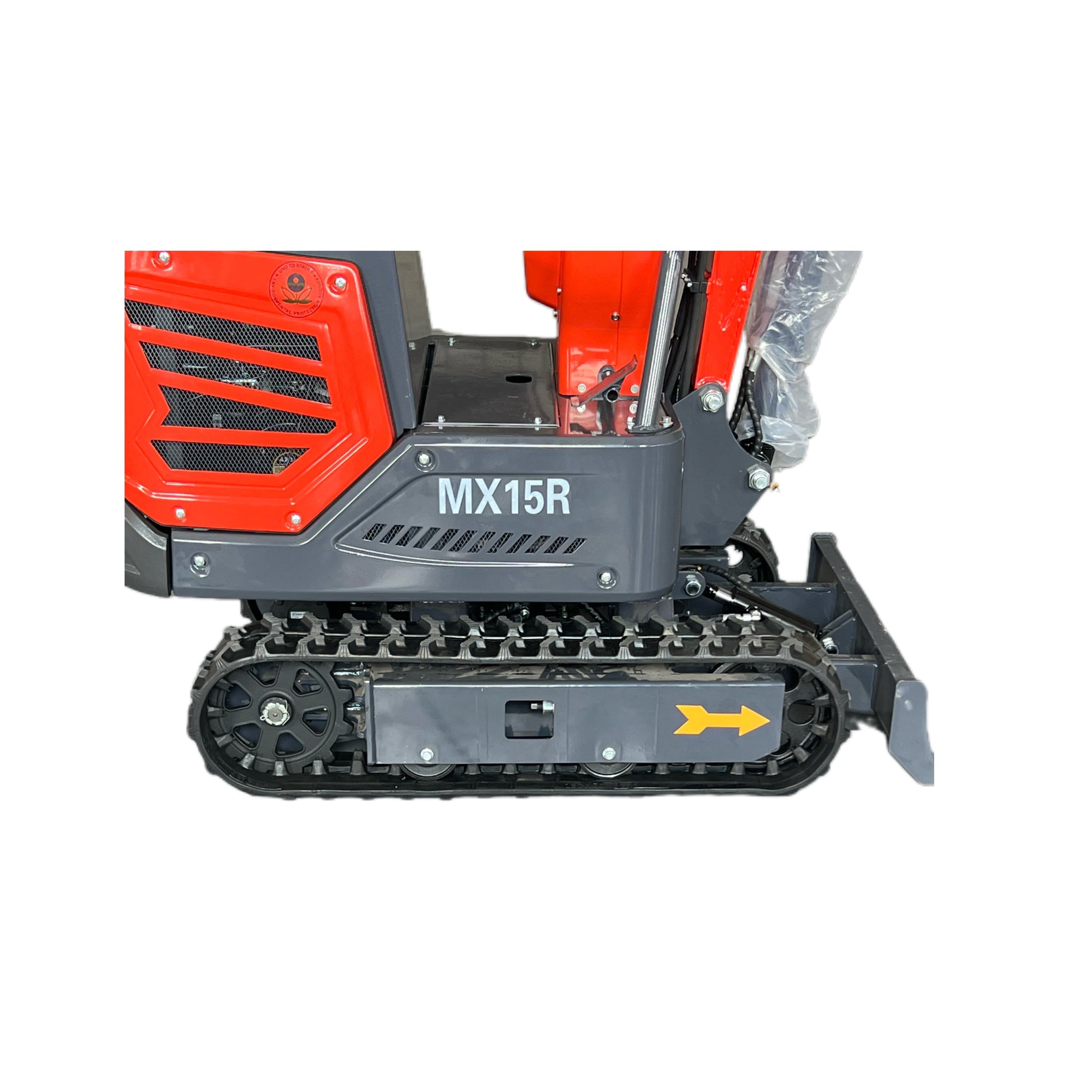

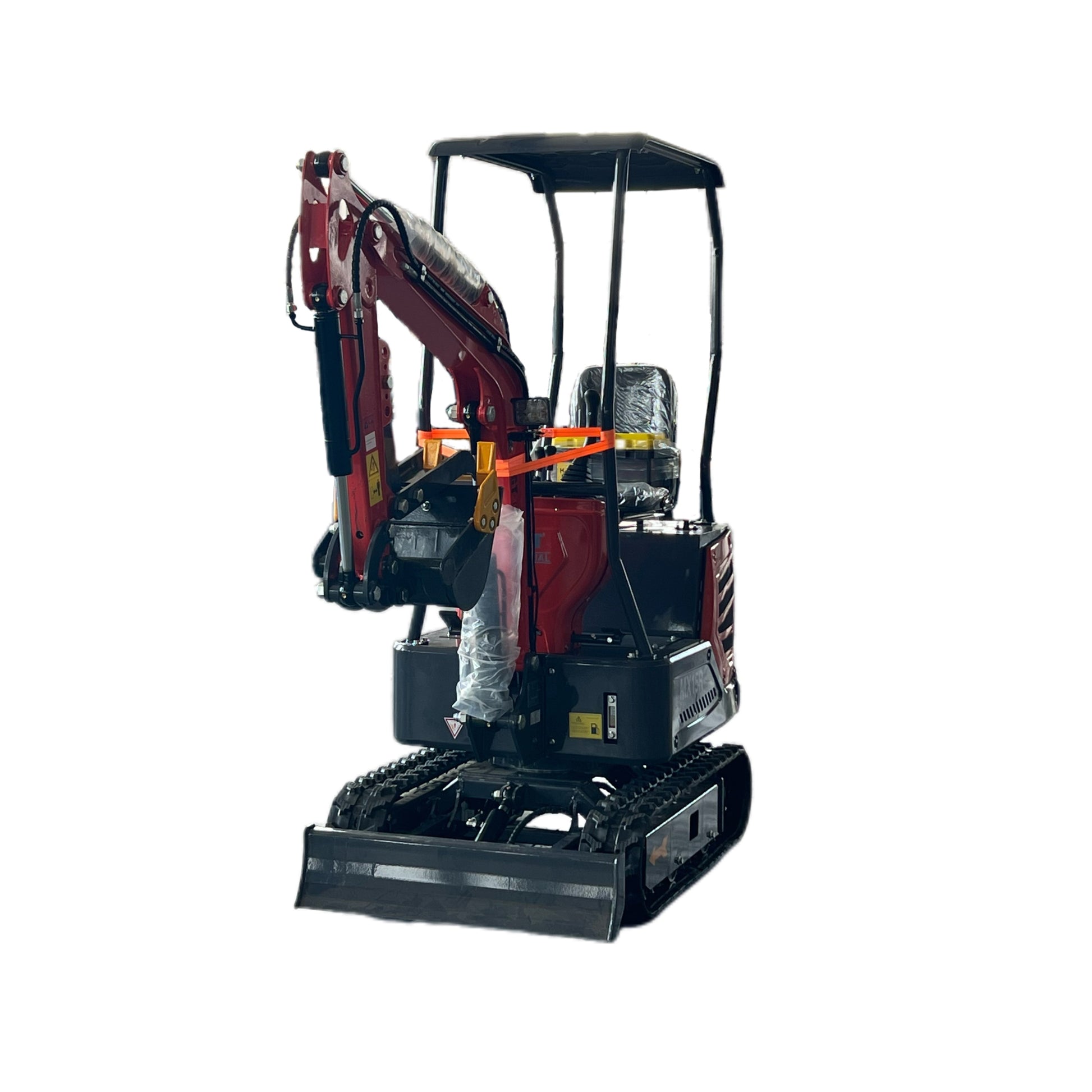

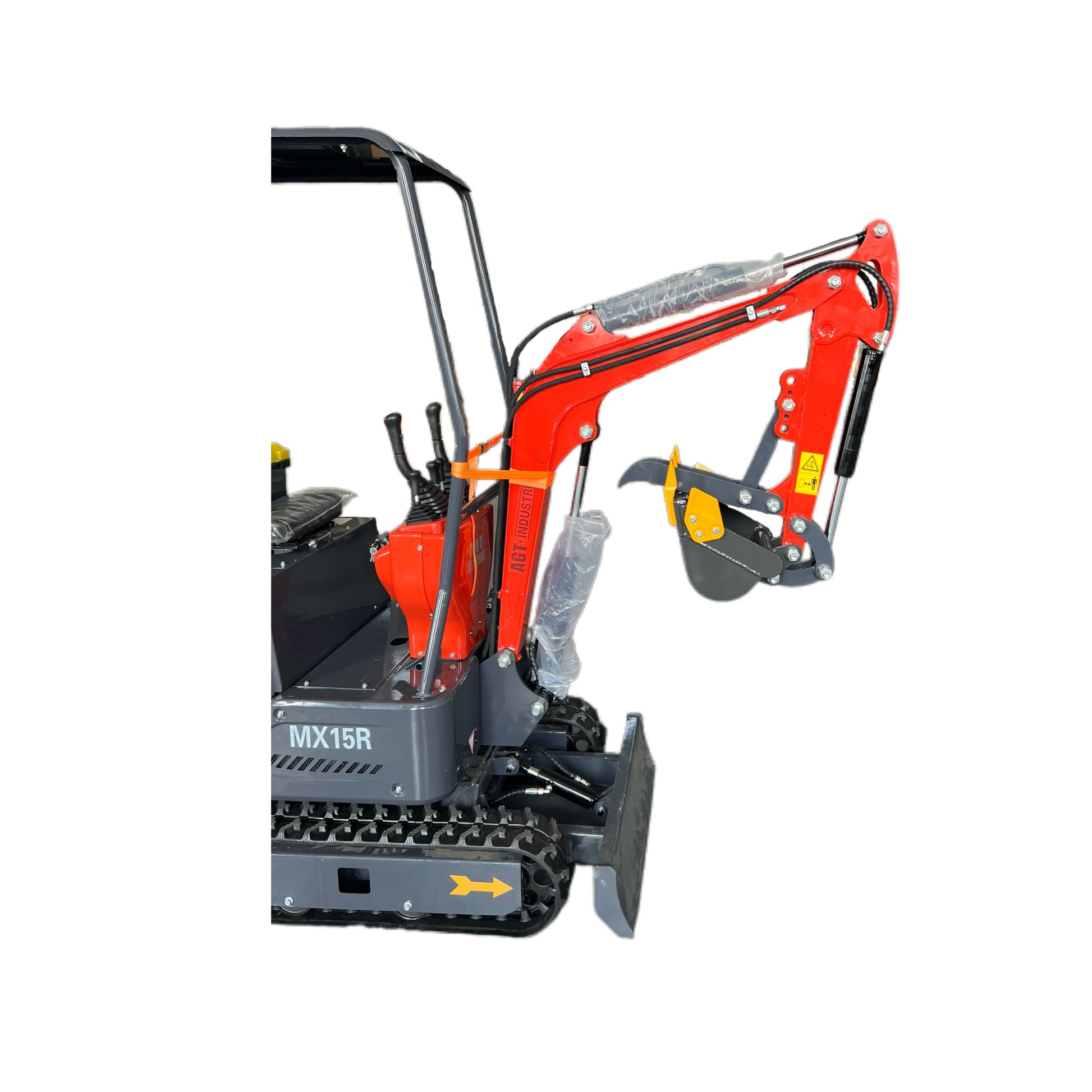

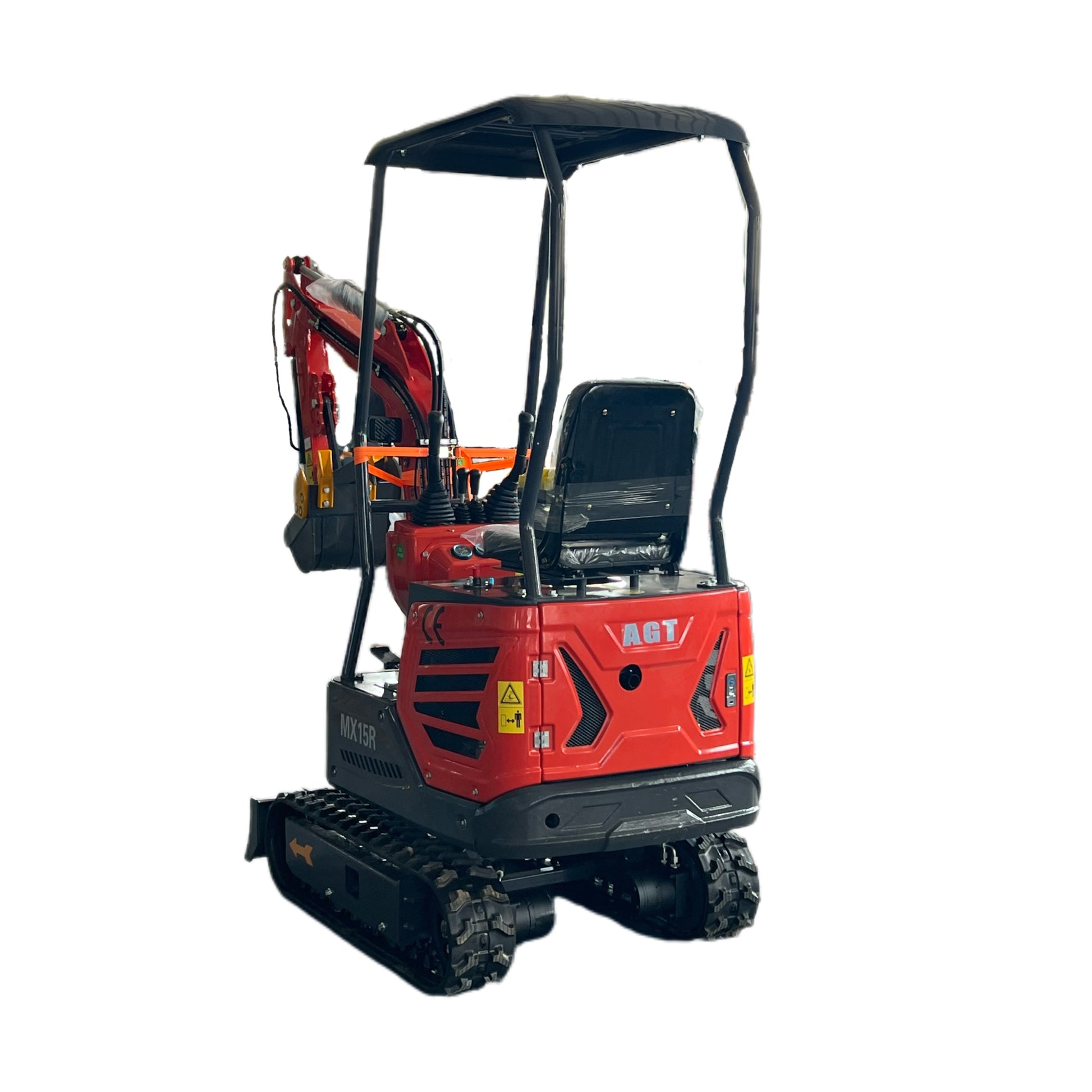

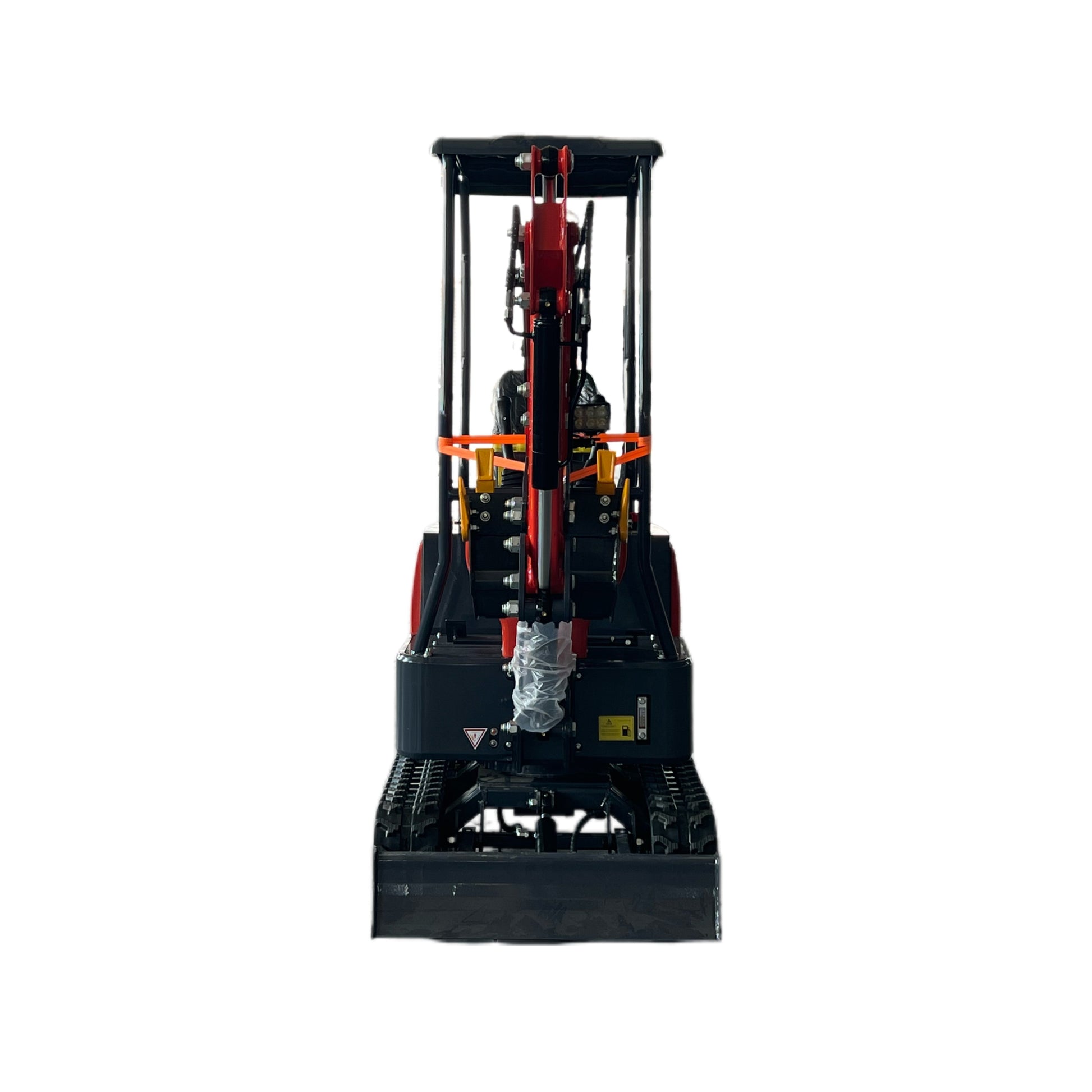

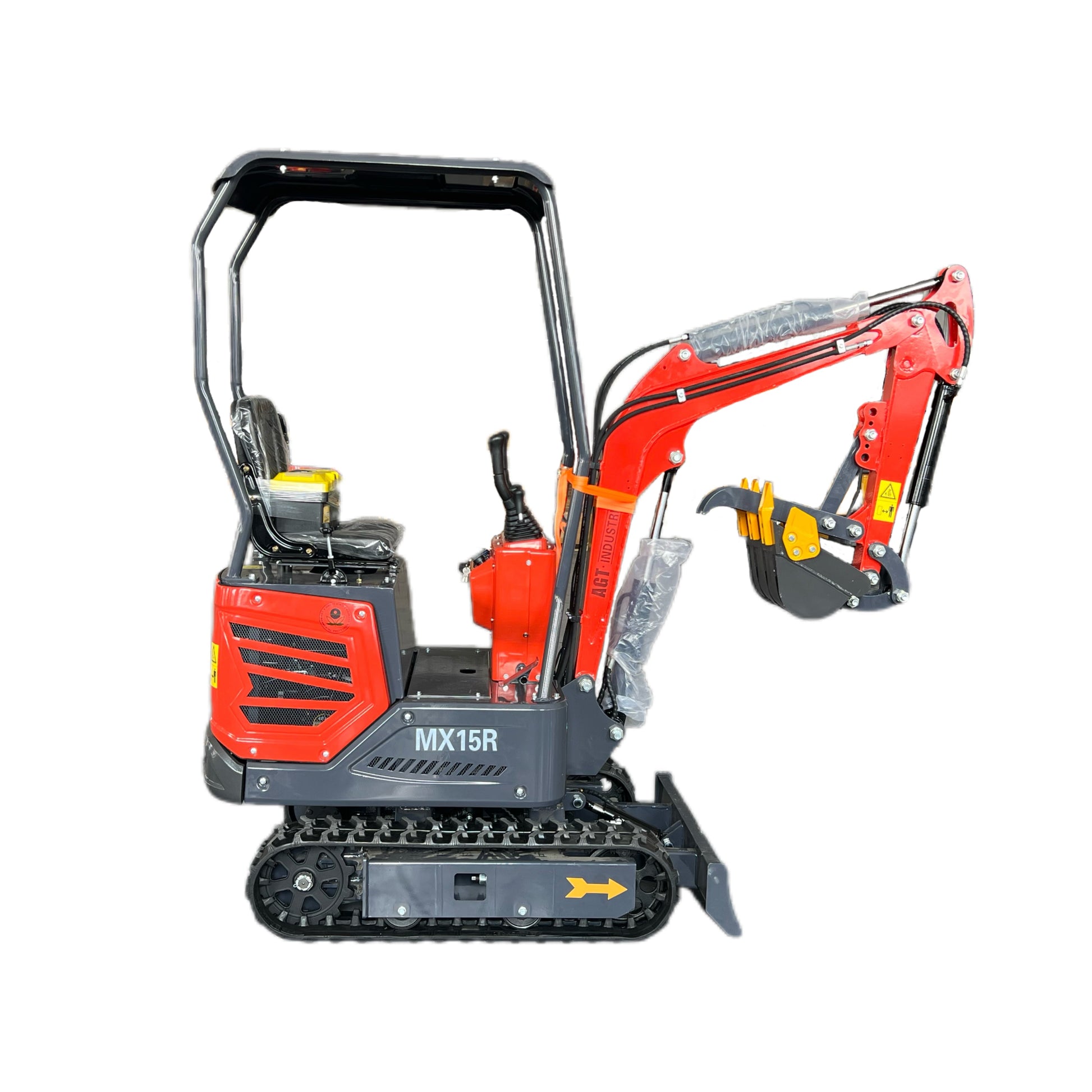

Cfgindustrial 1 Ton Mini Excavator with 9.8kW Gasoline Engine Compact Crawler Digger | MX15R
Regular price
$5,980.99
Sold out
SKU:MX15R
Cfgindustrial 1 Ton Mini Excavator with 9.8kW Gasoline Engine Compact Crawler Digger | MX15R
Cfgindustrial 1 Ton Mini Excavator with 9.8kW Gasoline Engine Compact Crawler Digger | MX15R
Product Overview

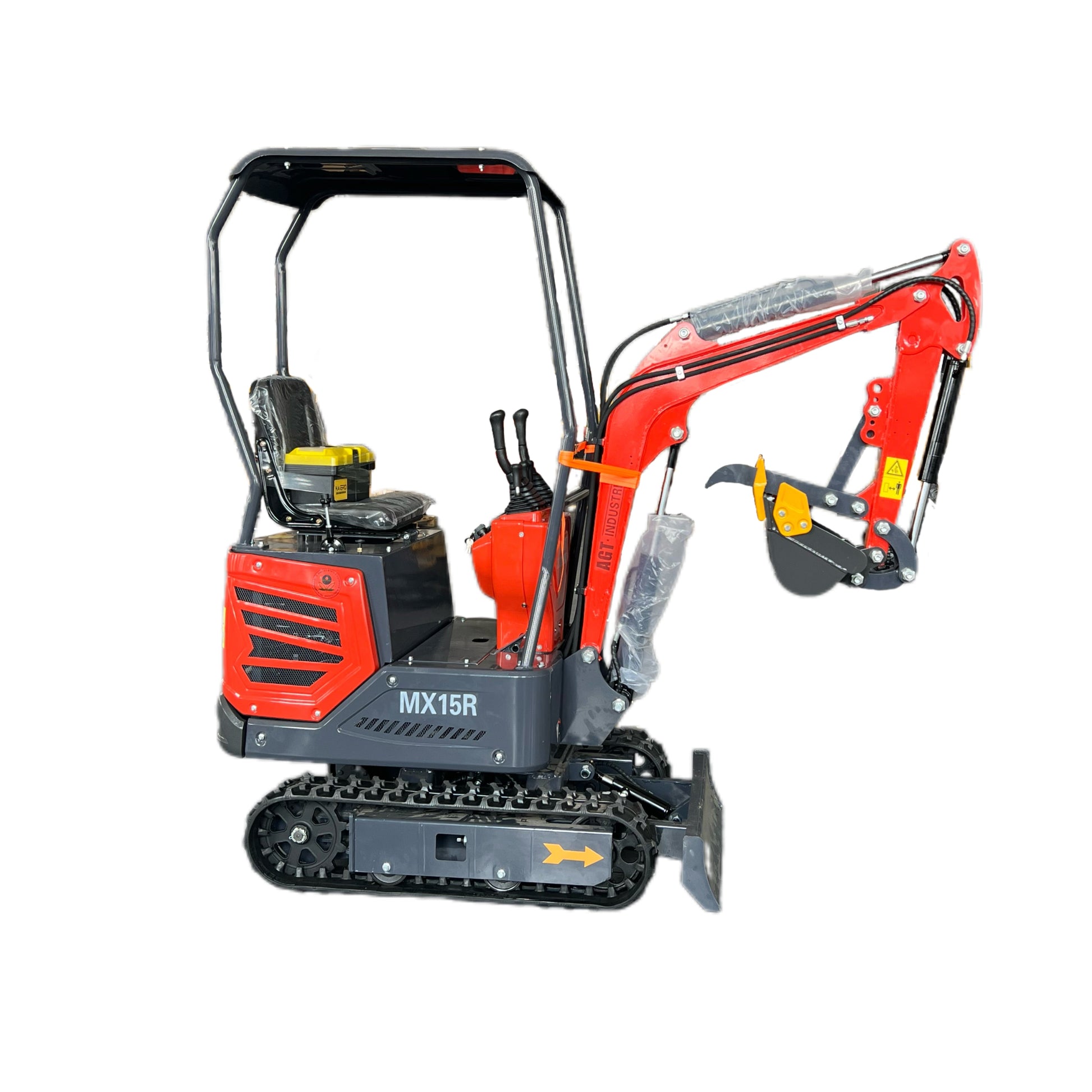

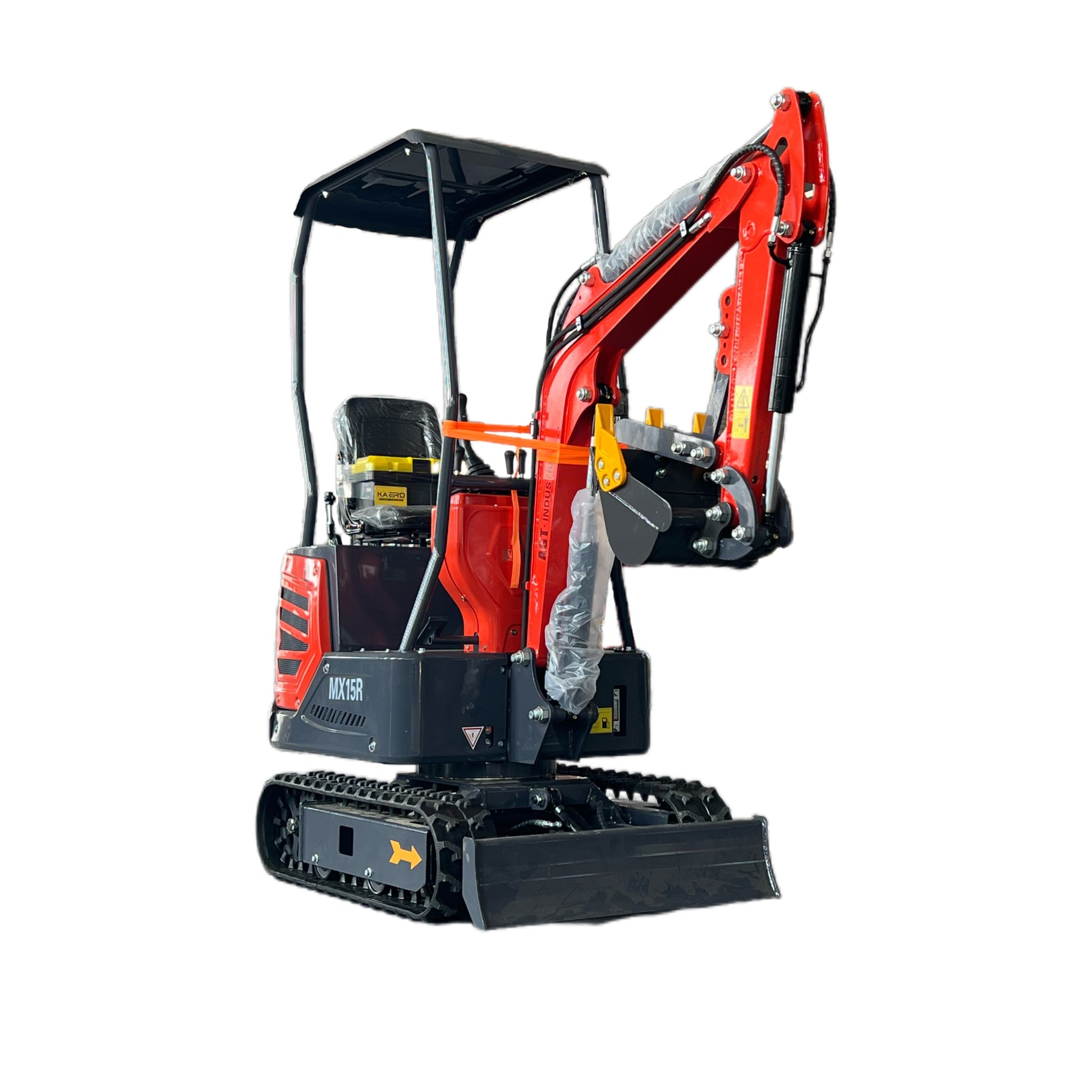

Designed for small to medium-sized projects. With a compact design, 940 kg operating weight, and a digging depth of 5.8 feet, the MX15R delivers reliable power and efficiency in tight workspaces like farms, gardens, orchards, and construction sites. Powered by a 9.8 kW gasoline engine, the MX15R features a 3-cylinder system, rubber tracks, and a reinforced structure built for daily use.

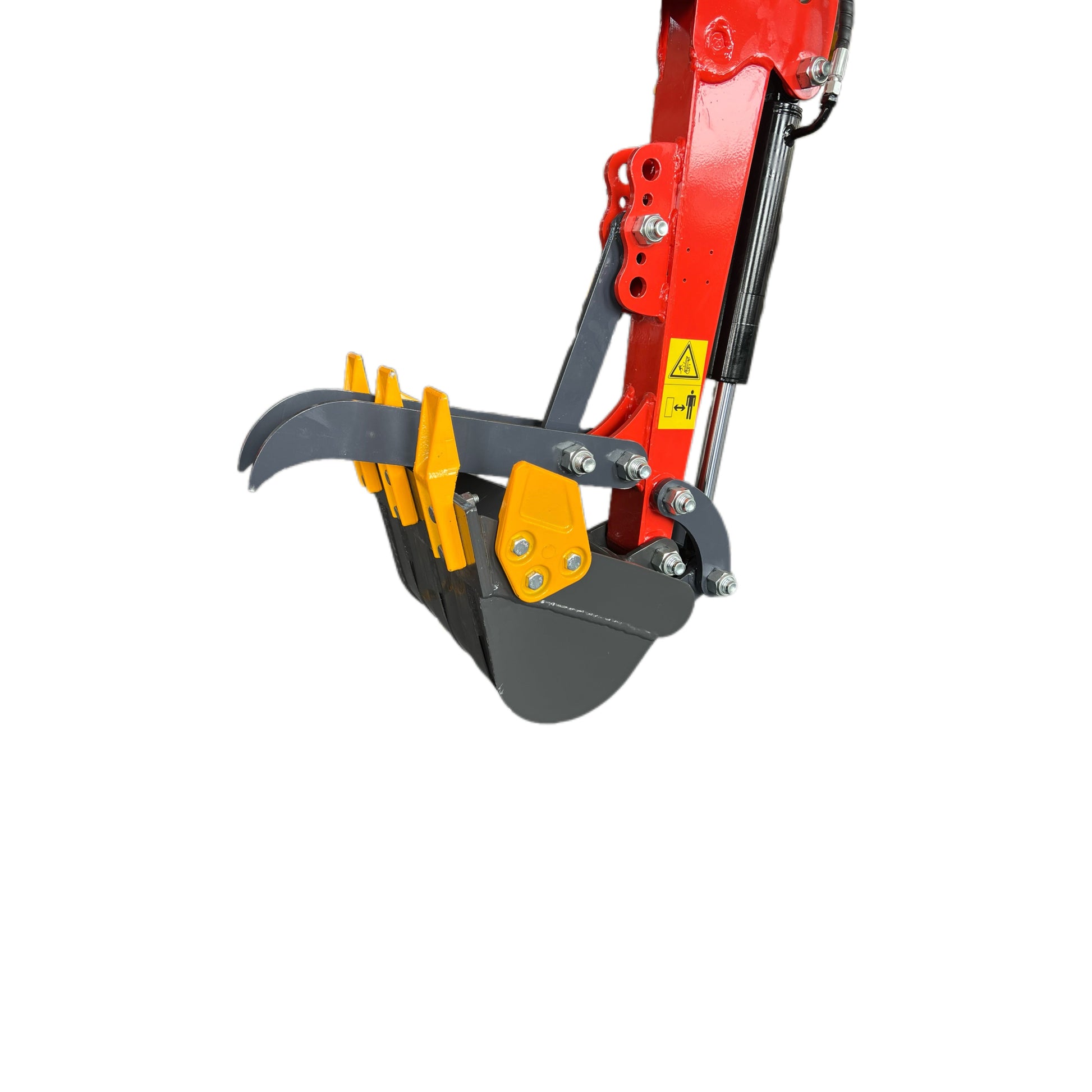

The hydraulic blade and side-swing boom provide versatility, while the factory installed manual thumb and auxiliary line make it attachment-ready. ldeal for augersrakes, tilt buckets, grapples, and more.
DIMENSION:
- Operating Weight: 0.9 Ton (1,980 lbs)
- Overall Length: 3,200 mm (126 in)
- Overall Width: 936 mm (37 in)
- Overall Height: 2,210 mm (87 in)
- Track Width: 180*72*37 (Width*Pitch Length*Links)
WORKING RANGE:
- Max Digging Depth: 1,769 mm (69.5 in)
- Max Digging Height: 2,583 mm (101.5 in)
- Max Dumping Height: 1,850 mm (73 in)
- Max Reach at Ground: 3,040 mm (120 in)
- Blade Width: 1,000 mm (39 in)
- Blade Height: 180 mm (7 in)
- Blade Max Lifting Height: 288 mm (11 in)
- Blade Max Drop Depth: 146 mm (5.5 in)
ENGINE:
- Engine Brand: Rato
- FuelType: Gasoline
- Model: R420D
- Rated Power: 10 kW (13.5 HP)
- Displacement: 420 cc
- Fuel Capacity: 6.6 L (1.7 gal)
- Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
- Hydraulic Pressure: 16 MPa (2,320 PSl)
- Hydraulic Tank Capacity: 23 L (6 gal)
Product Warranty
Specifications
.table-container {
width: 100%;
max-width: 900px;
background: #fff;
border-radius: 10px;
overflow-x: auto;
box-shadow: 0 2px 10px rgba(0,0,0,0.1);
}
table {
width: 100%;
border-collapse: separate;
border-spacing: 0;
min-width: 600px;
border-radius: 10px;
overflow: hidden;
}
th, td {
padding: 10px 12px;
text-align: left;
border-bottom: 1px solid #ddd;
vertical-align: middle;
}
th {
background-color: #009688;
color: #fff;
font-weight: 600;
text-align: center;
}
td:first-child {
font-weight: 500;
background-color: #fafafa;
width: 55%;
}
tr:hover td {
background-color: #f5f8ff;
}
/* 灰底分组 */
.section-header td {
background-color: #e5e5e5;
font-weight: 600;
color: #000;
border-bottom: 1px solid #ccc;
}
/* 响应式优化 */
@media (max-width: 768px) {
th, td { padding: 8px; font-size: 0.9rem; }
}
@media (max-width: 480px) {
th, td { padding: 6px; font-size: 0.85rem; }
}
| Model Information | |
|---|---|
| Configuration Status | √Standard, △Optional, ×None |
| Model | MX15R |
| Basic Performance Parameters | |
| Working Weight (kg) | 940 |
| Bucket Capacity (m³) | 0.025 |
| Travel Speed Low/High (Km/h) | 0–1.8 |
| Climbing Ability (%) | 30 |
| A: Maximum Digging Height (mm) | 2583 |
| B: Maximum Unloading Height (mm) | 1742 |
| C: Maximum Digging Depth (mm) | 1769 |
| E: Max. Digging Radius (mm) | 3041 |
| Side Swing | × |
| Side Swing Angle (L/R) | × |
| Undercarriage Expansion | × |
| Equipment Body | |
| J: Overall Length (mm) | 2882 |
| K: Overall Width (mm) | 962 |
| L: Overall Height (mm) | 2219 |
| Bulldozer Width / Height (mm) | 907 / 200 |
| Engine | |
| Engine Brand | Rato |
| Maximum Power (kW) | 8.6 |
| Cooling Method | Fan Cooling |
| Fuel Type | Gasoline |
| Fuel Tank | |
| Fuel Tank (L) | 6.6 |
| Hydraulic Oil Tank (L) | 15.8 |
