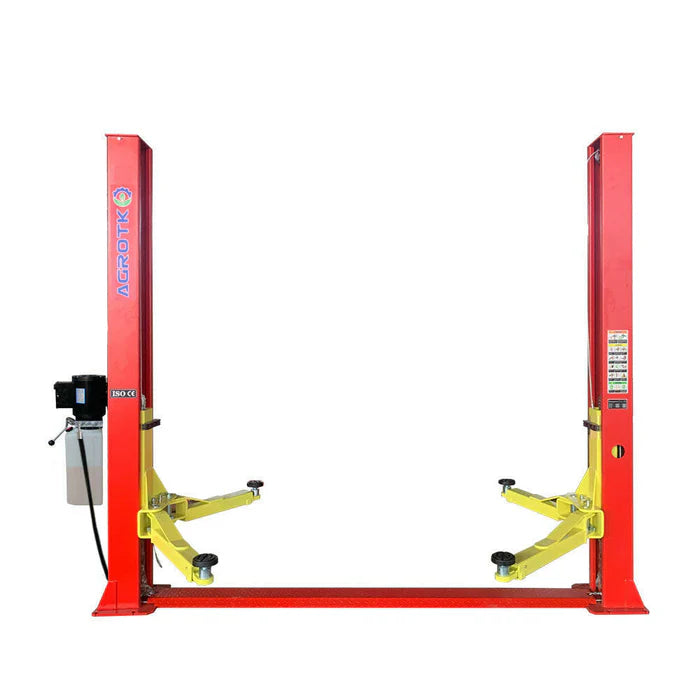

Cfgindustrial 10000 LB CAPACITY, TWO-POST AUTO CARLIFT | AGT-B1000
Regular price
$2,198.00
$2,450.00
Save$252.00
Sold out
SKU:AGT-B1000
Cfgindustrial 10000 LB CAPACITY, TWO-POST AUTO CARLIFT | AGT-B1000
Cfgindustrial 10000 LB CAPACITY, TWO-POST AUTO CARLIFT | AGT-B1000
Product Overview
SPECIFICATIONS
Maximum Lifting Height-72"
Maximum Working Width-100"
Minimum Height-4-1/2"
TL Certified Motor 3 HP-220V
No Load Speed-3360 RPM
Maximum Working Pressure-2600 PSI
Fuel Tank Capacity-11 Liter
ISO certification
| Lift Capacity | 4500kg / 10000lbs |

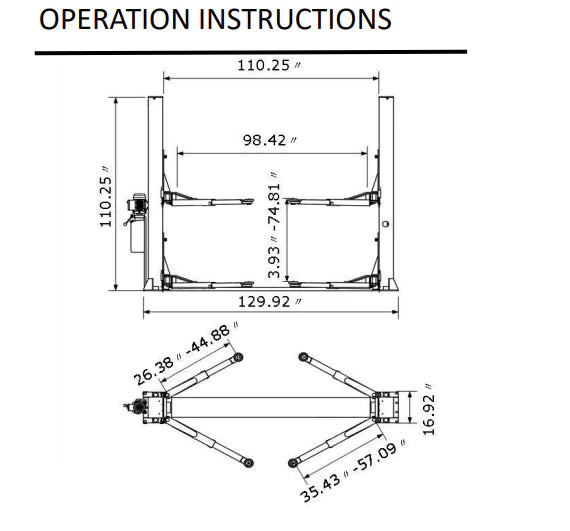

| Overall Height | 2800mm/110.25" |
| Overall Width | 3500mm/137.8" |
| Maximum Lifting Height W/O Truck Adaptor | 1900mm / 74.81" |
| Minimum Height | 100mm / 3.93" |
| Lifting Time | 55s |
| Outside Column to Outside Column Width | 3300mm / 129.92" |
| Inside Column Width | 2800mm / 110.25" |
| Drive Through | 2500mm/98.42" |
| Column Thickness of Steel | 4.75mm / 0.188" |
| Carriage Thickness of Steel | 4.75mm / 0.188" |
| Arms Thickness of Steel | 5.5mm / 0.217" |
| Cable Diameter | 8.2mm / 0.323" |
| Voltage | 220v |
| Power |
2.2kw / 3hp |
| Breaker | 30A |
| Hydraulic Fluid Requirment | 3-5 Gallons AW32/AW46 |
| Equipment Weight | 565kg / 1253lbs |
Packed with boxes A and B
| Box A | 110" x 22" x 30", 1190 Ibs |
| Box B | 31.5" x 10" x 14", 63 |bs |
DETAILS
1. 2 of-Stage arms and 2 of 3-Stage arms
2. Whole-Plate structure reinforced carriage
3. Service (inspection) hole
4. Over-Sized pulley
5. Multi-strand non-rotary non-stretchy cable

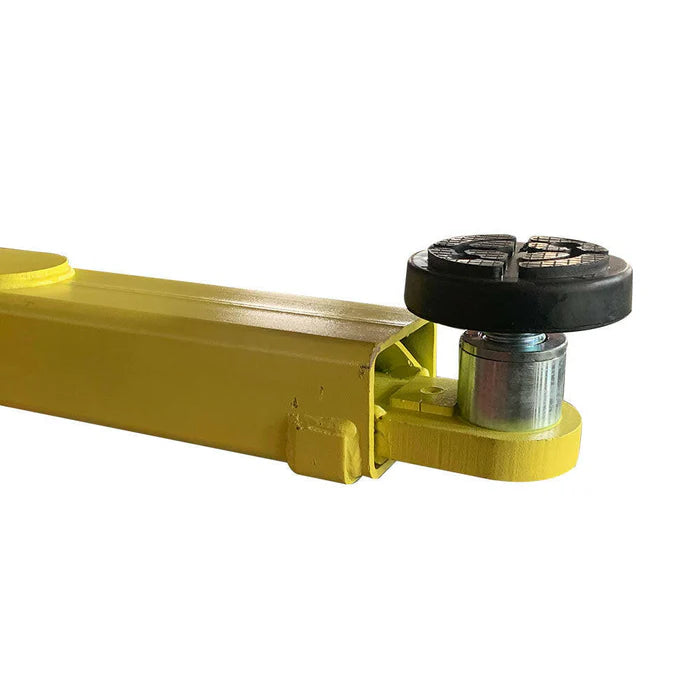

6. 4 Screw-Up rubber pads and 8 truck adapters
Product Warranty
