Cfgindustrial SKID STEER 750 HYDRAULIC CONCRETE BREAKER FOR SALE | AGT-SSHH-750A

The AGT-SSCM53 is a heavy-duty skid steer-mounted concrete mixer attachment designed to streamline on-site mixing and transport of concrete. With a 12.36 cubic-foot (≈ 0.53 m^3) capacity, built-in bag cutter, and robust galvanized steel construction, this attachment offers efficient mixing, bag splitting, and clean discharge in a compact form.

KEY FEATURES:

• 12.36 cu ft bucket capacily for ample mixing volume.

• Operating pressure: 16-21 MPa (≈ 2,320-3,045 PSl) and hydraulic flow range ~75-140 L/min.

• Built-in bag cutter to easily split mortar bags on site.

• Galvanized steel construction and top-grade materials for long service life.

• Universal skid steer mounting plate (45" x 19") for easy hookup.


BENEFITS:

• Allows mixing and transporting concrete directly with your skid steer, reducing labor and time.

• Designed to minimize spillage and waste thanks to full-volume design and secure build

• Bag cutter feature speeds up material feed and improves workflow on site.

• Built robustly for continuous job-site use with minimal downtime.


APPLICATIONS:

• Ideal for construction, utility, and site-prep projects where mobile concrete mixing is required.

• Suited for contractors, rental fleets, and general-purpose job-site equipment.

• Compatible with skid steer loaders capable of providing the required hydraulic flow and pressure.

TECHNICAL DETAILS:

SOLUTIONS TO COMMON PROBLEMS

• The hammer is not working after the installation

1. Improper bushing replacement. Refit the inner bushing. Make sure to use the original.
2. Quick couplers are installed wrong. Check connectors and replace them as needed.
3. Supply hoses have been reversed. The pressure line from the pump must be connected to the port marked IN. The return line connects to the port marked OUT.
4. Nitrogen pressure is too high, Release nitrogen and recharge as needed.


• Why does the hydraulic hammer suddenly stop working?


1. The backhead pressure is too high. Release nitrogen and recharge as specified.
2. The backhead is filled with oil. Disassemble the back head and replace the seal.
3. The control valve is stuck. Disassemble and clean the valve, and replace the worn valve.
4. Oil flow is not sufficient. Repair the pump, and adjust the hammer valve.


NITROGEN PRESSURE

PRODUCT OVERVIEW

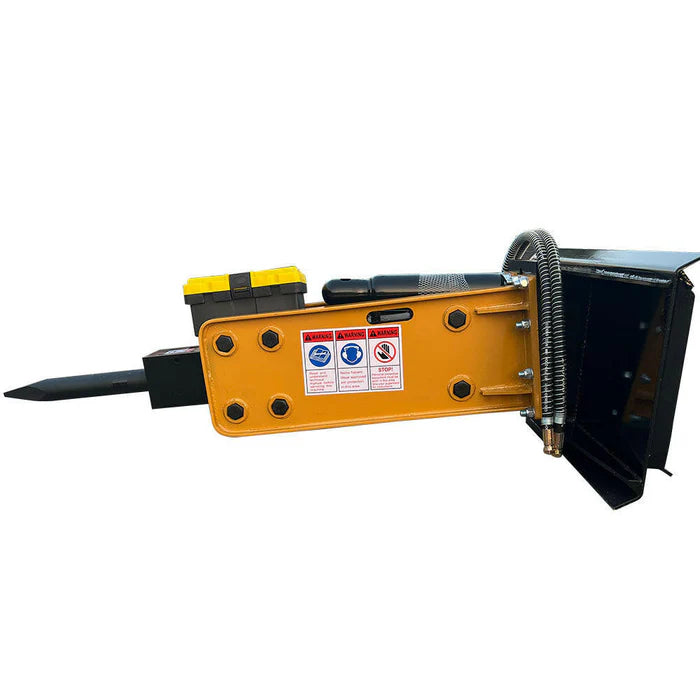

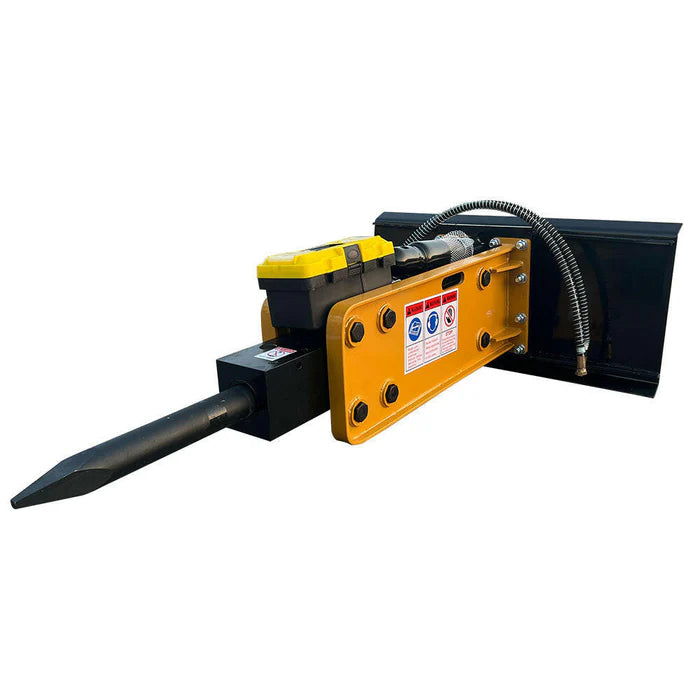

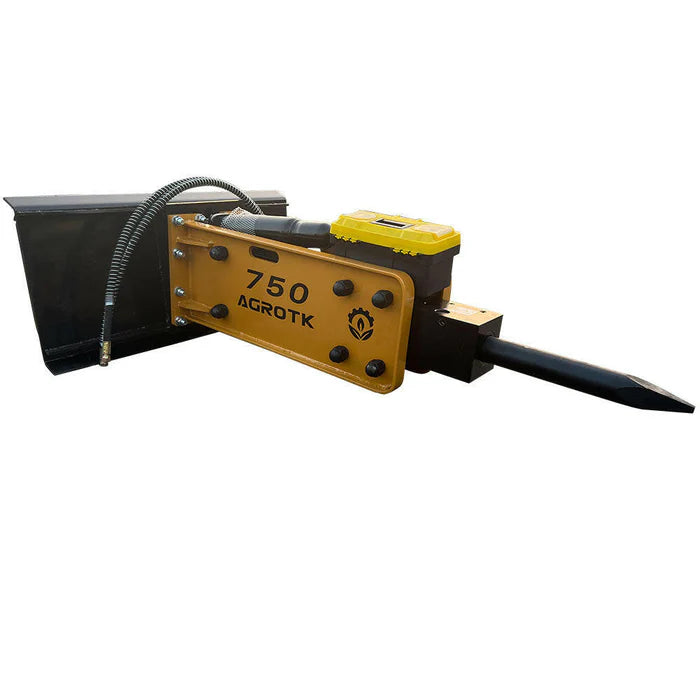

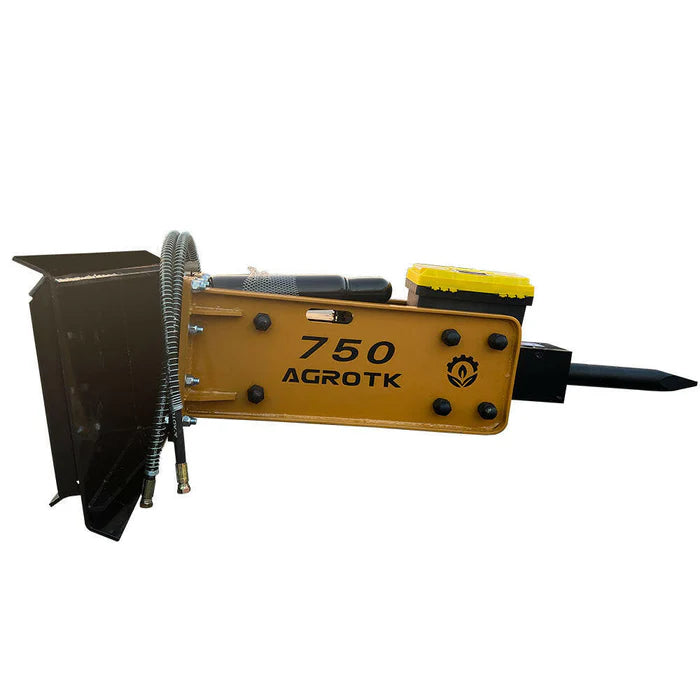

Designed for use with 45-100 HP medium to large skid steer loaders, the AGT-SSHH-750A hydraulic breaker hammer gets hard jobs done with ease.

With a 3" (75mm) diameter moil point chisel, this hammer is perfect for medium to large jobs including construction, demolition, excavating, and landscaping.

An impact rate of 500-800 BPM combined with 223-240 PSI working flow pressure makes this a versatile and efficient breaking hammer for breaking driveways, demolishing concrete structures, and digging holes.

INCLUDES:
