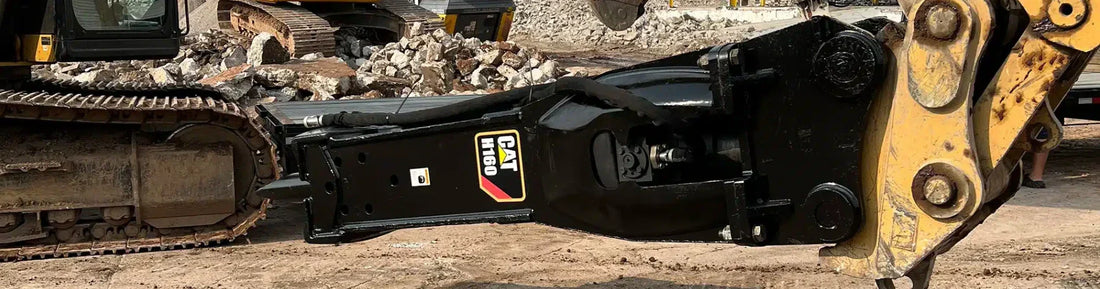

Step-by-Step Guide: Installing a Hydraulic Breaker on Your Mini Excavator for Maximum Efficiency

Mini excavators are versatile machines widely used for construction, demolition, excavation, and small-scale earthmoving tasks. When the job requires more destructive power, a hydraulic breaker (also known as a hydraulic hammer) becomes an indispensable attachment. By installing a breaker on a mini excavator, operators can efficiently handle tasks such as concrete demolition, rock breaking, and heavy material handling.

However, a proper installation process is crucial to ensure optimal performance and safety. In this article, we will guide you through the steps to install a hydraulic breaker on your mini excavator, helping you set up the equipment for smooth and efficient operation.

Disconnect the Power and Hydraulic System

• First, turn off the engine of the mini excavator and disconnect the power supply. This is to prevent electrical accidents during installation.
• To ensure safety, release the pressure in the hydraulic system by opening the oil drain valve or using a specific tool to release the hydraulic fluid. This will prevent unexpected hydraulic pressure during installation.

Remove Existing Attachments

If your mini excavator already has other attachments, such as a standard bucket or digging tool, you will need to remove them first. Use the appropriate tools to loosen the bolts securing the attachments and remove them from the machine.

Install the Breaker Mounting Bracket

• Start by installing the breaker mounting bracket onto the boom of the mini excavator. Ensure that the bracket is securely fastened with bolts and that everything is aligned properly.
• Make sure that the connection holes of the bracket and breaker align. Most breakers are designed to fit easily with standard mounting brackets.

Connect the Hydraulic System

• Select the appropriate hydraulic hoses based on the breaker and excavator specifications. Attach one end of the hoses to the breaker’s hydraulic ports and the other end to the excavator’s hydraulic system. Ensure all connections are secure and free from leaks.
• Make sure there is enough hydraulic oil in the system and that it is in good condition. The breaker’s functionality depends on a stable hydraulic system, so it’s important to maintain the oil quality.

Secure the Breaker

• Now, mount the breaker onto the bracket and secure it in place using bolts. Tighten the bolts with the appropriate tools to ensure the breaker is firmly attached.
• Double-check that the breaker is securely installed, and that all connections are tight. Make sure that the mounting bracket and breaker are aligned correctly.

Test Operation

• Start the mini excavator and gradually increase the hydraulic pressure to ensure the breaker’s hydraulic system is working properly.
• Perform a few test operations without a load to check that the breaker functions smoothly, without any unusual noises or vibrations.
• Carry out actual breaking tasks to ensure that the breaker operates effectively and that everything is running smoothly.

Check Safety and Work Environment

• Ensure that the breaker will not collide with any other parts of the mini excavator during operation, particularly when the boom is swinging or moving.
• Make sure the work area is safe, free of obstacles, and conducive to smooth breaker operation.

Common Issues and Troubleshooting

• If you notice leaks at the hose connections, check if the connections are tightened properly and ensure that the hoses are sealing well with the hydraulic ports.
• If the breaker doesn’t start, check the hydraulic oil levels and ensure that the hydraulic pressure is normal.
• If the breaker operates with difficulty or there’s excessive vibration, check for any obstructions or issues with the hydraulic system.
