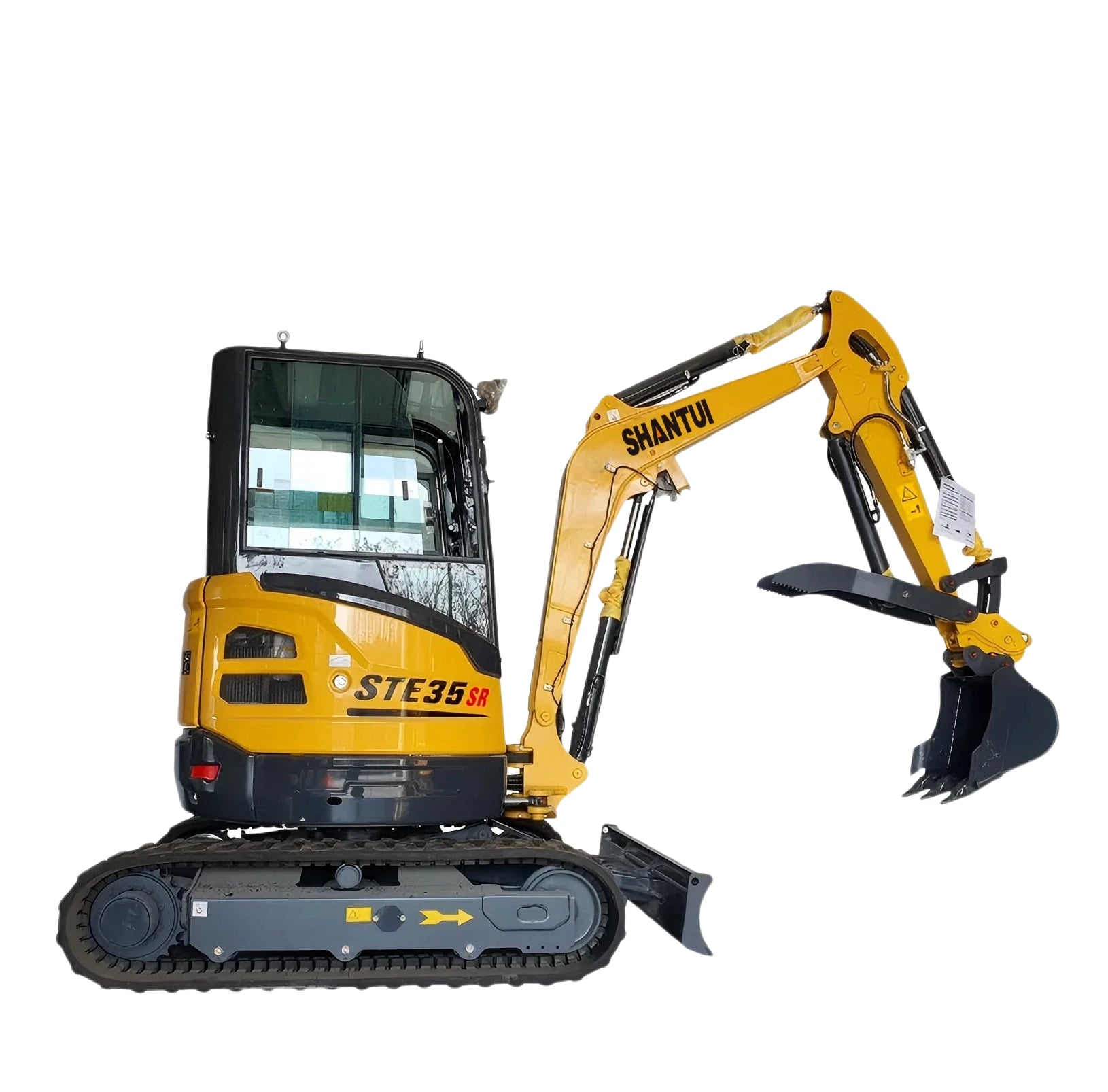

Cfgindustrial 2.8 Ton Yanmar Diesel Engine Mini Excavator with Hydraulic Thumb | CFG-STE35SR
Regular price
$26,890.99
$35,765.00
Save$8,874.01
Sold out
SKU:CFG-STE35SR
Cfgindustrial 2.8 Ton Yanmar Diesel Engine Mini Excavator with Hydraulic Thumb | CFG-STE35SR
Cfgindustrial 2.8 Ton Yanmar Diesel Engine Mini Excavator with Hydraulic Thumb | CFG-STE35SR
Product Overview

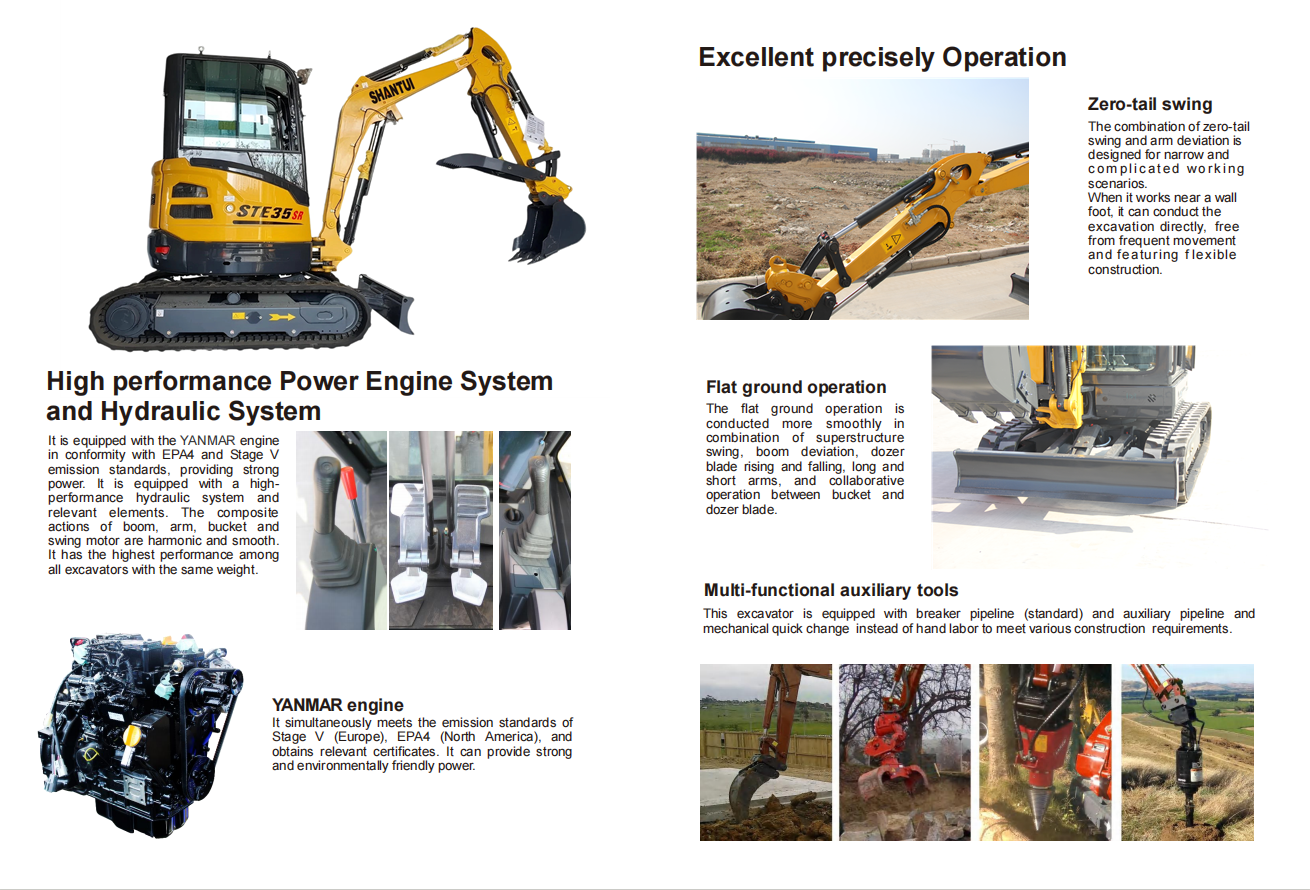

This 2.8 ton mini excavator combines compact design with powerful performance featuring a 9.19-foot maximum digging depth for efficient work in tight spaces like driveways, backyards, and gardens. Equipped with a hydraulic thumb, internal hydraulic hoses for added safety, and rear-opening compartments for easy maintenance, it's built for reliability and convenience.
Uses 35 mm pin attachments.

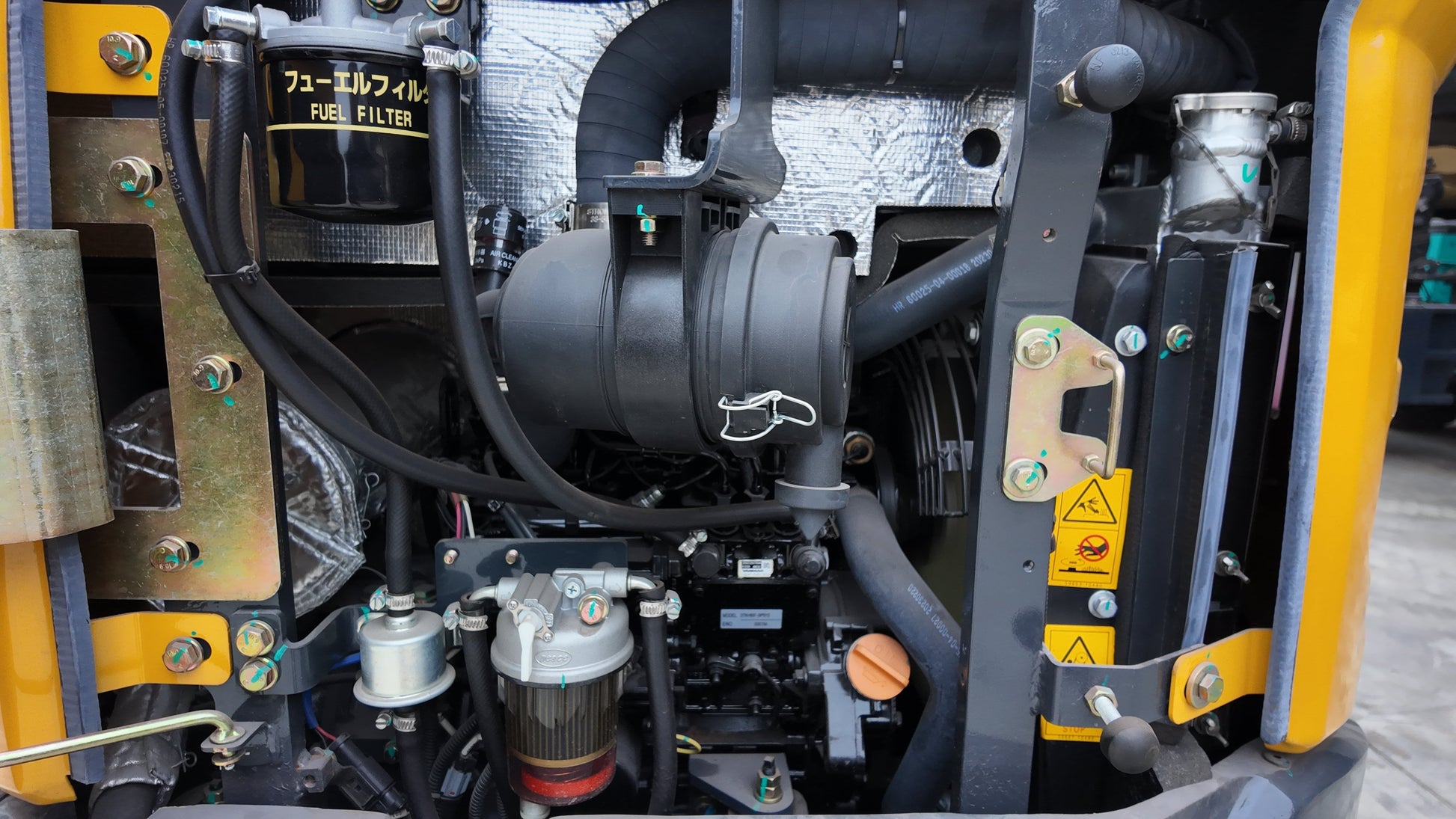

Engine & Powertrain:

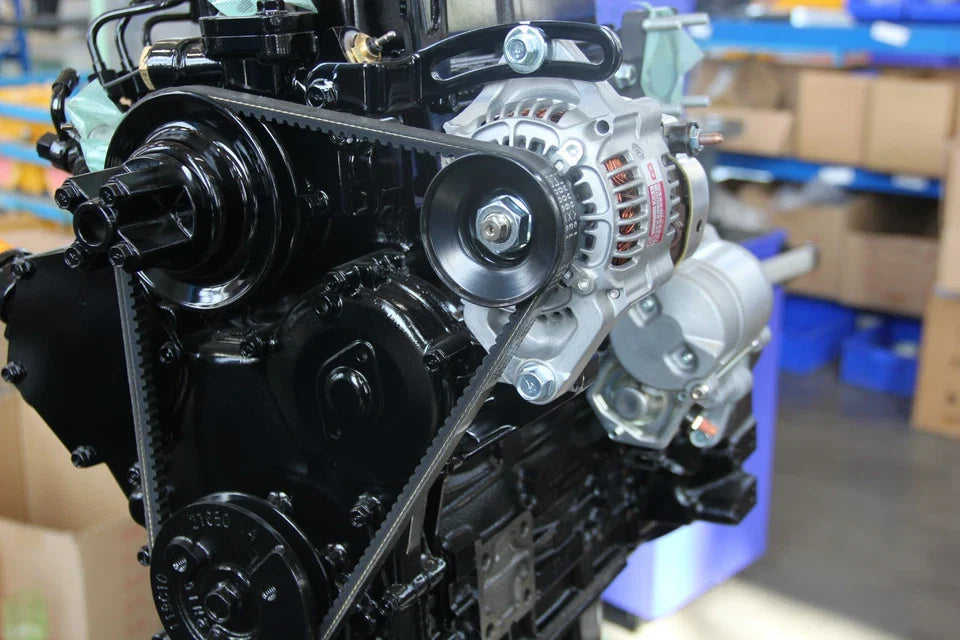

- Engine Brand/Model: Yanmar 3TNV80F (3-Cylinder, Water-Cooled Diesel)
- Emission Standard: EPA Tier 4 Final / EU Stage V
- Displacement: 1.267 L
- Power Output: 14.6 kW @ 2400 rpm (approx. 19.6 hp)
- Travel Speed: Dual-speed system (2.0 / 3.1 km/h)
- Max. Drawbar Pull: 29 kN
Hydraulic System & Forces:
- Max. Hydraulic Flow: 87 L/min (approx. 23 GPM) — Excellent for high-demand attachments!
- Bucket Digging Force: 24 kN
- Arm Digging Force: 14.8 kN
- Hydraulic Pilot Control Rod: Standard Equipped (Smooth Joystick Operation)
Dimensions & Operating Weight:
- Transport Length (Arm Lowered): 4,200 mm (approx. 165.4 in)
- Overall Height (Top of Canopy/Cab): 2,480 mm (approx. 97.6 in)
- Undercarriage Width: 1,550 mm (approx. 61.0 in)
- Undercarriage Length: 2,020 mm (approx. 79.5 in)
- Upperbody Width (Zero Tail Swing): 1,400 mm (approx. 55.1 in)

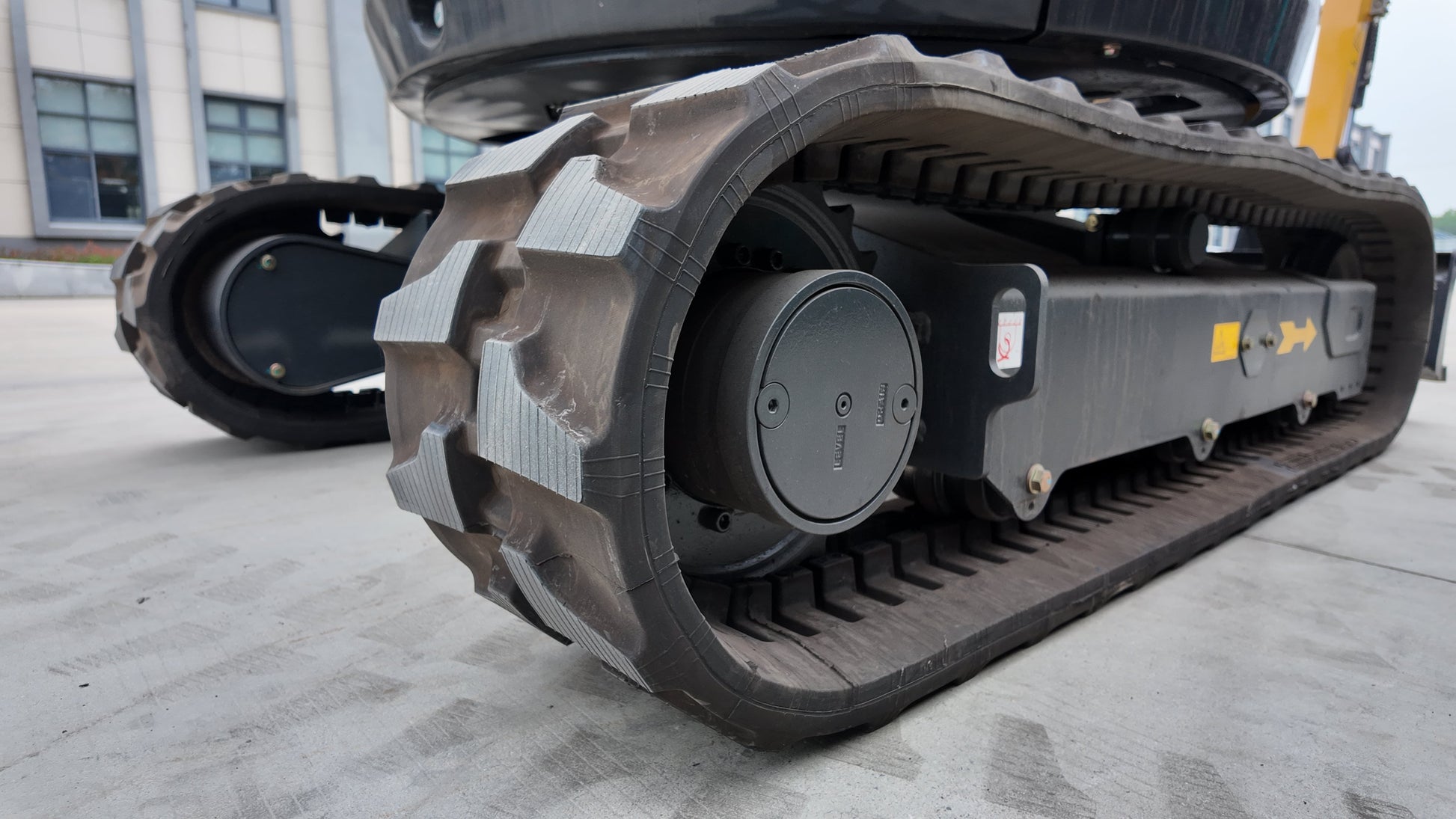

- Track Shoe Width: 300 mm (Standard Rubber Tracks)
Working Range & Capabilities:
- Max. Digging Height: 4,390 mm (approx. 172.8 in)
- Max. Dumping Height: 3,060 mm (approx. 120.5 in)
- Max. Digging Depth: 2,800 mm (approx. 110.2 in)
- Max. Digging Radius: 4,800 mm (approx. 189.0 in)
- Max. Reach at Ground Level: 4,680 mm (approx. 184.2 in)
- Maximum Dozer Lift Height: 300 mm / Max Dozer Dig Depth: 320 mm
Refilling Capacities:
- Fuel Tank: 33 L
- Hydraulic Oil Tank: 22 L
- Cooling System: 5 L
- Engine Oil: 3.4 L

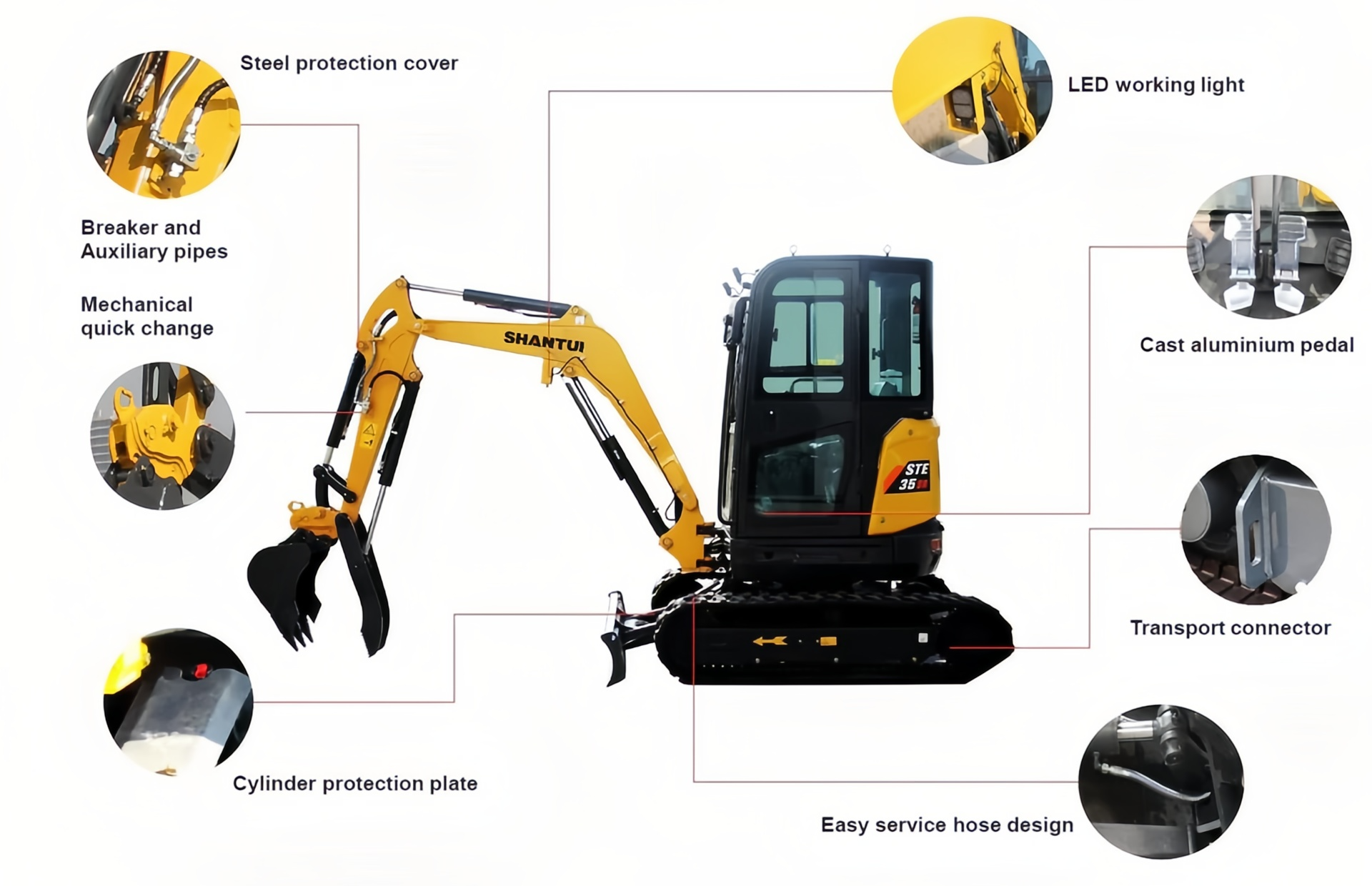

Premium Standard Equipment Included:

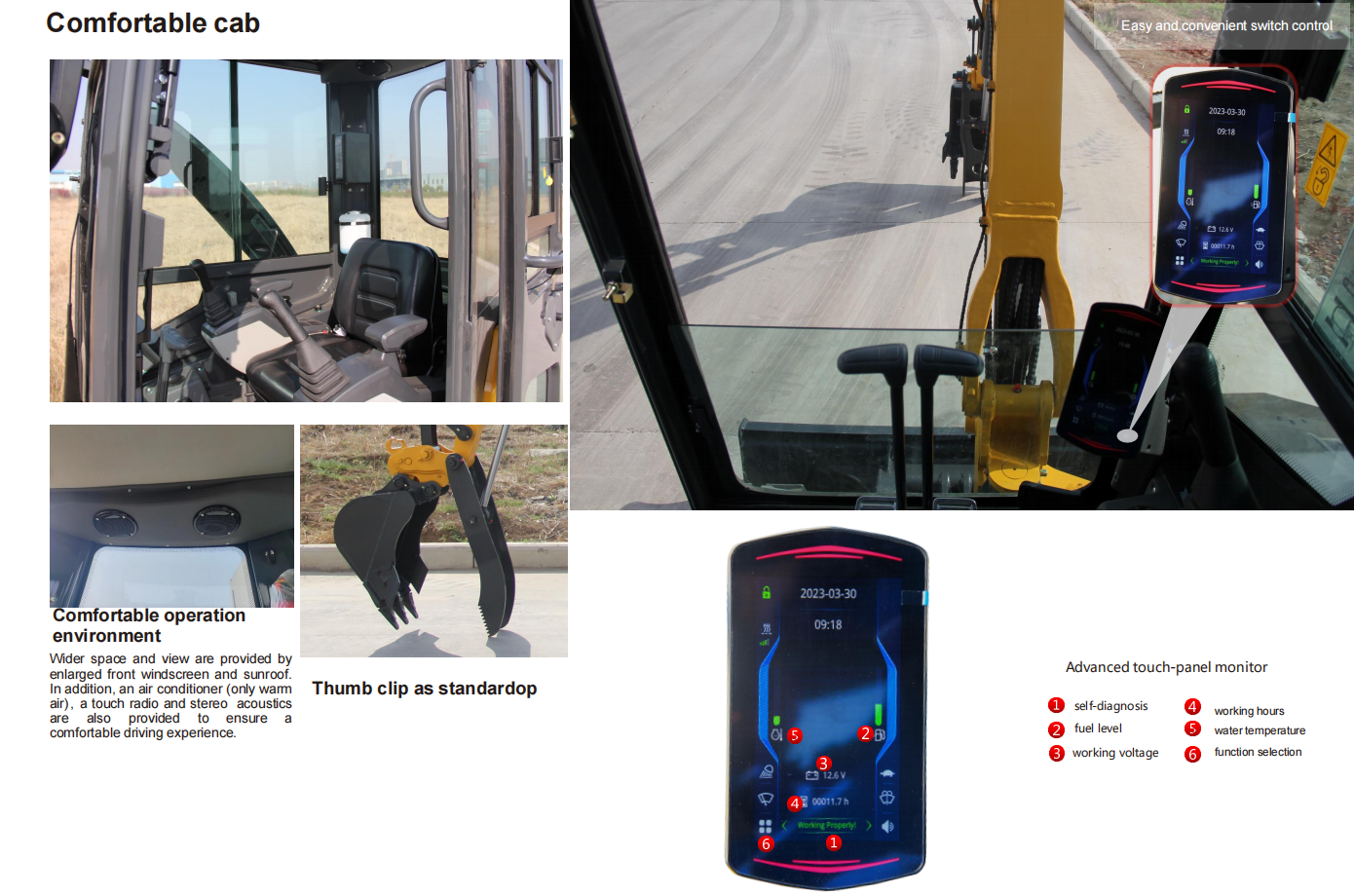

- Fully Enclosed Cabin with Windscreen Washer/Wiper & Left Rearview Mirror

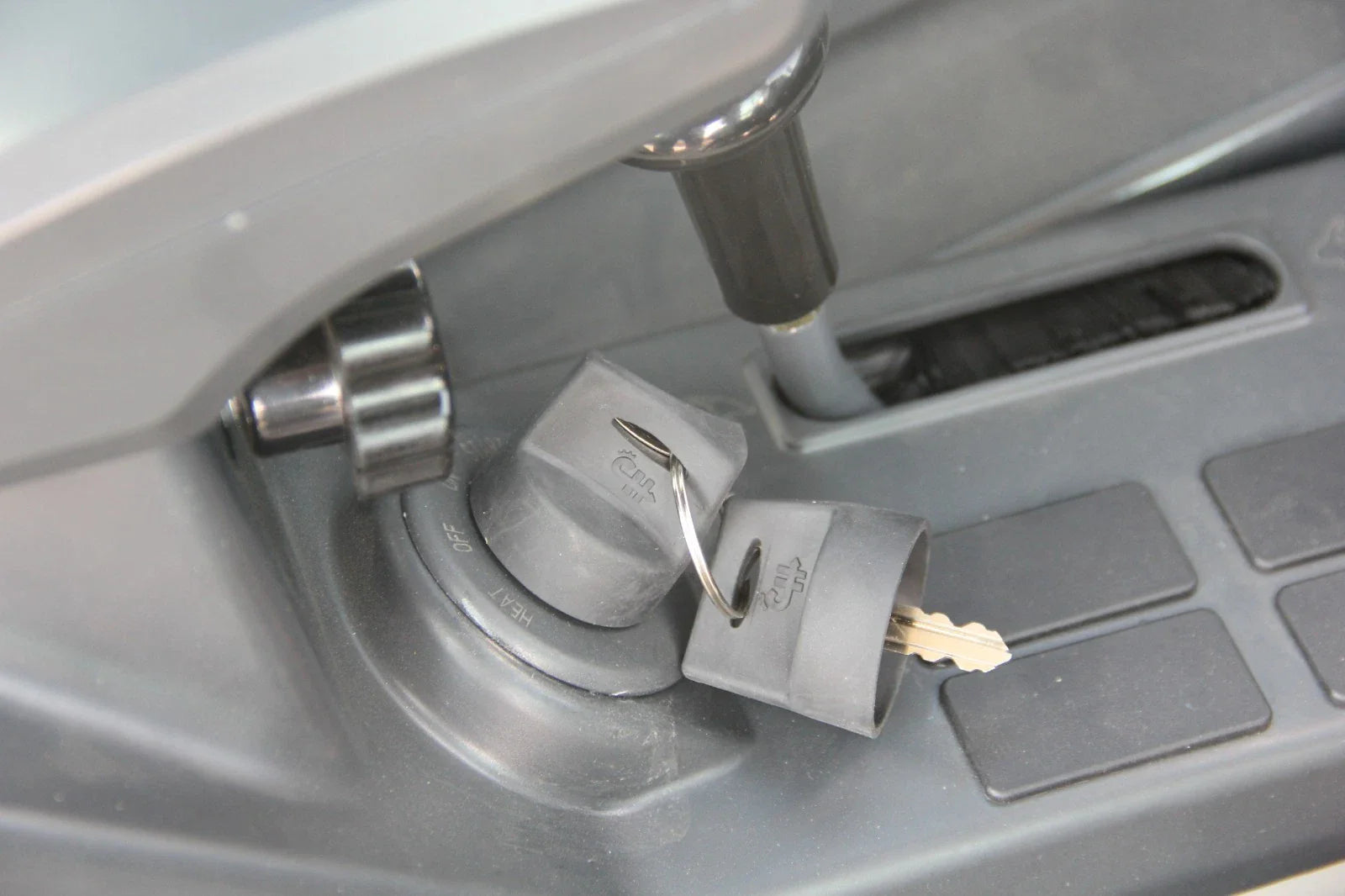

- AM/FM Radio & Engine Safety Start System
- Boom Light & Front Cab Work Lights (LED)
- Pre-piped Breaker/Auxiliary Lines for easy attachment hookups
- 460mm Heavy-Duty Backhoe Bucket (Capacity: 0.06 m³)
Product Features
Product Warranty
Specifications

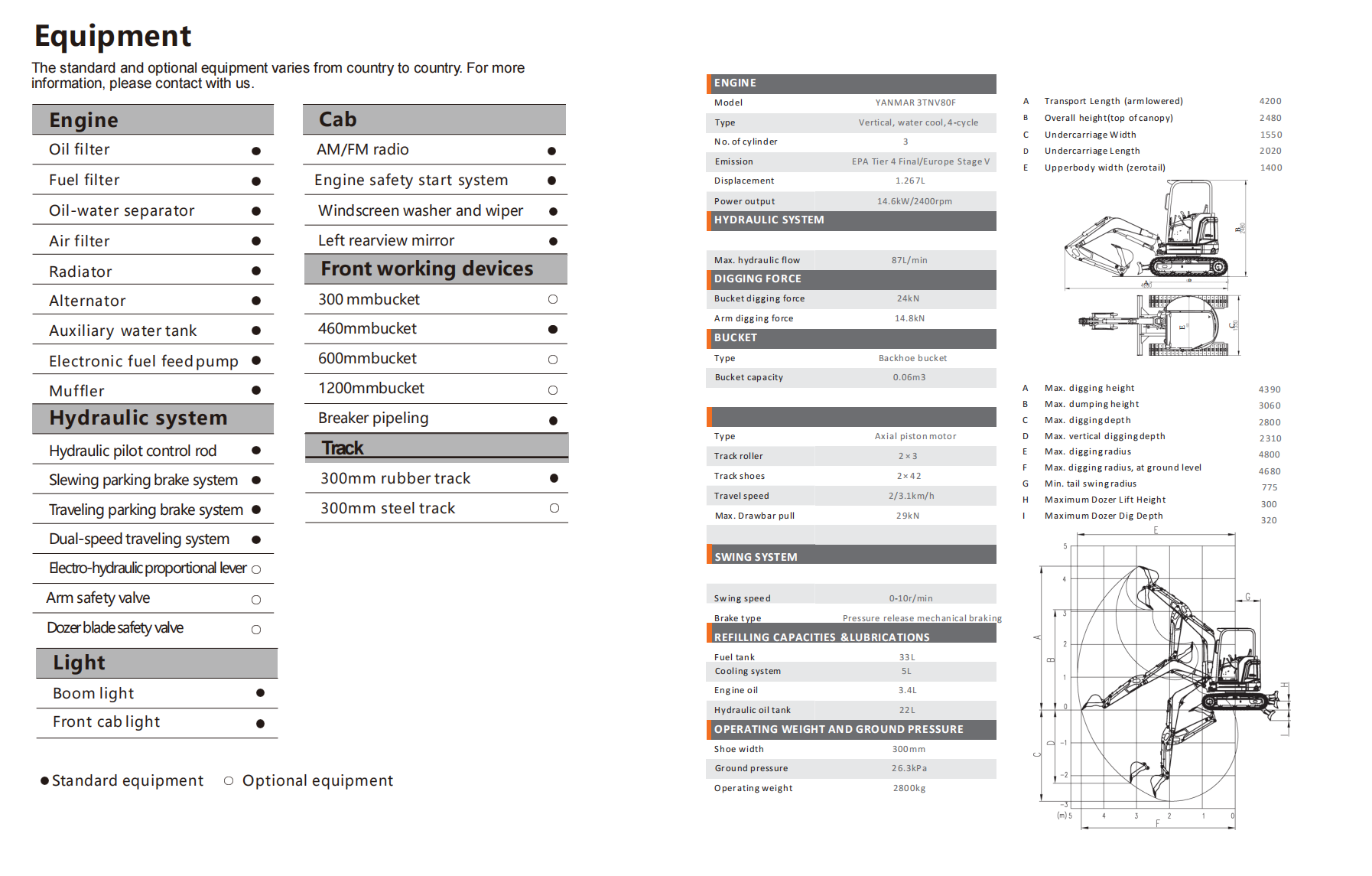

| Equipment Technical Specifications | |
|---|---|
| DIMENSION | |
| Operating weight | 2.6 Ton (6,173 lbs) |
| Overall length | 4.880 mm (192 in) |
| Overall width | 1.740 mm (68.5 in) |
| Overall height | 2.550 mm (100 in) |
| Track Size | 300*580 mm (Width*Pitch Length*Links) |
| Ground clearance | 295 mm (11.6 in) |
| Tail swing radius | 3.360 mm (132 in) |
| Undercarriage length | 3.360 mm (132 in) |
| Track gauge | ~1.350 mm (53.1 in) |
| Track rollers per side | 4 |
| WORKING RANGE | |
| Max digging depth | 2.800 mm (110 in) |
| Max digging height | 5.100 mm (200 in) |
| Max dumping height | 3.600 mm (142 in) |
| Max reach at ground level | 4.680 mm (184 in) |

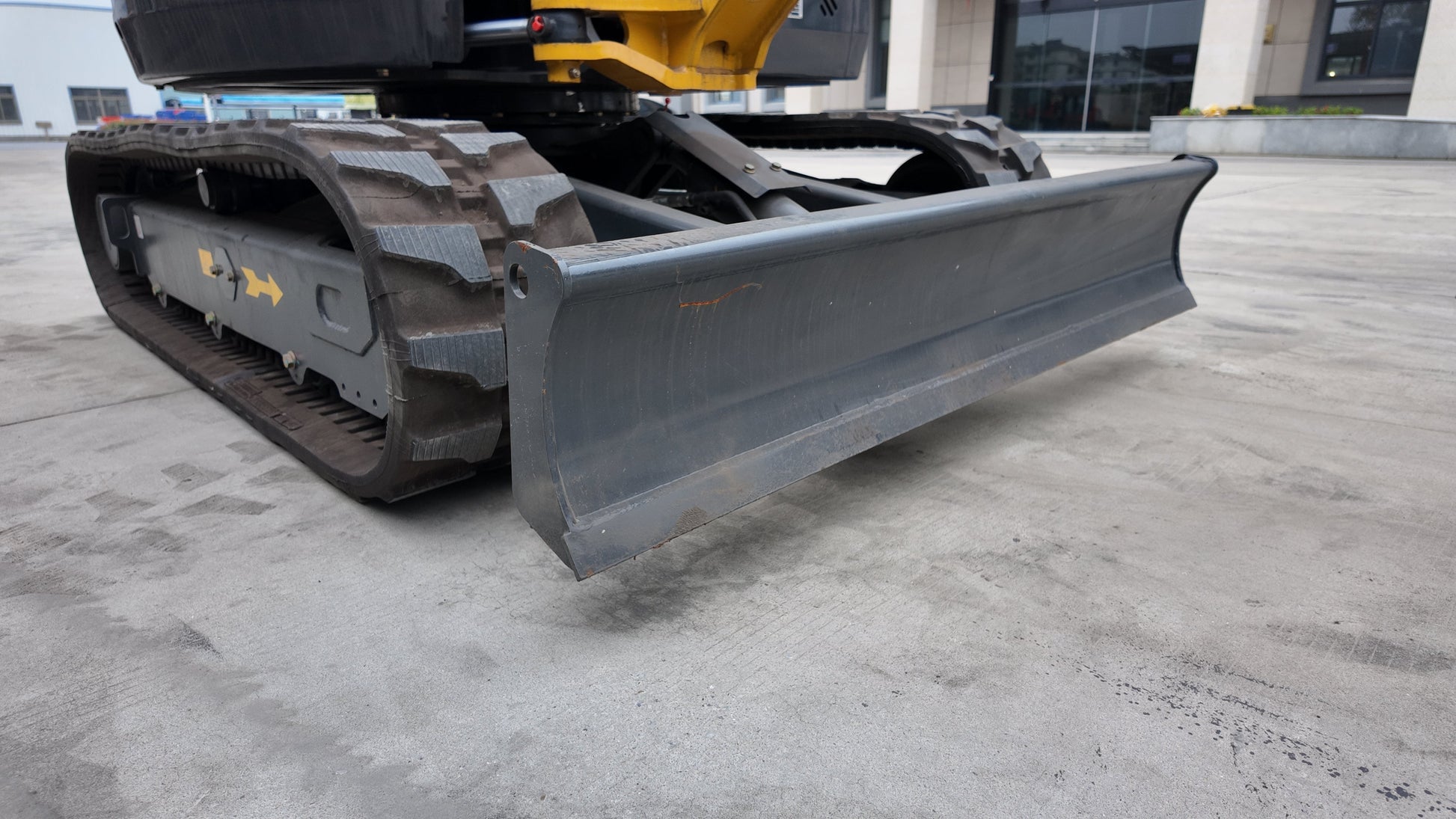

| Dozer Blade Width | 1.530 mm (60 in) |
| Dozer Blade Height | 300 mm (12 in) |
| Blade Max Lifting Height | 300 mm (12 in) |
| Blade Max Drop Depth | 320 mm (12.5 in) |
| Bucket breakout force | 24.5 kN (5,400 lbf) |
| Arm digging force | 14.8 kN (3,330 lbf) |
| ENGINE | |
| Brand | Yanmar |
| Fuel type | Diesel |
| Model | 3TNV80F |
| Type | 3-cylinder, water-cooled, diesel |
| Rated power | 18.2 kW (25 hp) |
| Displacement | 1642 cc |
| Fuel capacity | 50 L (13.2 gal) |
| Hydraulic Tank Capacity | 21 L (5.8 gal) |
| Cooling | Liquid-cooled radiator |
| Max torque | 77 Nm @ 1.500 RPM |
| Emission standard | Tier 4 Final / EU Stage V |
| FEATURES | |
| Enclosed Cabin | Standard |
| Pilot Control | Standard |
| Side Swing Boom | Standard |
| Hydraulic Thumb | Standard |
| LED Lights | Standard |
| Rearview Mirror | Standard |
| Bucket sizes | 0.1 - 0.15 m³ (3.5 - 5.3 ft³) |
| Auger | Compatible, flow matched up to 25 GPM |
| Breaker | Compatible, flow matched |
| Grapple | Compatible |
| Quick coupler | Optional pin-on type |
