Cfgindustrial 2 Ton Mini Hydraulic Excavator with Cab, Rato 825 Gasoline Engine | MX50R

Name: Cfgindustrial 2 Ton Mini Hydraulic Excavator with Cab, Rato 825 Gasoline Engine | MX50R
Brand: Cfgindustrial
SKU: MX50R
Price: 14681.99 USD
Availability: OutOfStock

1 29

$14,681.99

~~$15,300.00~~ Save$618.01 Sold out

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 5 - 15 Business Days

Details

Payment:

View full details

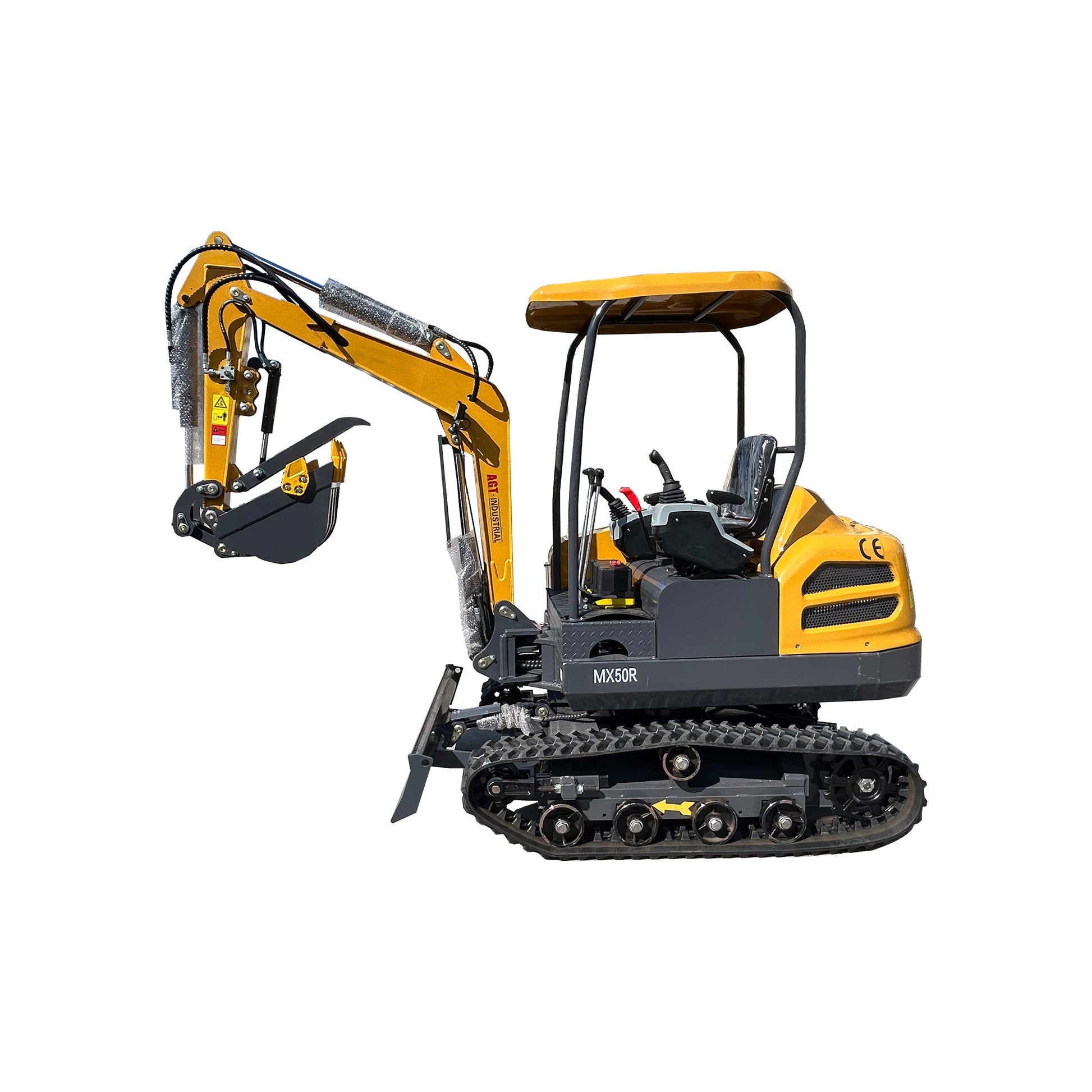

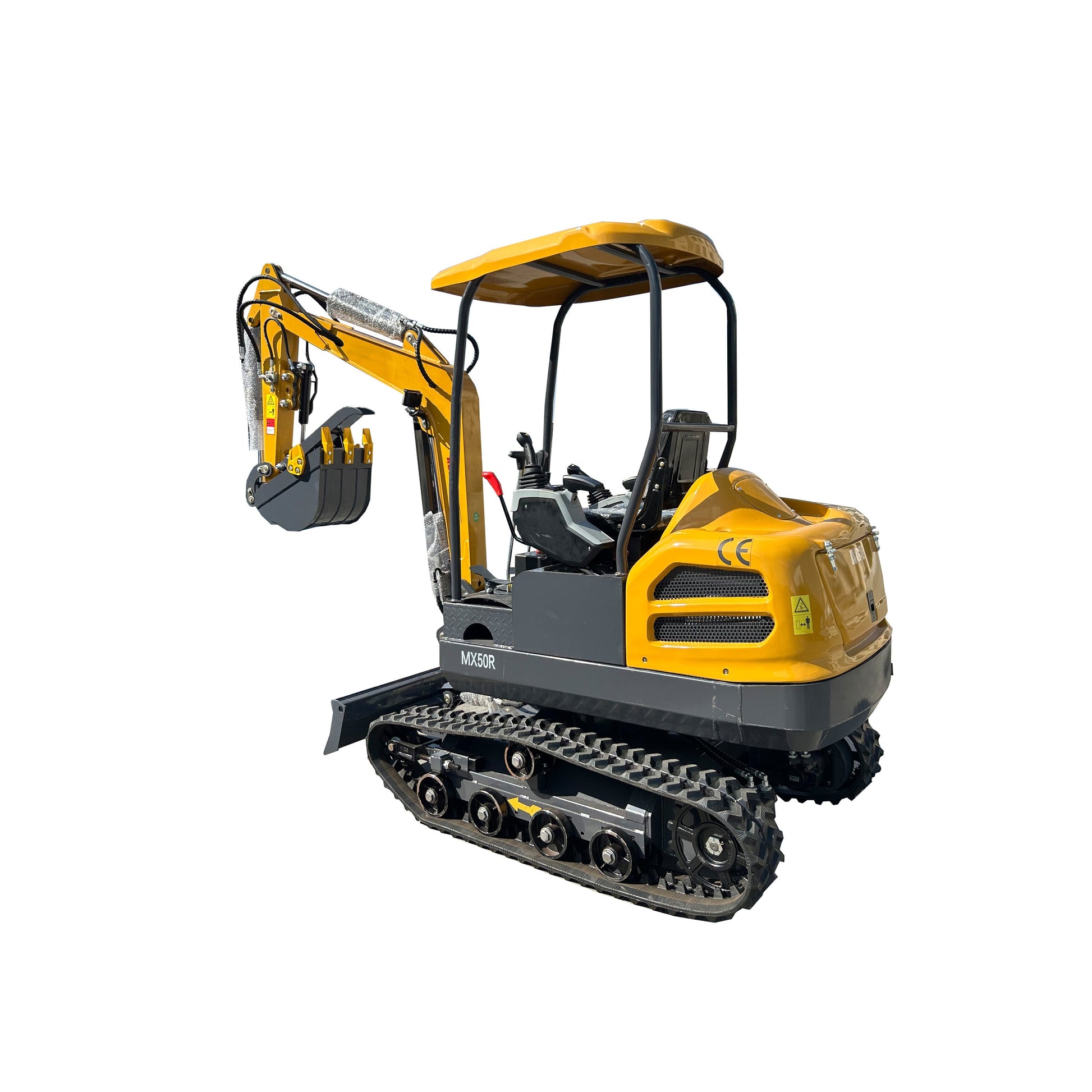

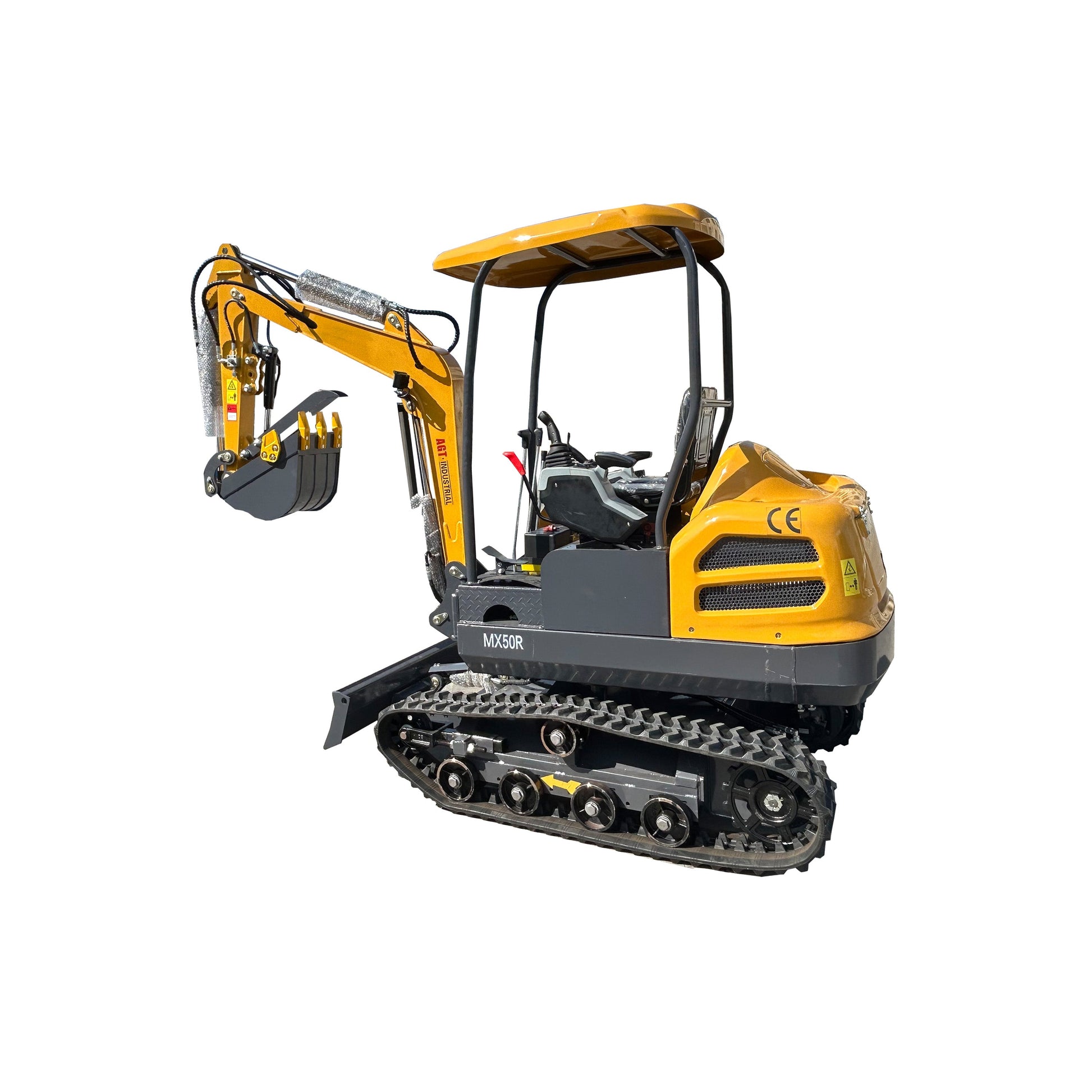

Product Overview

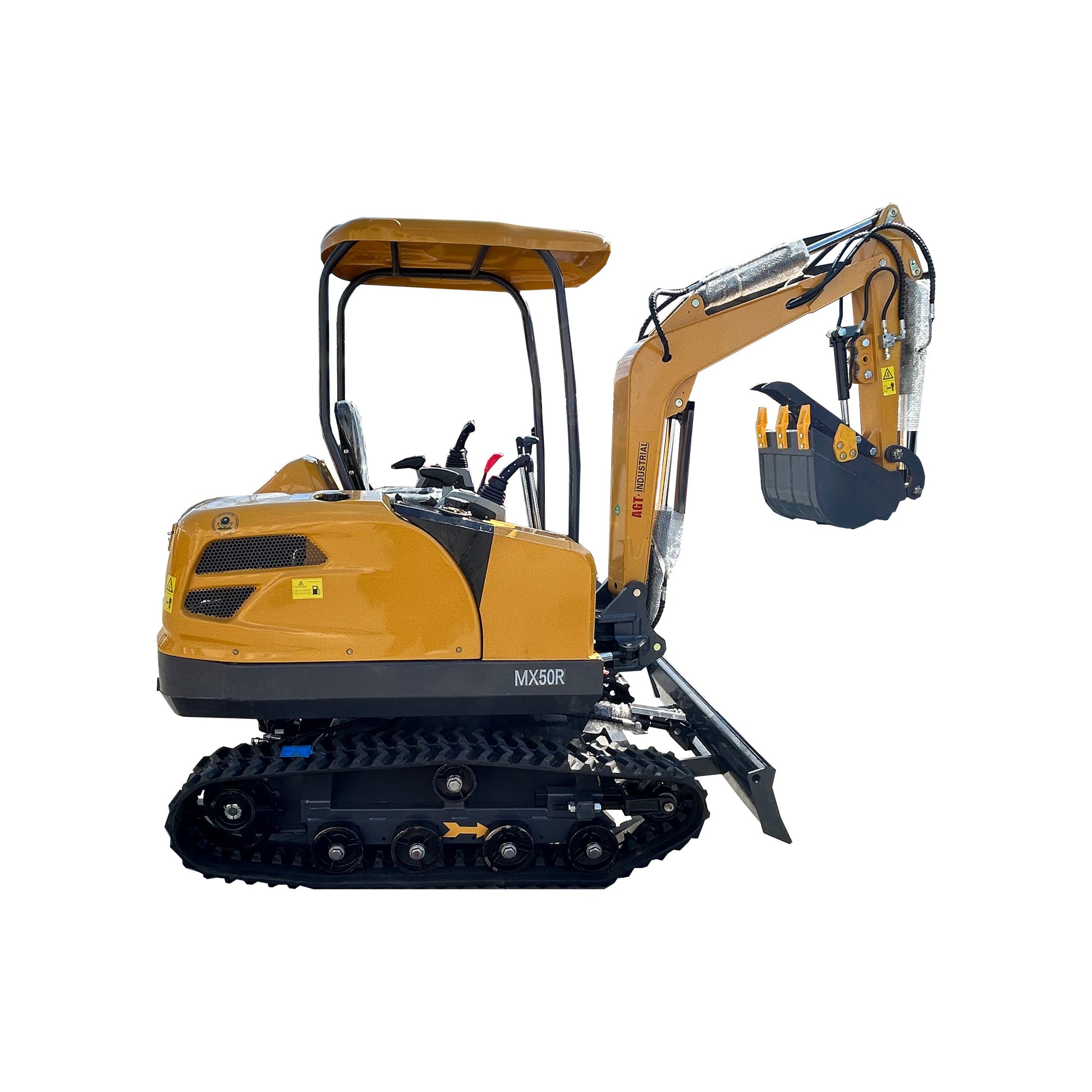

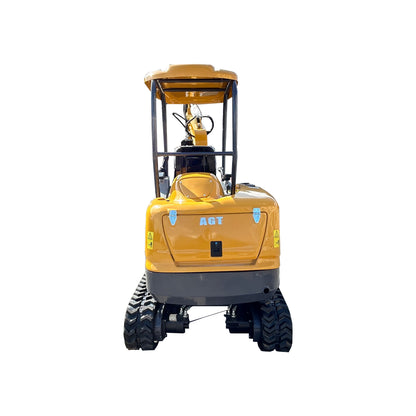

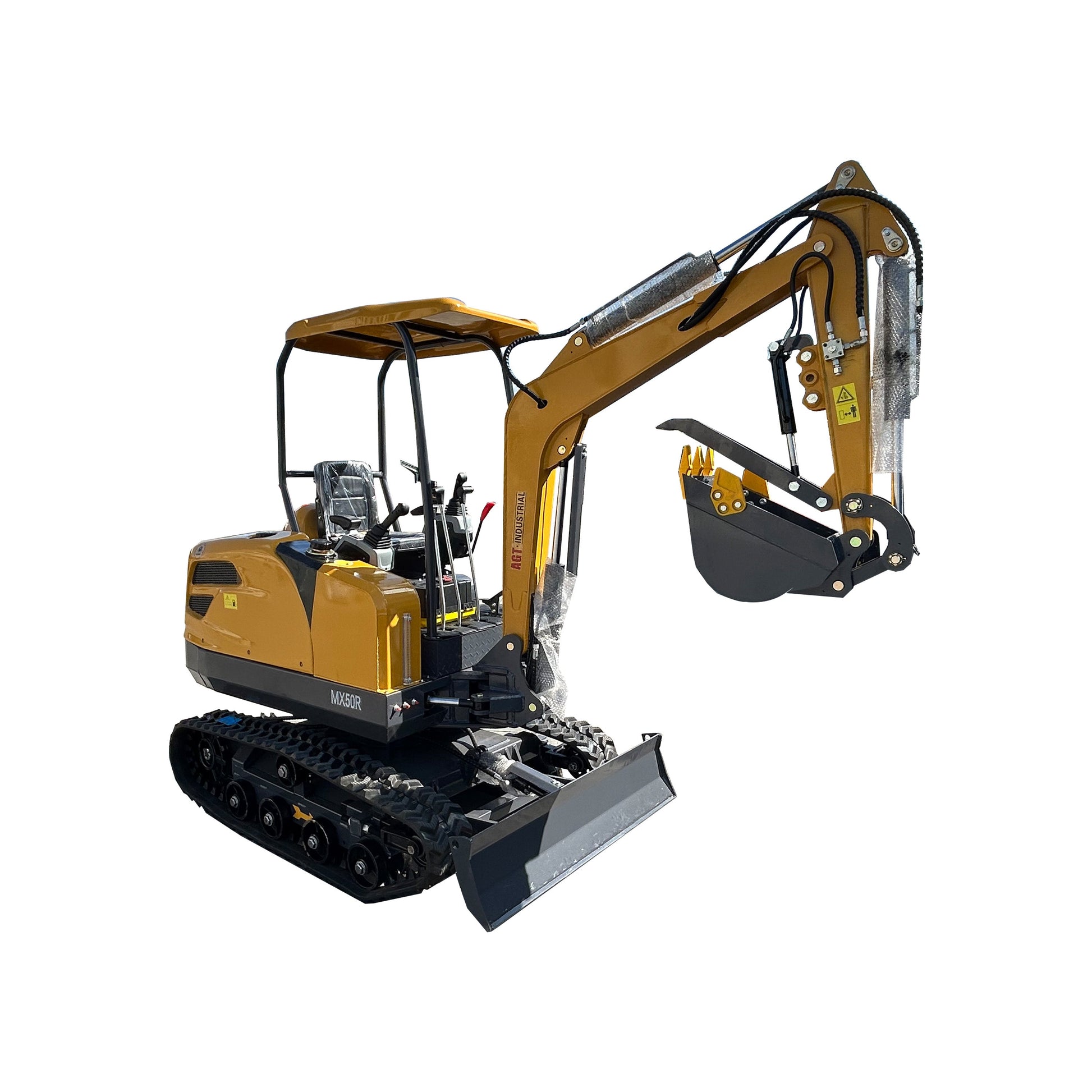

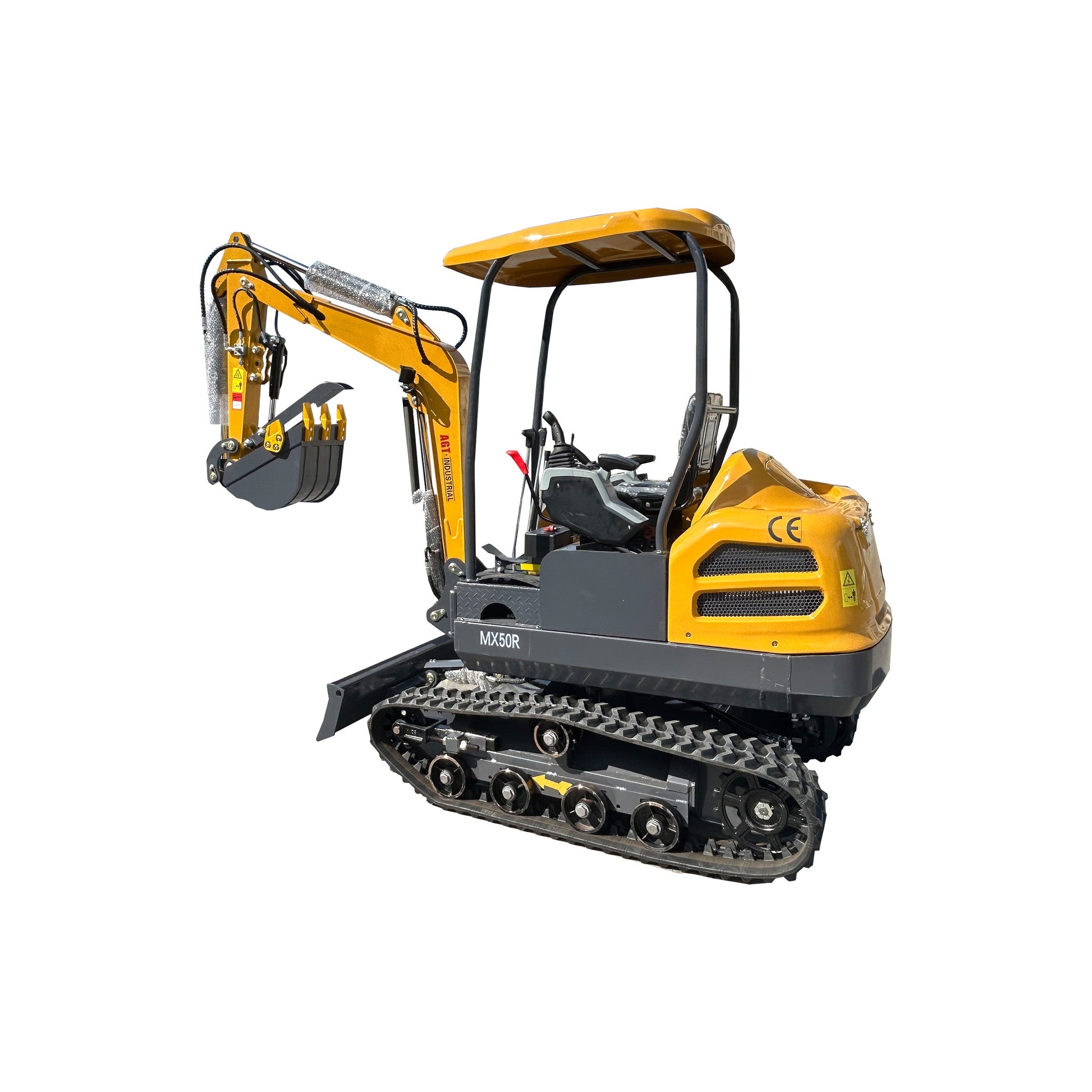

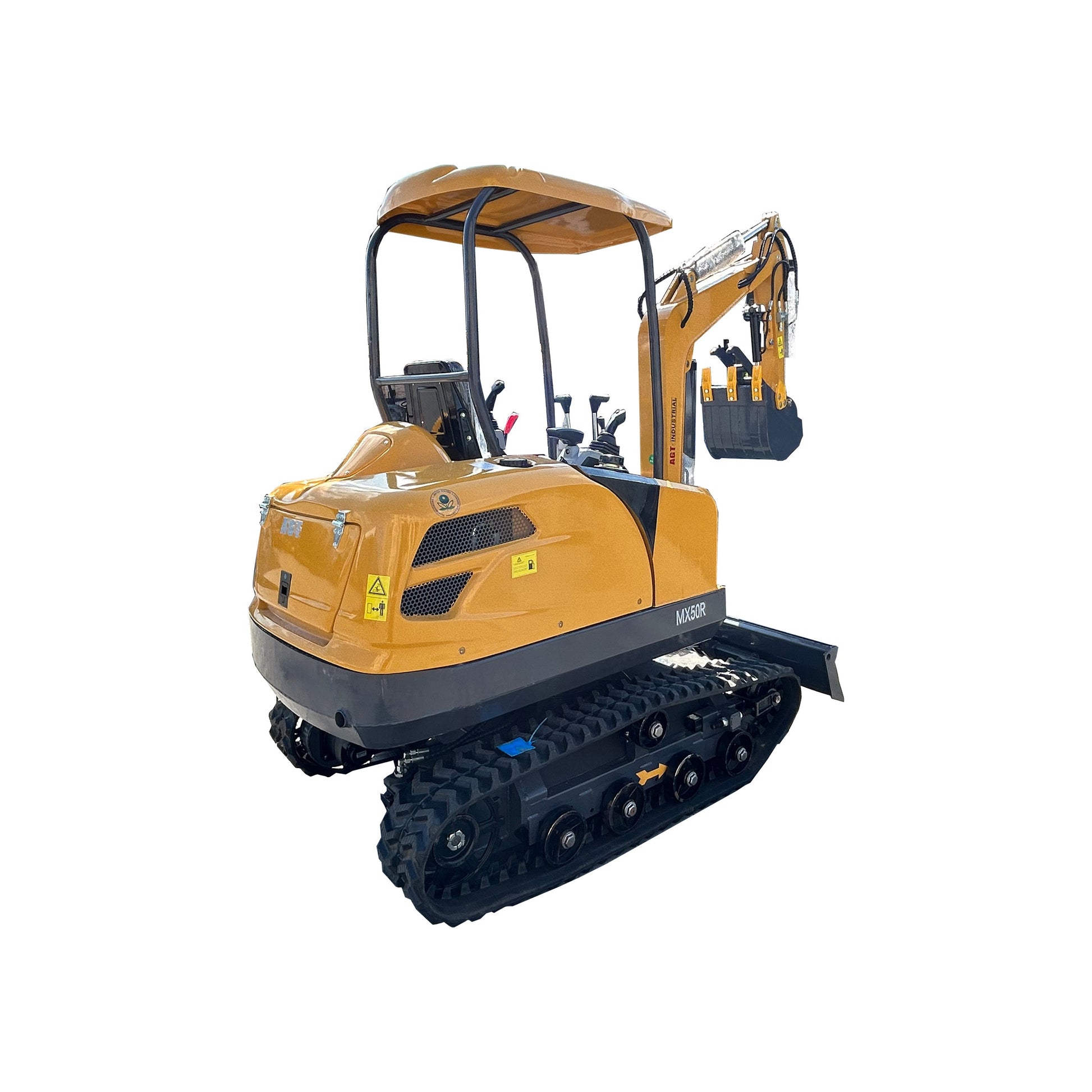

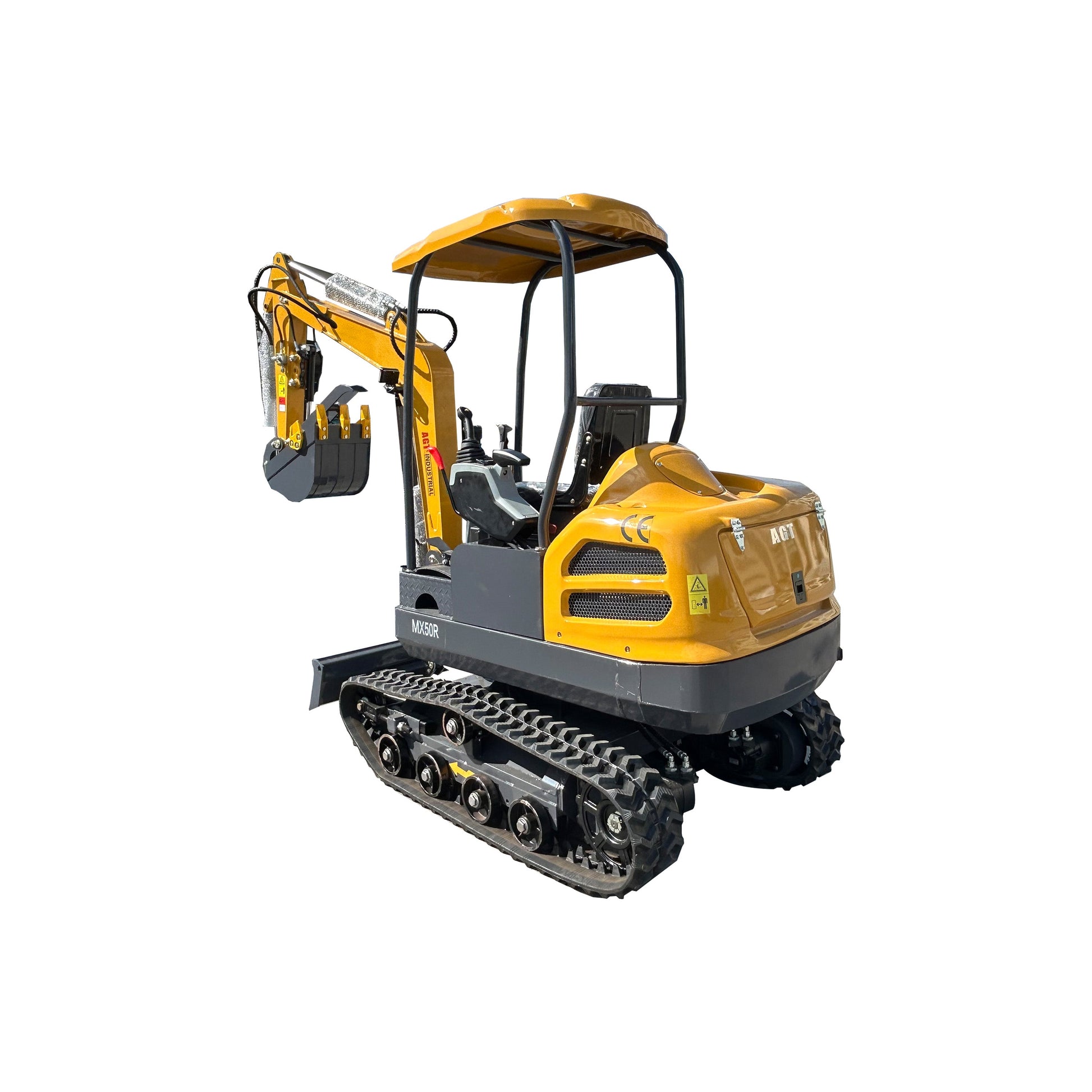

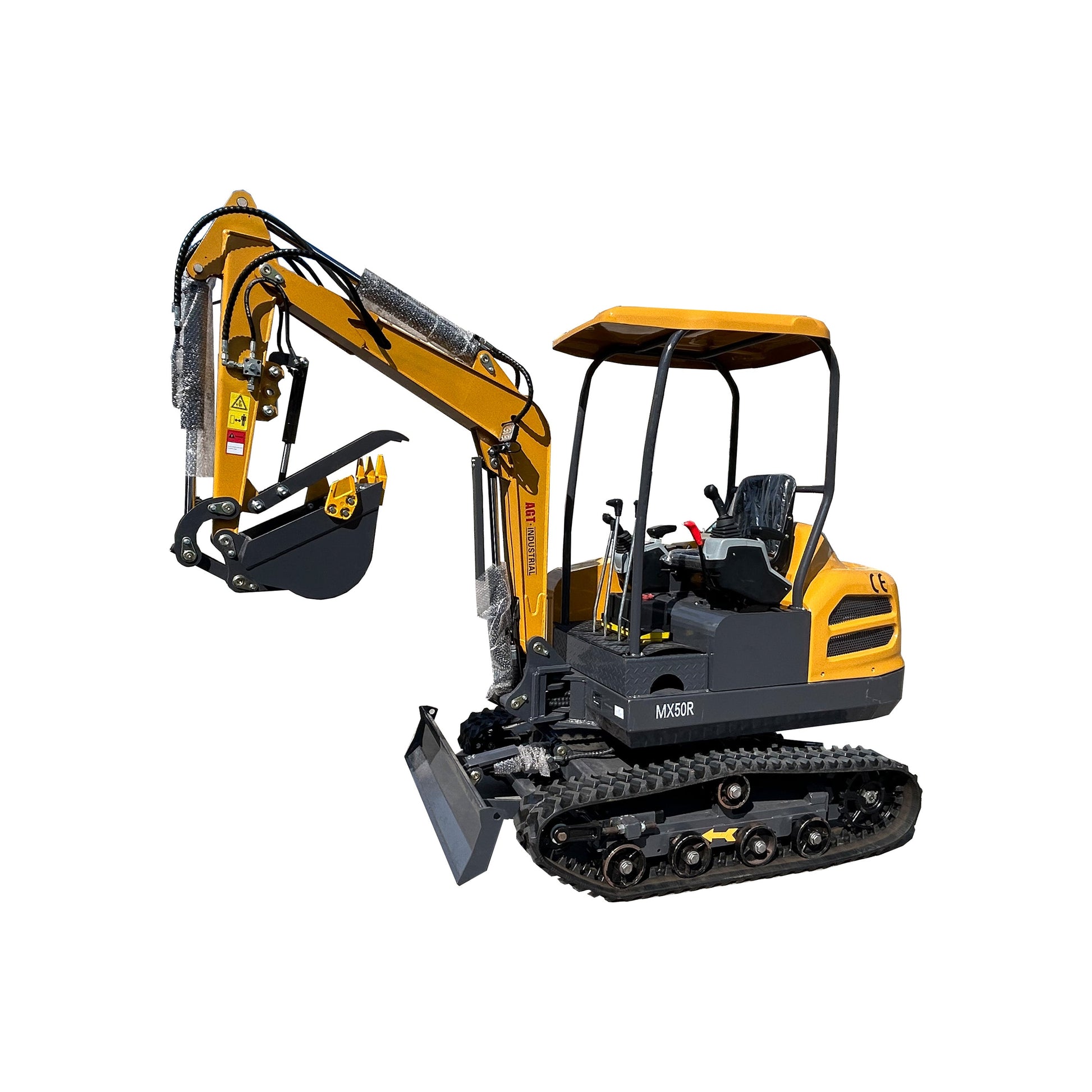

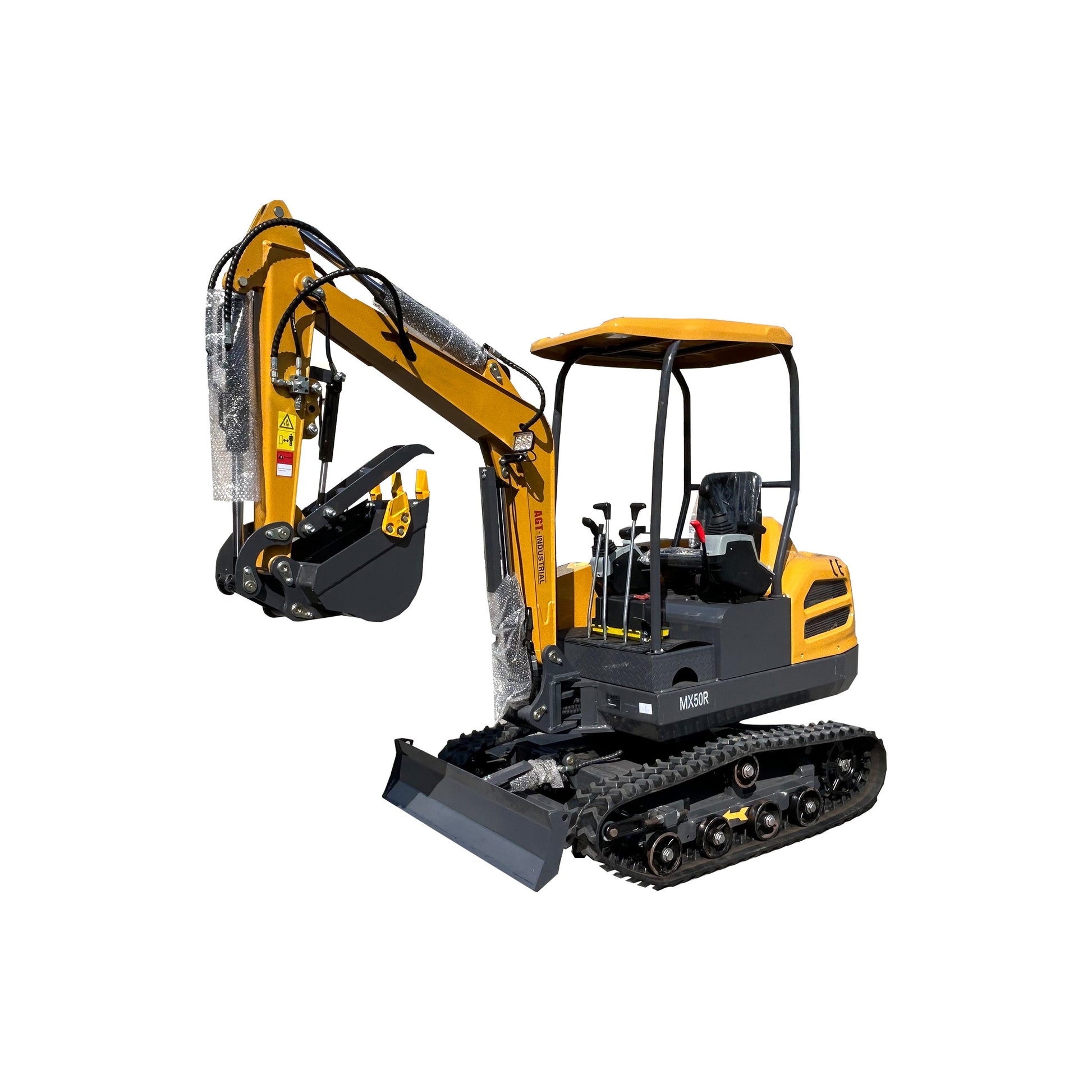

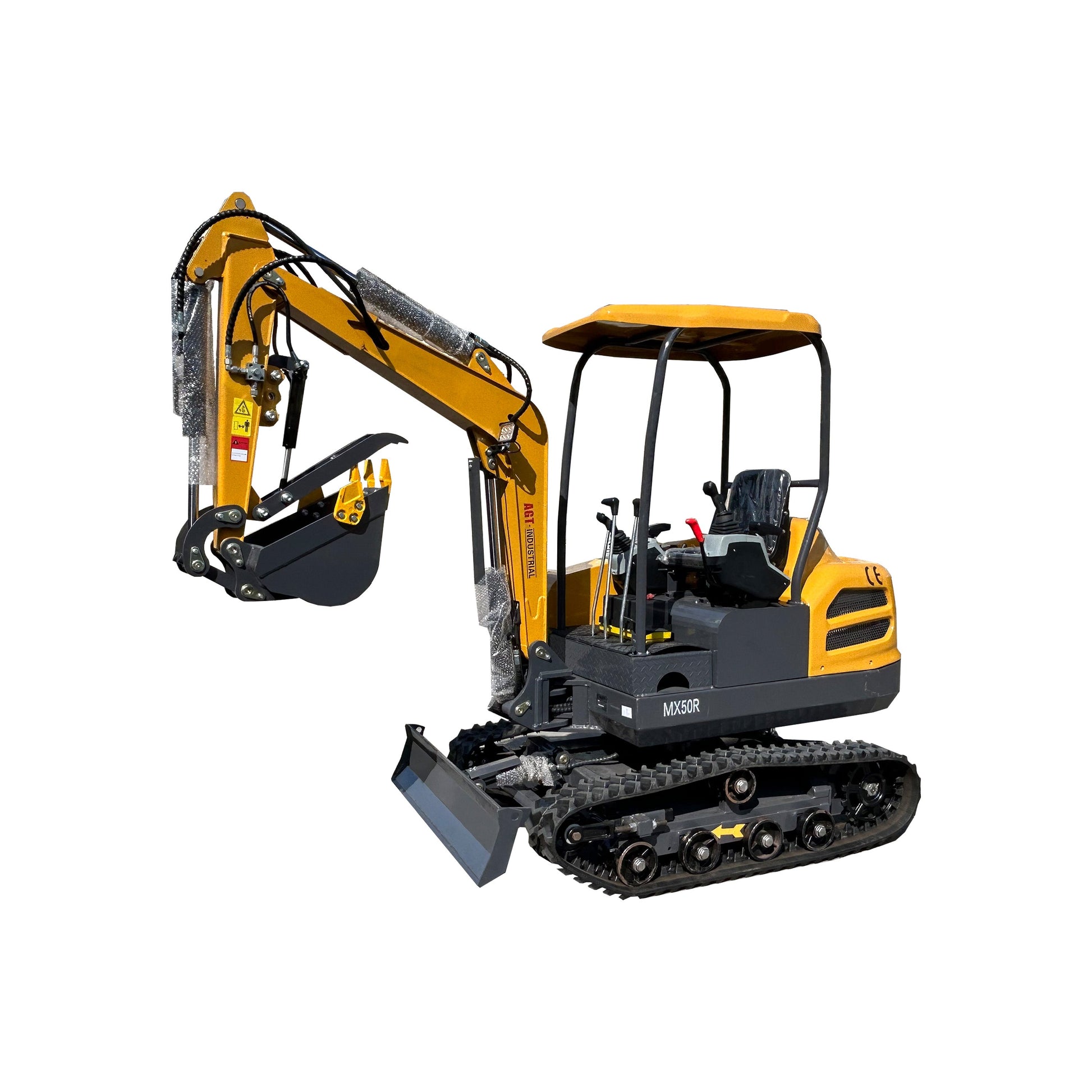

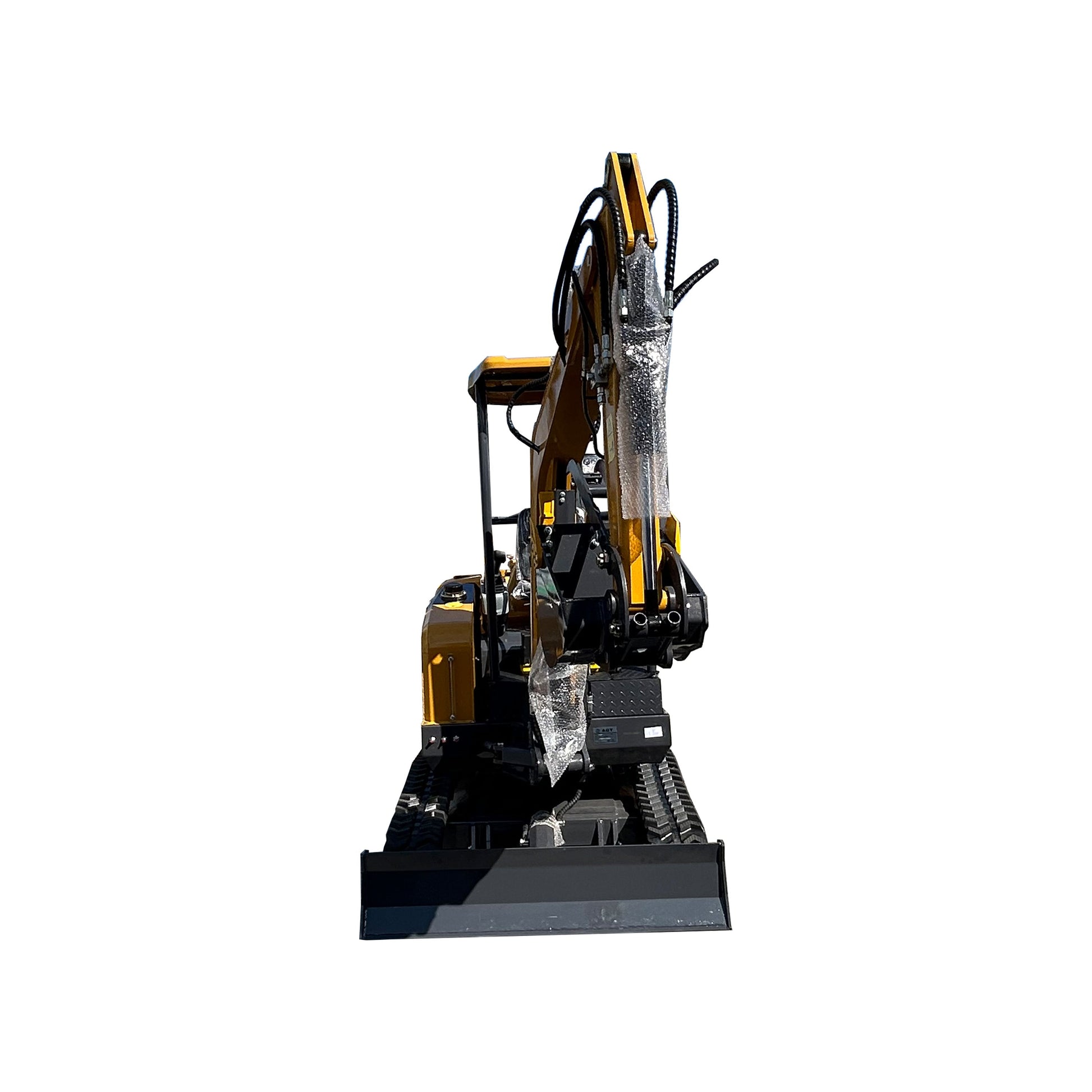

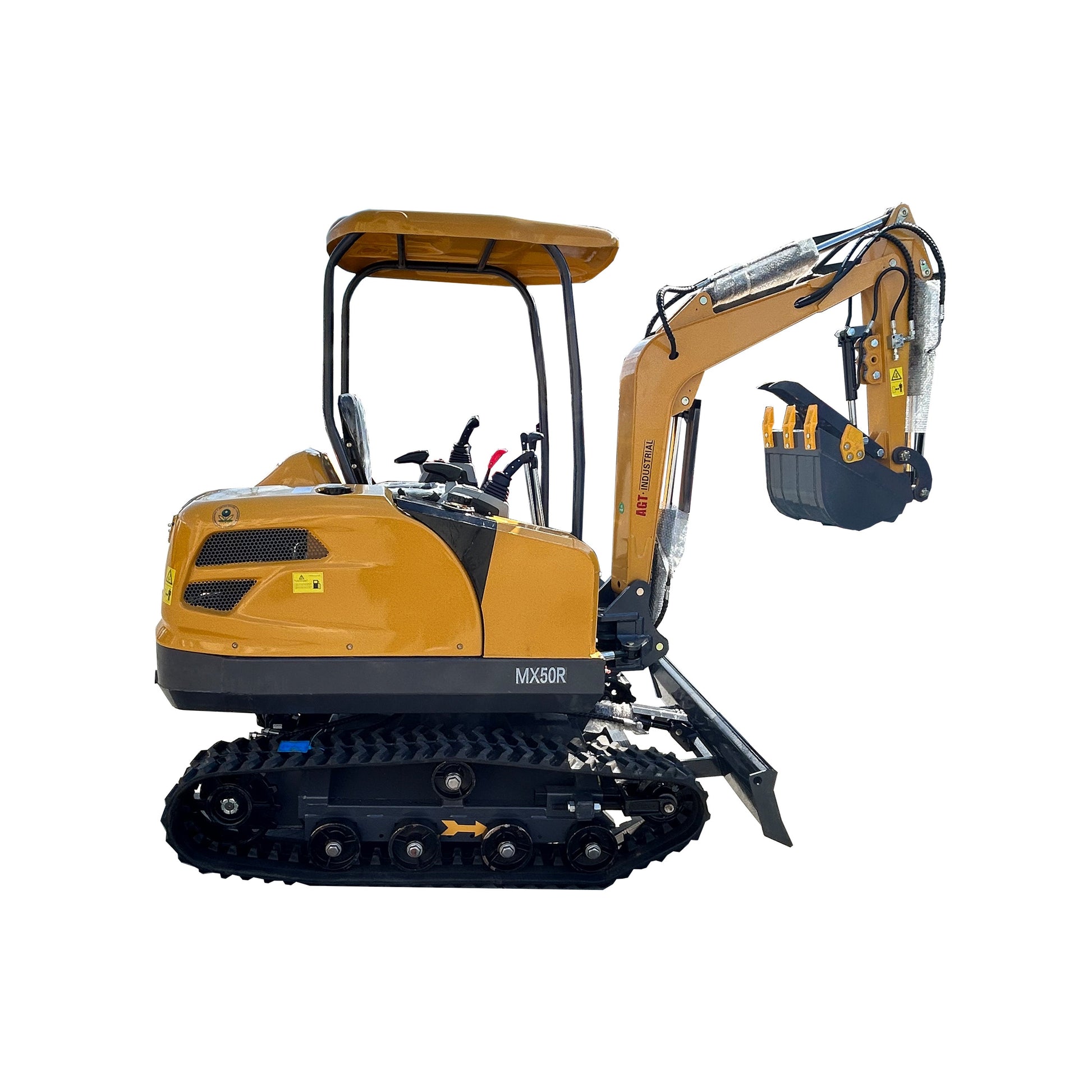

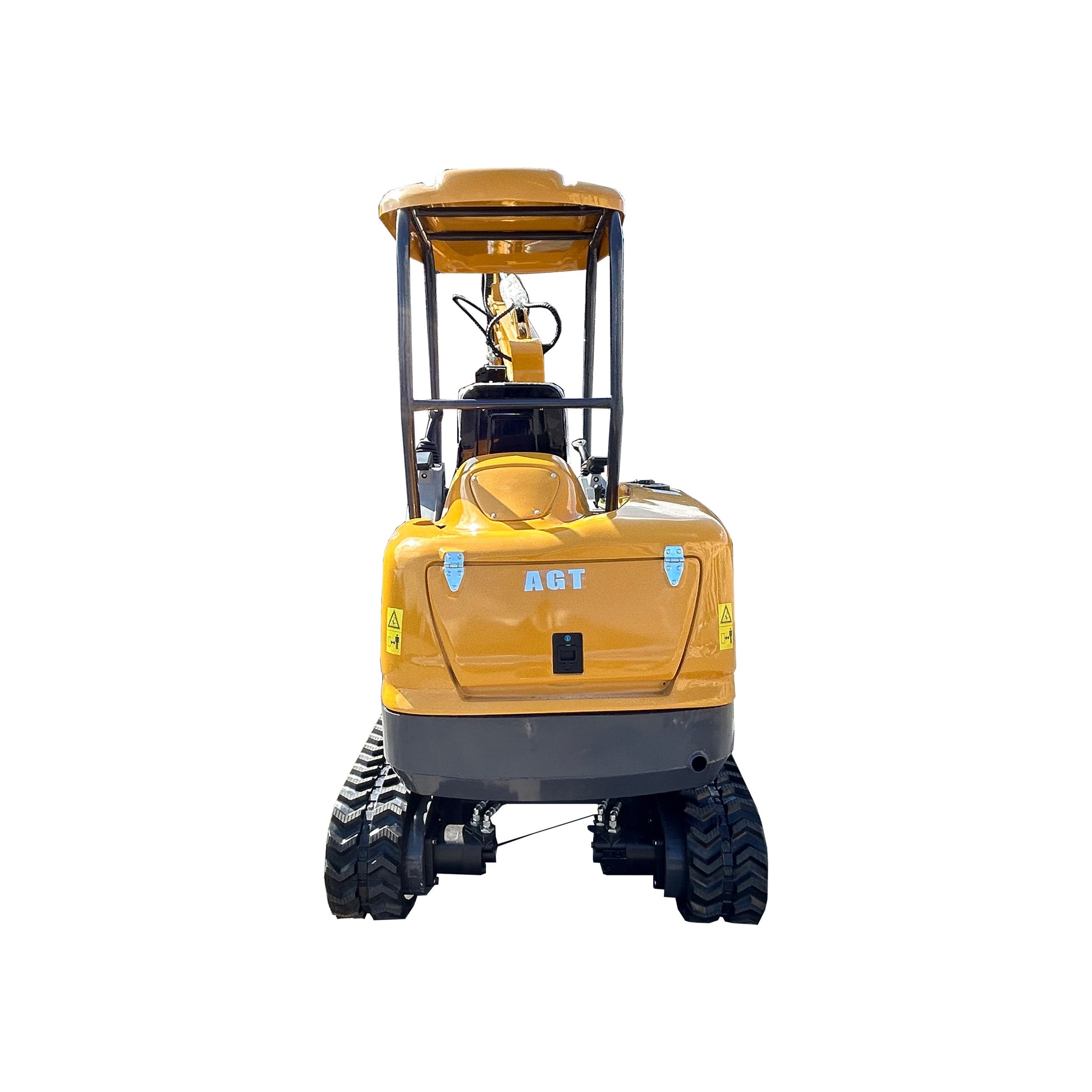

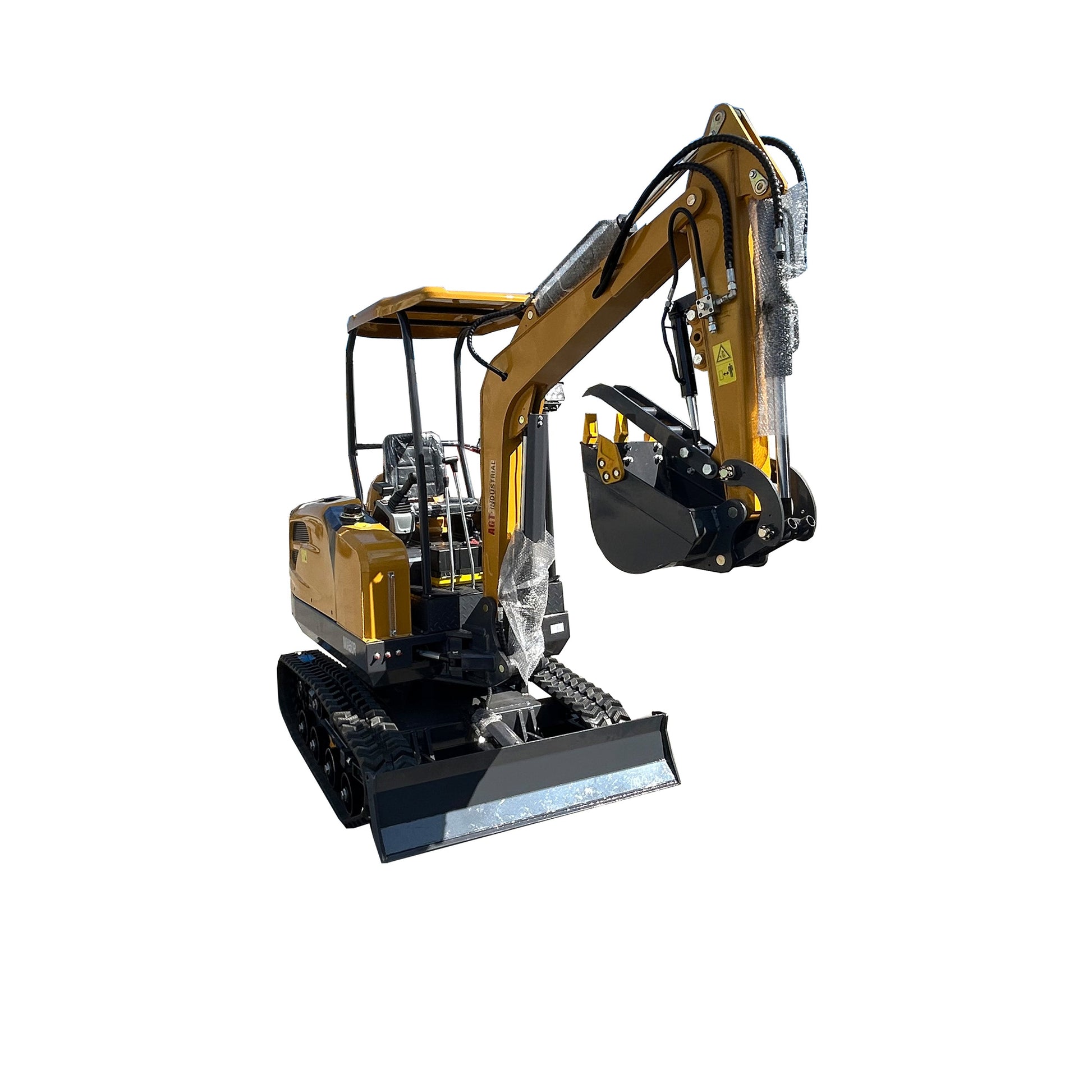

Built for tougher jobs in compact spaces. The MX50R Mini Excavator weighs in at 1100 kg and delivers serious performance with a 0.23 m³ bucket and 8.8 KN of breakout force. Perfect for landscaping, trenching, farmwork, and small-scale construction. Powered by a Rato 825 gasoline engine producing 28 horsepower, this 2-cylinder air-cooled machine is built for reliability and maneuverability.

With 30% climbing ability, a side-swing boom, and a factory-installed bulldozer blade. The MX50R offers smooth control, easy transport, and outstanding digging capabilitiesin all terrains.

Uses 35 mm pin attachments.

In-Action Video

Dimension:

Operating Weight: 1.1 Ton (2,425 lbs)
Overall Length: 2,812 mm (110 in)
Overall Width: 1,140 mm (45 in)
Overall Height: 2,400 mm (94.5 in)

Working Range:

Max Digging Depth: 1,983 mm (78 in)
Max Digging Height: 2,755 mm (108.5 in)
Max Dumping Height: 2,180 mm (85.5 in)
Max Reach at Ground: 3,211 mm (126 in)
Blade Width: 1,316 mm (52 in)
Blade Height: 247 mm (9.5 in)
Blade Max Lifting Height: 250 mm (10 in)
Blade Max Drop Depth: 340 mm (13 in)

Features:

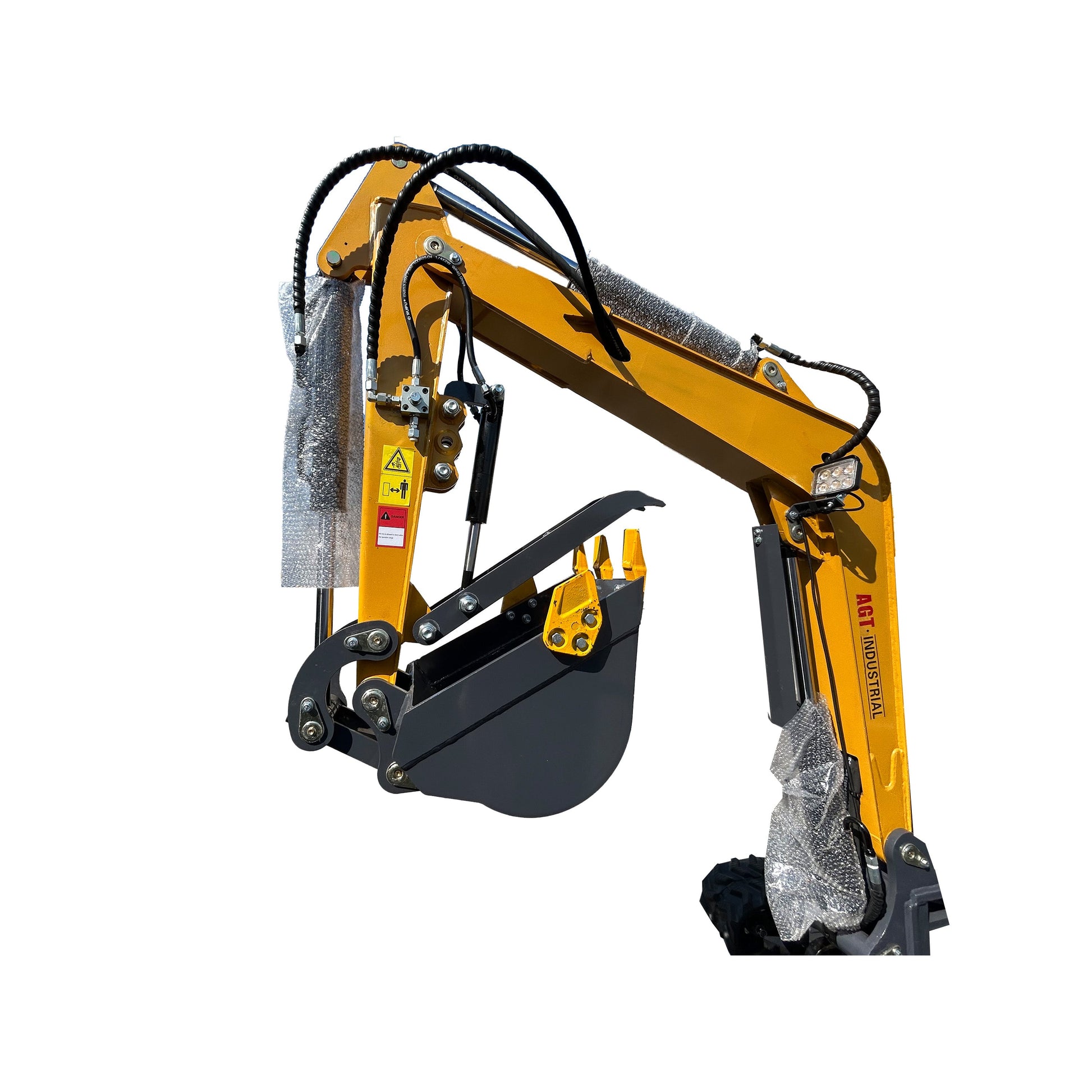

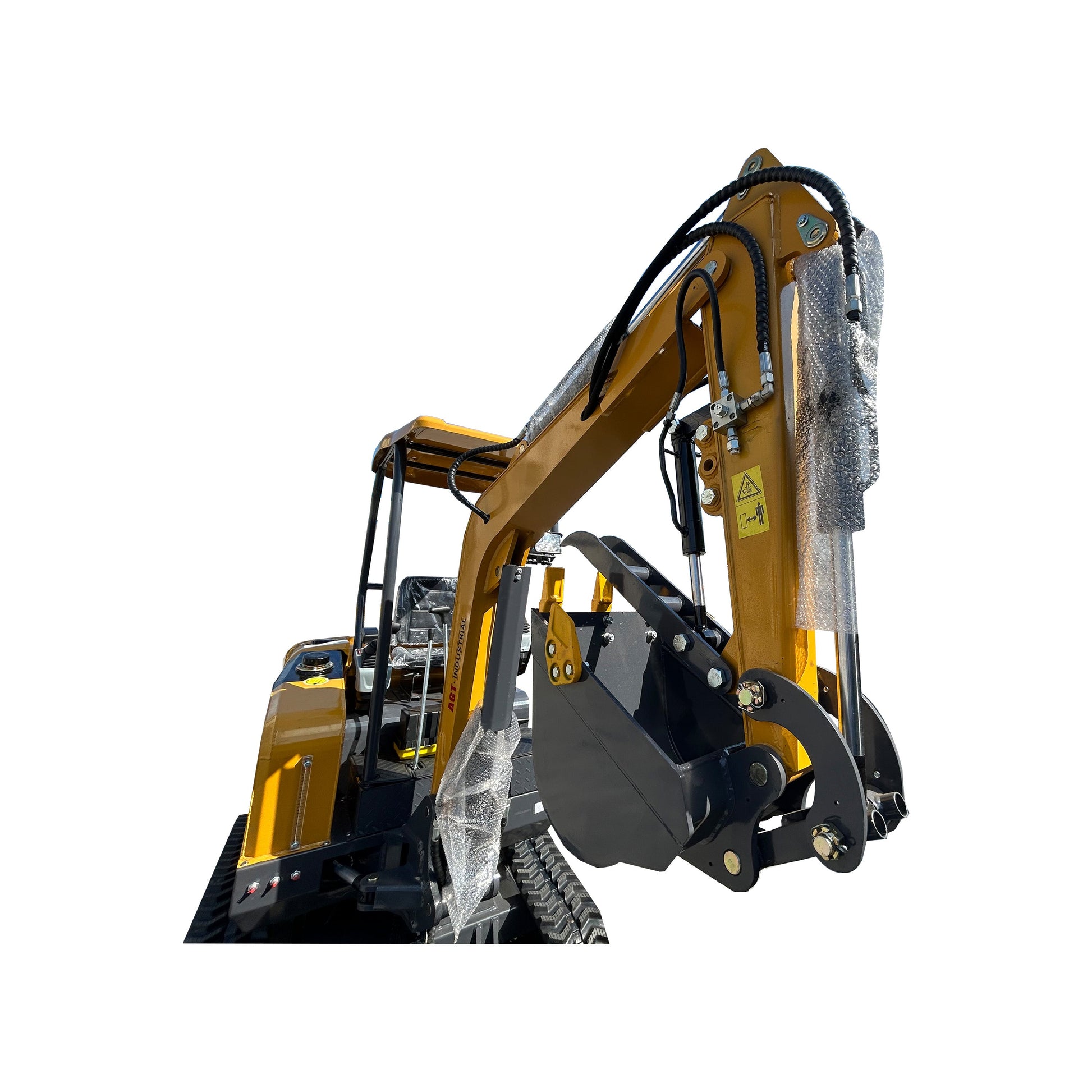

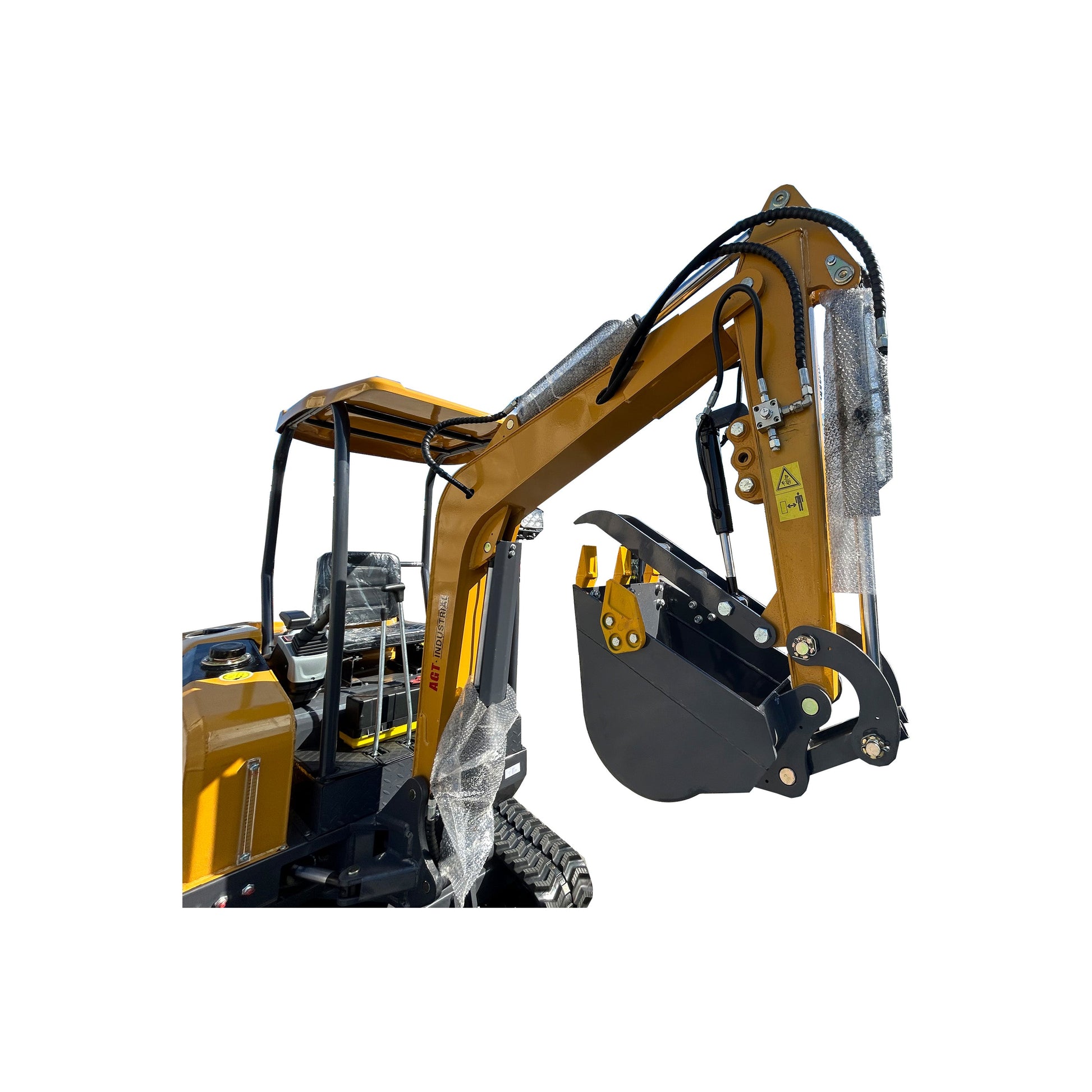

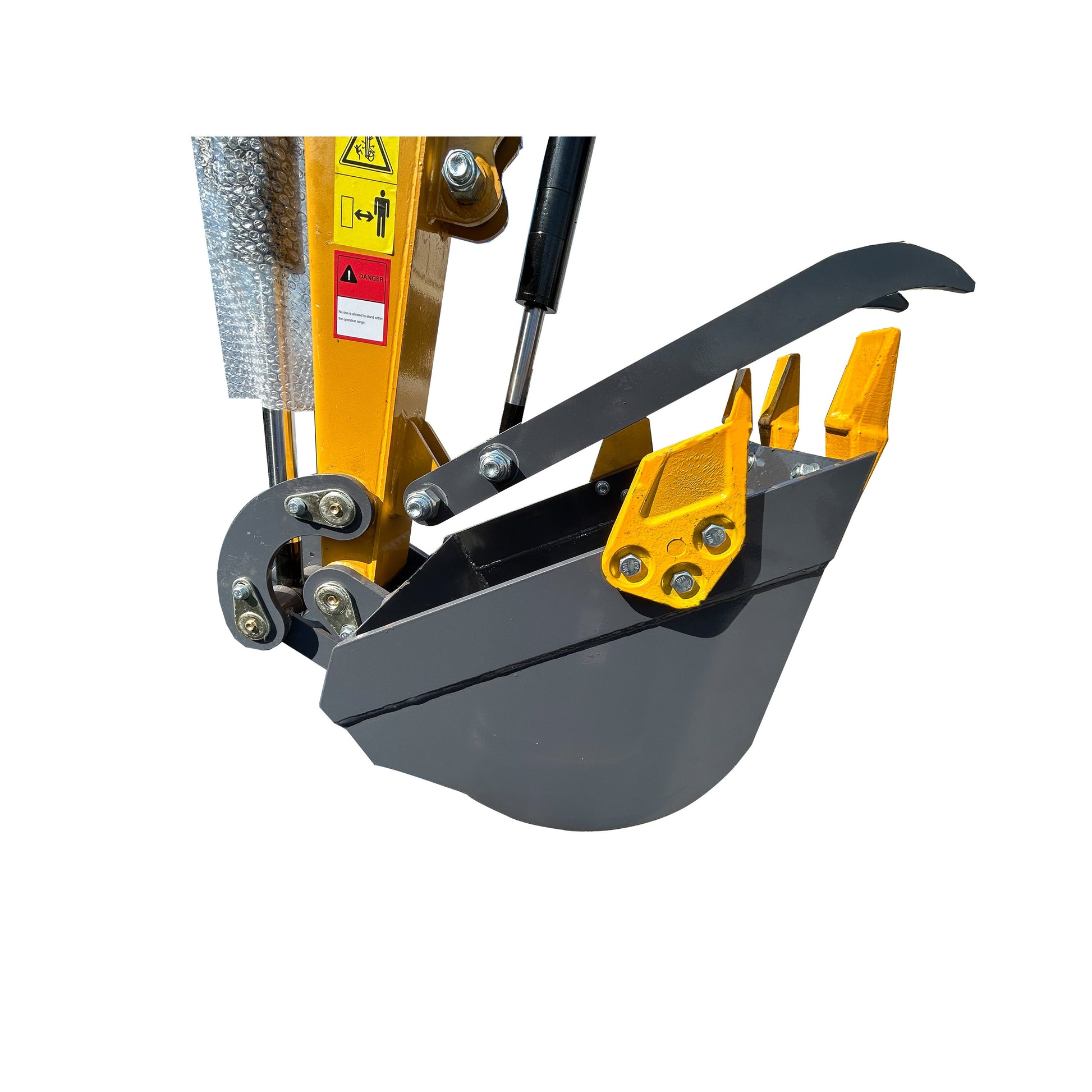

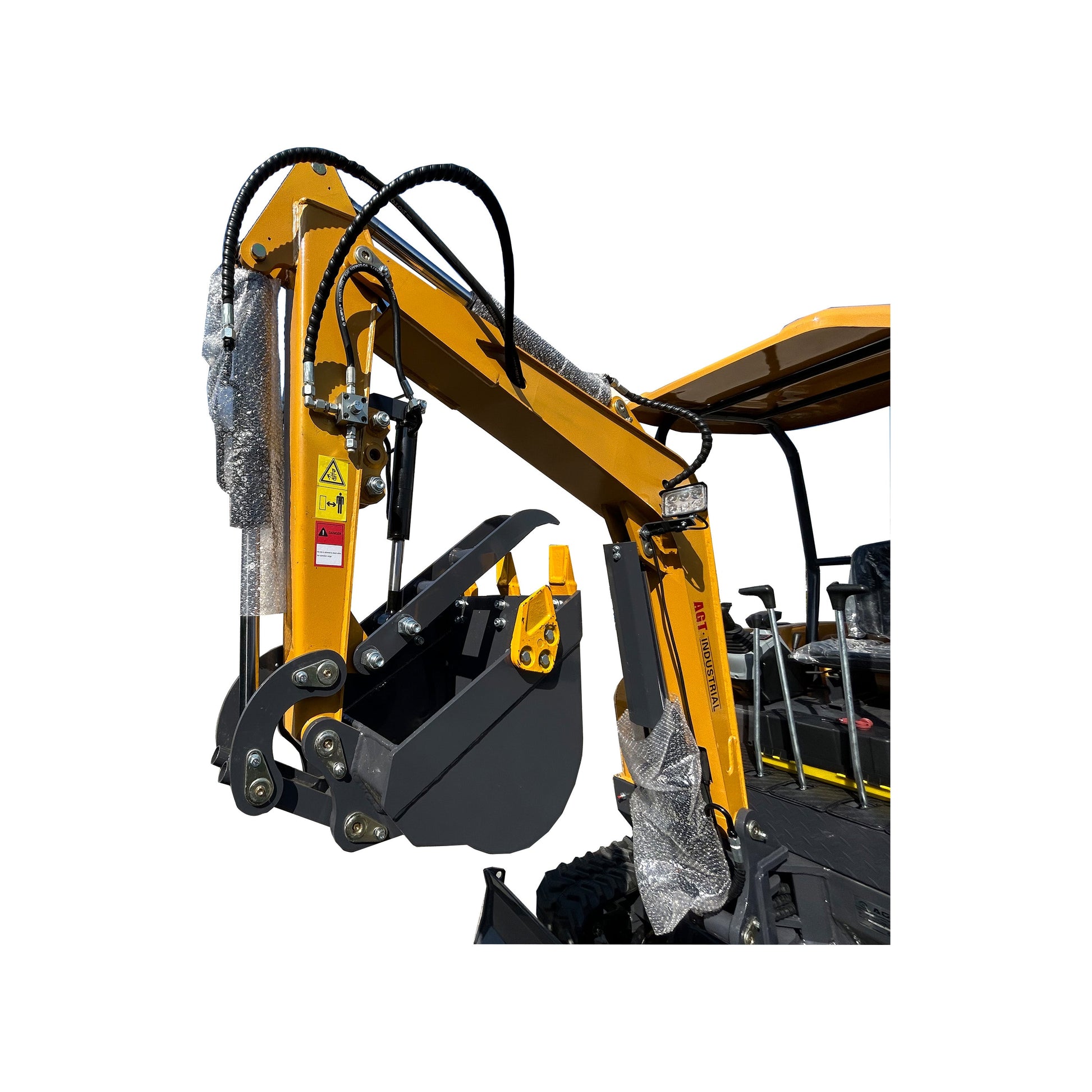

Hydraulic Thumb
Swing Boom

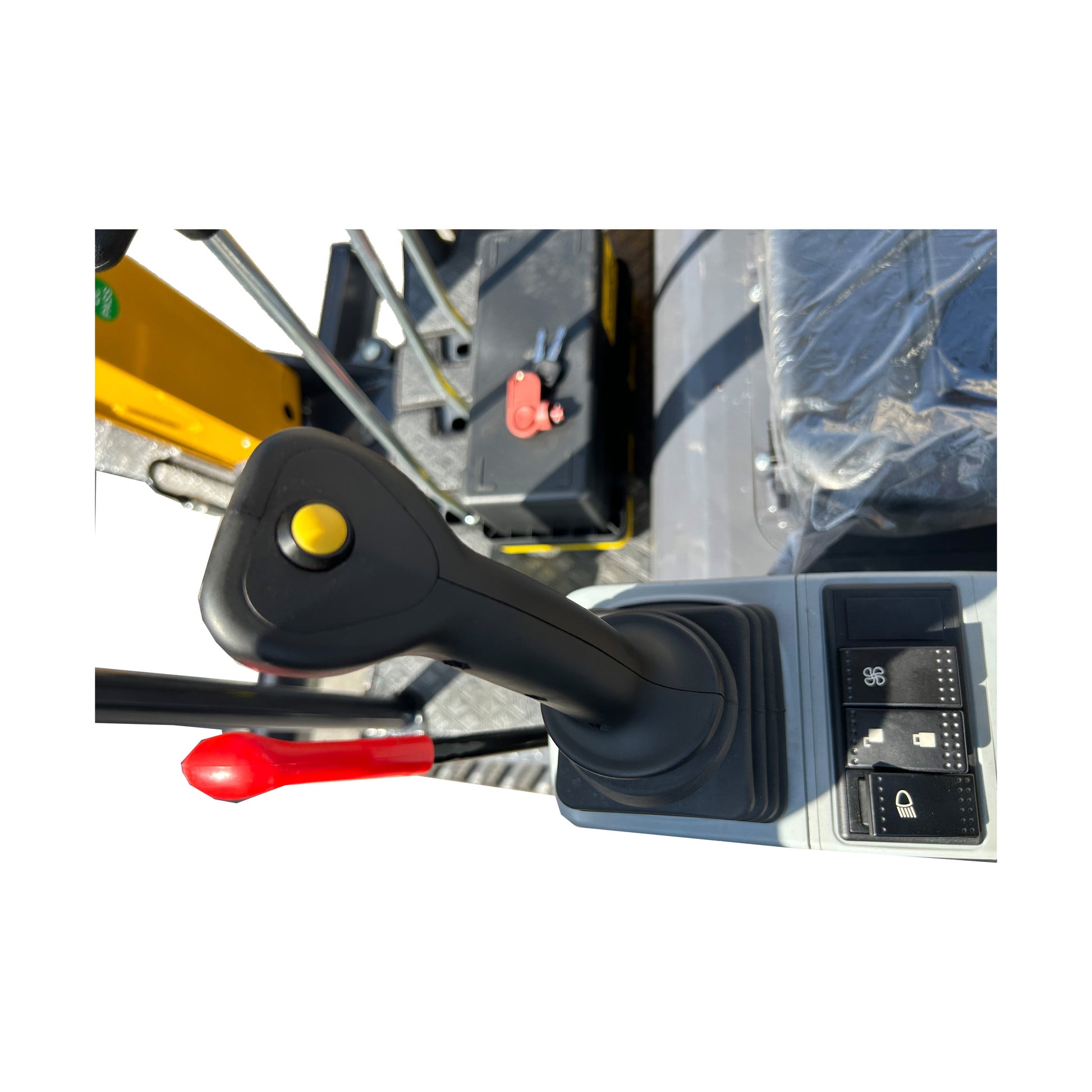

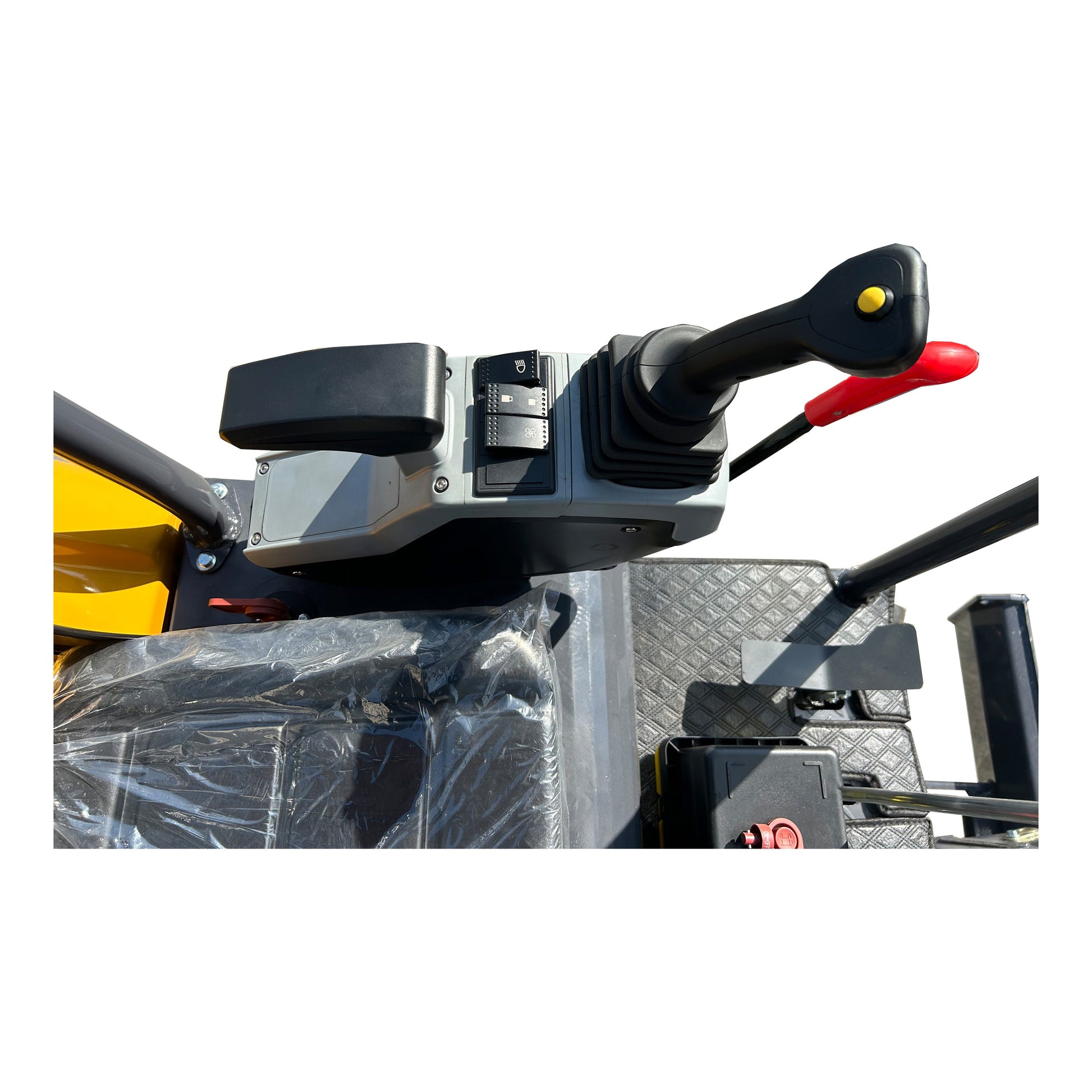

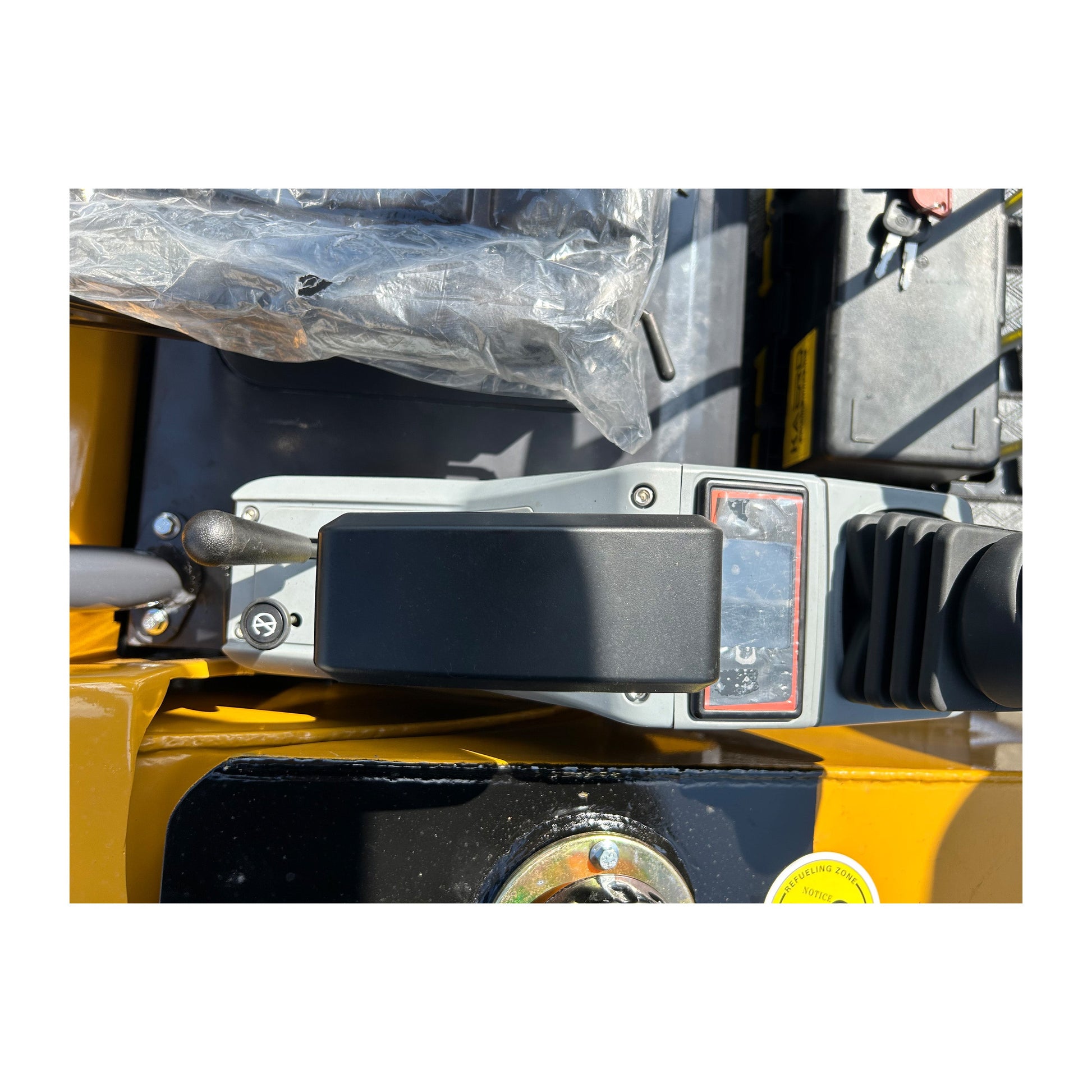

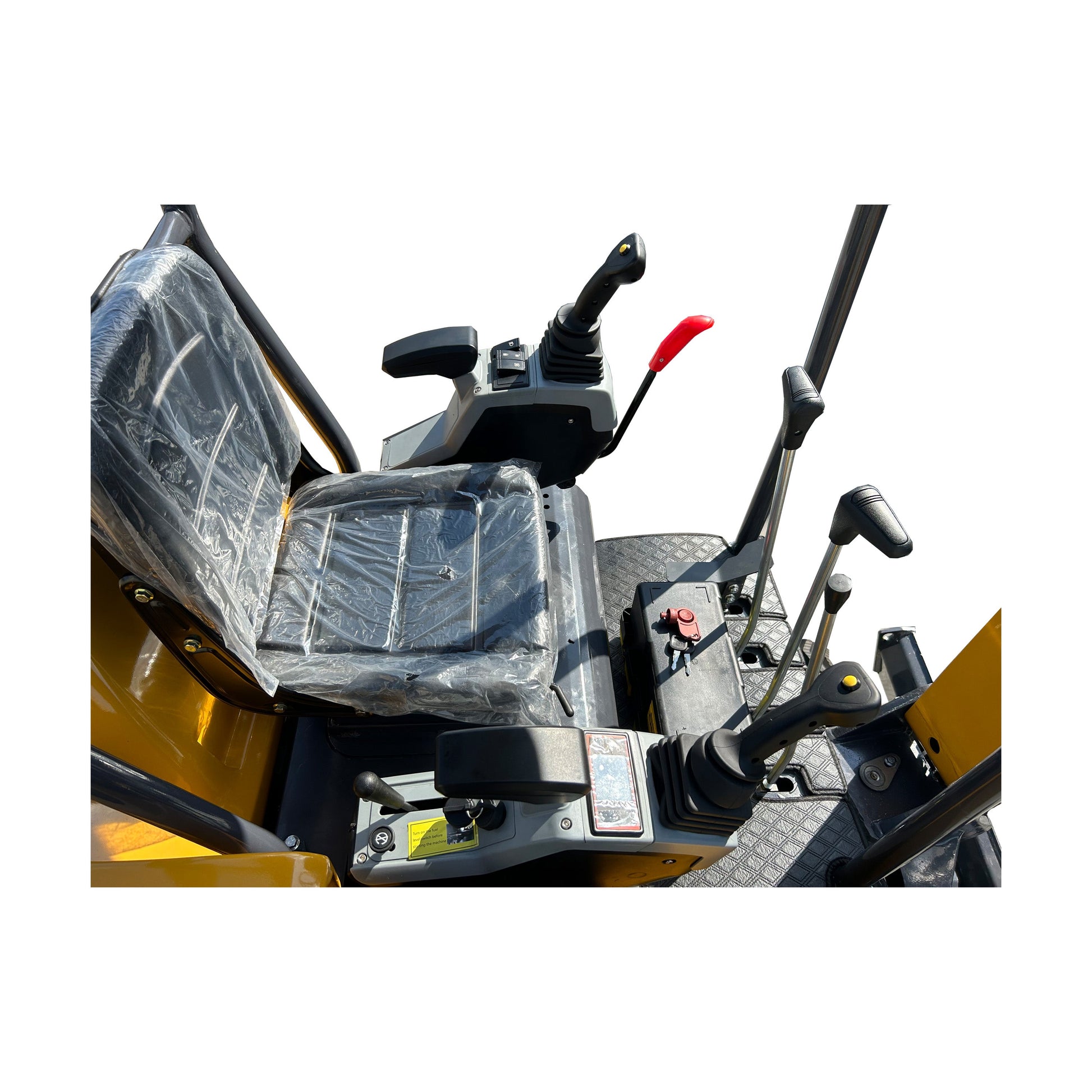

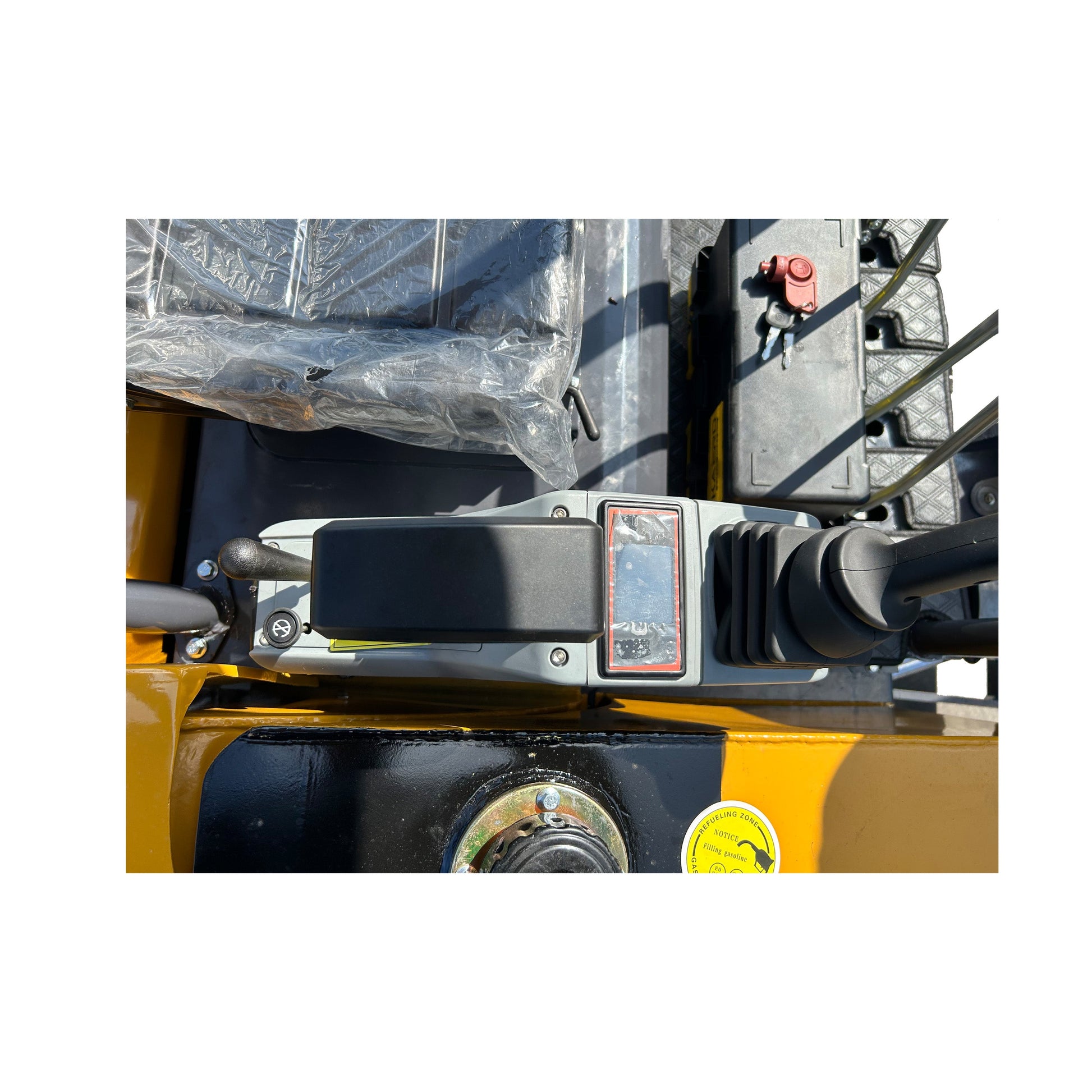

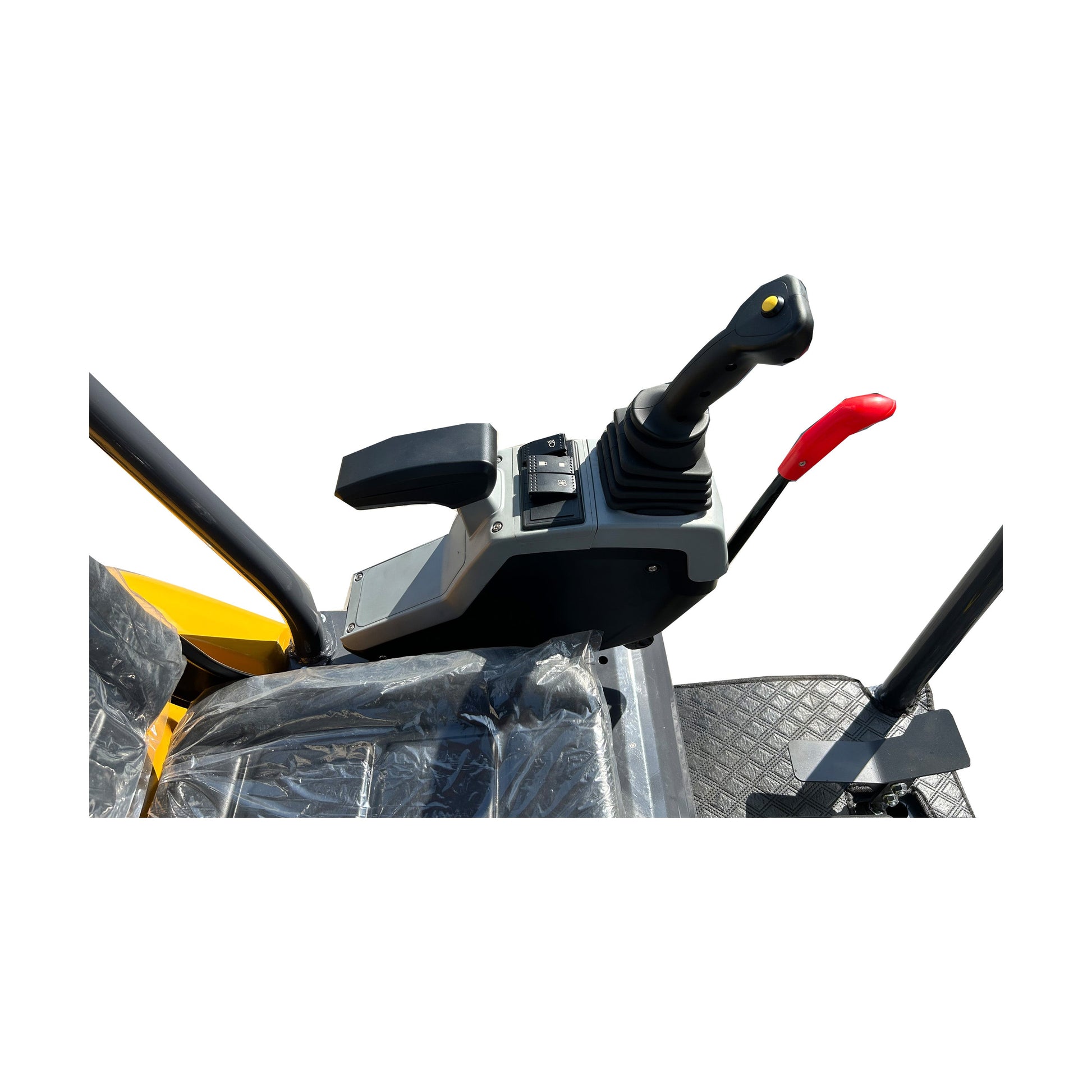

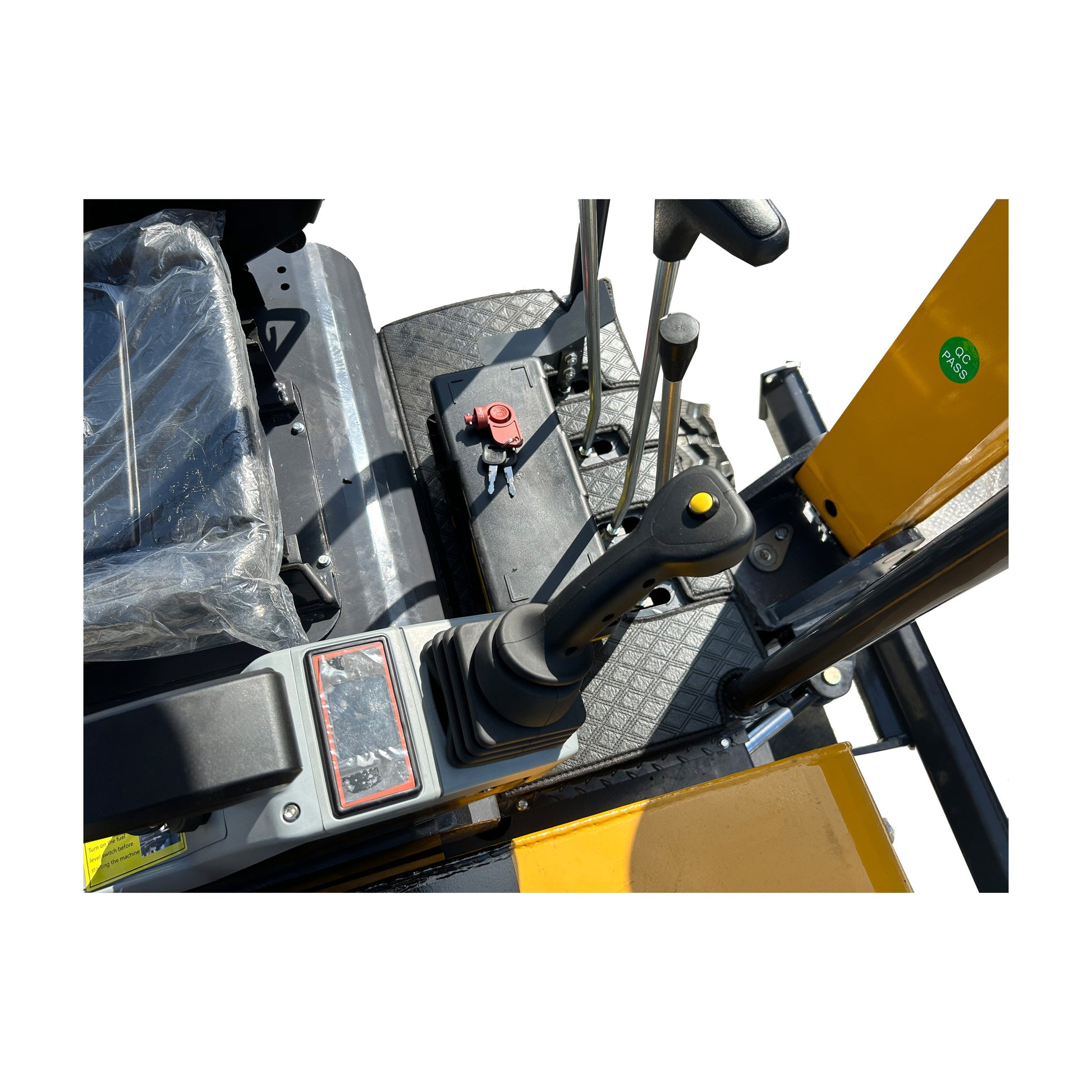

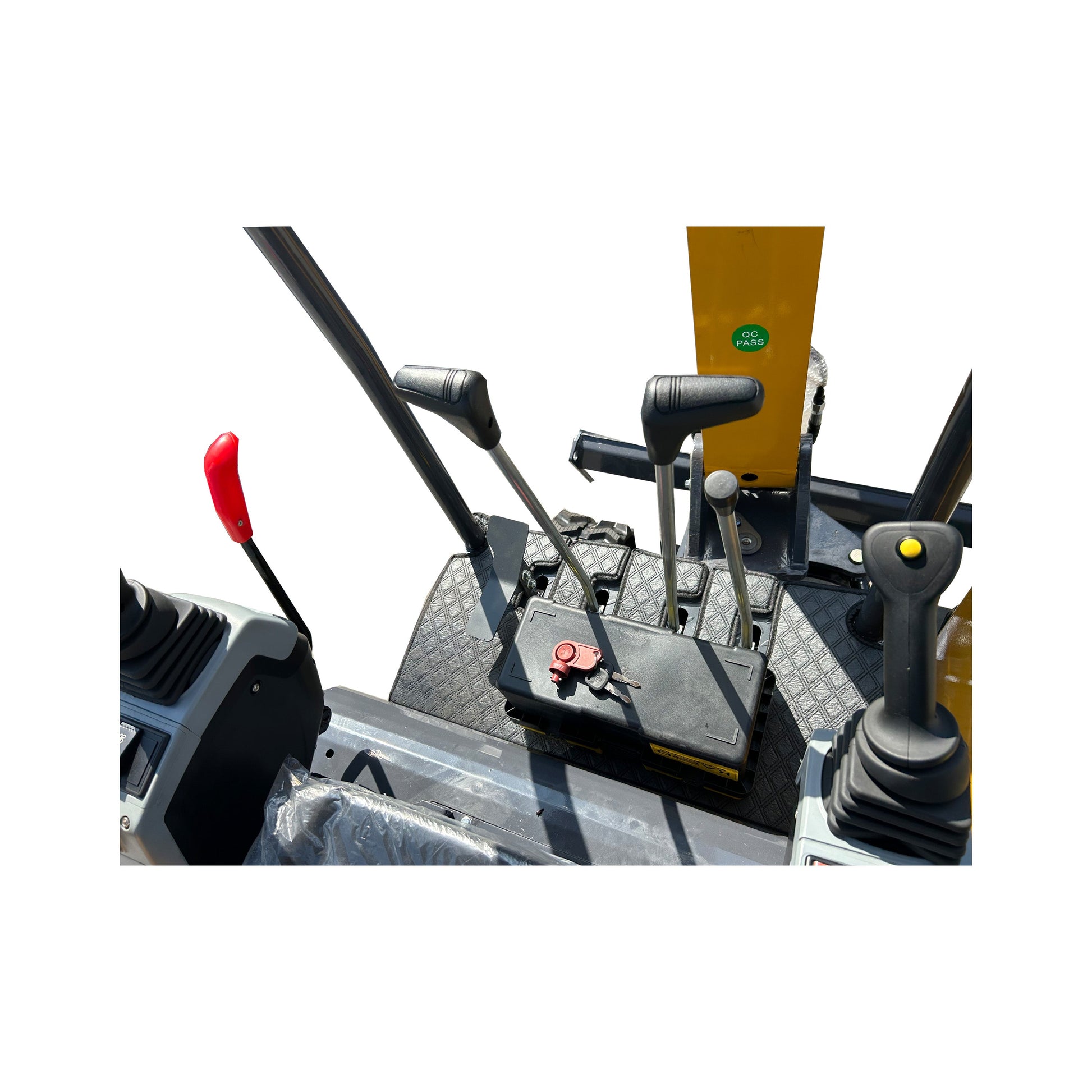

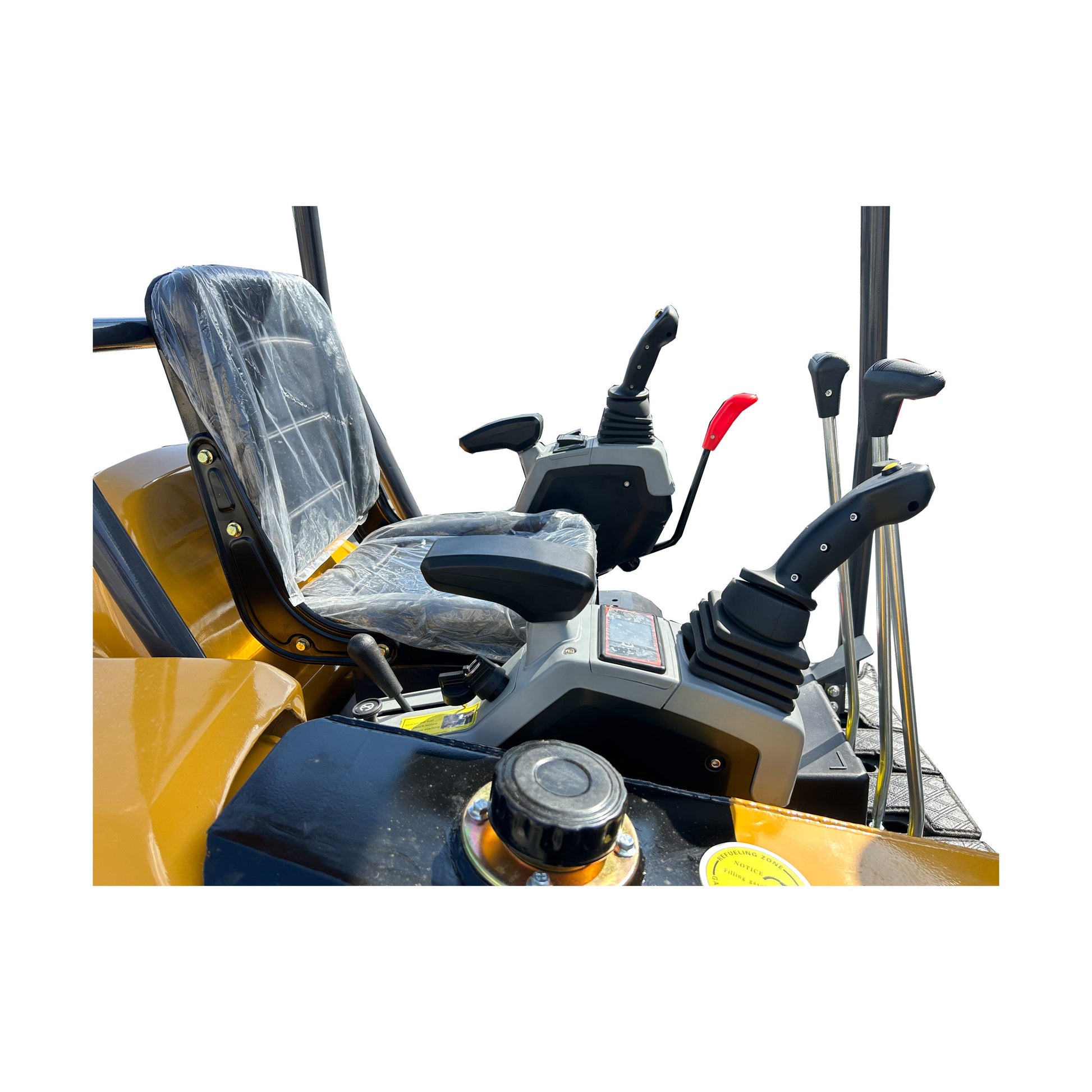

Pilot Control
LED Light

Engine:

Engine Brand: Rato
Fuel Type: Gasoline
Model: R825
Rated Power: 21 kW (28 HP)
Displacement: 825 cc
Fuel Capacity: 28 L (7.4 gal)
Hydraulic Tank Capacity: 20 L (5.3 gal)

Product manual (PDF) MX50R Manual

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

Model Information
Configuration Status	√Standard, △Optional, ×None
Model	MX50R
Basic Performance Parameters
Working Weight (kg)	1100
Bucket Capacity (m³)	0.23
Travel Speed Low/High (Km/h)	0–2.0
Climbing Ability (%)	30
Turn Speed (r/min)	9.8
Maximum Digging Force of Bucket (KN)	8.8
Maximum Digging Force of Bucket Rod (KN)	6
A: Maximum Digging Height (mm)	2755
B: Maximum Unloading Height (mm)	2180
C: Maximum Digging Depth (mm)	1983
D: Maximum Vertical Excavation Depth (mm)	1983
E: Maximum Excavation Radius (mm)	3211
F: Minimum Radius of Gyration (mm)	2011
G: Minimum Tail Radius of Gyration (mm)	1247
H: Maximum Lifting Height of Bulldozer	251
I: Maximum Digging Height of Bulldozer	340
Equipment Body
J: Overall Length (mm)	2812
K: Overall Width (mm)	1140
L: Overall Height (mm)	2400
Bulldozer Width / Height (mm)	1316 / 247
Engine
Engine Brand	Rato
Engine Model	825
Maximum Horsepower (ps)	28
Maximum Power (kW)	21
Maximum Speed (rpm)	3600
Number of Cylinders	2
Cooling Method	Air Cooling
Engine Oil Replacement (L)	1.1
Fuel Type	Gasoline
Fuel Label	92#
Fuel Tank
Fuel Tank (L)	28
Hydraulic Oil Tank (L)	20

Customer Reviews

Overall it's pretty good. It comes with the typical loose bolts and the fuse box just thrown under the seat. The swing motor bolts co.e loose if you don't locktite them in. The RATO 739 that came in mine runs well however it does not like 100+ heat. The travel control rods should have been placed closer together but I bent them to be that way on mine and I built foot pedals. The boom cracked at the corners of the hole where the hoses go inside of it up to the bucket so I plated it. There are several guys that had this happen. Mine is an early model and there are no cylinder guards so I'll build those as well. I am happy with the size, it's no a tiny toy.
