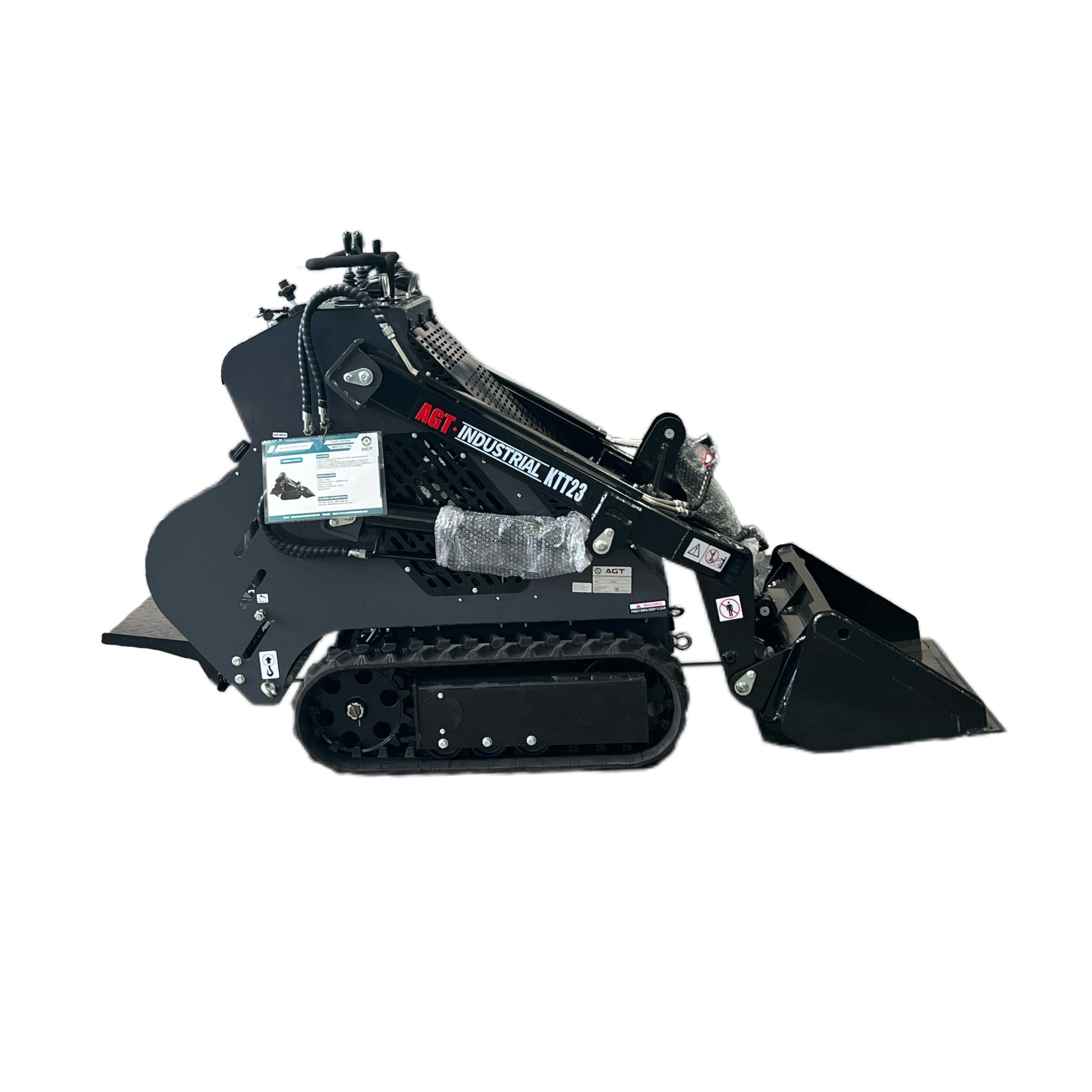

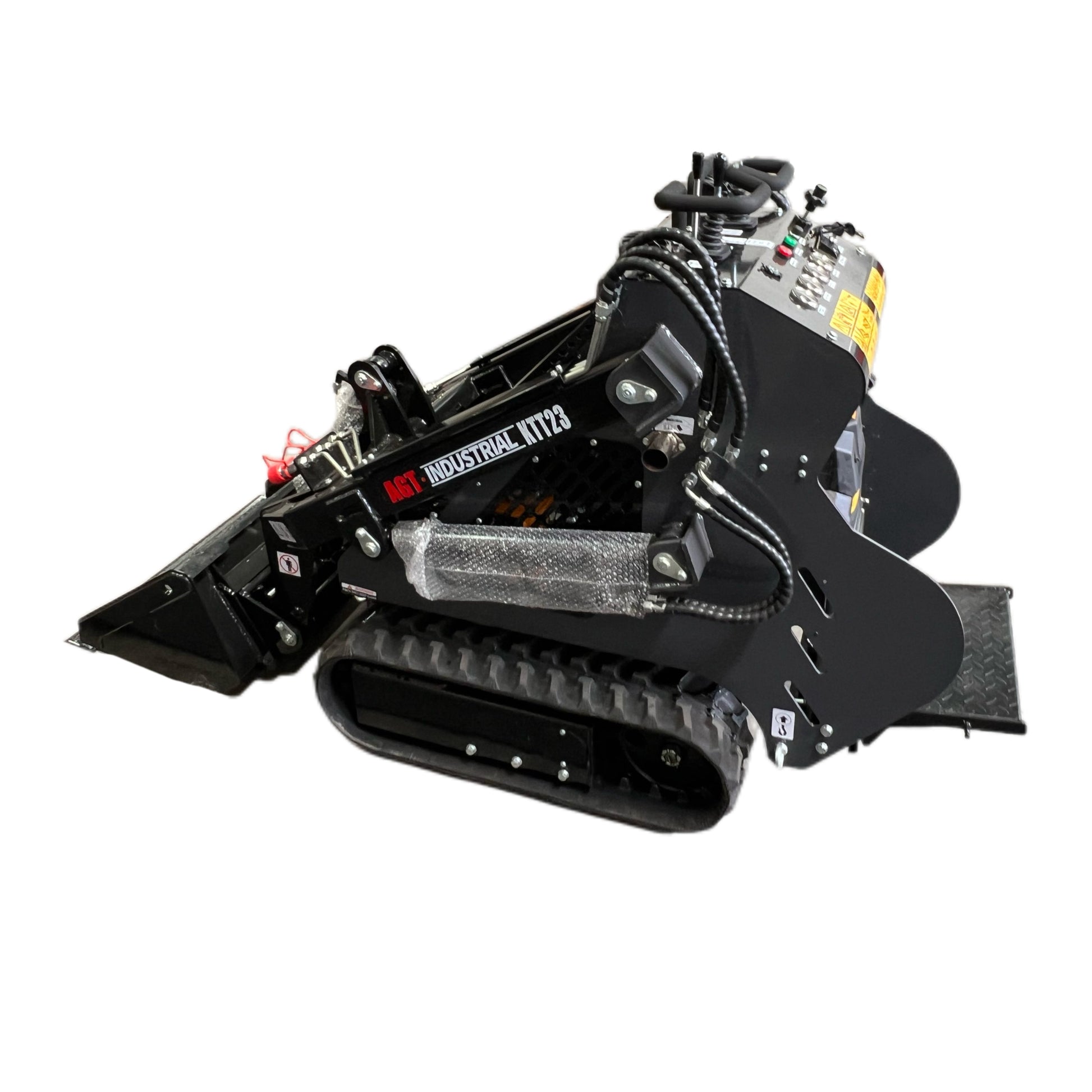

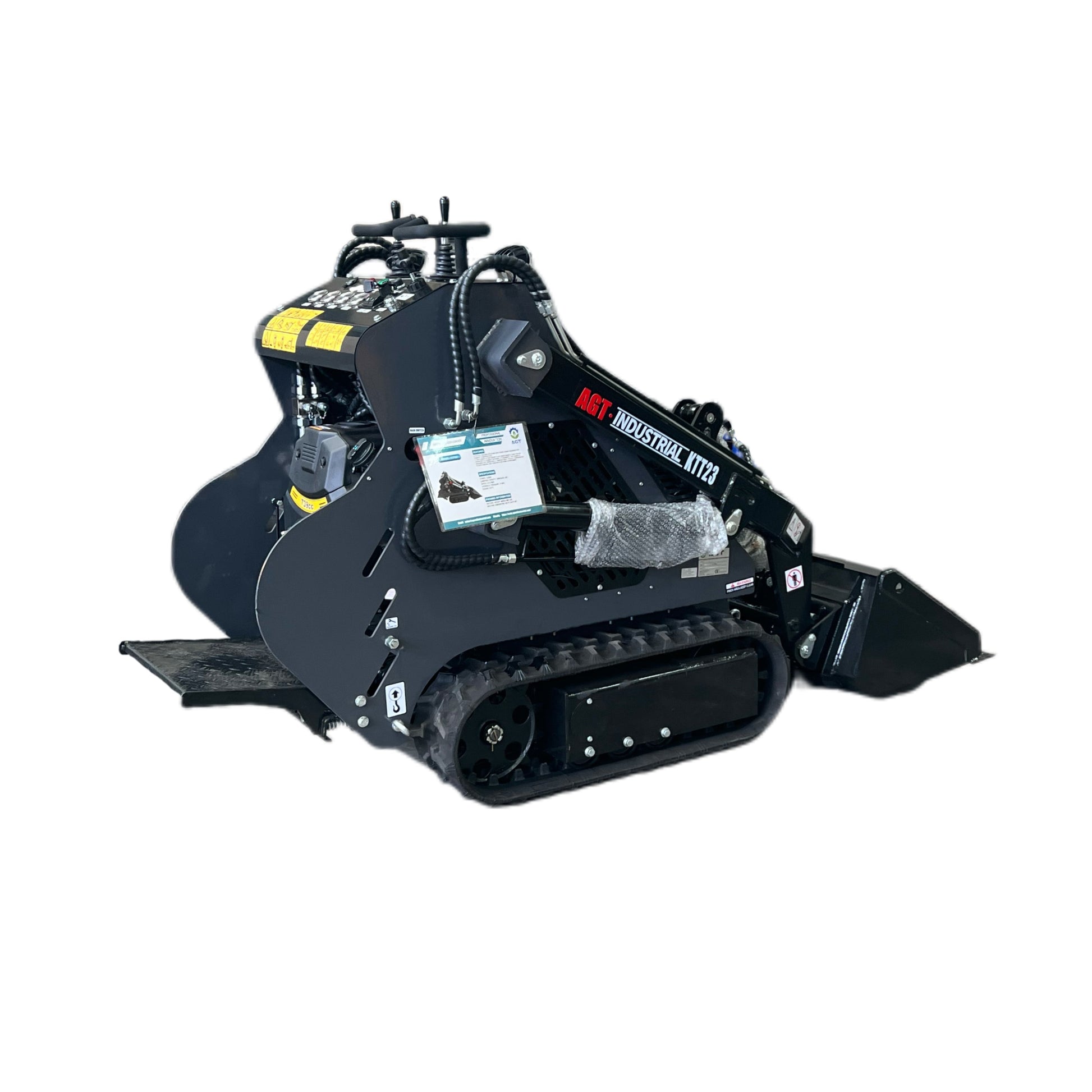

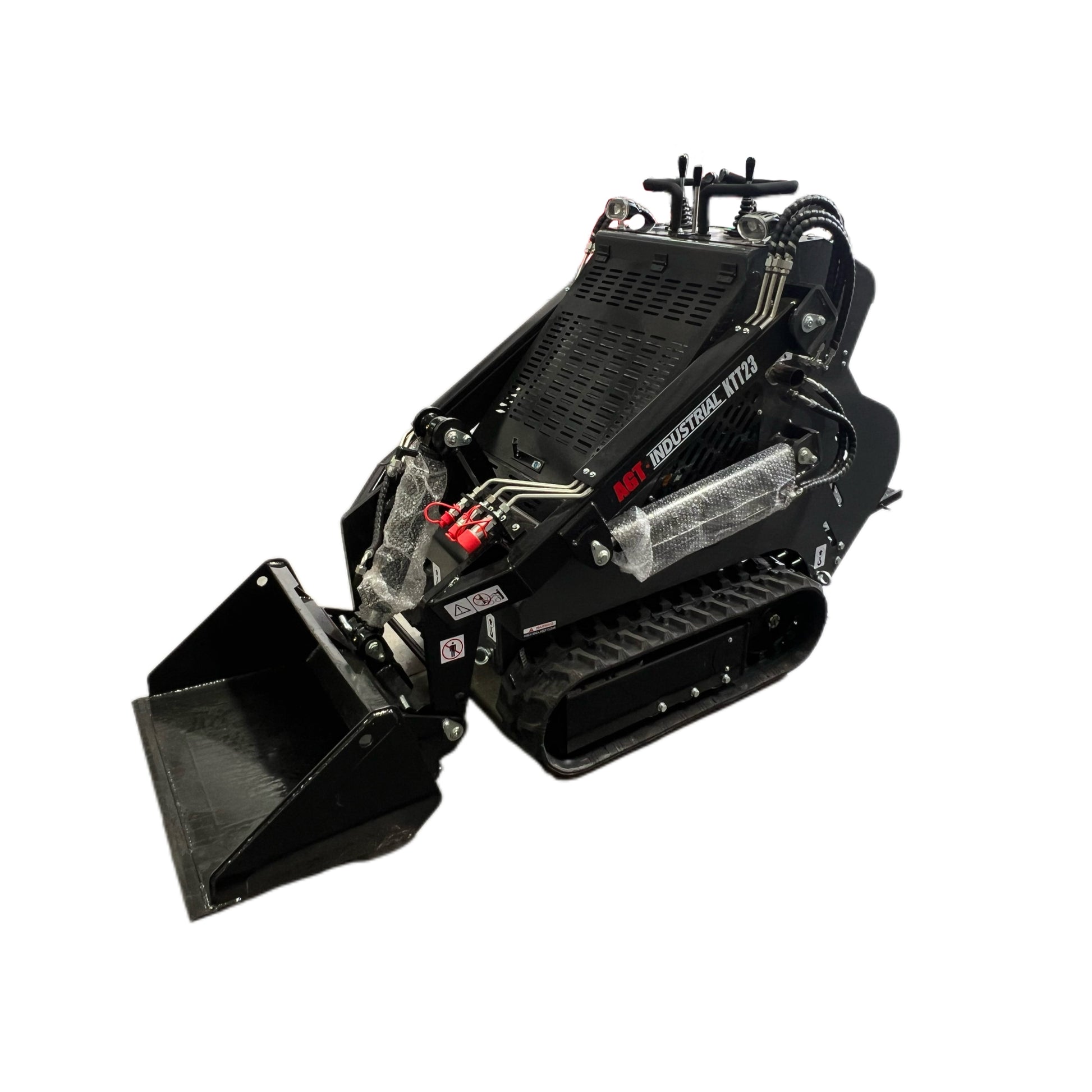

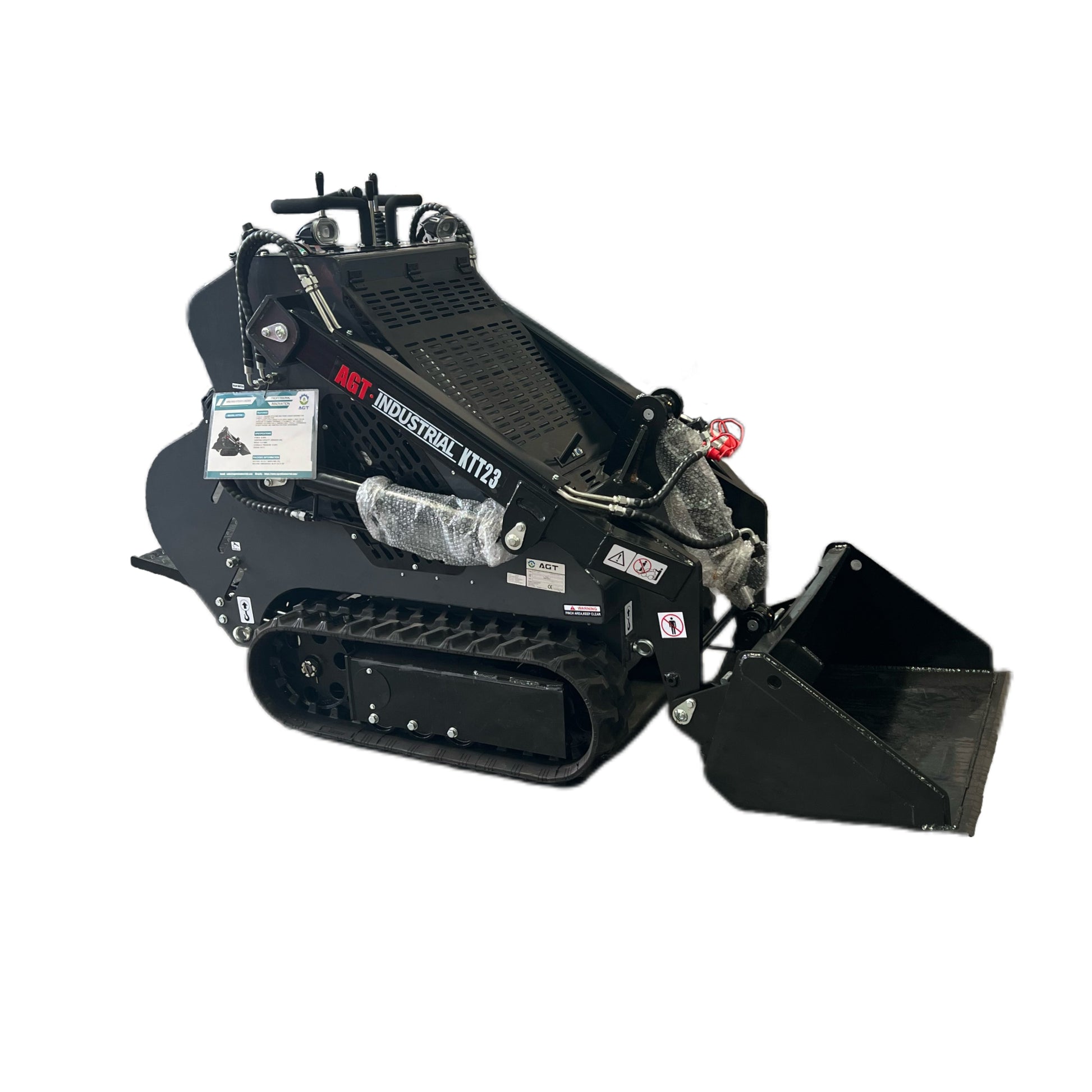

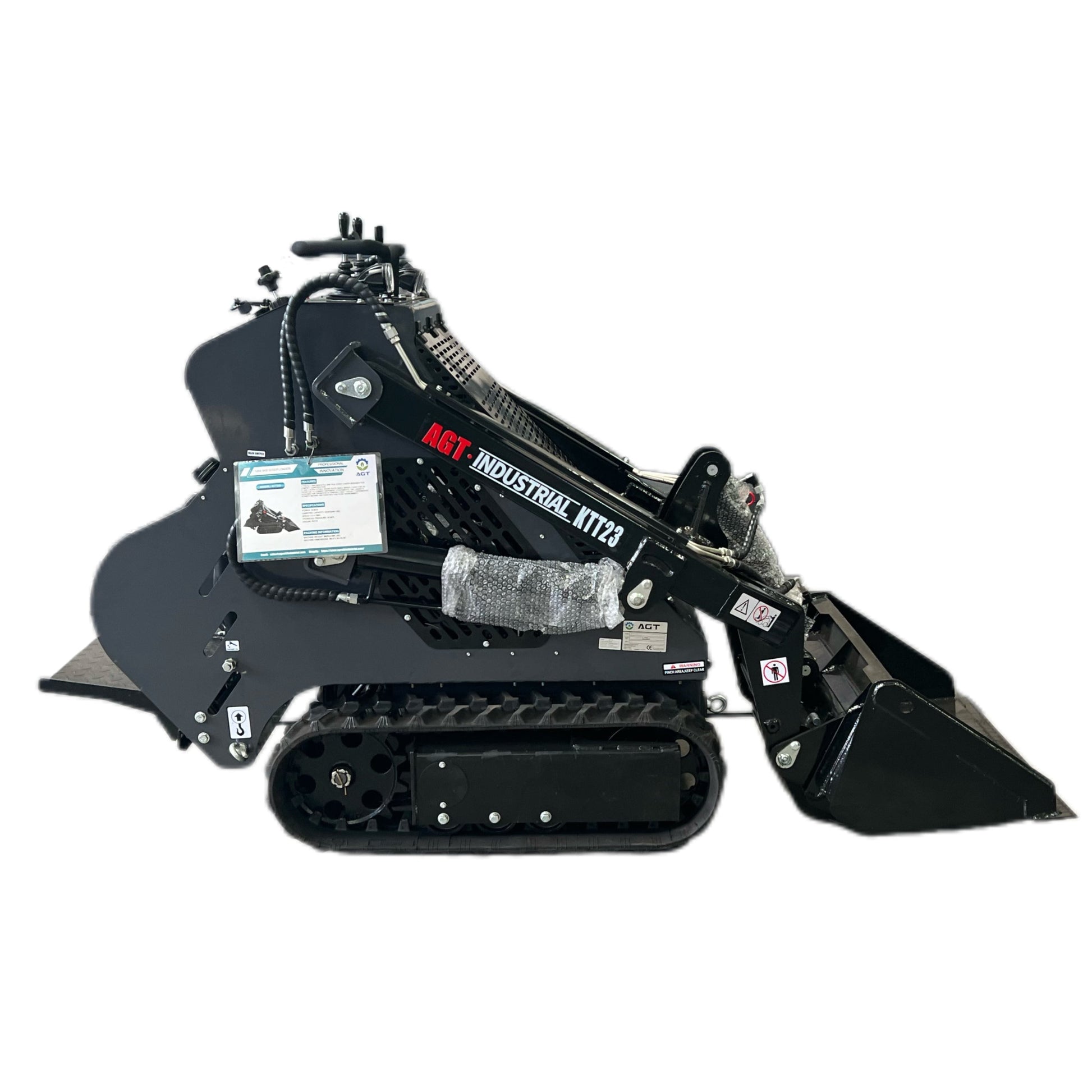

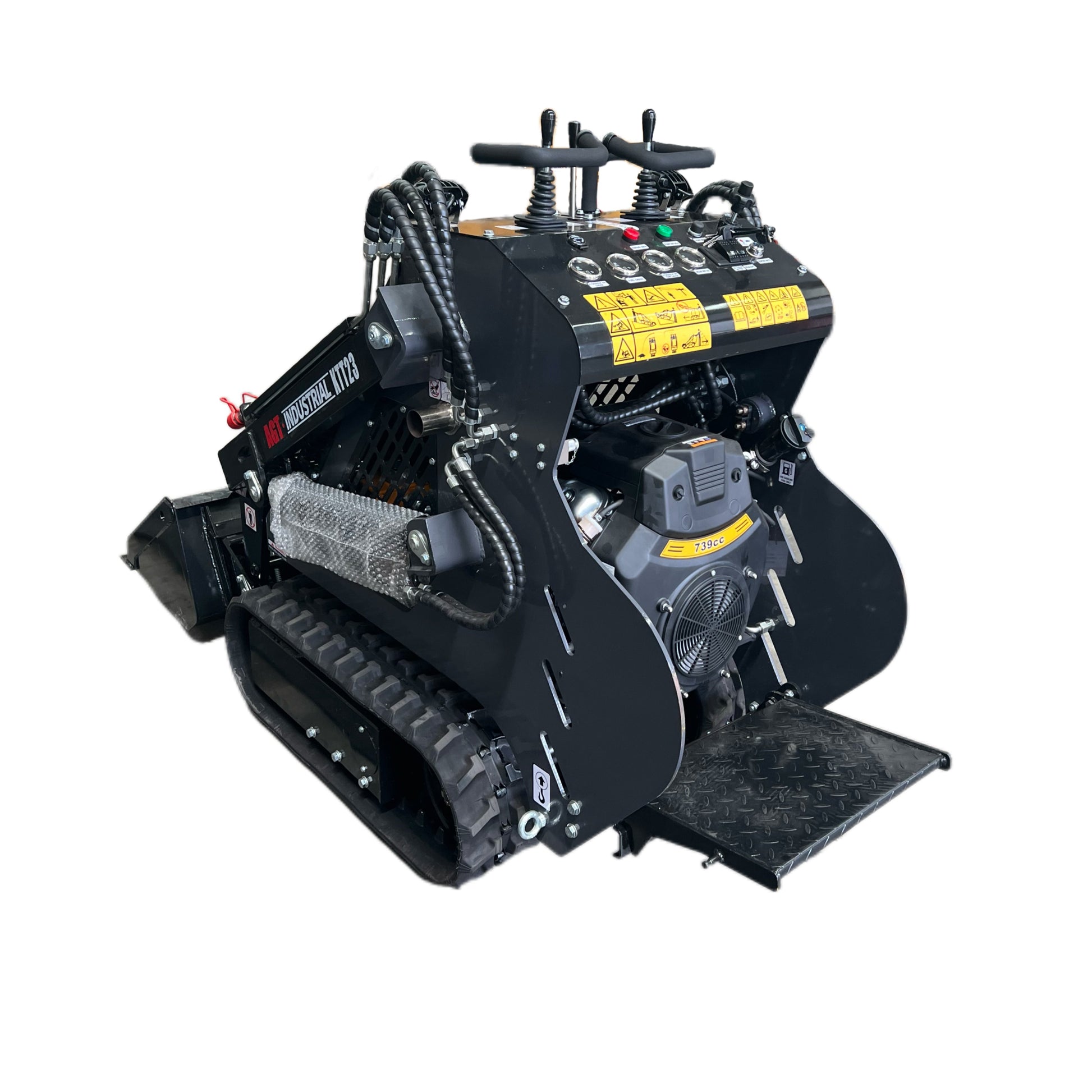

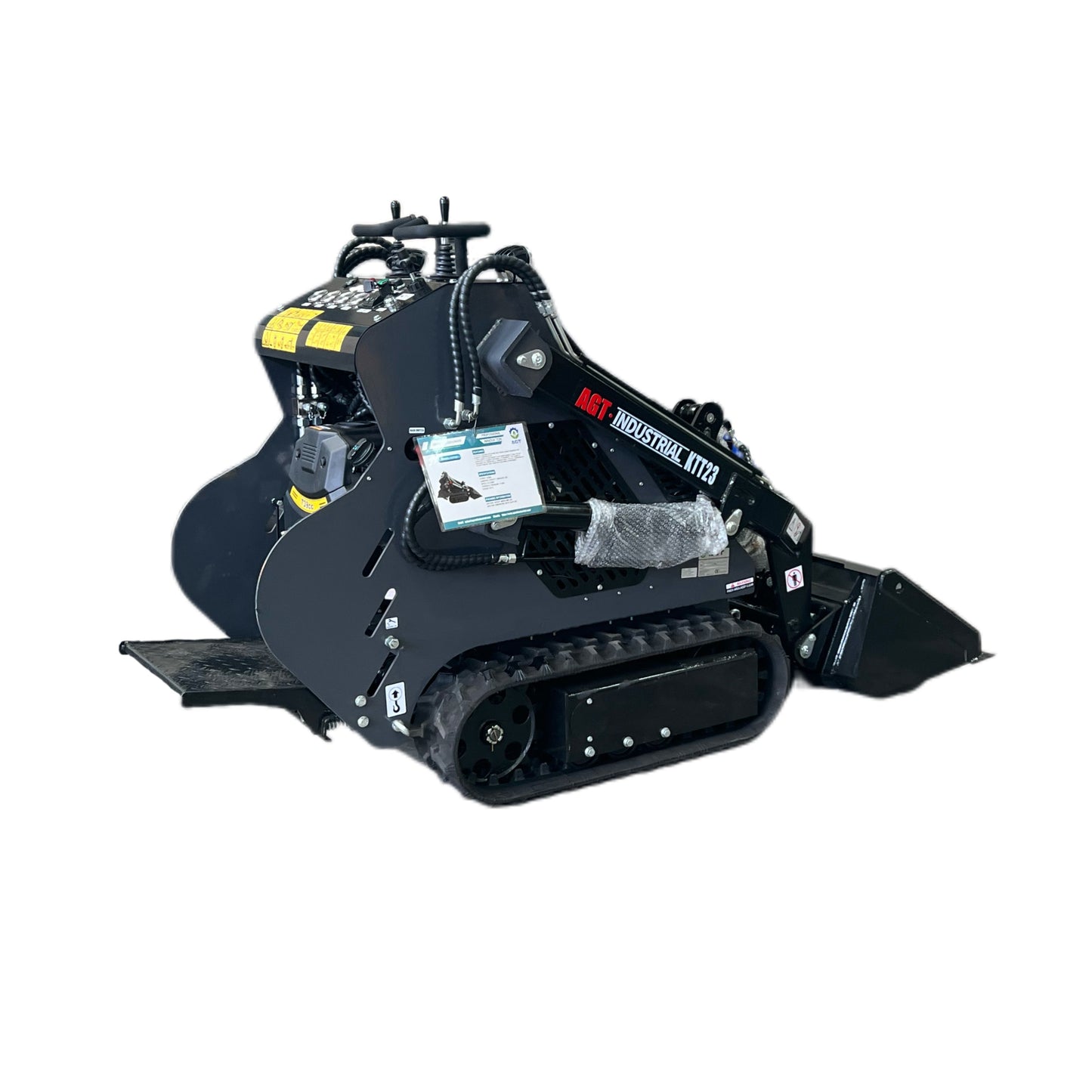

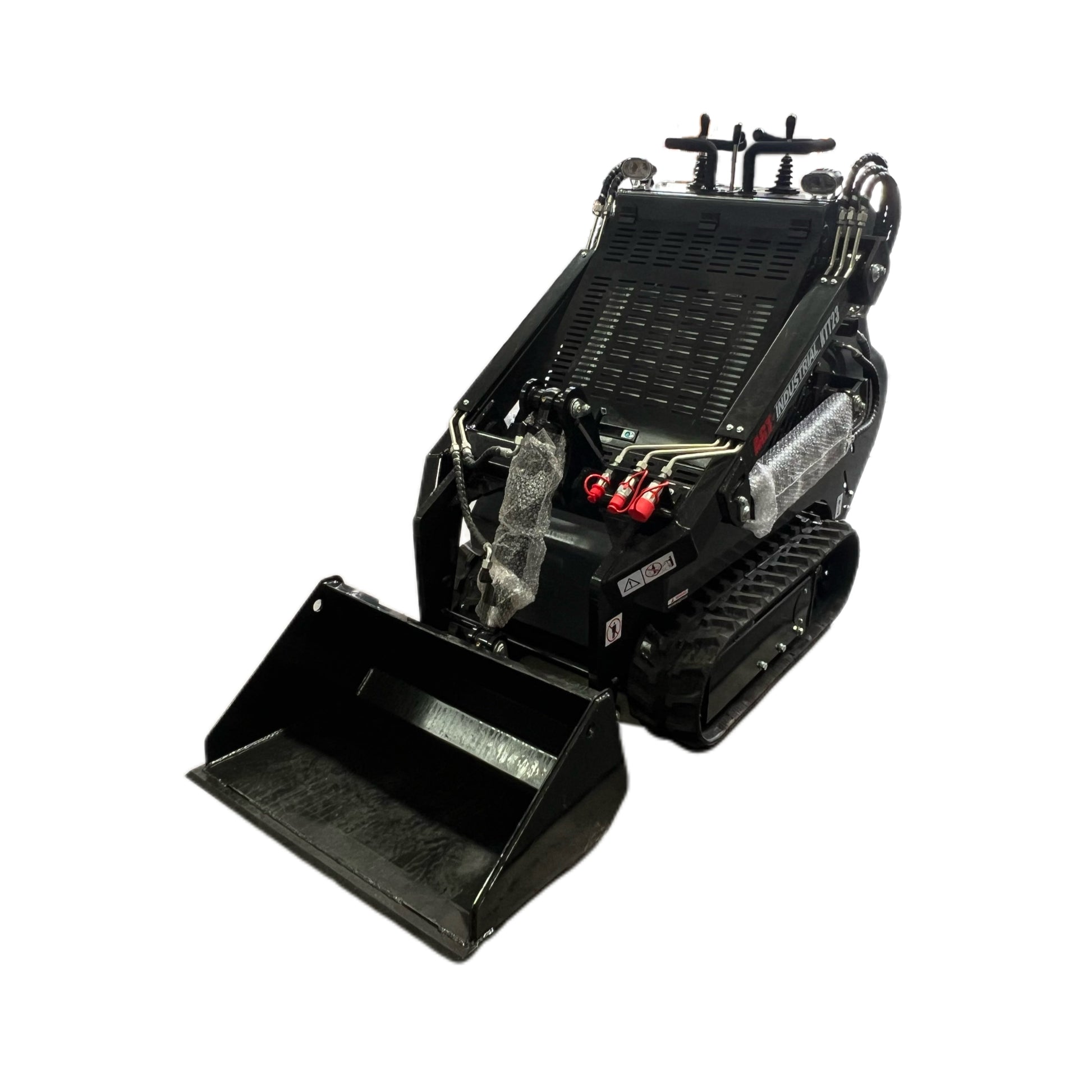

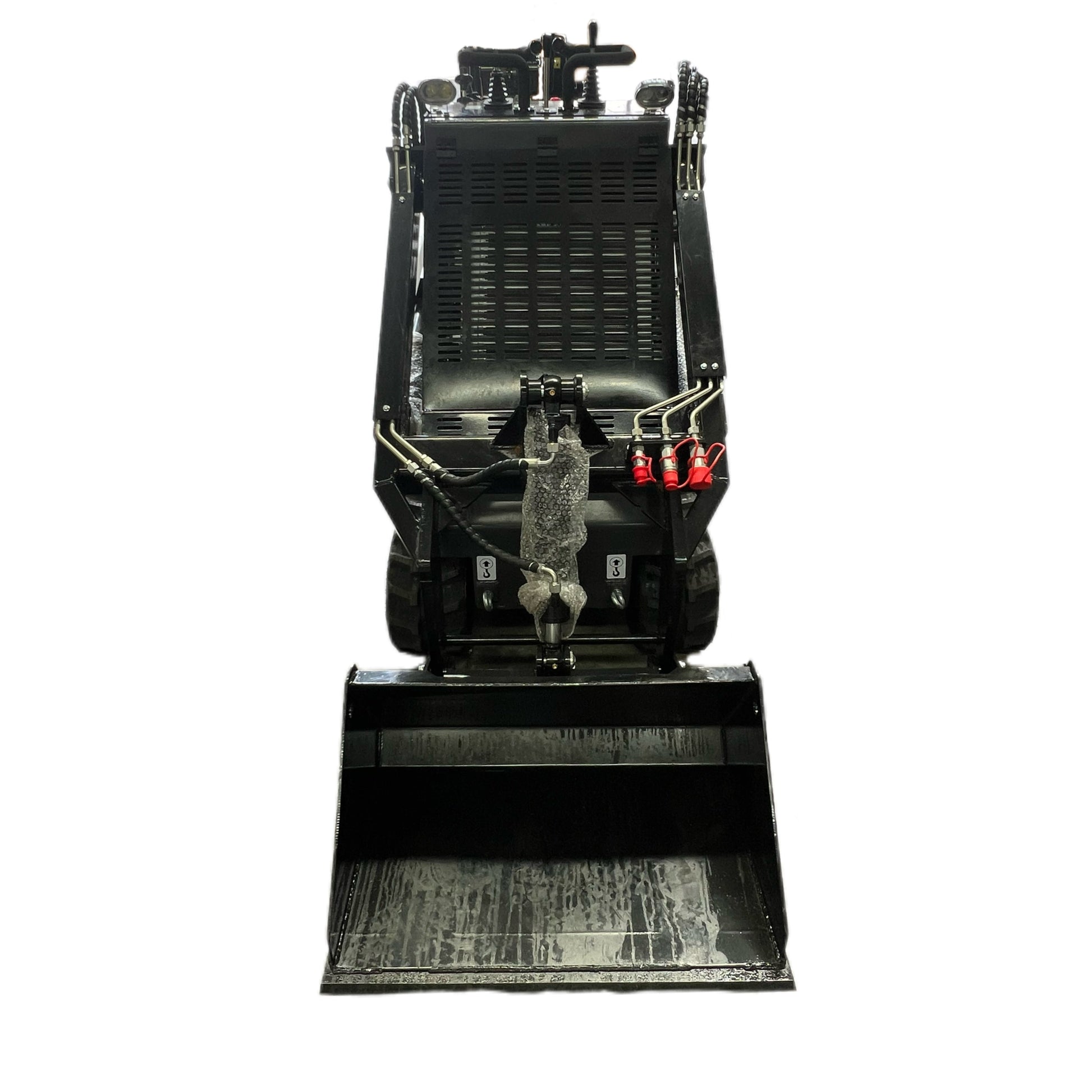

Cfgindustrial 1 Ton Rato Engine Mini Skid Steer Track Loader | AGT-KTT23
Regular price
$7,271.80
Sold out
SKU:AGT-KTT23
Cfgindustrial 1 Ton Rato Engine Mini Skid Steer Track Loader | AGT-KTT23
Cfgindustrial 1 Ton Rato Engine Mini Skid Steer Track Loader | AGT-KTT23
Product Overview
The compact and powerful skid steer features a maximum load capacity of 220 kg, a bucket capacity of 0.15 m³, and a RATO gasoline engine with 16.8 KW output power.
DIMENSION:
- Operating Weight: 0.9 Ton (1,800 lbs)
- Overall Length: 2,160 mm (85 in)
- Overall Width: 1,270 mm (50 in)
- Overall Height: 889 mm (35 in)
- Bucket Width: 890 mm (35 in)
- Bucket Capacity: 0.12 m³ (0.16 yd³)
- Track Size: 200*72*32 (Width*Pitch Length*Links)
WORKING RANGE:
- Max Working Height: 2,450 mm (96.5 in)
- Max Unloading Height: 1,428 mm (56 in)
- Max Lifting Force: 220 kg (485 lb)
- Travel Speed: 5.5 km/h (3.4 mph)

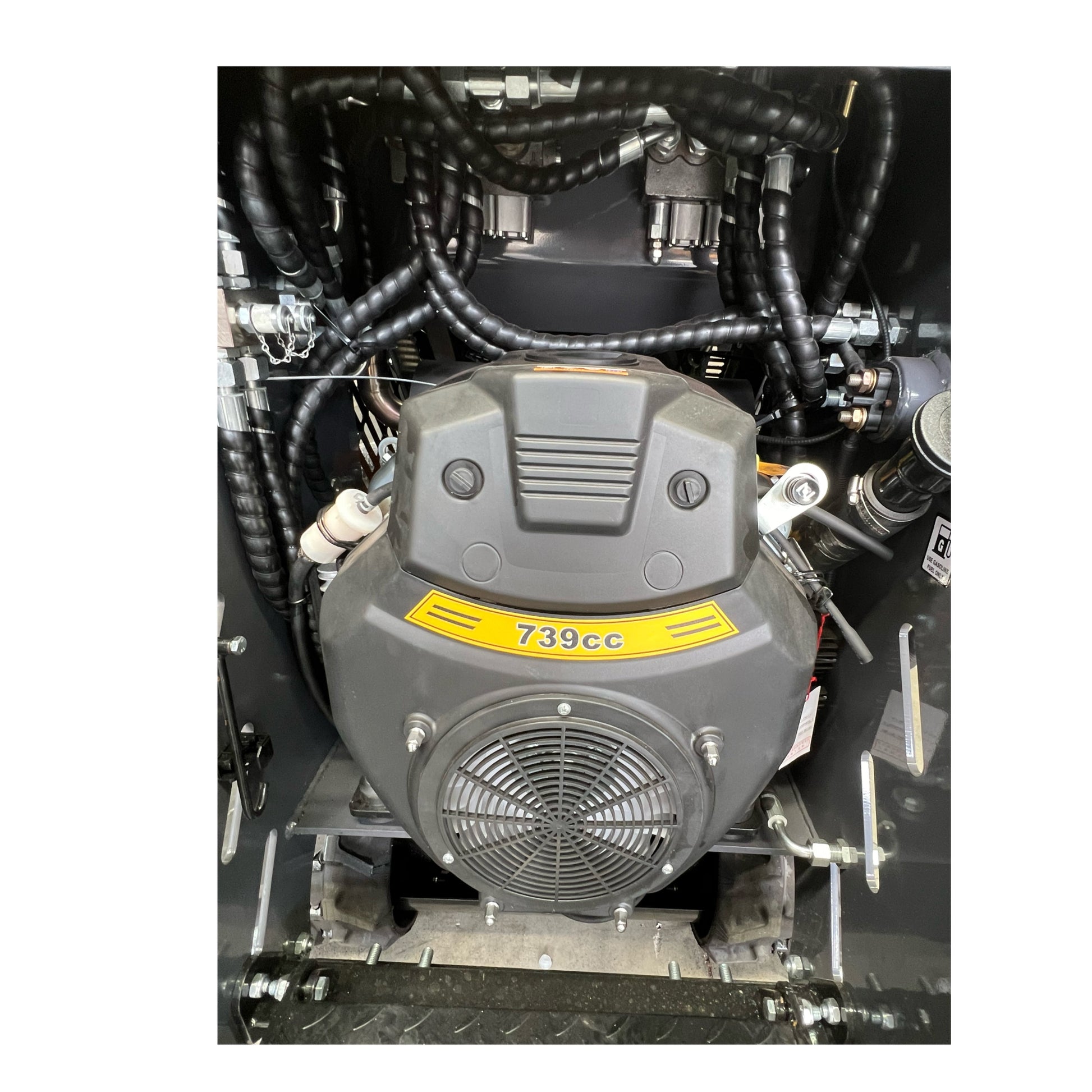

ENGINE:

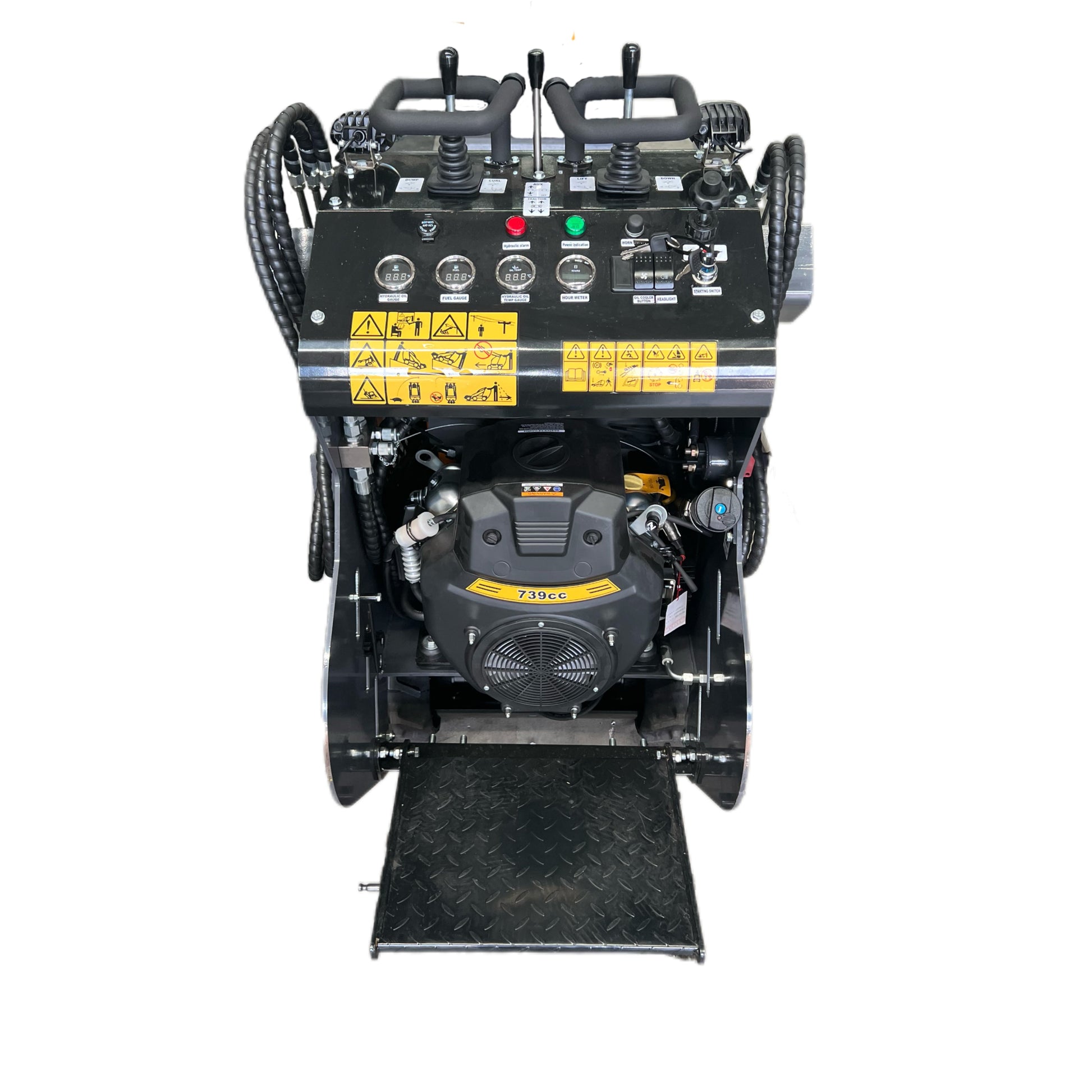

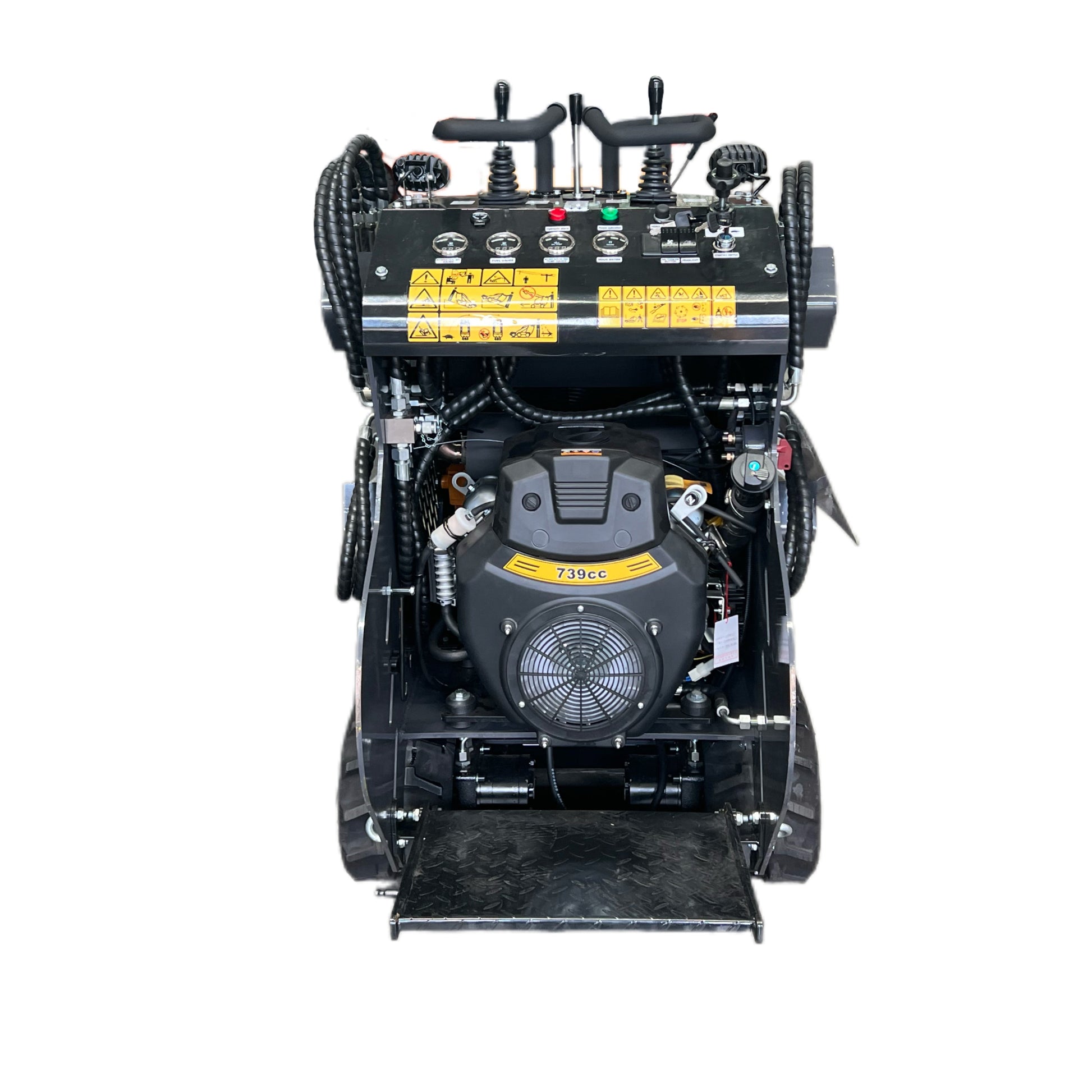

- Brand / Model: Rato R740D
- Fuel Type: Gasoline
- Max Power: 17 kW (23 HP)
- Displacement: 740 cc
- Fuel Tank: 25 L (6.6 gal)
- Hydraulic Flow Rate: 43.2 L/min (11.4 GPM)
- Hydraulic Pressure: 16 MPa (2,320 PSl)
- Hydraulic Tank Capacity: 25 L (6.6 gal)
FEATURES:
- R740D Engine
- PGP51088G3LP 2-Stage Pump
- ORMSR23 Hydraulic Cooler
- Toro Dingo mounting plate
Product Warranty
Specifications
| Model Information | |
|---|---|
| Configuration Status | √Standard, △Optional, ×None |
| Model | KTT23 |
| Basic Performance Parameters | |
| Working Weight (kg) | 905 |
| Bucket capacity (m³) | 0.12 |
| Travel speed low/high speed (Km/h) | 3 |
| Maximum lifting force (Kg) | 220 |
| C Maximum working height (mm) | 2450 |
| B Maximum pin height (mm) | 1800 |
| A Maximum unloading height (mm) | 1350 |
| G Loading distance at maximum unloading height (mm) | 840 |
| H Wheelbase (mm) | 690 |
| F Ground clearance (mm) | 120 |
| L Bucket discharge angle | 20° |
| Equipment Body | |
| E Bucket width (mm) | 812 |
| J/K Overall Length (mm) | 2330 |
| Overall Width (mm) | 820 |
| Body width (mm) | 810 |
| D Overall Height (mm) | 1420 |
| M Slewing radius (mm) | 1400 |
| Engine | |
| Engine Brand | Rato |
| Maximum power (kW) | 16.8 |
| Max. speed (rpm) | 3600 |
| Cooling method | Fan cooling |
| Engine oil change quantity (L) | 1.7 |
| Fuel Type | Gasoline |
| Fuel Grade | 92# |
| Tracks | |
| △-Rubber (bandwidth * pitch * number of sections) | 200×72×32 |
| Fuel Tank | |
| Fuel tank (L) | 18 |
| Hydraulic oil tank (L) | 30 |
