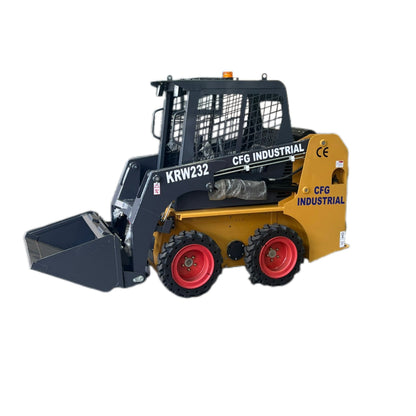

Cfgindustrial 1.25 Ton Mini Skid Steer with 33 HP Rato Engine | KRW232

Exploded View Parts List

In-Action Video

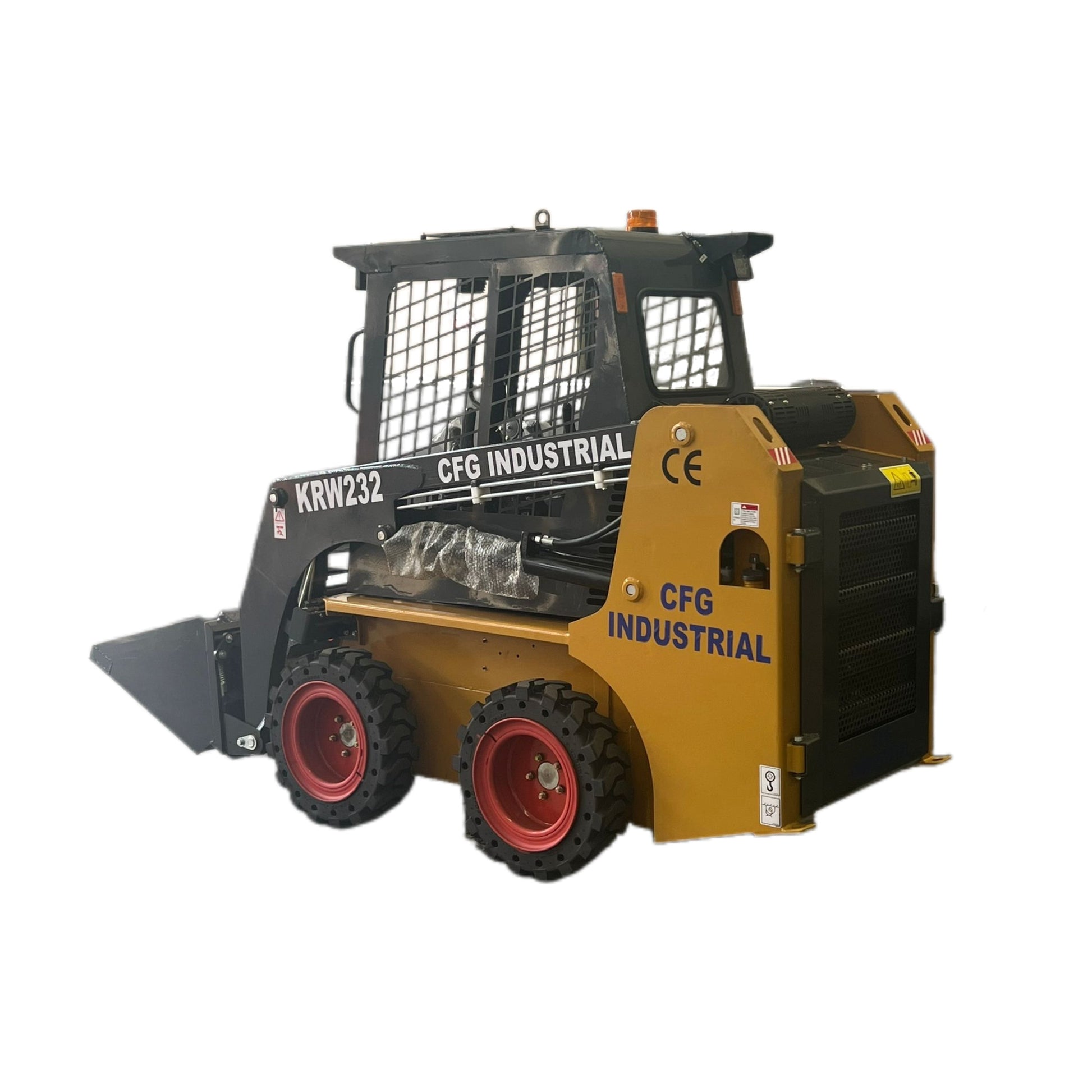

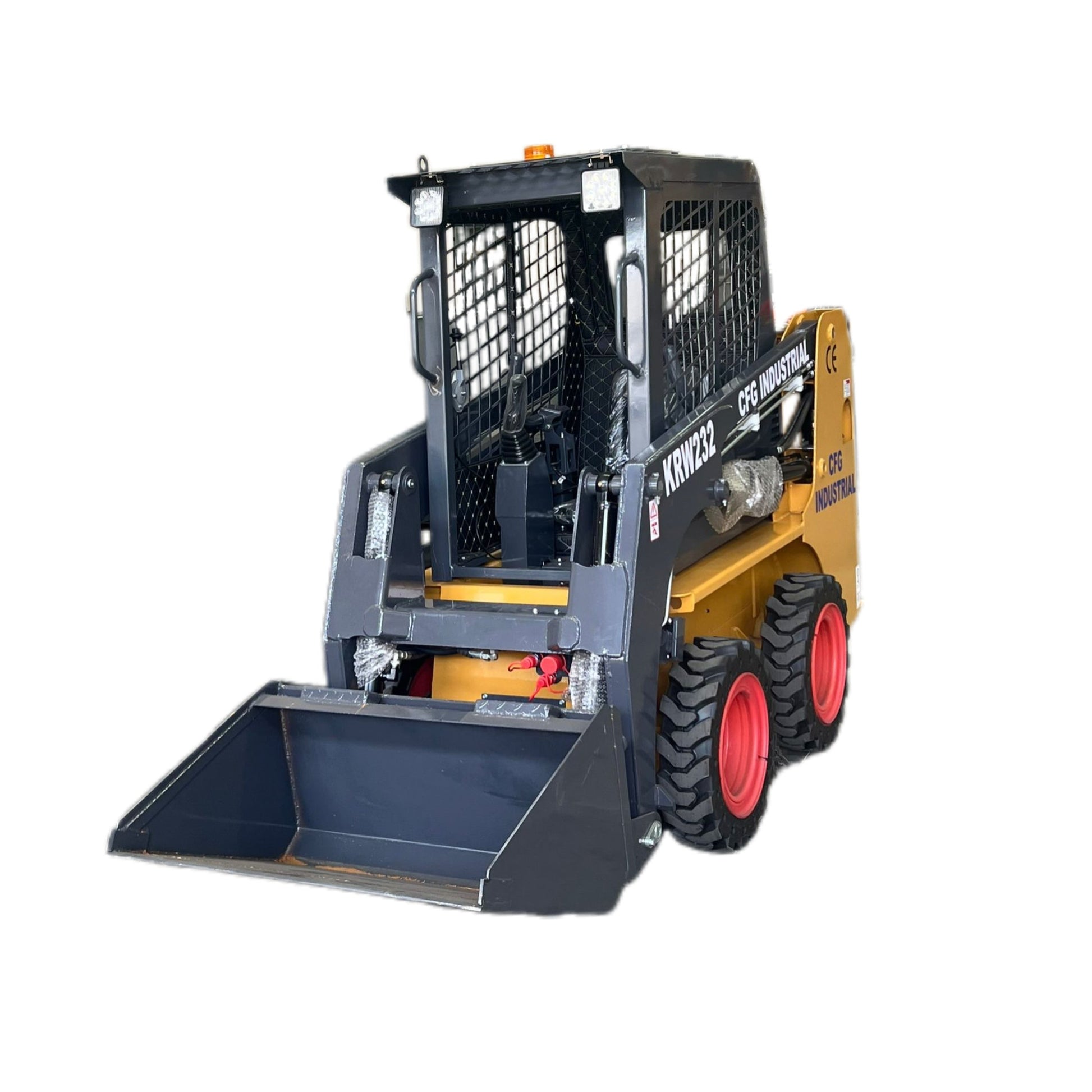

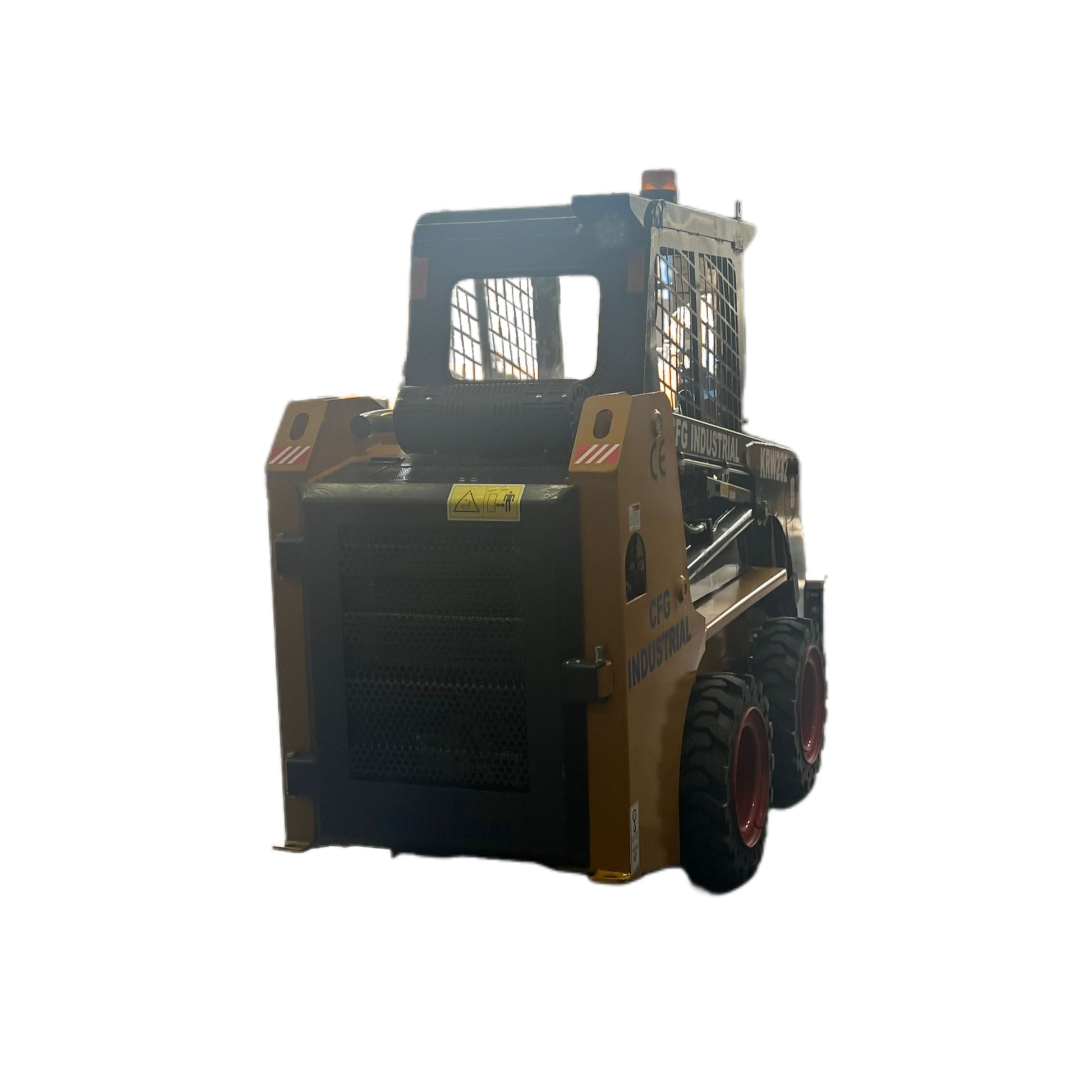

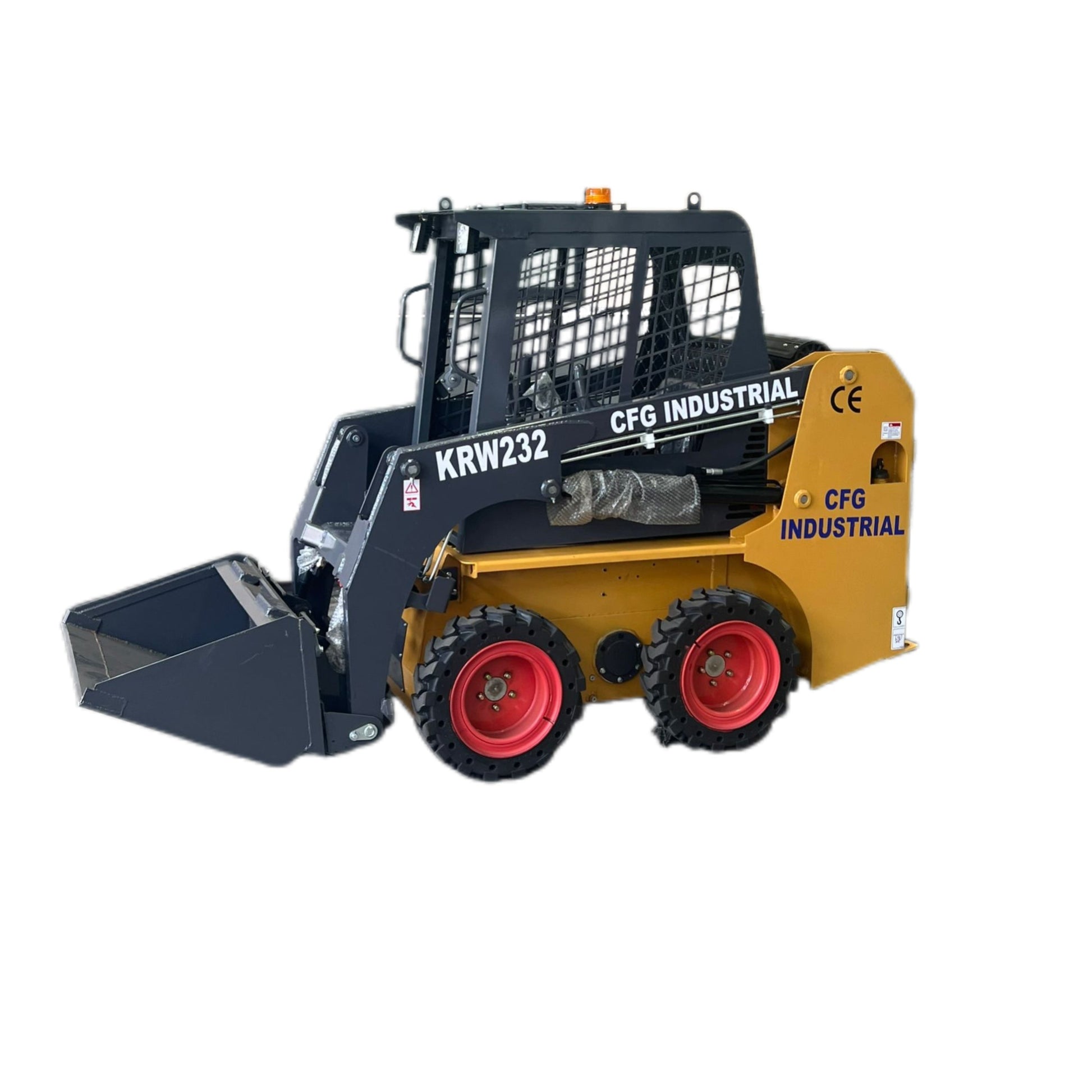

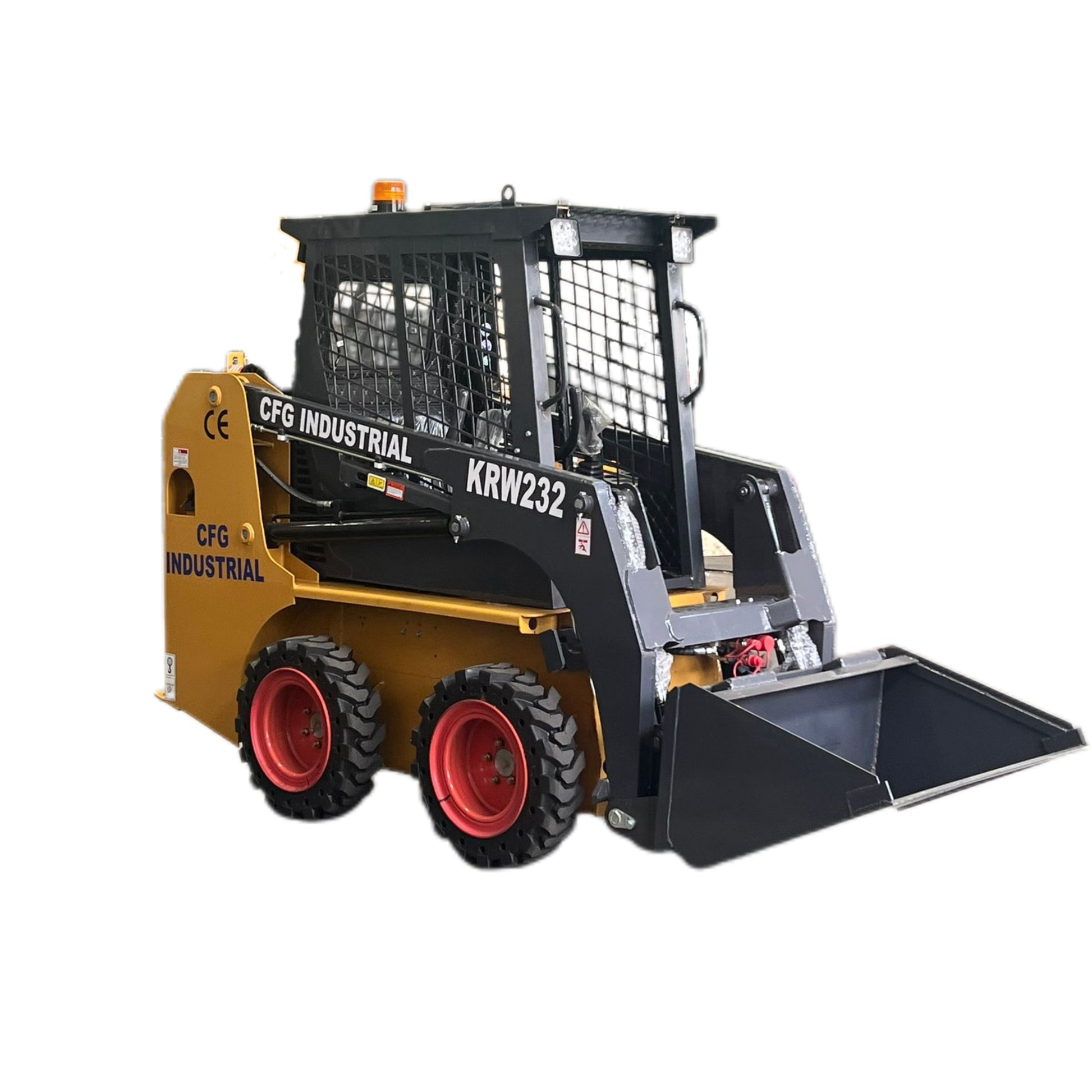

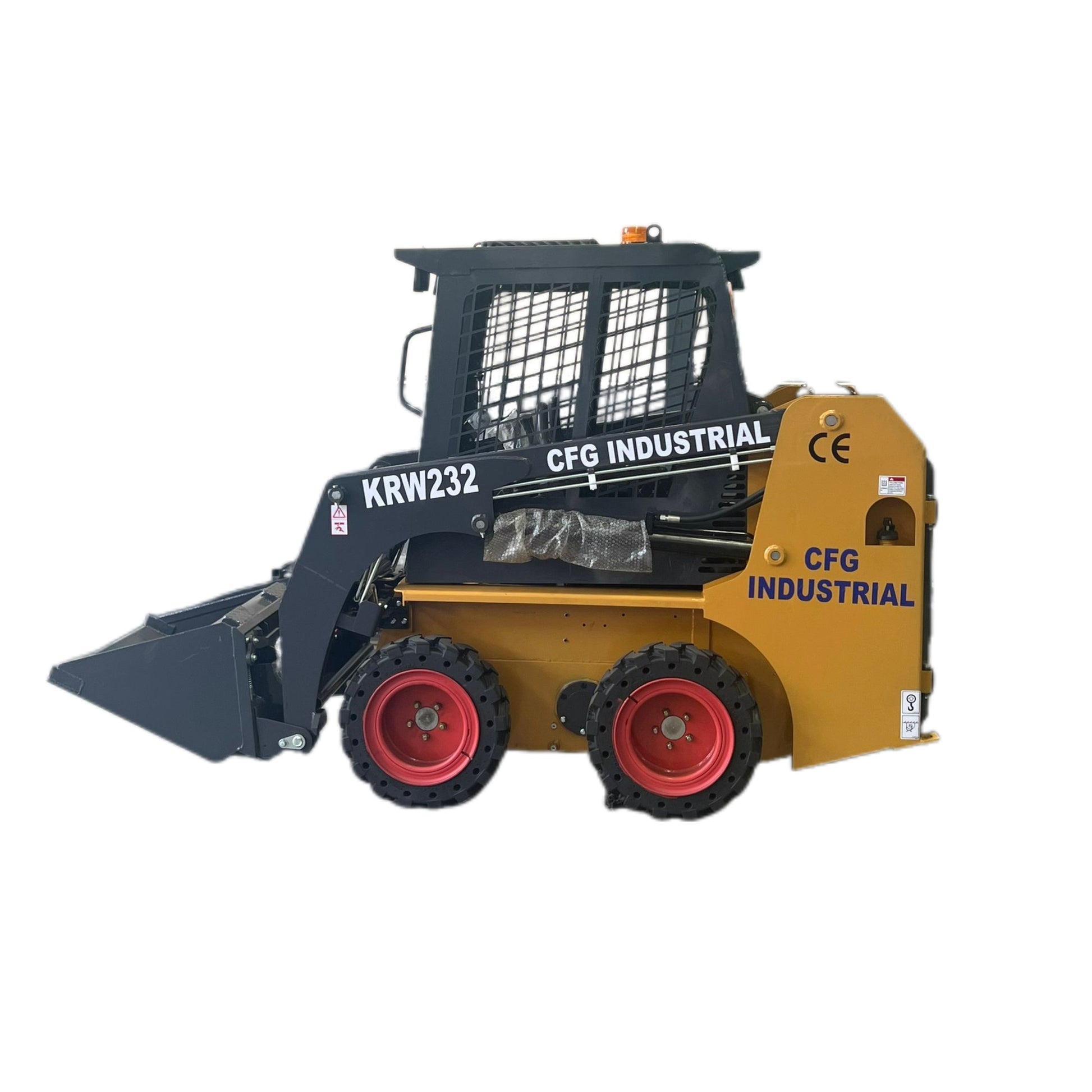

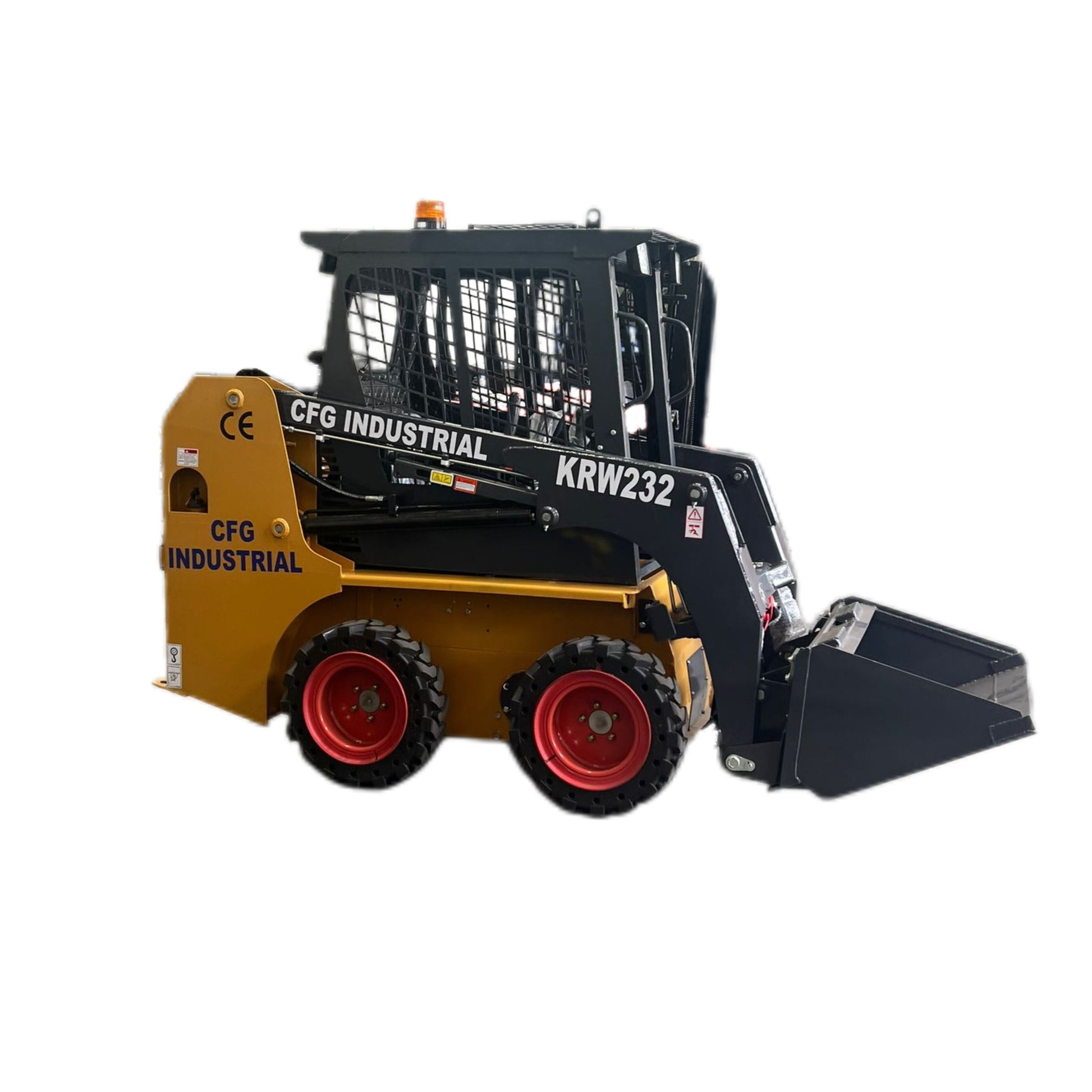

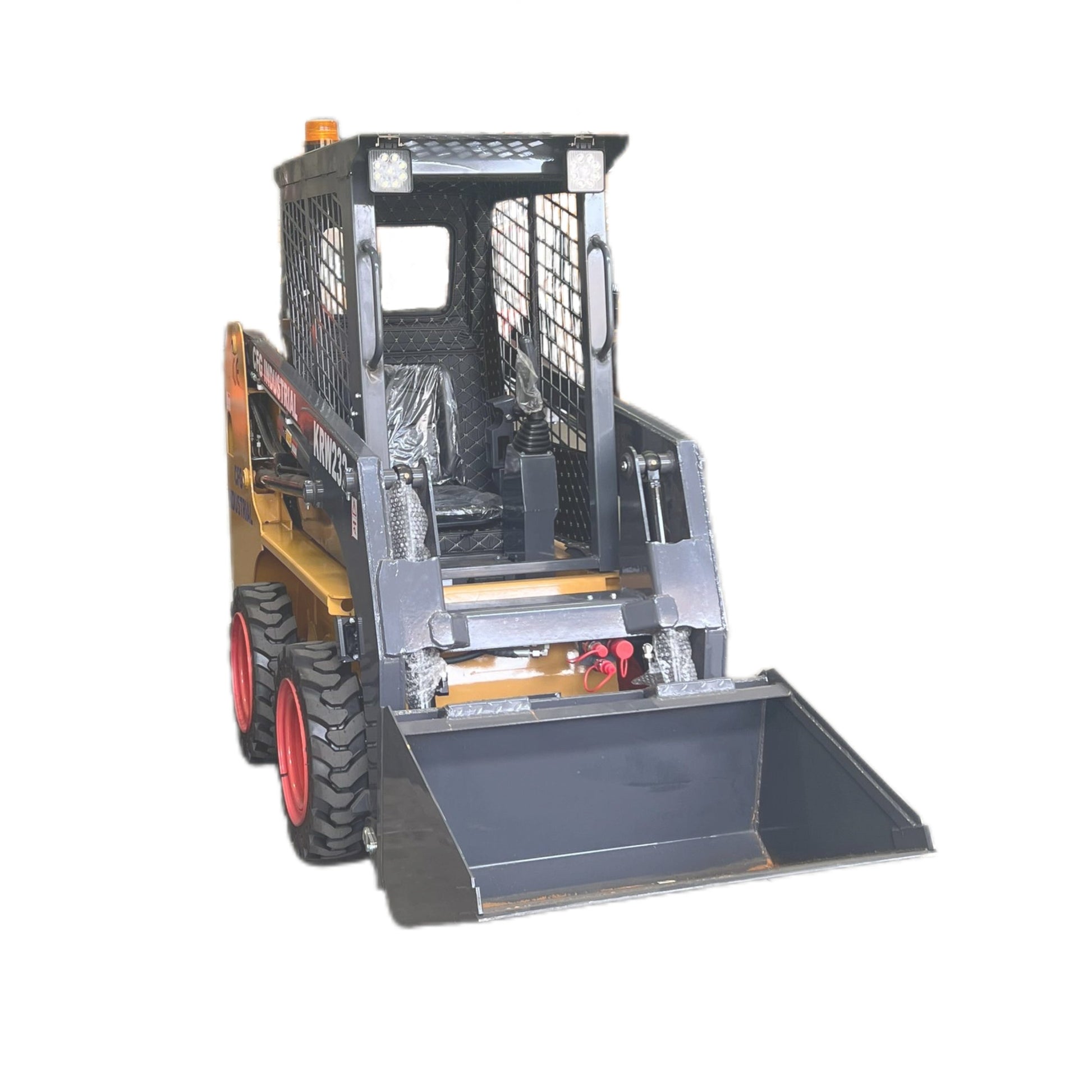

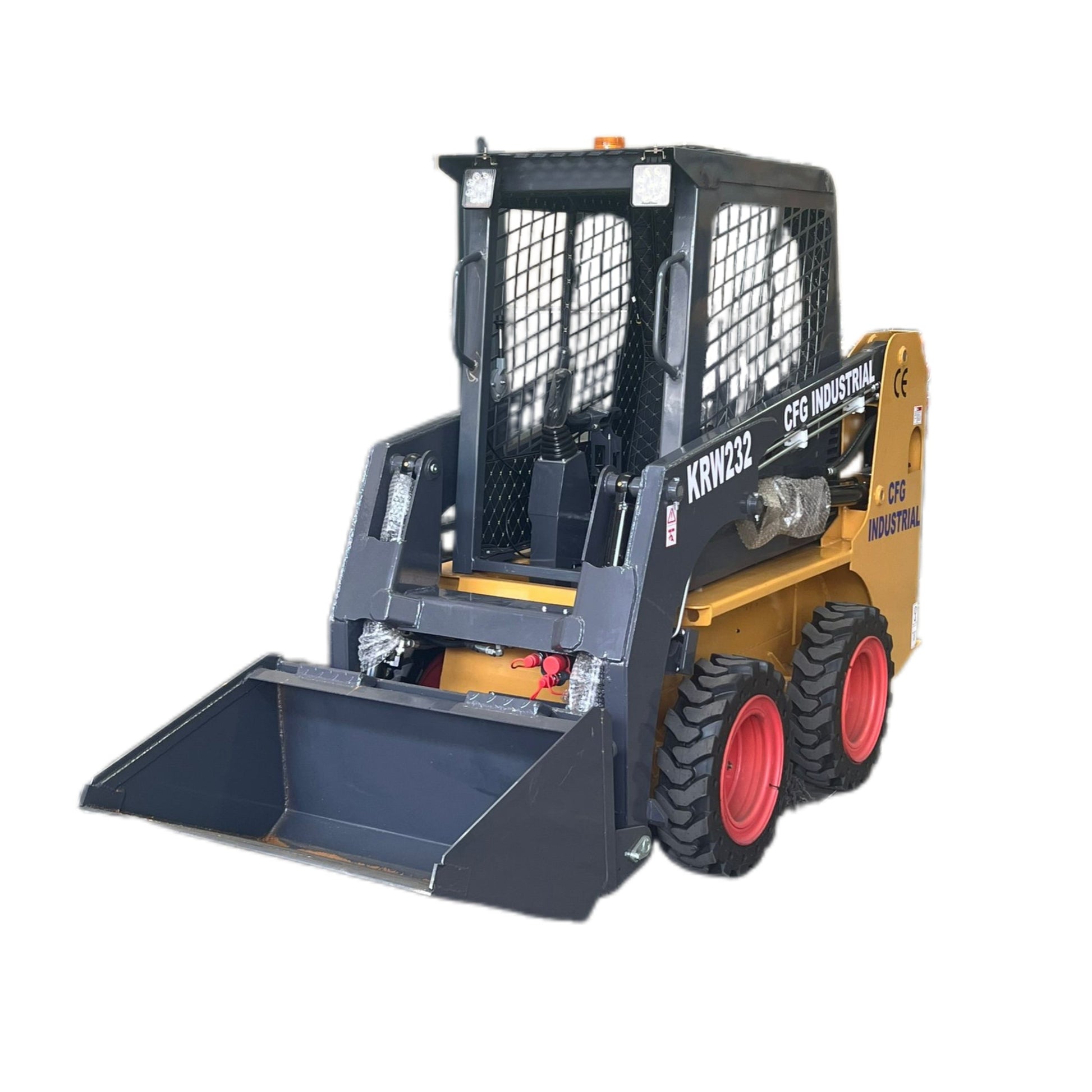

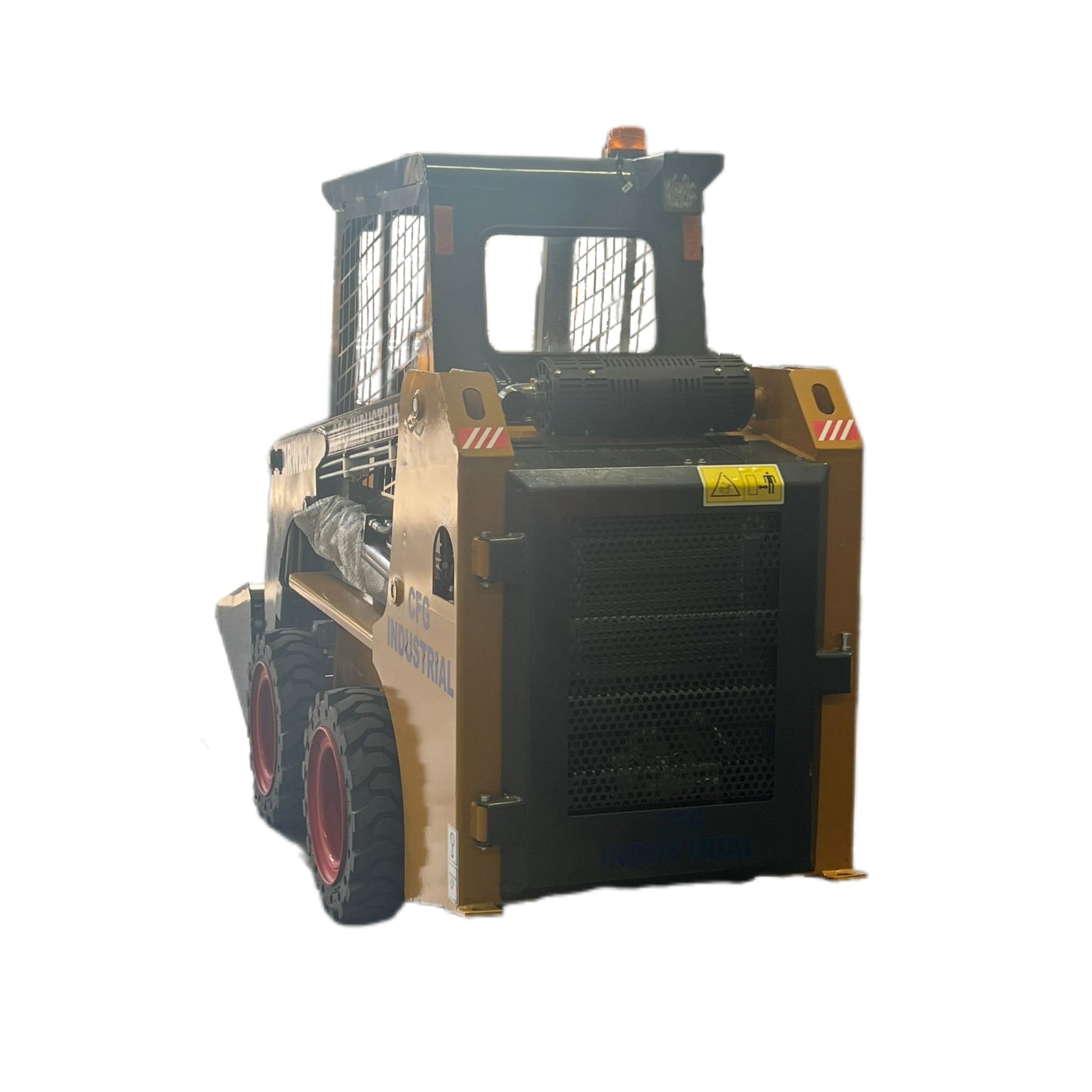

The JK-KRW232 is a compact yet powerful loader designed for demanding tasks on farms, construction sites, and industrial yards. With a working weight of 1100 kg and a strong 380 kg lifting force, this machine offers reliable performance in a maneuverable package.
It features a robust Rato air-cooled gasoline engine delivering 33 HP, supported by a high-capacity hydraulic system with a 70 L/min flow rate ideal for fast cycle times and efficient operation. The JK-KRW232 also boasts a tight 900 mm width and a 40° bucket discharge angle, making it perfect for tight-access tasks and quick loading jobs.

Technical Data:

• Operating Weight: 1,100 kg

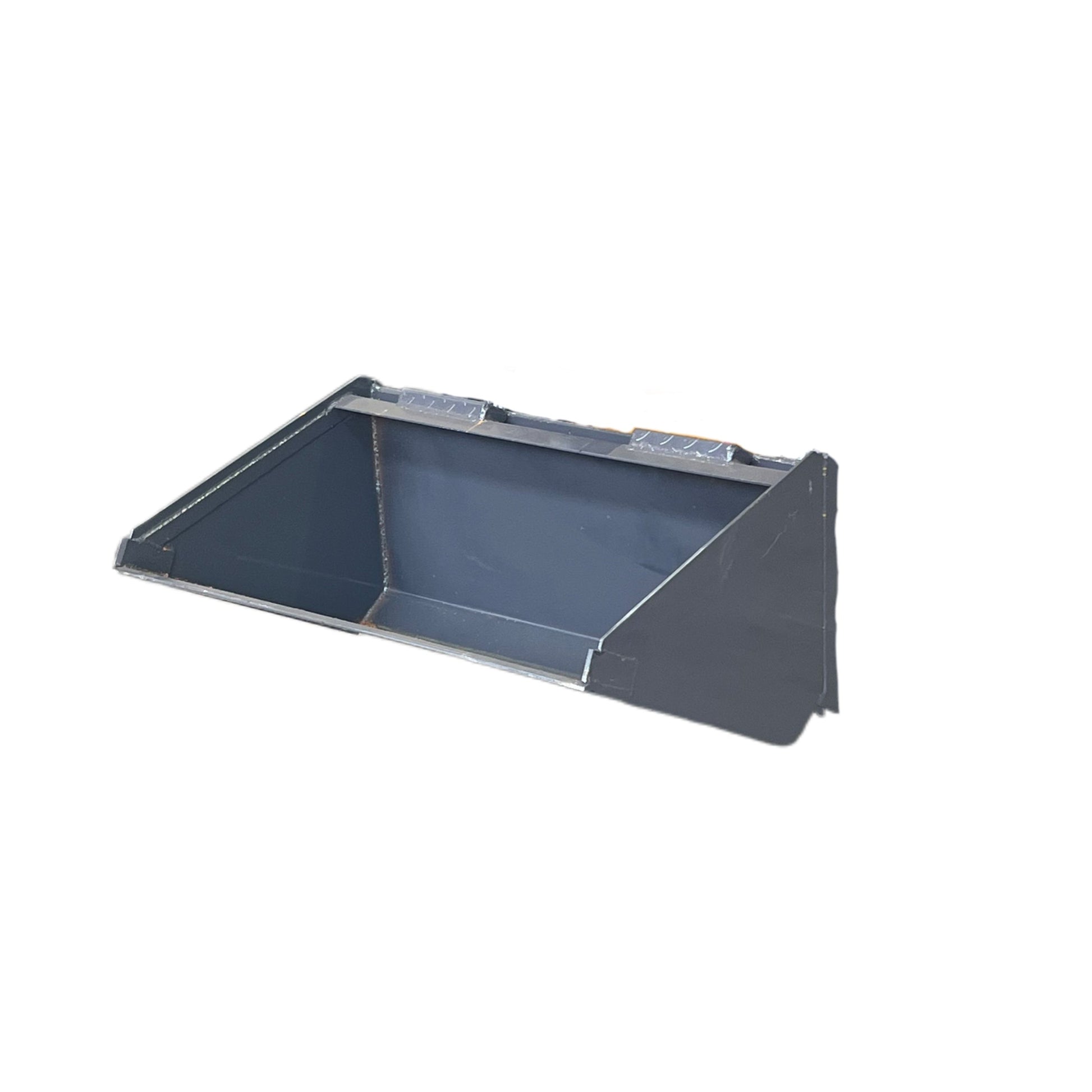

• Bucket Capacity: 0.16 m³

• Travel Speed: Up to 4.5 km/h

• Max Lifting Force: 380 kg

• Max Working Height: 3,590 mm

• Unloading Height: 1,820 mm

• Bucket Discharge Angle: 40°

• Wheelbase: 801 mm

Engine:

• Rato, Air-cooled

• Max Horsepower: 33 HP

• Fuel Type: 92# Gasoline

• Fuel Tank Capacity: 40 L

• Theoretical Fuel Consumption: 10 L/h

• Hydraulic Oil Tank: 40 L

Hydraulics:

• Main Pump: PGP532B62

• Max Flow Rate: 70 L/min

Dimensions:

• Overall Length (with bucket): 2,580 mm

• Overall Length (without bucket): 1,945 mm

• Overall Width: 900 mm

• Overall Height: 1,820 mm

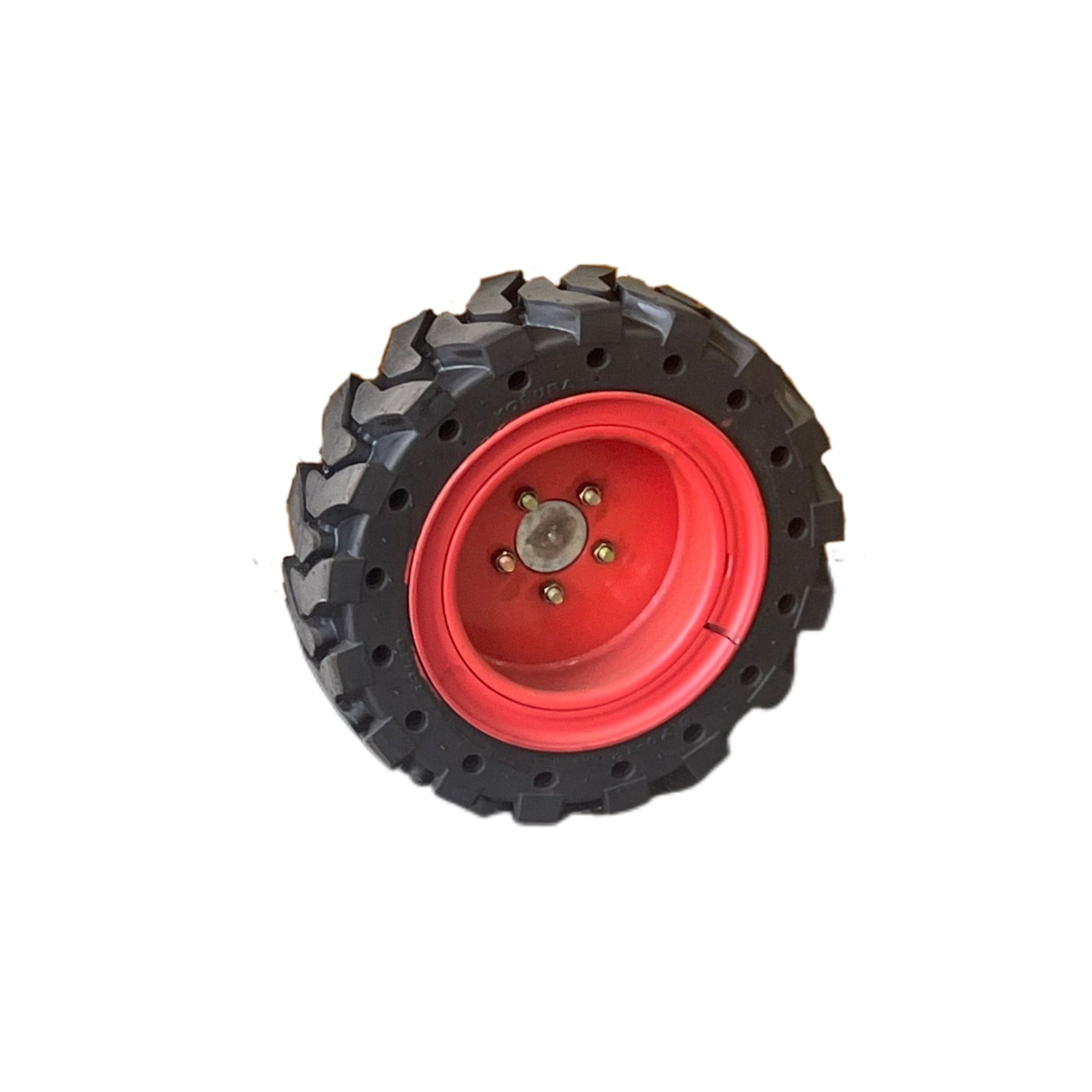

• Tires: 570*16
