Cfgindustrial Hydraulic Pump for Mini Excavators | PGP51055SLP

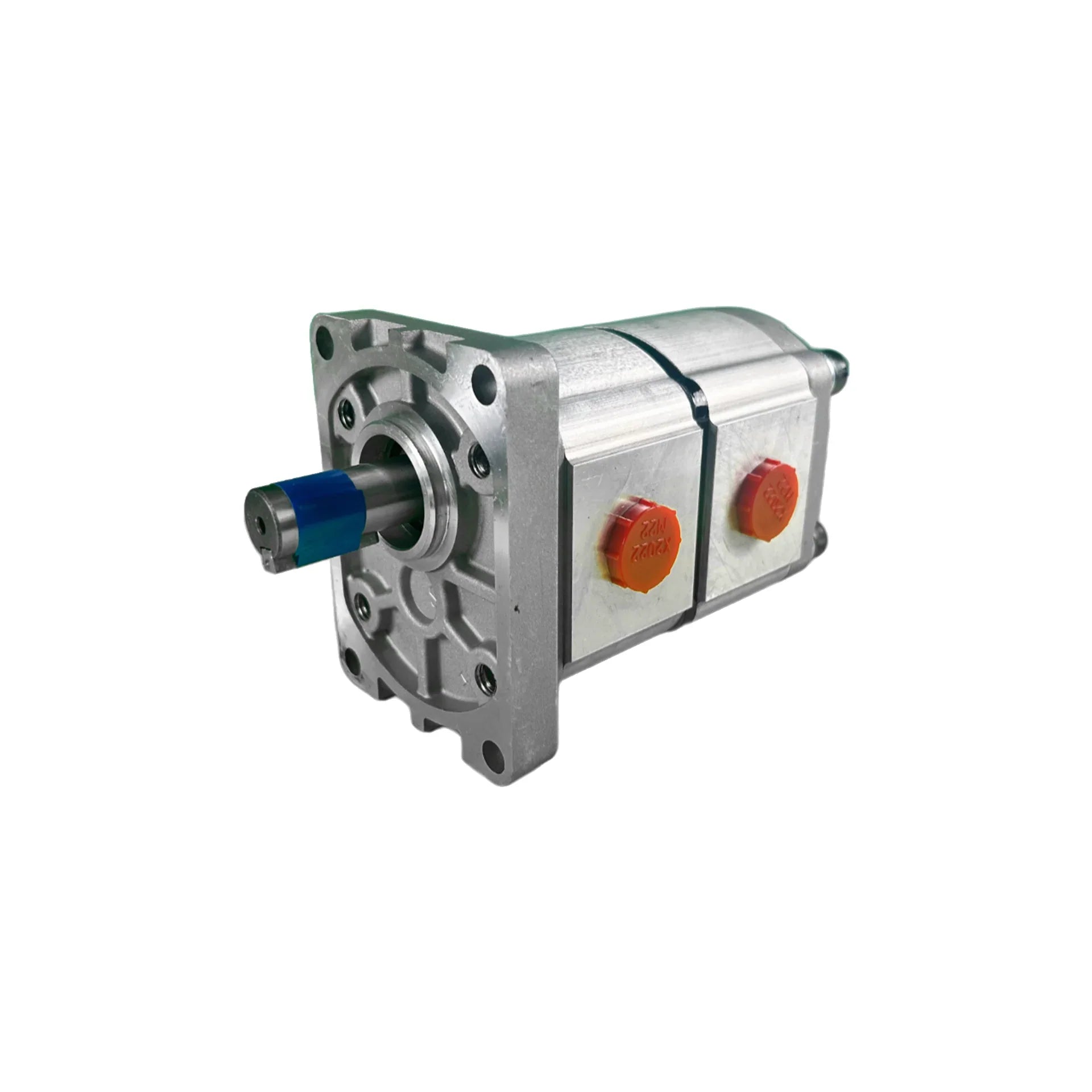

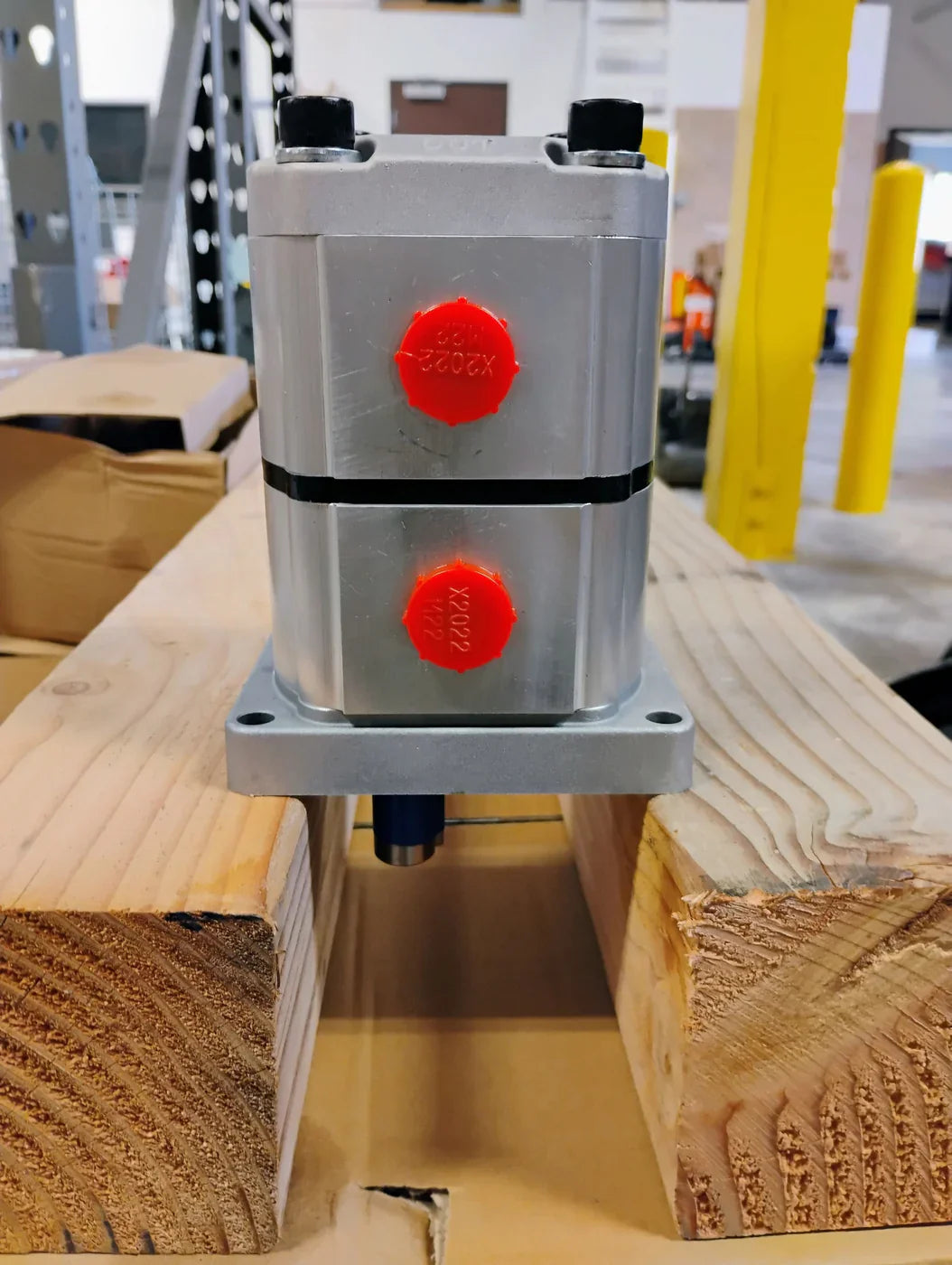

The Two-Section Hydraulic Pump is a compact, high-efficiency unit built for mini excavators requiring dual hydraulic outputs from a single suction feed. This pump features two independent output chambers, a single M27 threaded suction port, and dual M22 threaded pressure ports, allowing for efficient hydraulic separation between drive and auxiliary functions. It uses a smooth input shaft with keyway, four-bolt mounting pattern, and is designed for seamless integration with power units and attachment systems.

Technical Data:

• Pump Type Two-section hydraulic gear pump
• Suction Port Single inlet, M27 thread
• Output Ports Dual output, M22 thread

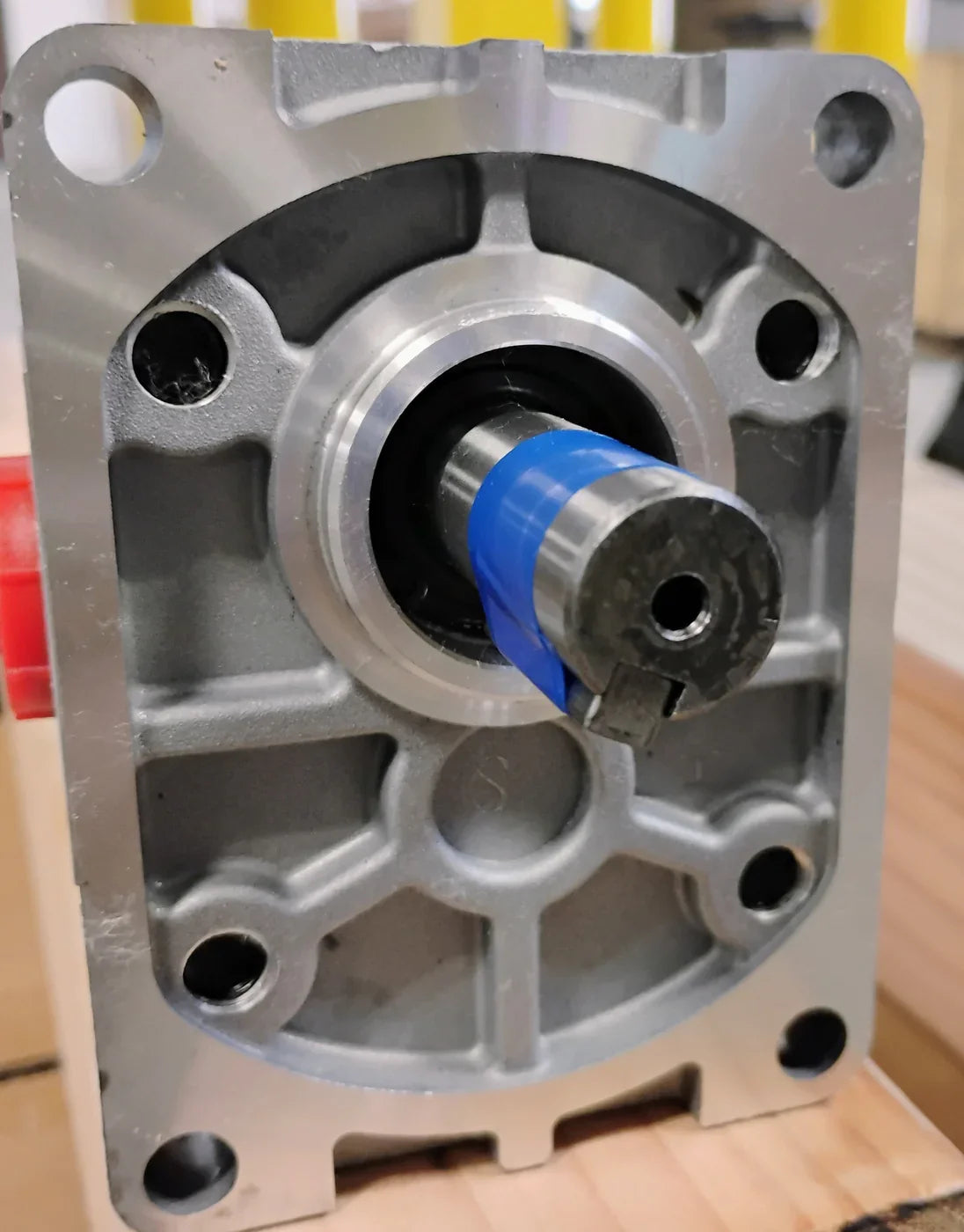

• Input Shaft Smooth shaft with keyway
• Mounting Pattern 4-bolt
• Application Skid steer hydraulic system (main + auxiliary)
• Material Cast housing
