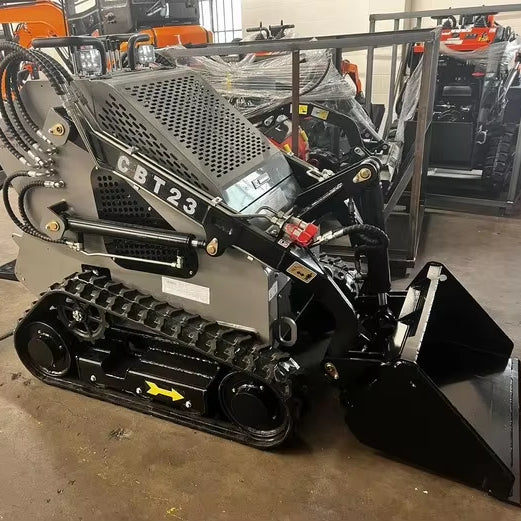

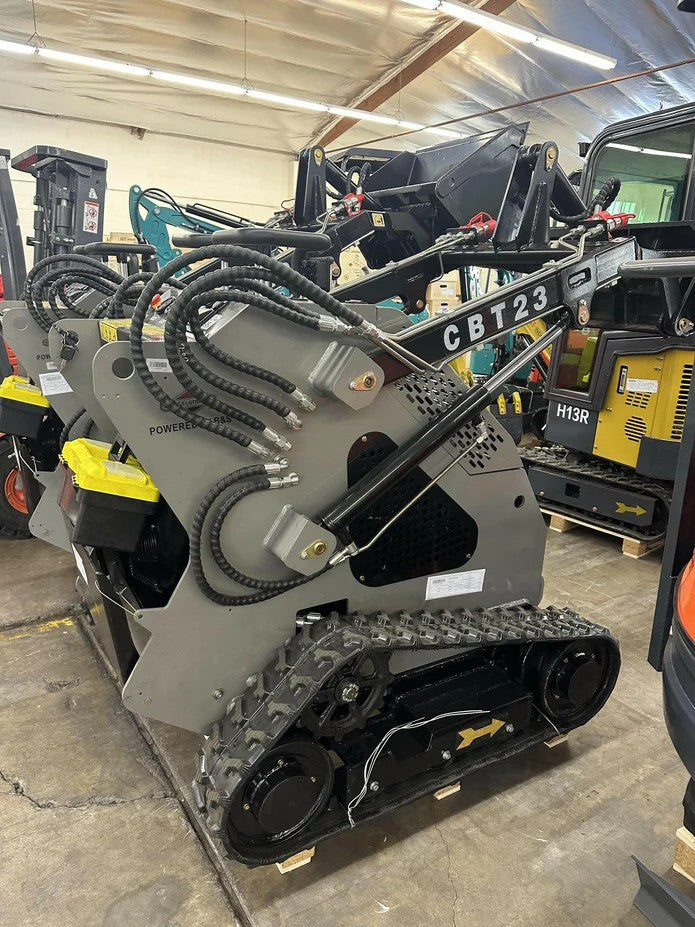

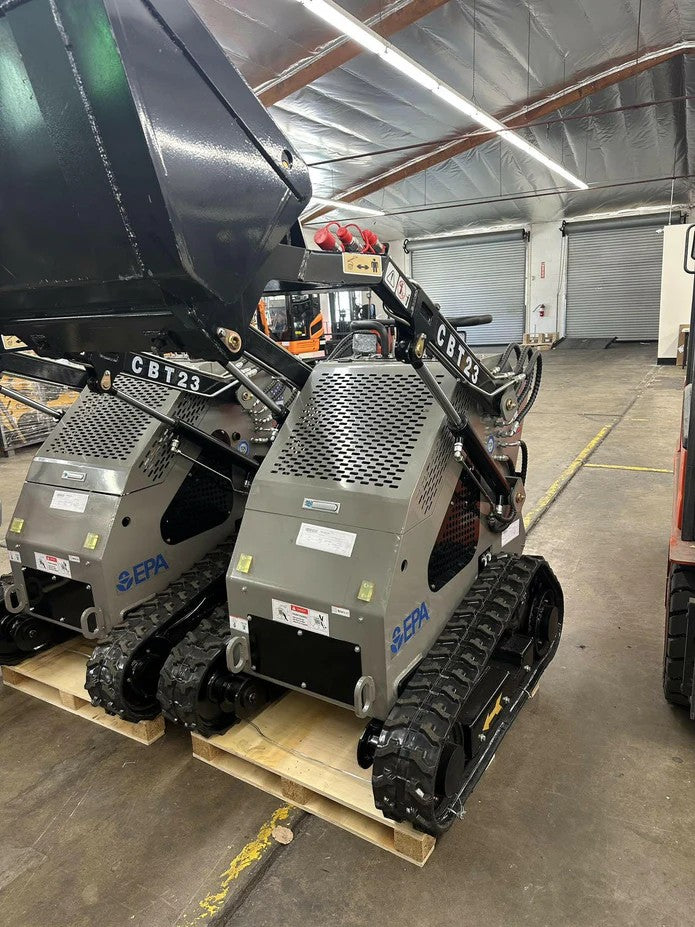

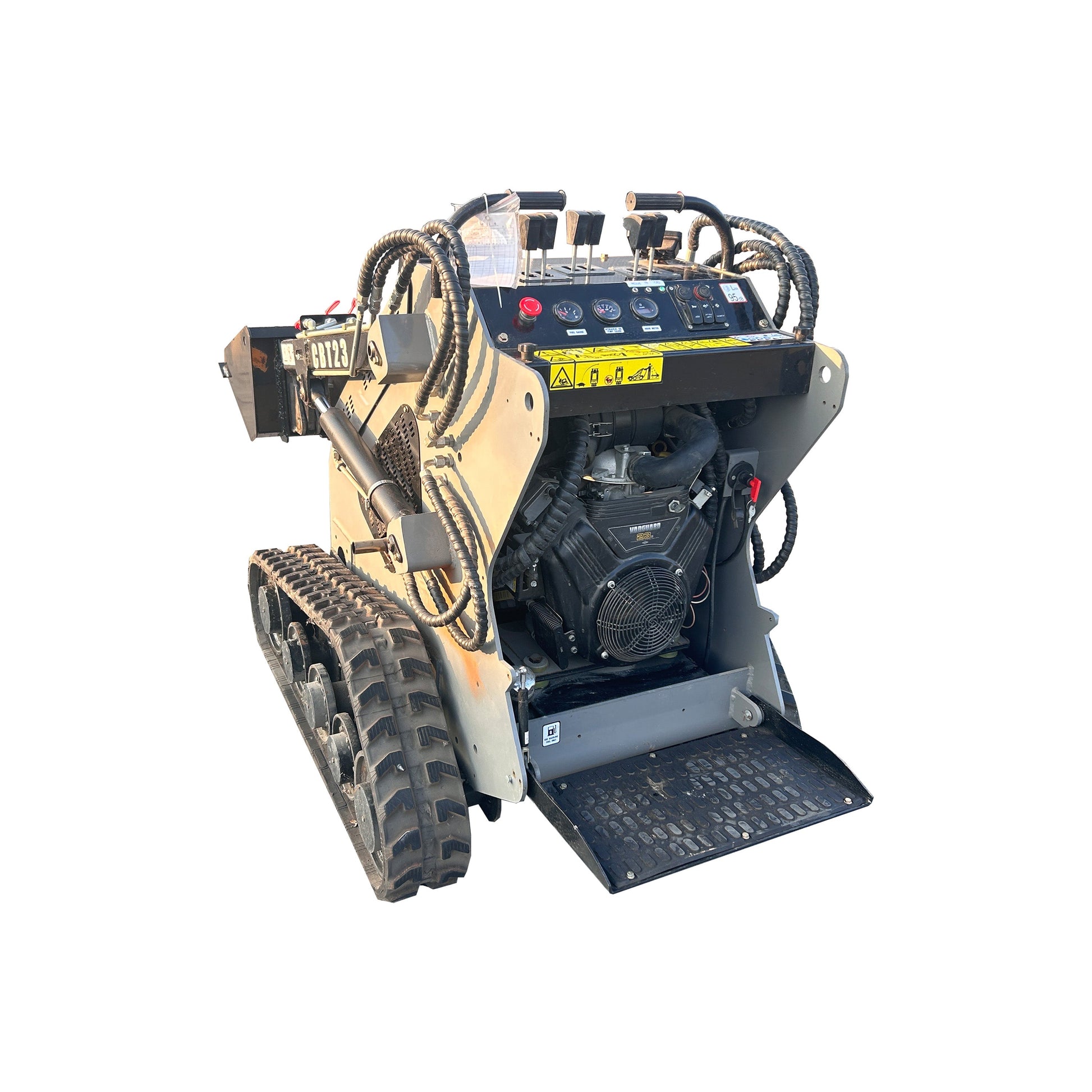

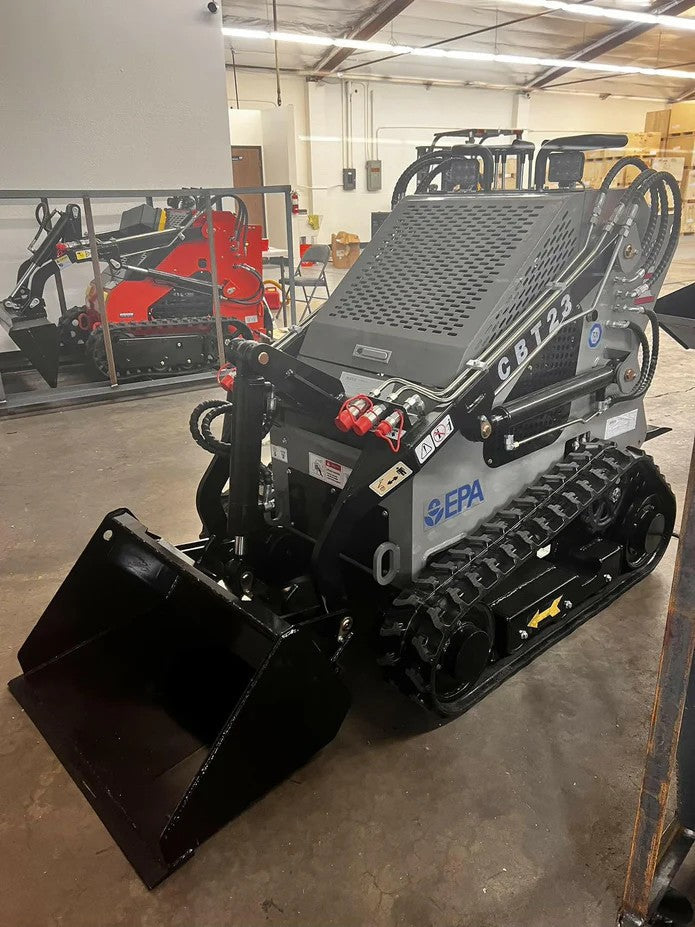

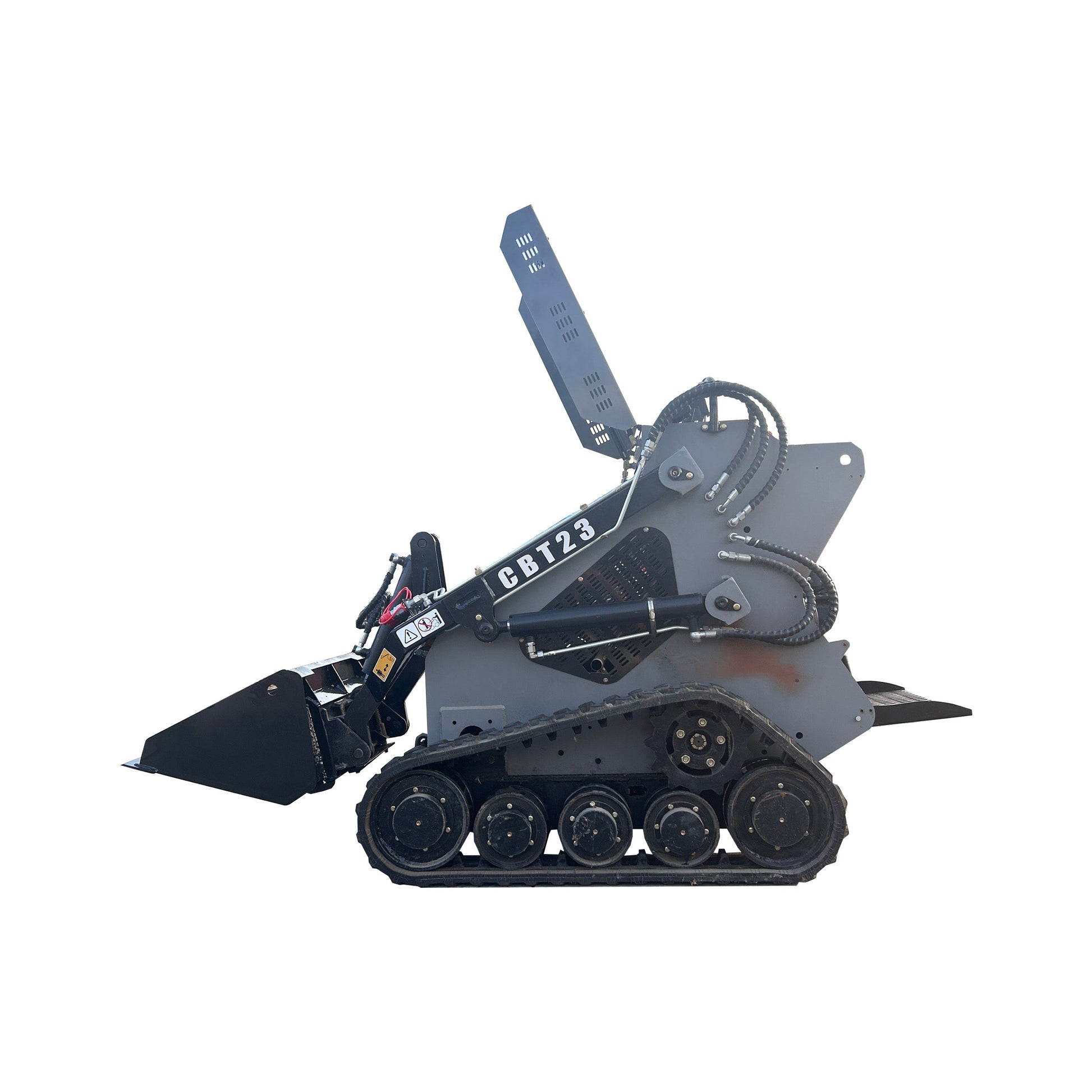

Cfgindustrial 23 HP Mini Skid Steer Ride-on Compact Tracked Loader with B&S Engine | CBT23

The 1 Ton Mini Stand On Skid Steer Track Loader is a compact and efficient piece of equipment designed for various heavy-duty tasks. With a powerful 23 HP gas engine and a maximum torque of 34.39 lb-ft, this skid steer loader can easily maneuver and lift heavy loads. The tracked mounting style ensures smooth operation, while the 180 x 72 x 41 O-rubber band width, pitch, and number of sections provide a sturdy connection for the bucket. With a maximum lifting force of 200 kg and a net horsepower of 23, this skid steer loader is perfect for businesses and industrial applications requiring precision and durability.

DIMENSION:

• Operating Weight: 0.95 Ton (1,900 lb)
• Overall Length: 2,432 mm (96 in)

• Overall Width: 904 mm (35.5 in)

• Overall Height: 1,364 mm (54 in)

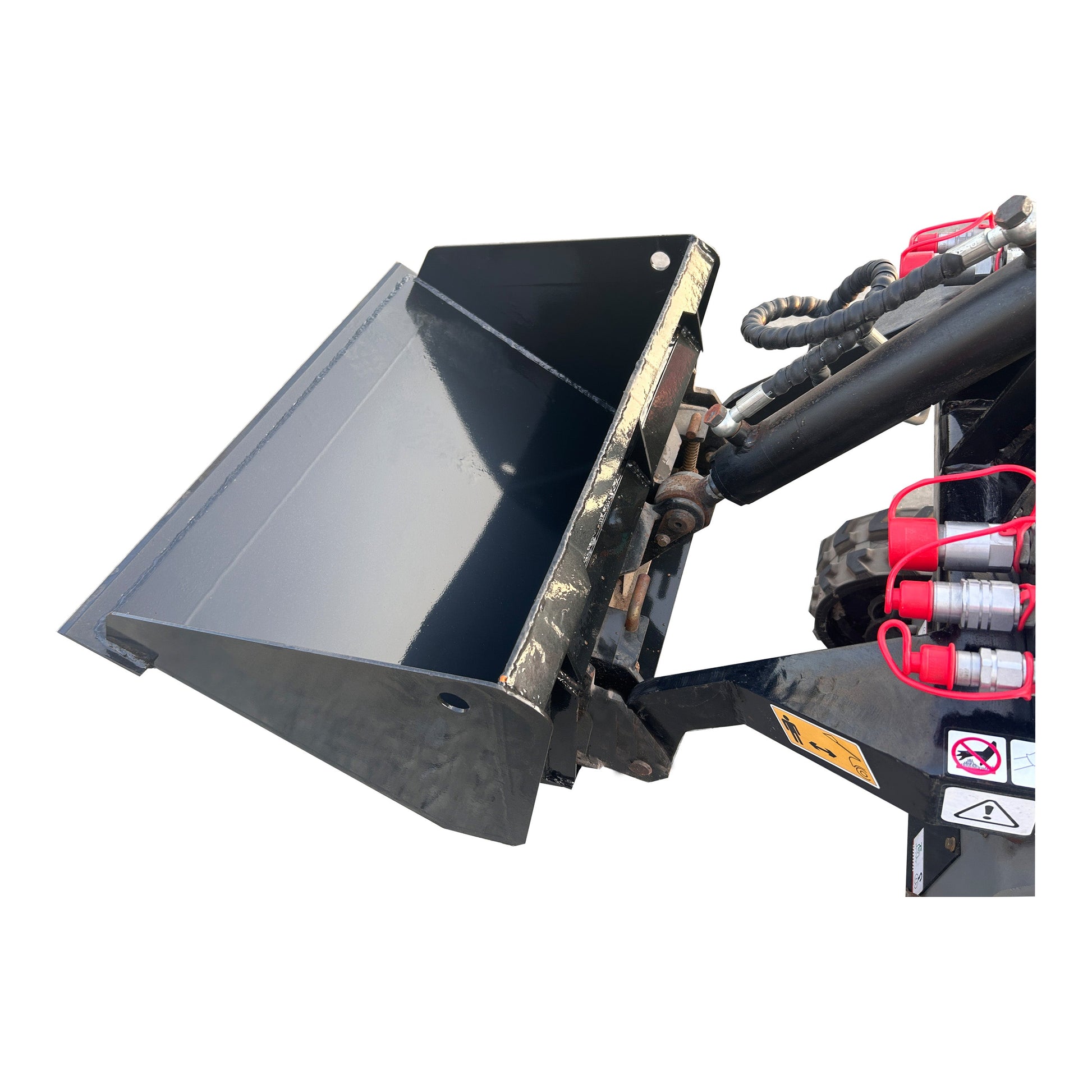

• Bucket Width: 800 mm (31.5 in)

• Bucket Capacity: 0.12 m³ (0.15 yd³)
• Tracks Size: 180*72*41 (W*P*L)

WORKING RANGE:

• Max Working Height: 2,285 mm (90 in)
• Max Unloading Height: 1,612 mm (63.5 in)
• Max Lifting Force: 220 kg (485 lb)
• Travel Speed: 4 km/h (2.5 mph)

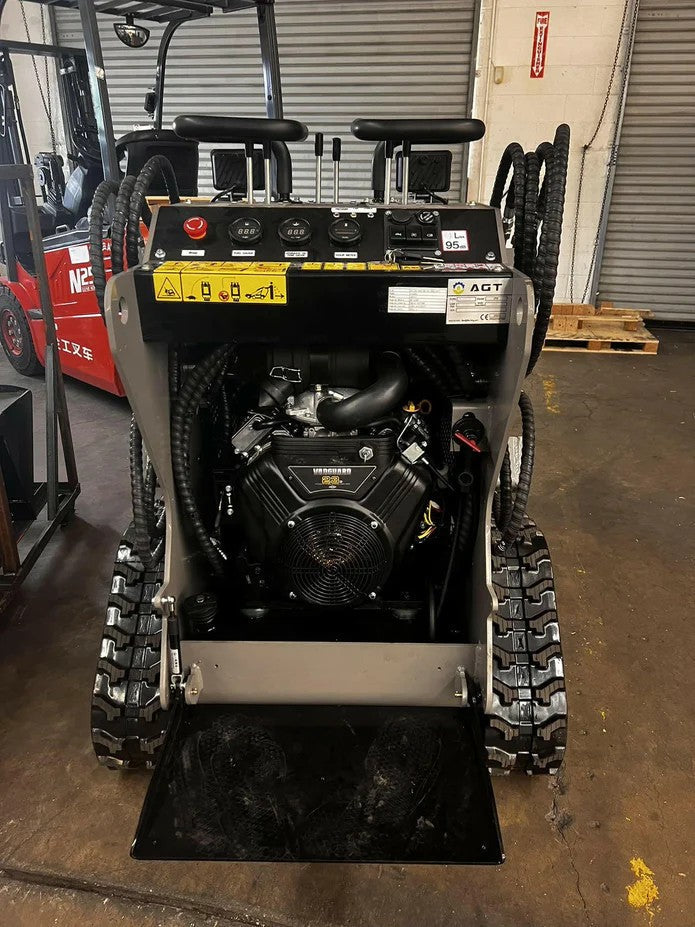

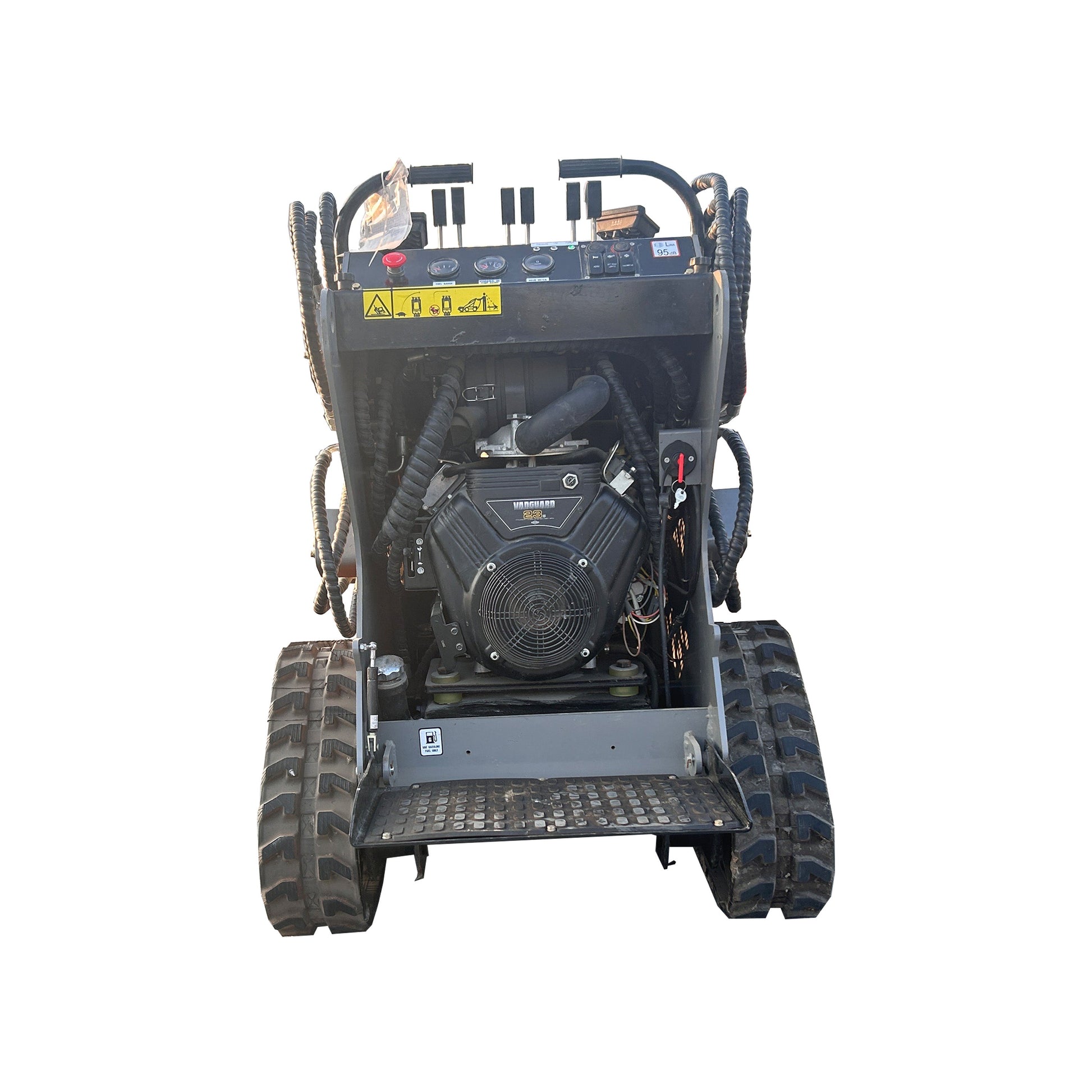

ENGINE:

• Brand / Model: B&S XR 23 HP

• Fuel Type: Gasoline

• Max Power: 17.2 kW (23 HP)

• Displacement: 740 cc

• Fuel Tank: 25 L (6.6 gal)

• Hydraulic Flow Rate: 64.8 L/min (17 GPM)
• Hydraulic Pressure: 22 MPa (3,190 PSI)
• Hydraulic Tank Capacity: 33 L (8.7 gal)
