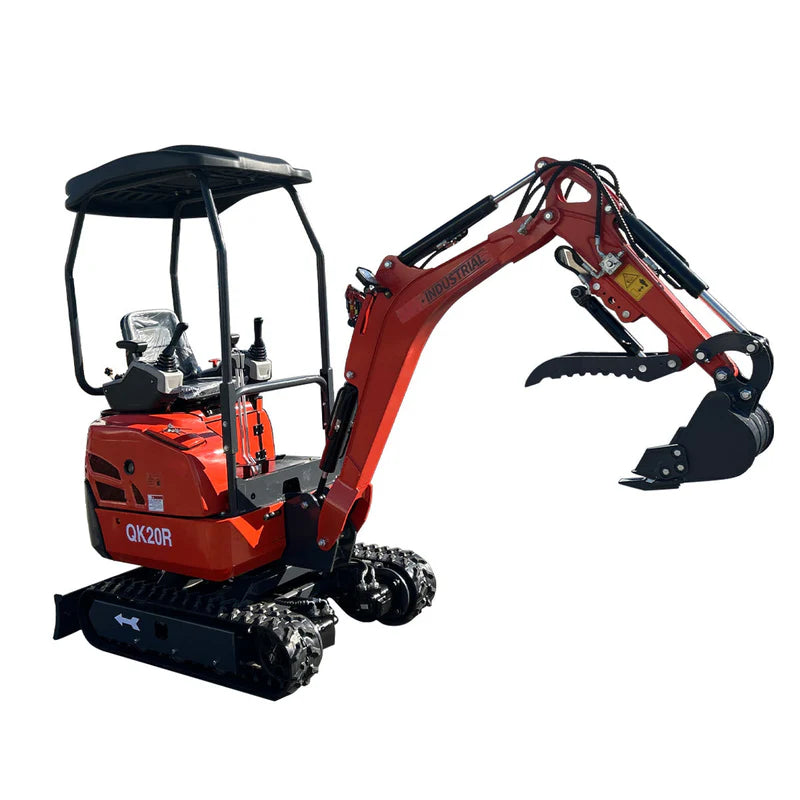

Cfgindustrial 1 Ton Mini Excavator with 23 HP Rato Engine | QK20R

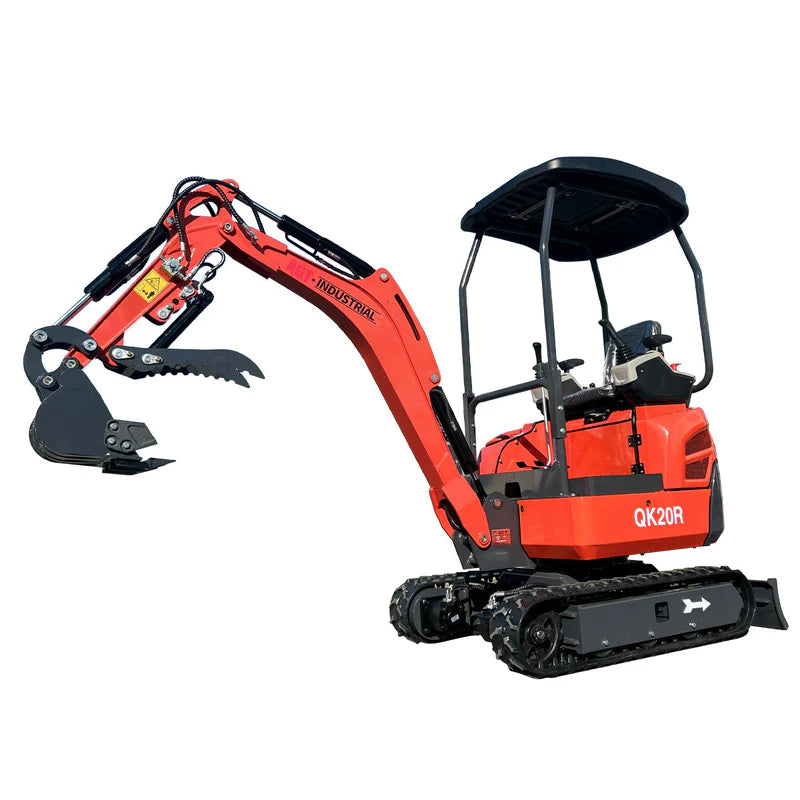

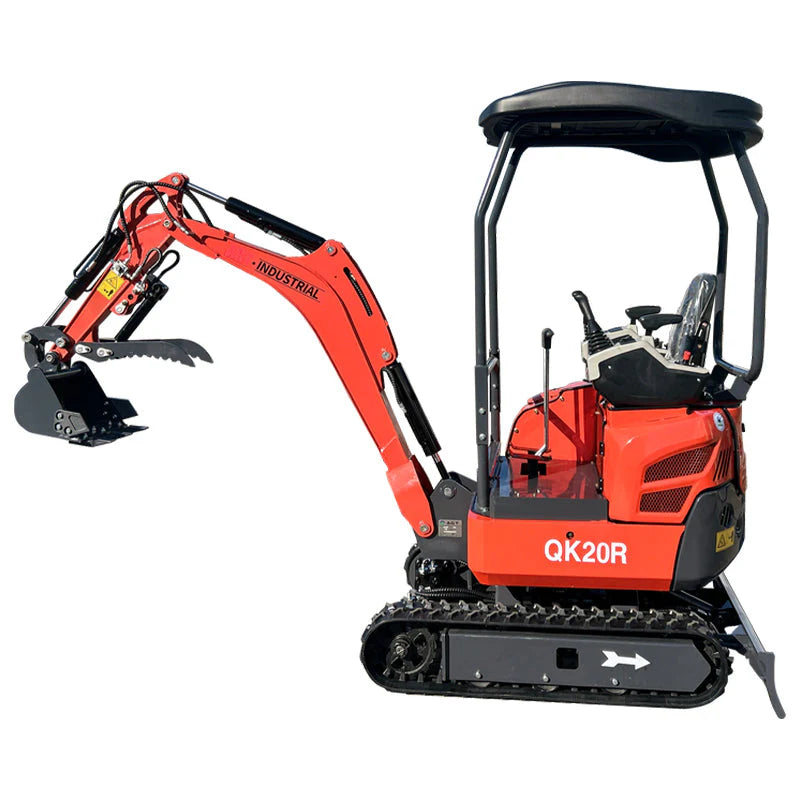

The QK20R Mini Excavator is a compact yet powerful machine designed to handle demanding tasks in tight working environments. Ideal for digging, trenching, and material handling, the QK20R combines strength, precision, and operator comfort. Its hydraulic thumb, side swing boom, and enclosed cab with air conditioning make it a highly versatile choice for residential contractors, farmers, and landscapers who need reliable performance day after day.

Powered by a robust 23 HP RATO gasoline engine, the QK20R offers smooth operation and high fuel efficiency. Its rugged build, combined with advanced hydraulic controls and EPA-certified compliance, ensures long-term durability and efficiency across a wide range of job sites.

In-Action Video

Technical Data:

• Operating Weight: 980 kg
• Bucket Capacity: 0.03 m³
• Max Digging Depth: 1,693 mm
• Max Digging Height: 2,560 mm
• Max Dumping Height: 1,800 mm
• Min Swing Radius: 3,060 mm
• Max Climbing Angle: 15°
• Travel Speed: 0 - 1.8 km/h

Engine:

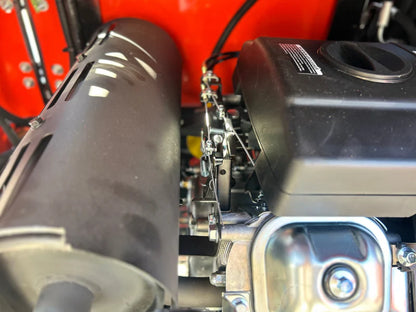

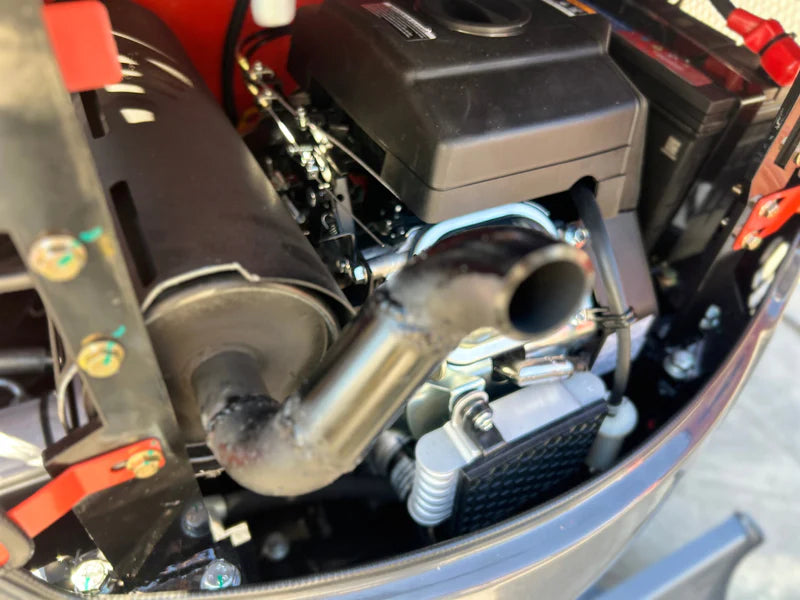

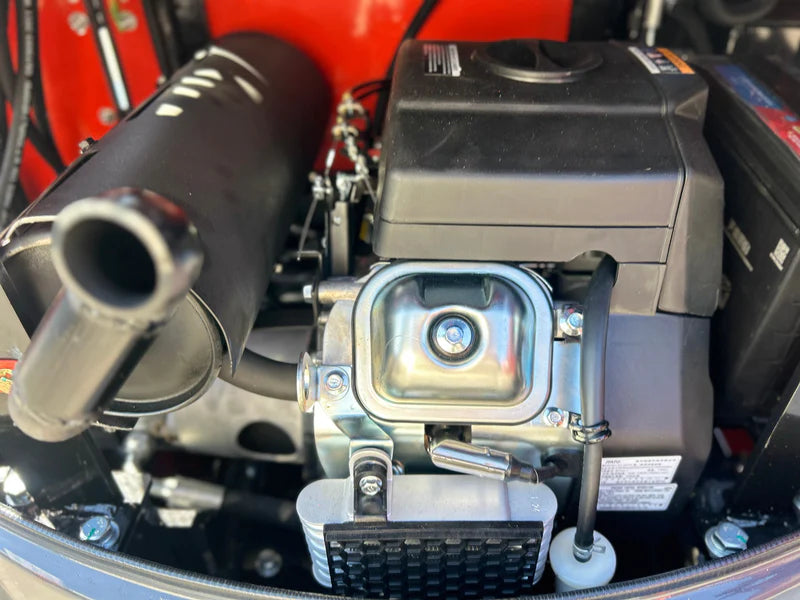

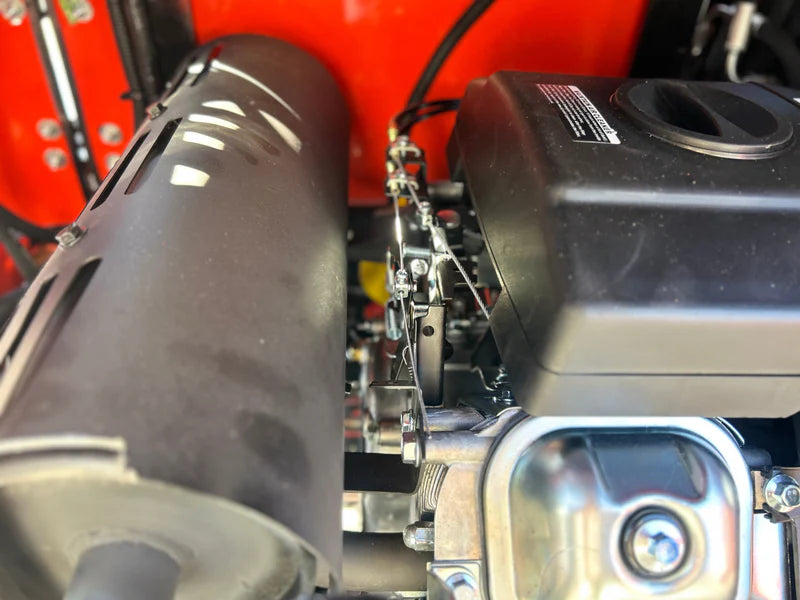

• Engine Model: RATO Gasoline Engine
• Rated Power: 23 hp (16.8 kW)
• Fuel Type: Gasoline (#92)
• Fuel Tank Capacity: 6.6 L

Hydraulics:

• Hydraulic Pump Type: Gear Pump (GP510803)
• Hydraulic Flow: 21.6 L/min
• System Pressure: 25 MPa

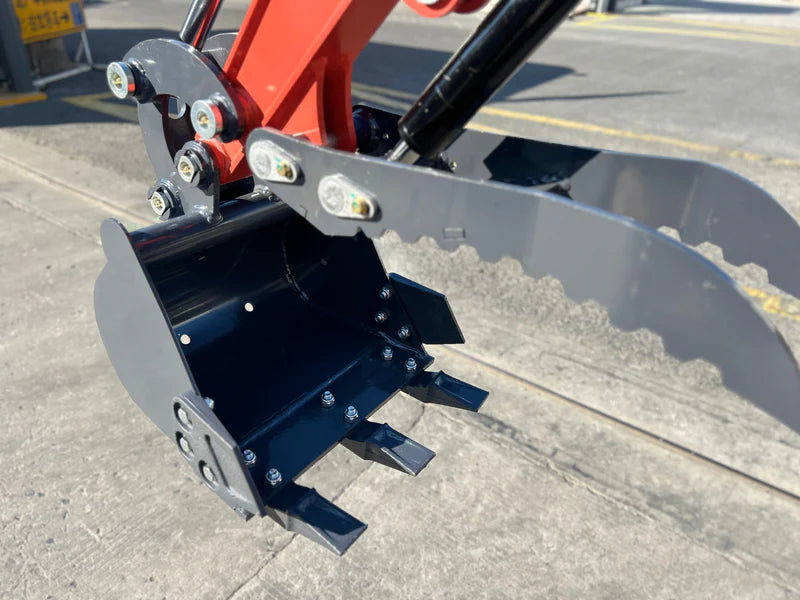

• Auxiliary Hydraulic Thumb: Standard
• Multi-Circuit Valve: 4 Mechanical + 4 Hydraulic
• Rotary Hydraulic Motor: BM2-315

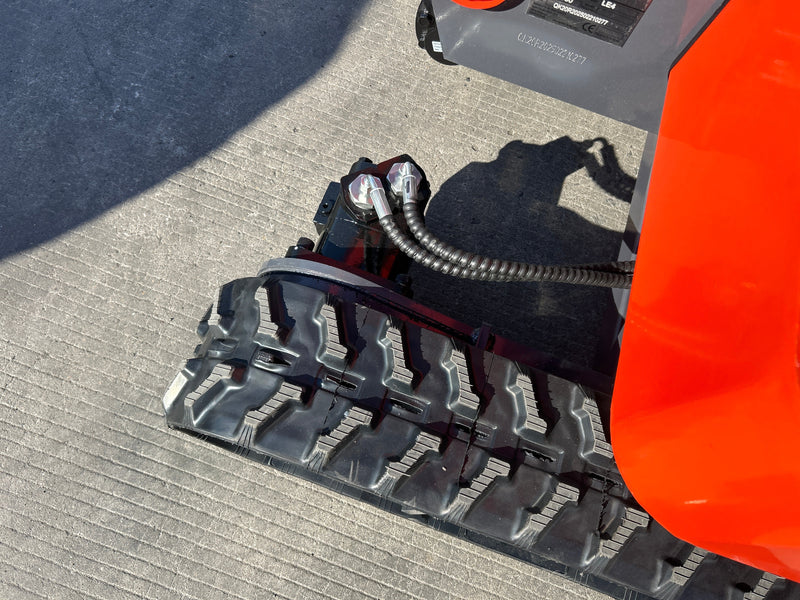

• Traveling Hydraulic Motor: BM6-315

Dimensions:

• Overall Length: 2,925 mm
• Overall Width: 958 mm
• Overall Height: 2,422 mm
