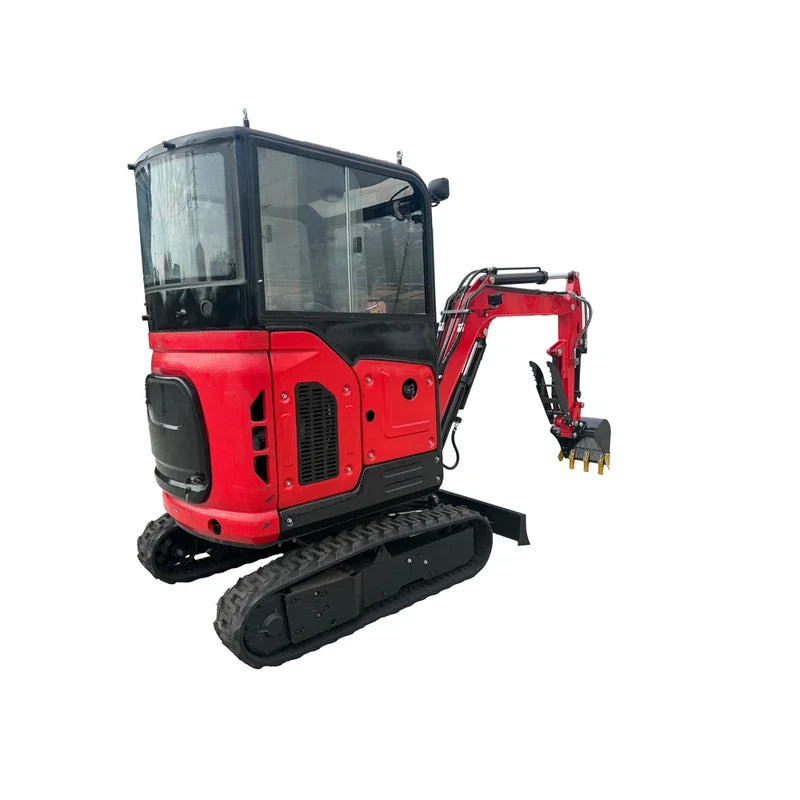

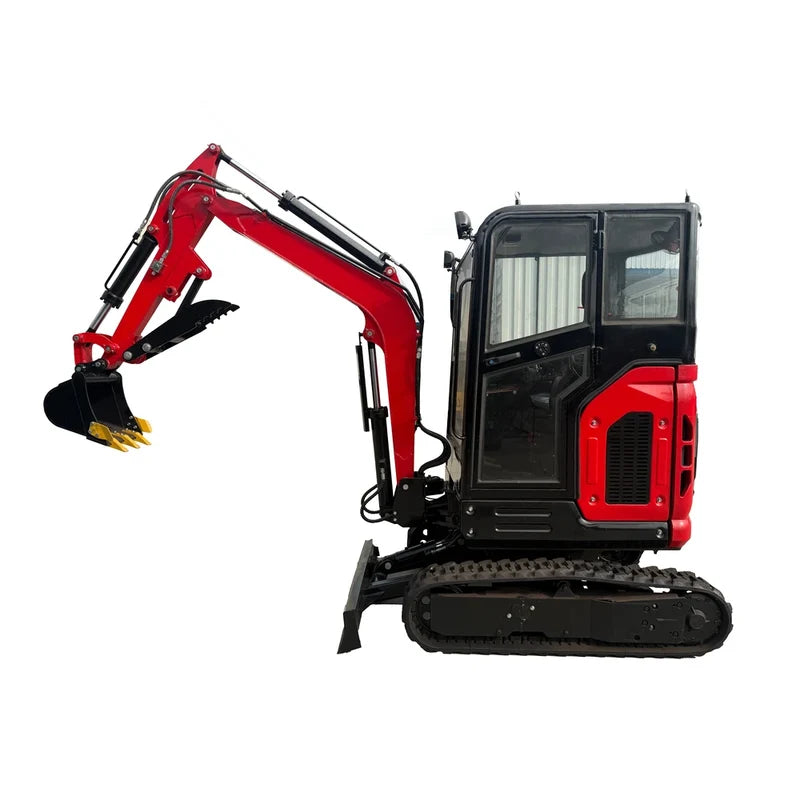

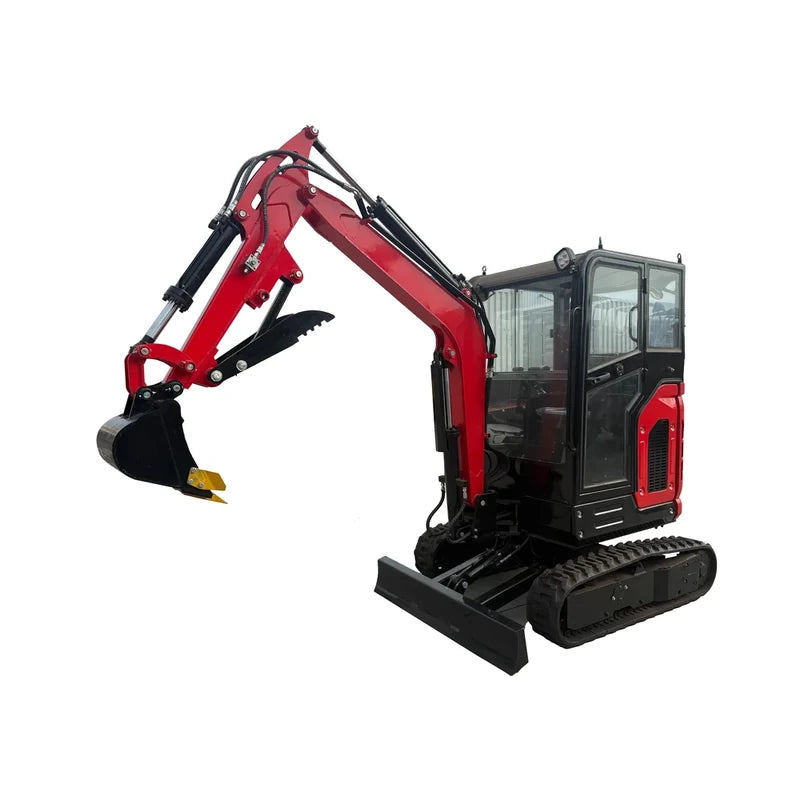

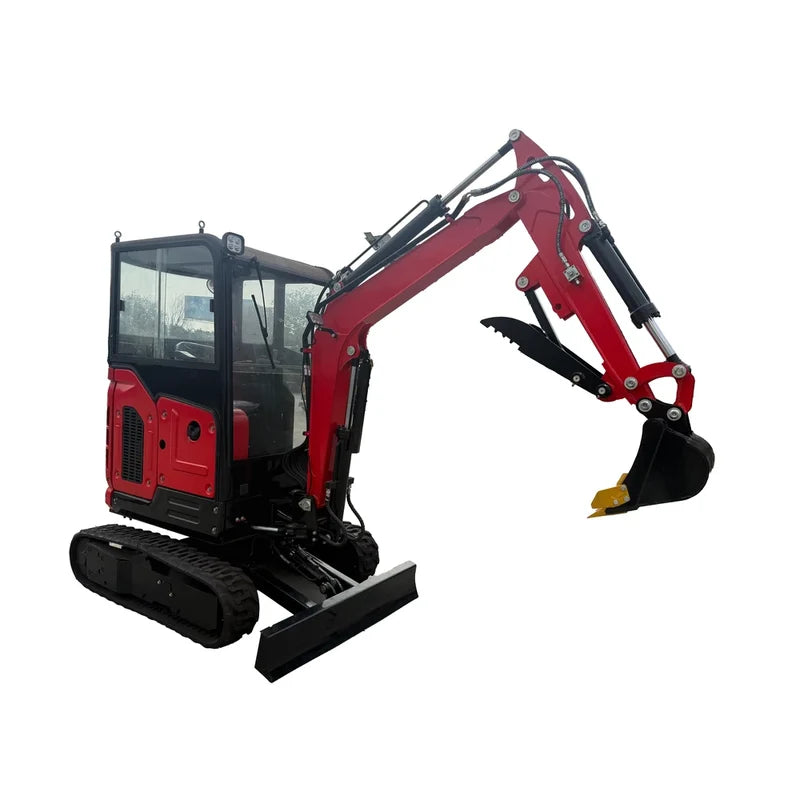

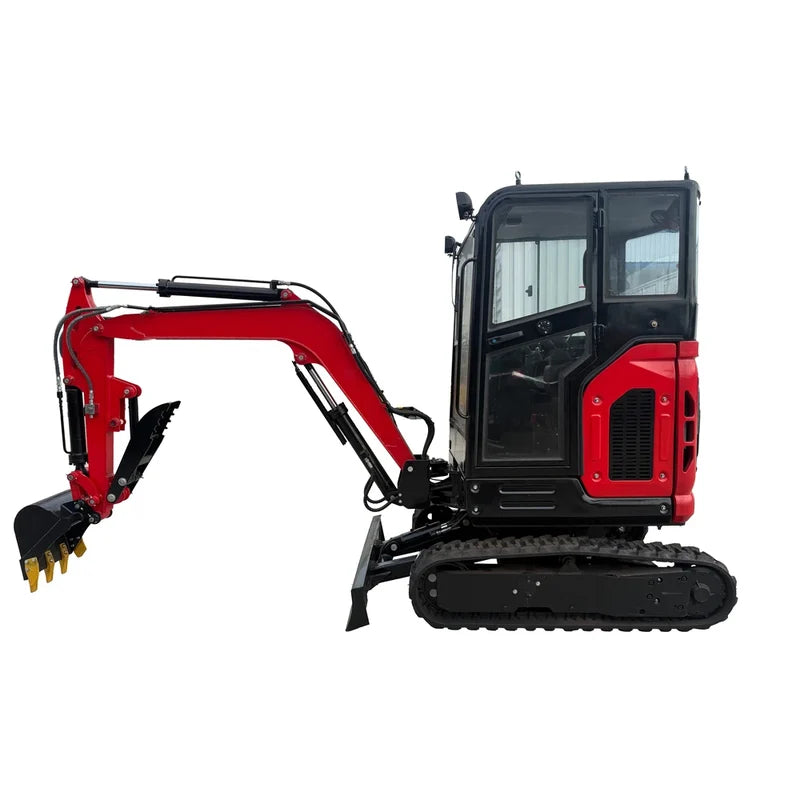

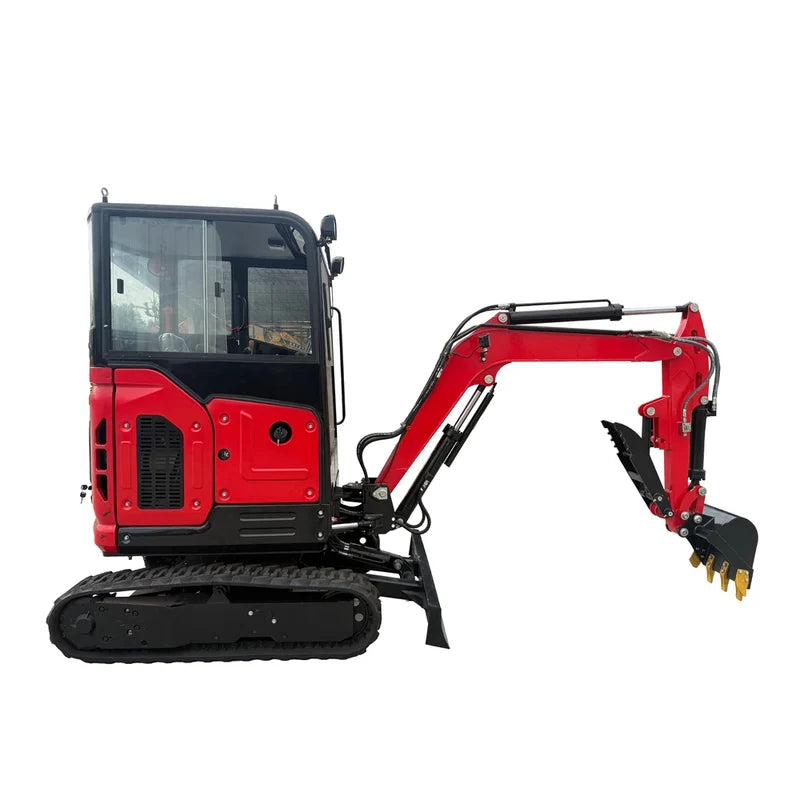

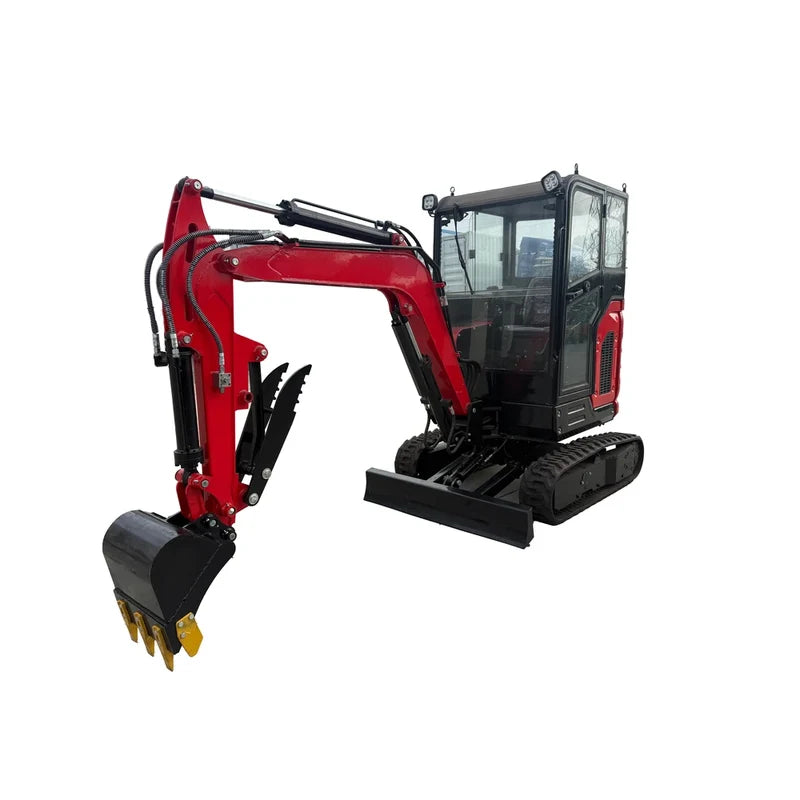

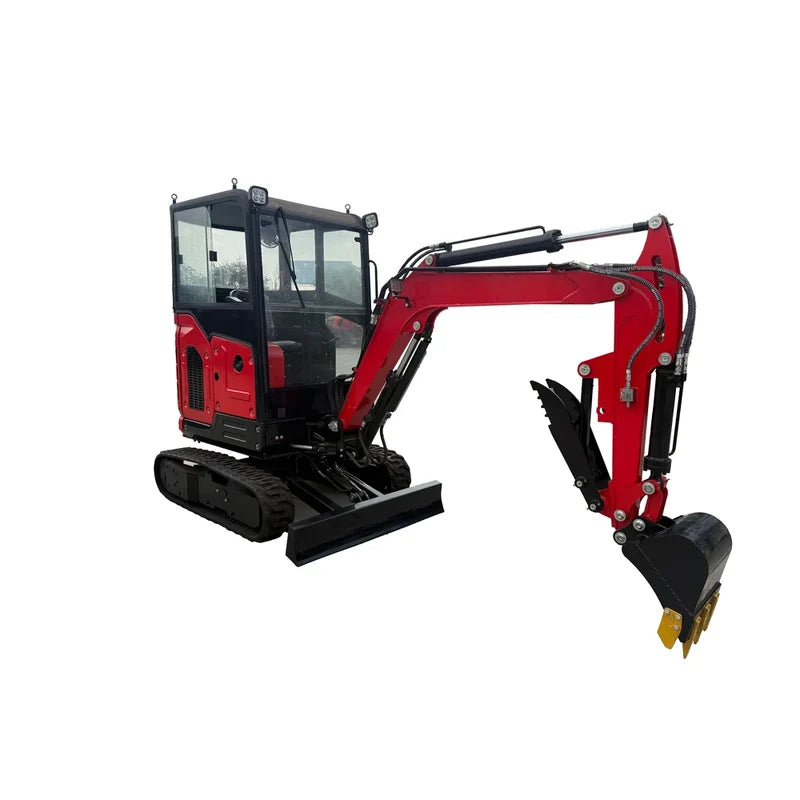

2.3 Ton Mini Excavator with Yanmar Diesel Engine & Cab | KT35-CY

The KT35-CY Mini Excavator brings genuine Yanmar 3TNV80F diesel reliability to a machine narrow enough to pass through a standard gate. At just 1,350 mm wide, it slips into backyards, orchards, and tight urban sites where larger equipment simply can't go — yet still reaches 4,050 mm and digs to 2,500 mm.

A fully enclosed cab protects the operator from dust, rain, and cold, making the KNT35 a true all-season workhorse for landscaping, utility trenching, agricultural work, and residential construction.

Technical Specifications:

• Equipment Type: Mini Excavator with Enclosed Cab

• Operating Weight: 2,300 kg (5,070 lbs / 2.3 Ton)

• Standard Bucket Capacity: 0.05 m³ (1.77 cu ft)

• Travel Speed (Low / High): 0–2 km/h (0–1.24 mph)

• Climbing Ability (Gradeability): 30% (approx. 16.7°)

• Side Swing Angle (Left / Right): 30°

Dimensions:

• Overall Length: 4,000 mm (157.5 in / 13.1 ft)

• Overall Width: 1,350 mm (53.1 in)

• Overall Height: 2,280 mm (89.8 in)

• Bulldozer Blade Width / Height: 1,550 / 310 mm (61.0 / 12.2 in)

Working Range:

• Max Digging Height: 3,472 mm (136.7 in / 11.4 ft)

• Max Unloading Height: 2,274 mm (89.5 in / 7.5 ft)

• Max Digging Depth: 2,500 mm (98.4 in / 8.2 ft)

• Max Digging Radius: 4,050 mm (159.4 in / 13.3 ft)

Engine:

• Engine Brand: Yanmar

• Model: 3TNV80F

• Fuel Type: Diesel (-NO.10)

• Max Power: 14 kW (approx. 19 HP) @ 3,000 rpm

• Number of Cylinders: 3 (Water-Cooled)

• Engine Oil Capacity: 3.4 L (0.9 gal)

• Fuel Tank Capacity: 16 L (4.23 gal)

Hydraulic system:

• Hydraulic Tank Capacity: 22 L (5.81 gal)

• Control System: Hydraulic Pilot Operated Handles

Features and Configuration:

• Fully Enclosed Operator Cab with Panoramic View

• Yanmar 3TNV80F 3-Cylinder Diesel Engine

• Side Swing Boom Function (30° L/R)

• Robot-Welded Heavy-Duty Boom and Arm

• Extended & Thickened Chassis Design

• Bright LED Boom Work Lights

• Full-Opening Engine Cover for Easy Maintenance
