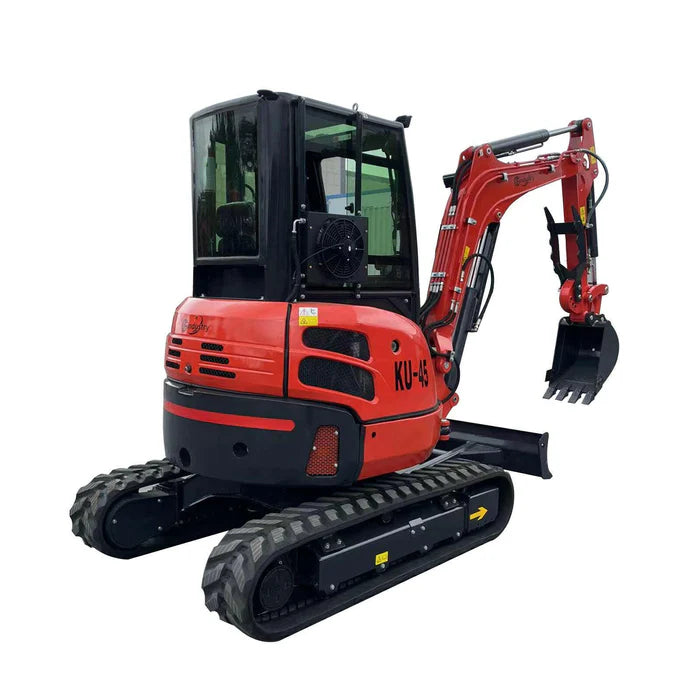

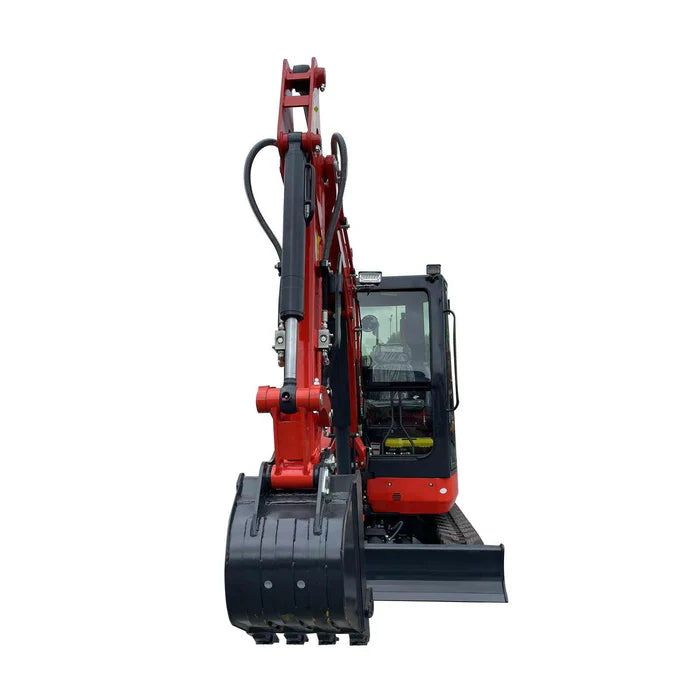

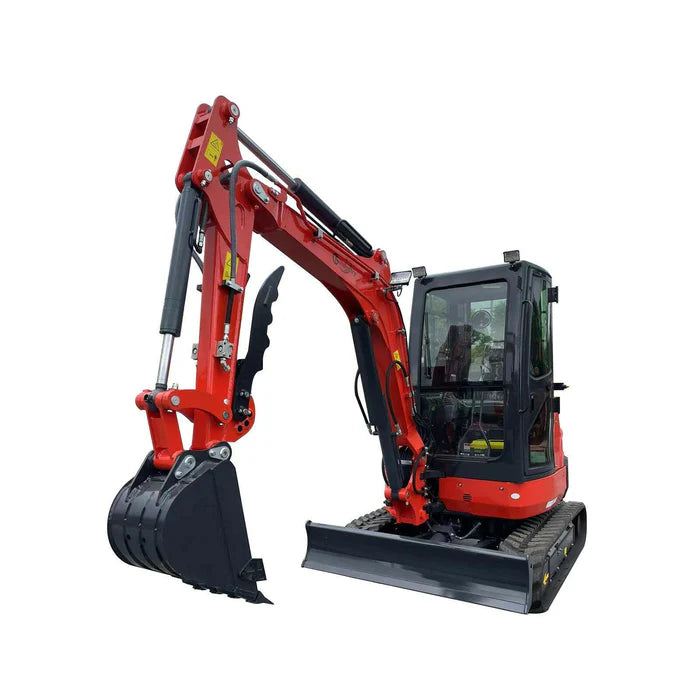

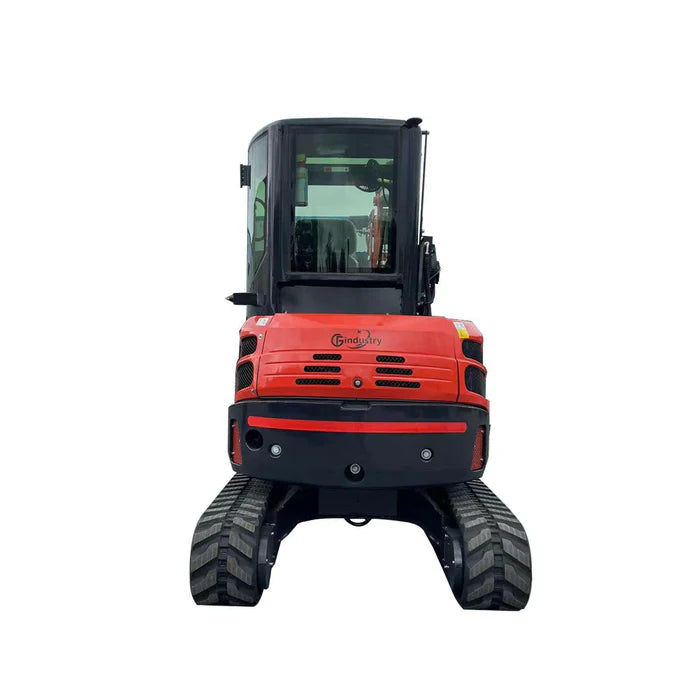

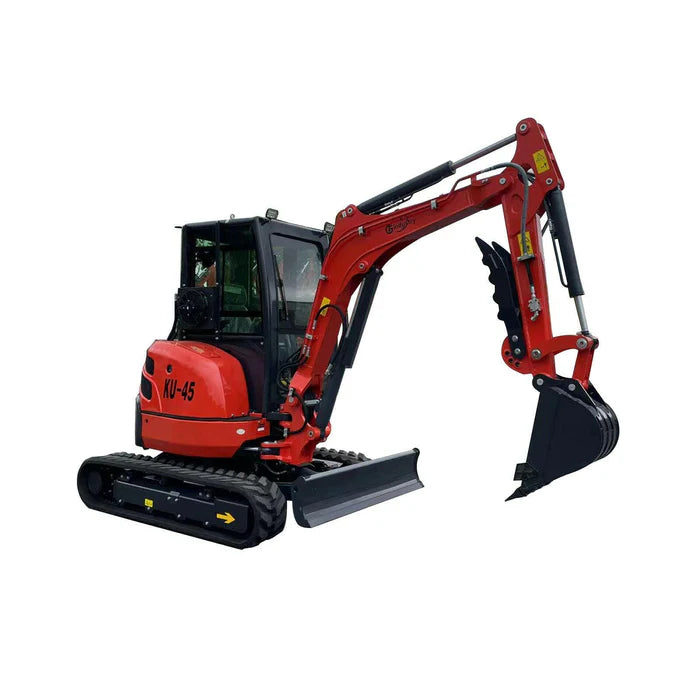

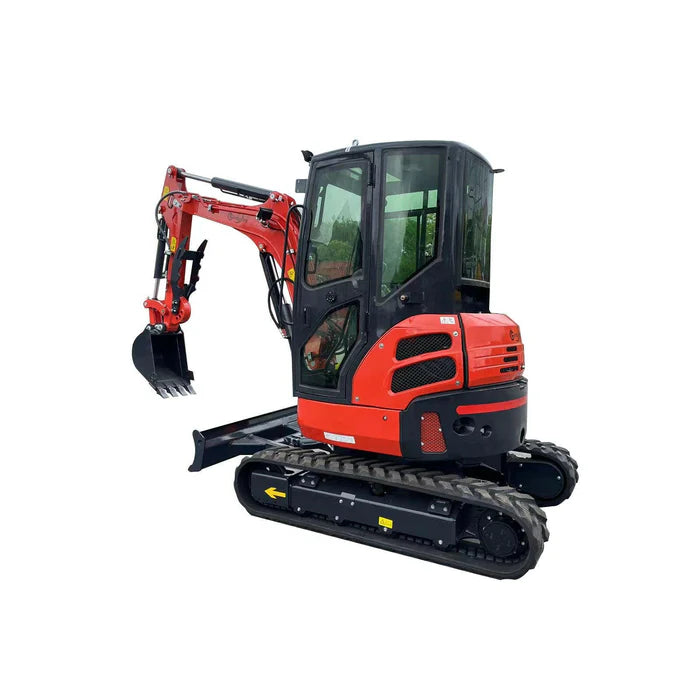

Cfgindustrial 3.5 Ton Mini Excavator with Yanmar Engine | CFG-KU45

In-Action Video

Uses 35mm Attachment Pin

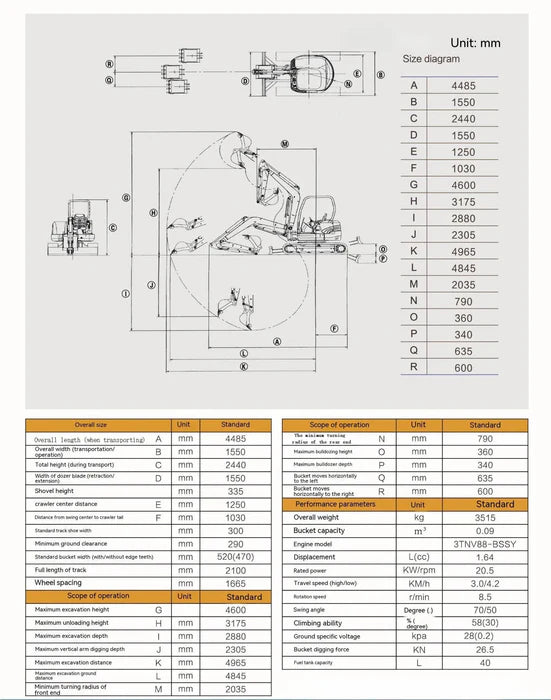

DIMENSION:

• Operating Weight: 3.5 Ton (7,716 lbs)

• Overall Length: 4,485mm (176.5 in)

• Overall Width: 1,550mm (61 in)

• Overall Height: 2,440mm (96 in)

• Track Width: 300 mm (11.8in)


WORKING RANGE:

• Max Digging Depth: 2,880 mm (113 in)

• Max Digging Height: 4,600 mm (181 in)

• Max Dumping Height: 3,175 mm (125 in)

• Max Reach at Ground: 4,965mm (195 in)

• Dozer Blade Width: 1,550mm (61 in)

• Dozer Blade Height: 335mm (13 in)

• Blade Max Lifting Height: 360 mm (14 in)

• Blade Max Drop Depth: 340 mm (13 in)


ENGINE:

• Engine Brand: Yanmar

• Fuel Type: Diesel

• Model: 3TNV88-BSSY

• Rated Power: 20.5 kW (27.5 HP)

• Displacement: 1.640 cc

• Fuel Capacity: 40 L (gal)


FEATURES:

• Enclosed Cab

• Swing Boom

• Pilot Control

• LED Lights

• Air Conditioning
