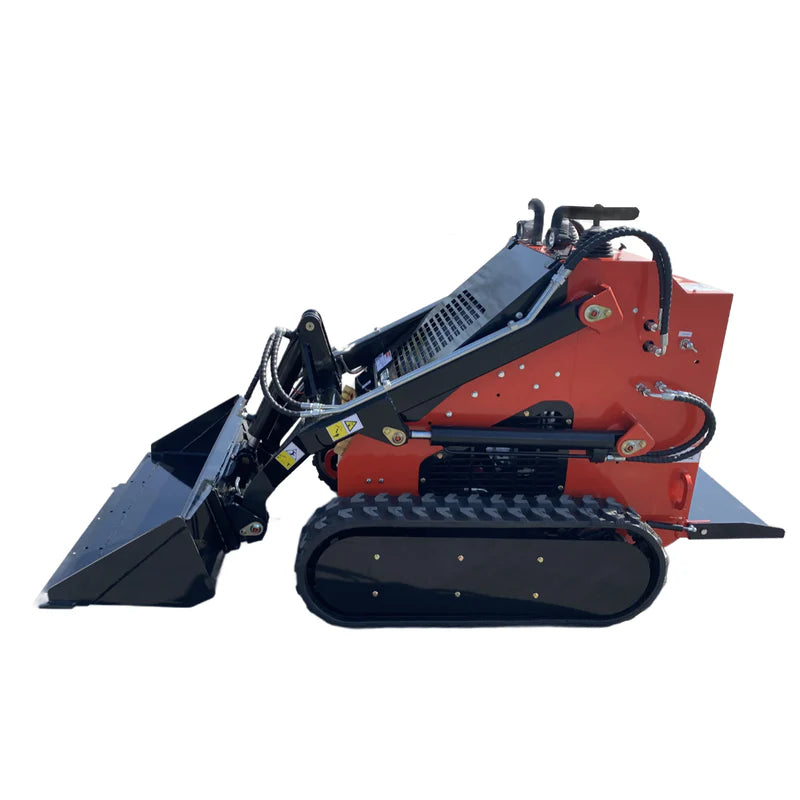

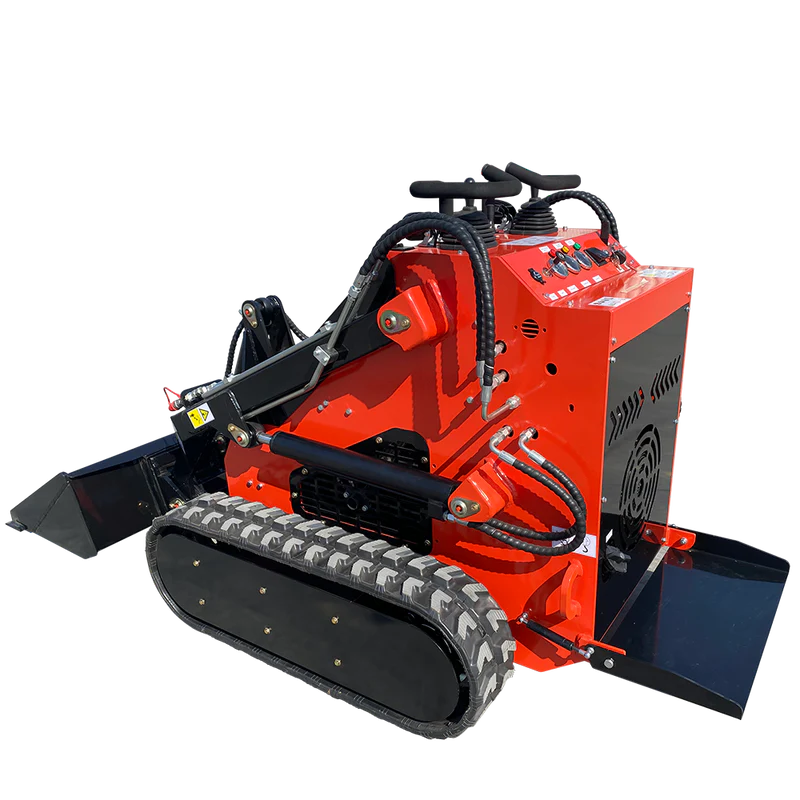

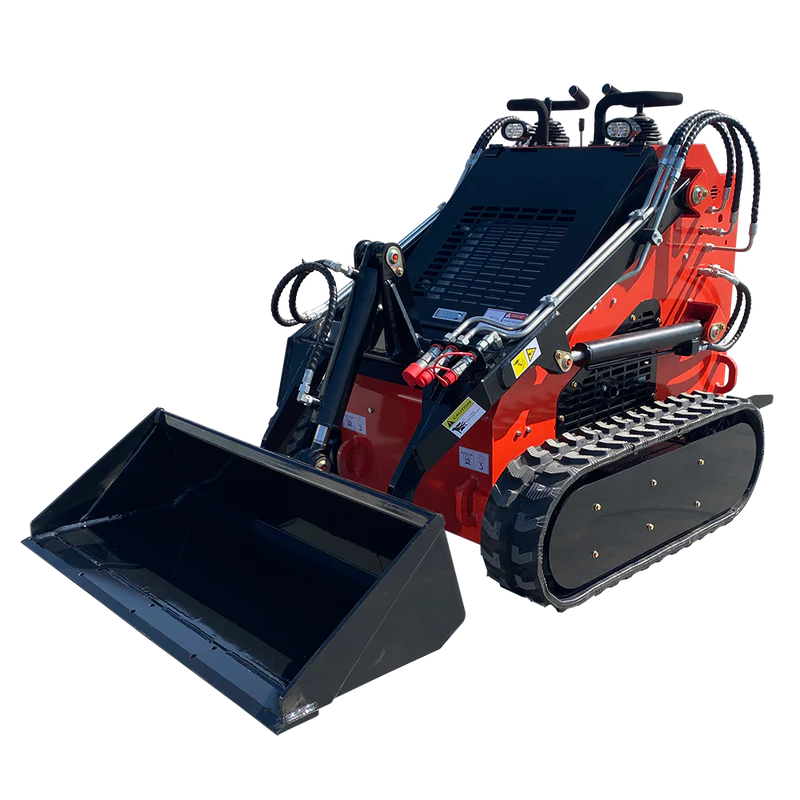

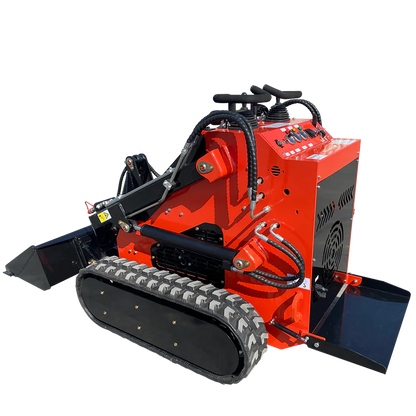

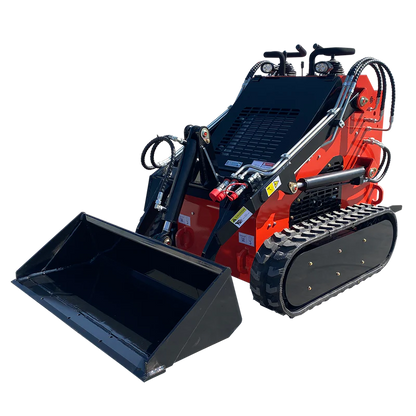

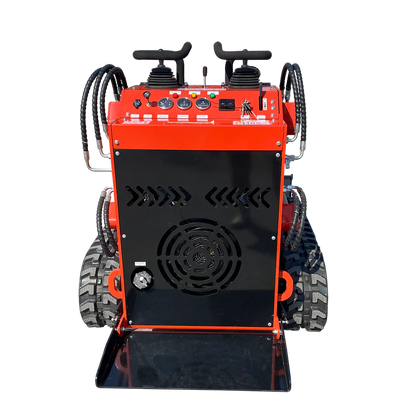

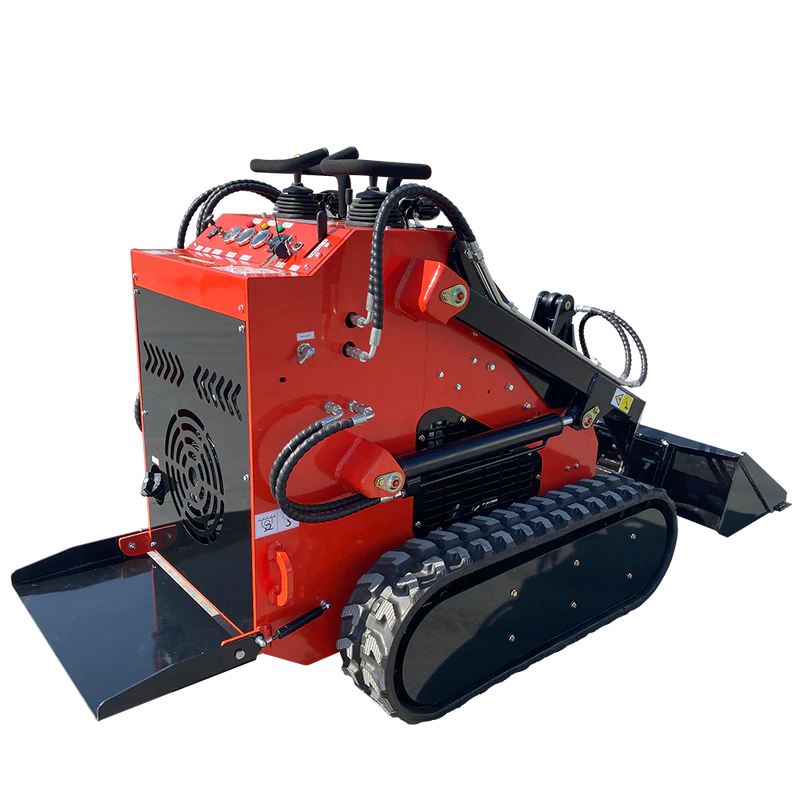

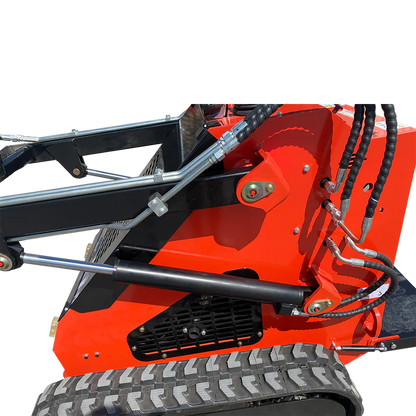

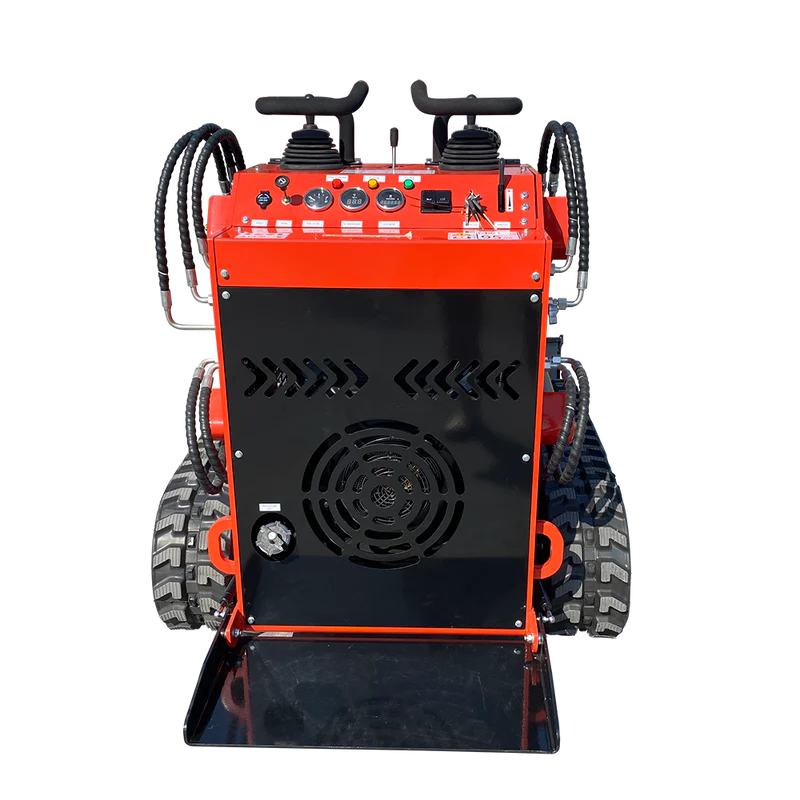

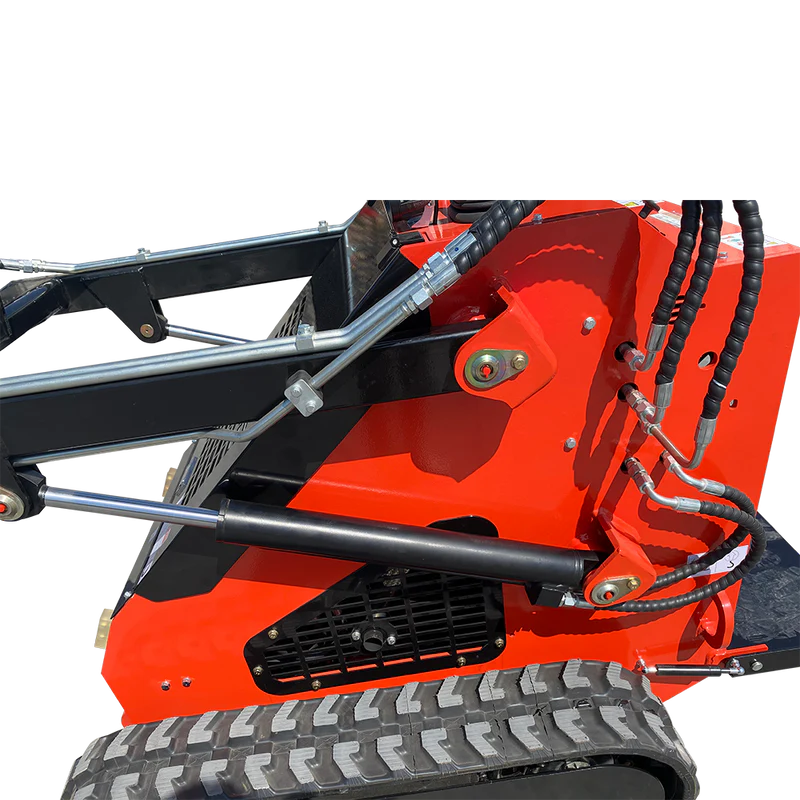

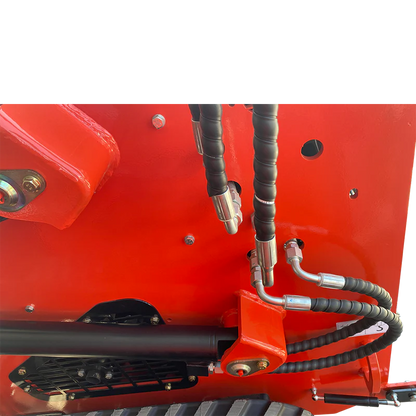

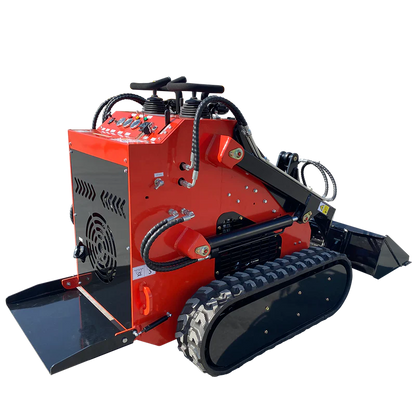

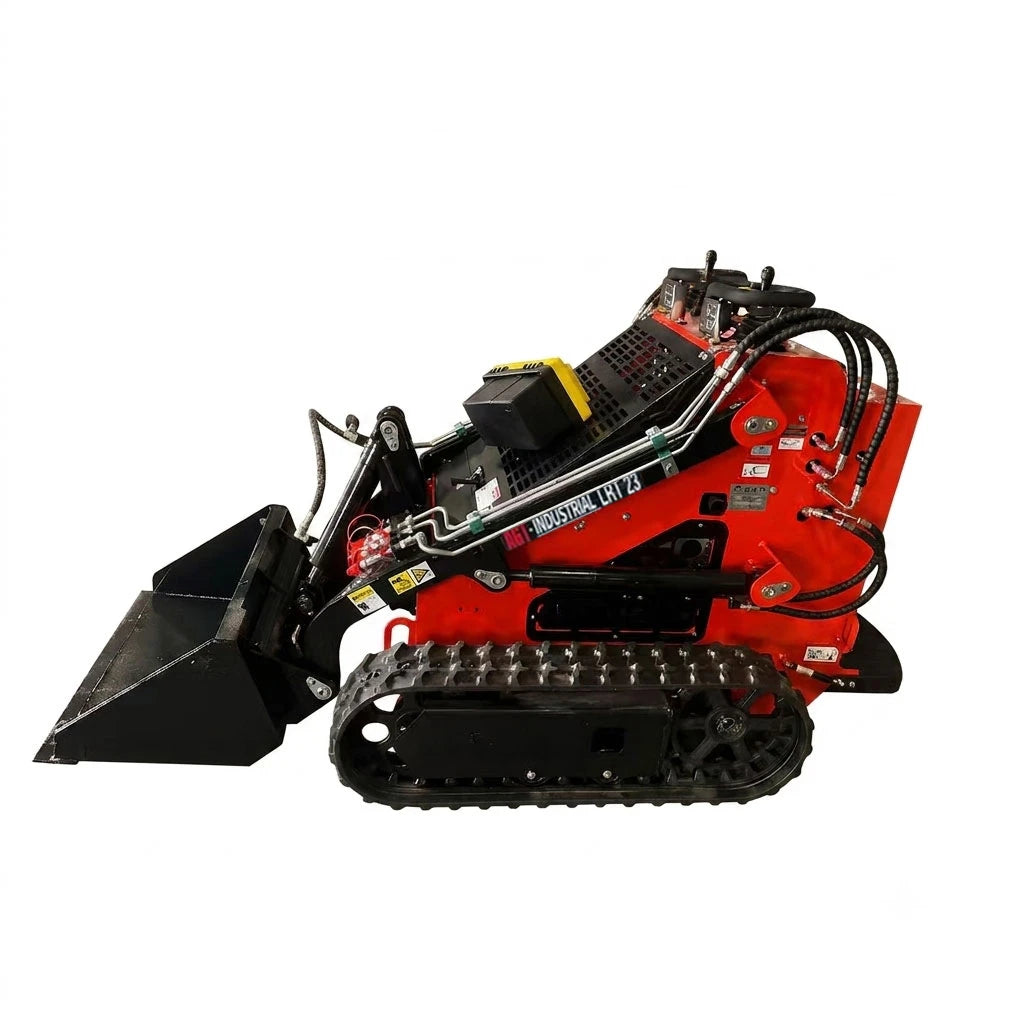

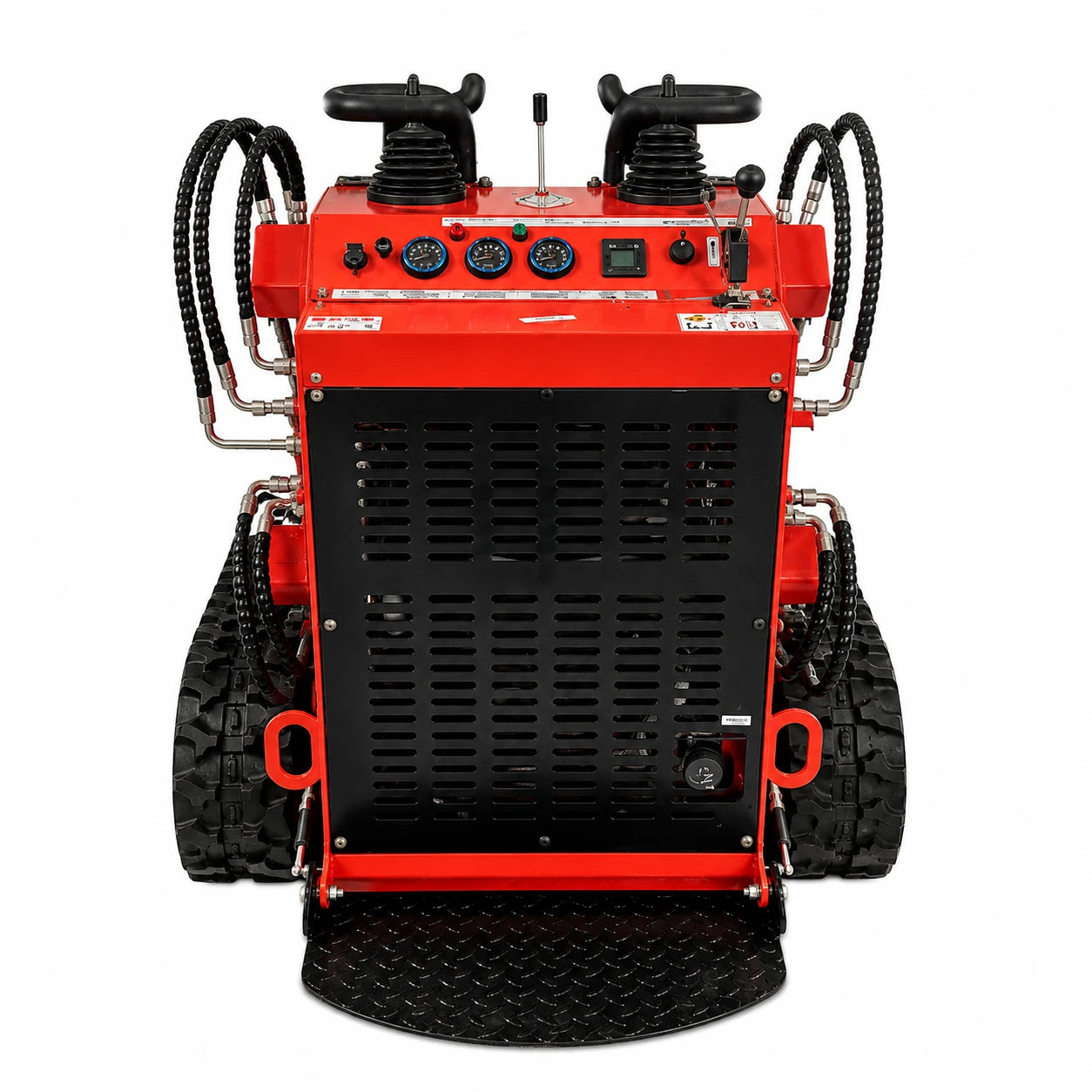

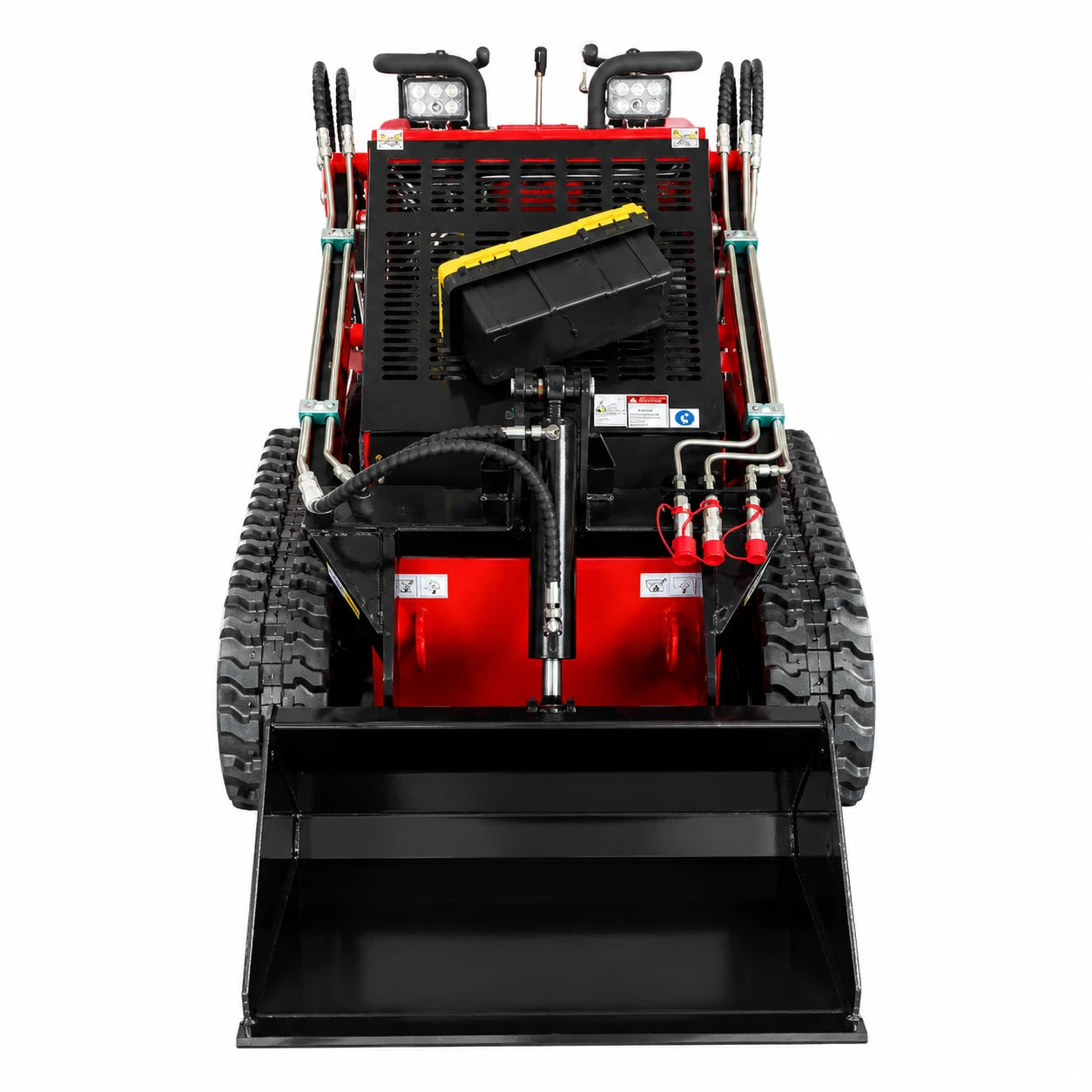

Cfgindustrial 1 Ton Mini Skid Steer Track Loader with 23HP RATO Engine | LRT23
Regular price
$5,562.00
Sold out
SKU:LRT23
Cfgindustrial 1 Ton Mini Skid Steer Track Loader with 23HP RATO Engine | LRT23
Cfgindustrial 1 Ton Mini Skid Steer Track Loader with 23HP RATO Engine | LRT23
Product Overview
The is a track style mini skid steer loader designed for compact construction work. It has a quick attach mount plate which makes it easy for an operator to connect different attachments. The loader is designed for operation in temperatures typically experienced in earth moving and construction work environments.
Technical Data:
- Operation Weight: 0.98 Ton
- Engine: R740
- Horse Power: 23
- Max Angle: 30 Degree

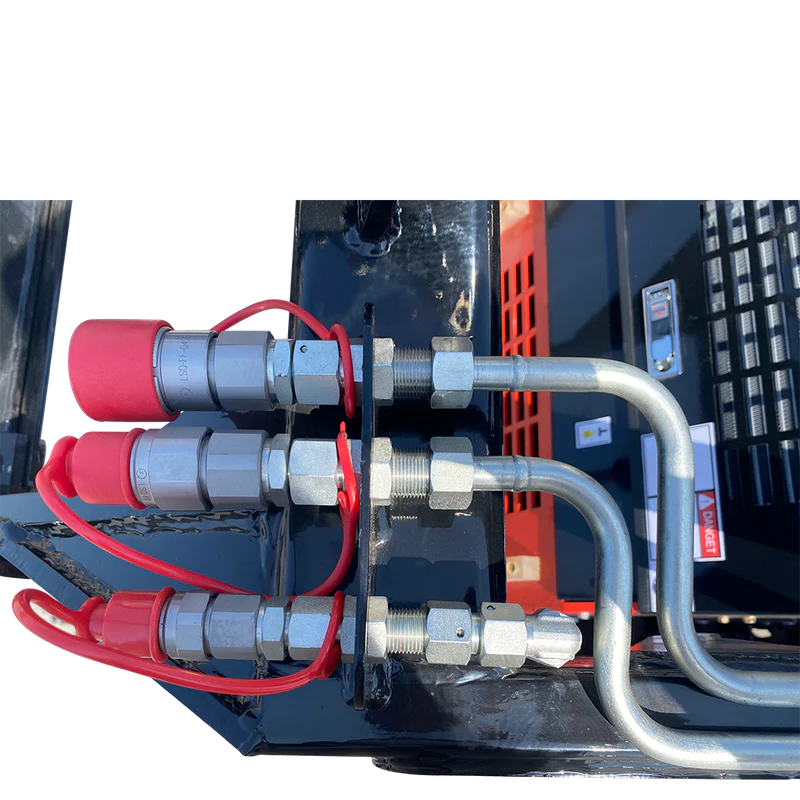

- Auxiliary Hydraulic Flow Rate: 20 liters per minute (L/min)
- Travel System Flow Rate: 25 liters per minute (L/min)
Specifics:
| Max.Load Capacity | 200 kg |
| Bucket Capacity | 0.15 m³ |
| Maximum Lift | 375 kg |
| Traveling Speed | 0-6 km/h |
| Rated Pressure | 17 Mpa |
| Lifting Time | 4.3 s |
| Descent Time | 3.3 s |
| Tipping Time | 1.5 s |
| Maximum Angle of the climb | 30° |
| Total Weight | 890 kg |
Engine parameter:
| Engine | R740 engine |
| Engine type | gasoline, V-double cylinder |
| Output power | 17.1KW (23HP) / 3600rpm |
| Fuel consumption | ≤6.7 L/h |
| Starting mode | Electric start |
Tank capacity:
| Fuel Tank Capacity | 25 L |
| Hydraulic Tank Capacity | 25 L |
| Engine oil tank capacity | 1.6 L |
DIMENSION:
- Operating Weight: 0.9 Ton (1,800 lb)
- Overall Length: 2,285 mm (90 in)
- Overall Width: 1,090 mm (43 in)
- Overall Height: 1,270 mm (50 in)
- Bucket Width: 1,150 mm (45.3 in)
- Bucket Capacity: 0.12 m³ (0.15 yd³)
- Tracks Size: 180*72*37 (W*P*L)
WORKING RANGE:
- Max Working Height: 2,100 mm (82.7 in)
- Max Unloading Height: 1,480 mm (58.3 in)
- Max Lifting Force: 220 kg (485 lb)
- Max Travel Speed: 6 km/h (3.7 mph)
ENGINE:
- Brand / Model: Rato R420D
- Fuel Type: Gasoline
- Max Power: 17 kW (23 HP)
- Displacement: 740 cc
- Fuel Tank: 6.6 L (1.7 gal)
- Hydraulic Flow Rate: 43.2 L / min (11.4 GPM)
- Hydraulic Pressure: 17 MPa (2,466 PSI)
- Hydraulic Tank Capacity: 25 L (6.6 gal)
