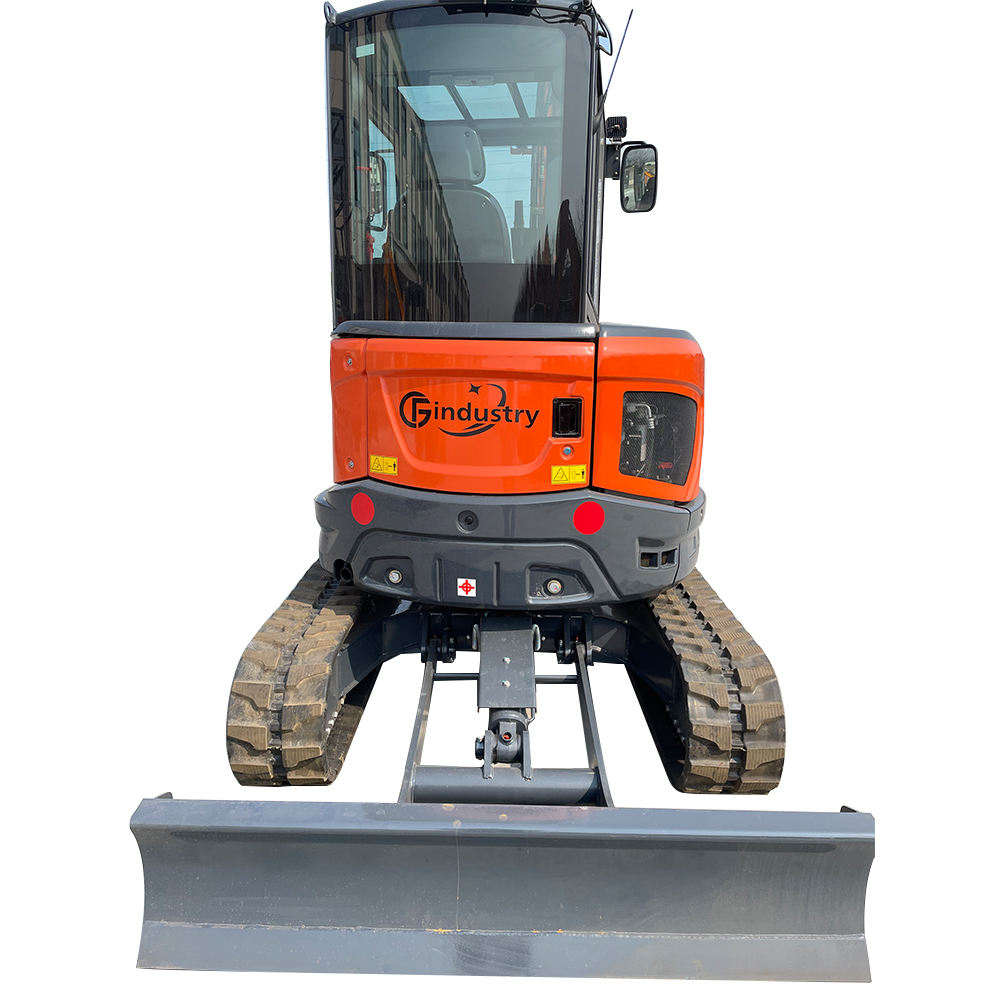

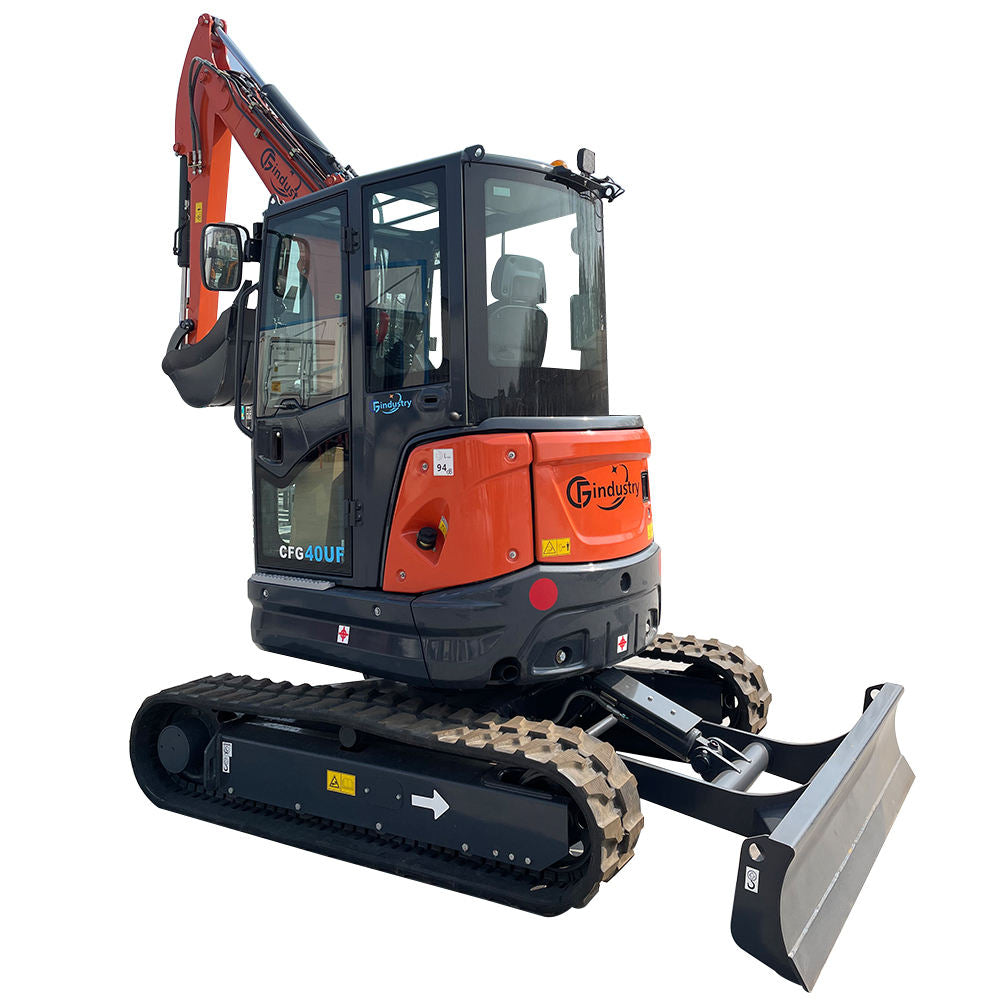

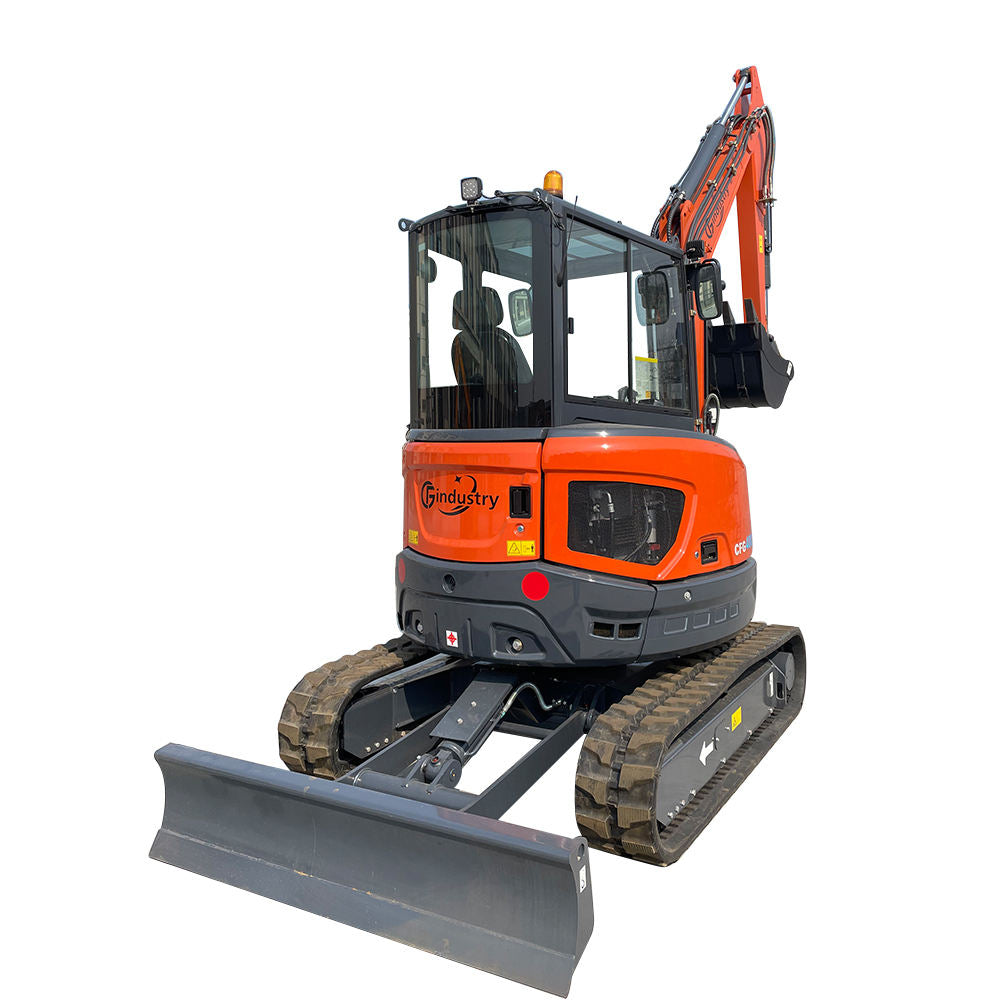

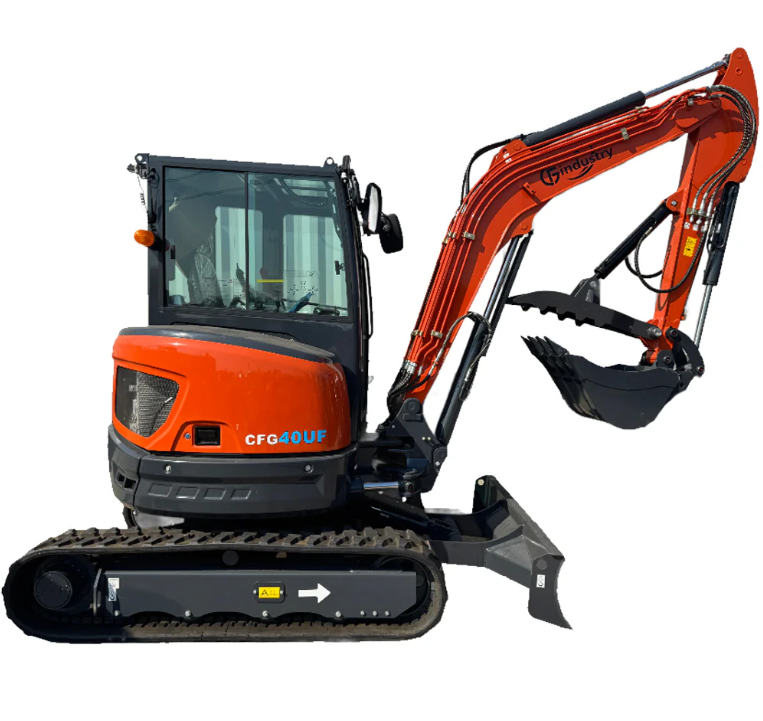

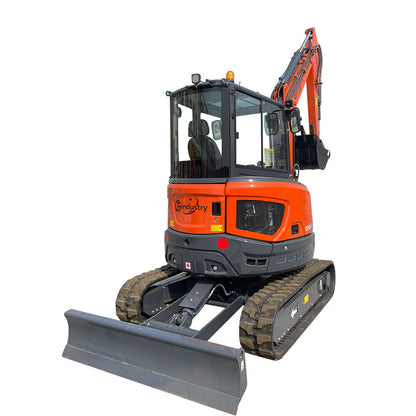

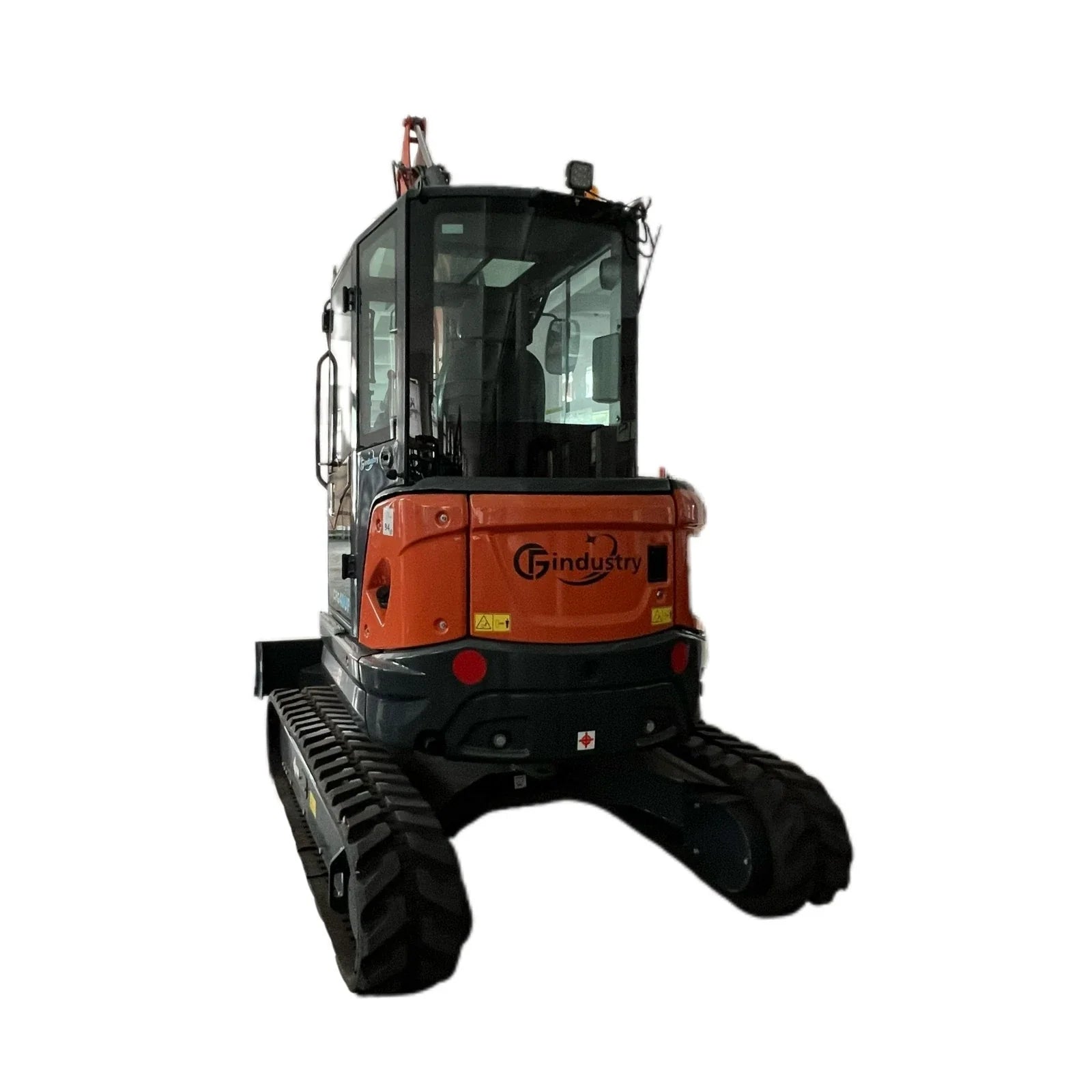

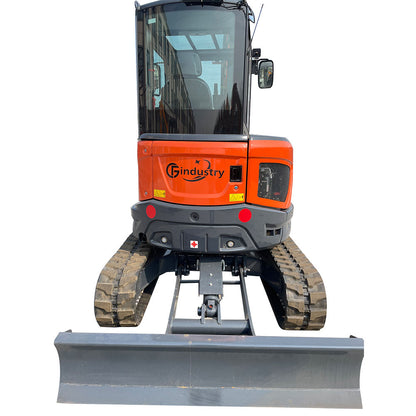

Cfgindustrial 4 Ton Mini Excavator with Kubota D1703 Engine with Hydraulic Thumb | CFG-40UF

Cfgindustrial 4 Ton Mini Excavator with Kubota D1703 Engine with Hydraulic Thumb | CFG-40UF

1 19
$31,733.27
Sold out
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Details

Free shipping within the U.S. (except Hawaii, Alaska, and Puerto Rico).

Delivery in 5 - 15 Business Days
Details

Please Allow for 2 to 3 Business Days to Process Order, 5 to 15 Business Days to Deliver. Times are for reference only. Specific delivery times will be adjusted based on inventory changes.
Payment:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Afterpay
View full details

Product Overview

This versatile excavator offers a cabin/canopy option and delivers exceptional performance with a Kubota D1703-E4B-SWD-1 engine, 0.11 m³ bucket capacity, and maximum digging depth of 130.7". Designed for precision and power, it features rubber or steel tracks, a hydraulic thumb, and excellent reach, with a maximum digging force of 31.8 kN. Easy to maneuver and maintain, it's ideal for demanding tasks in construction and landscaping.

Video

In Action Video

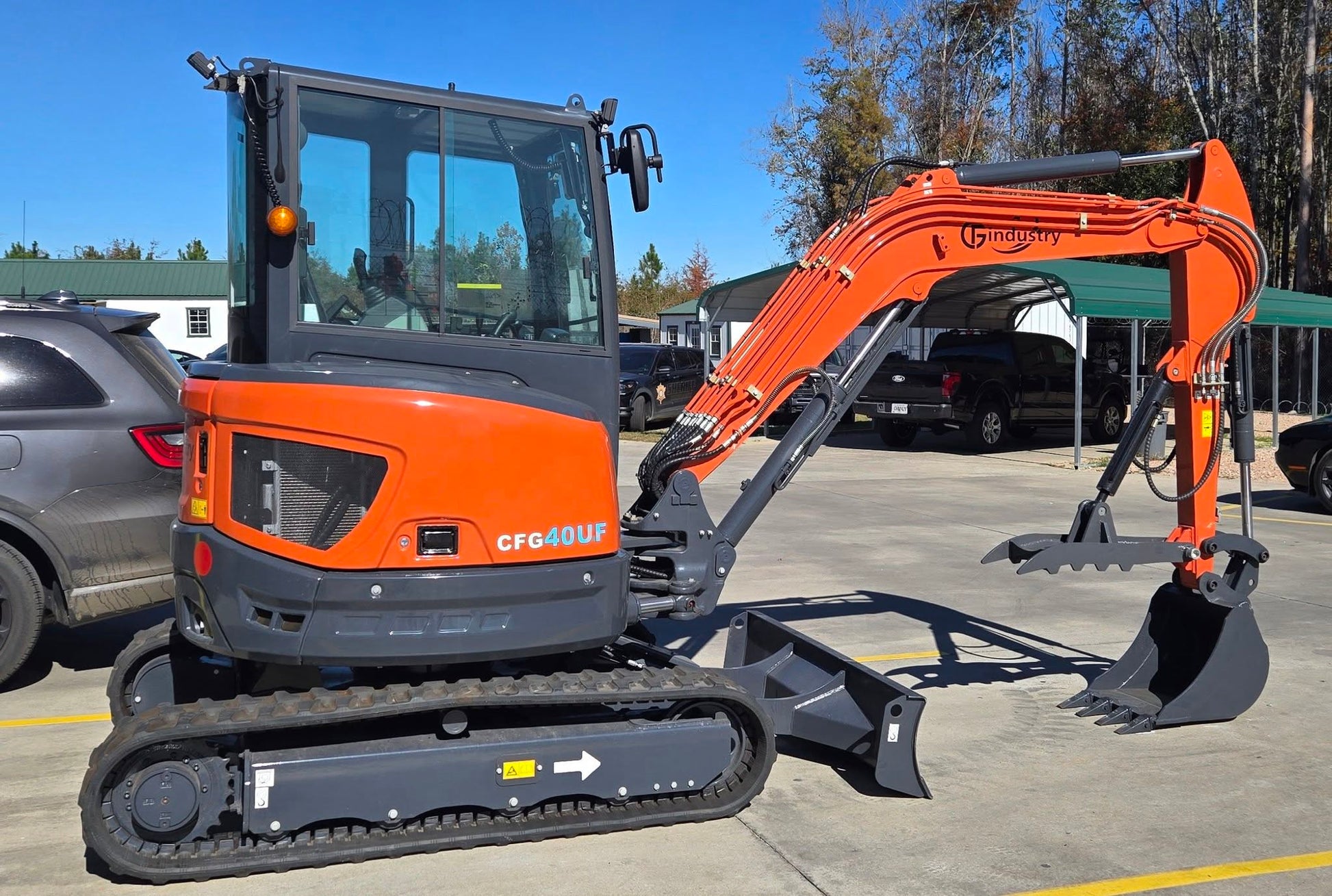

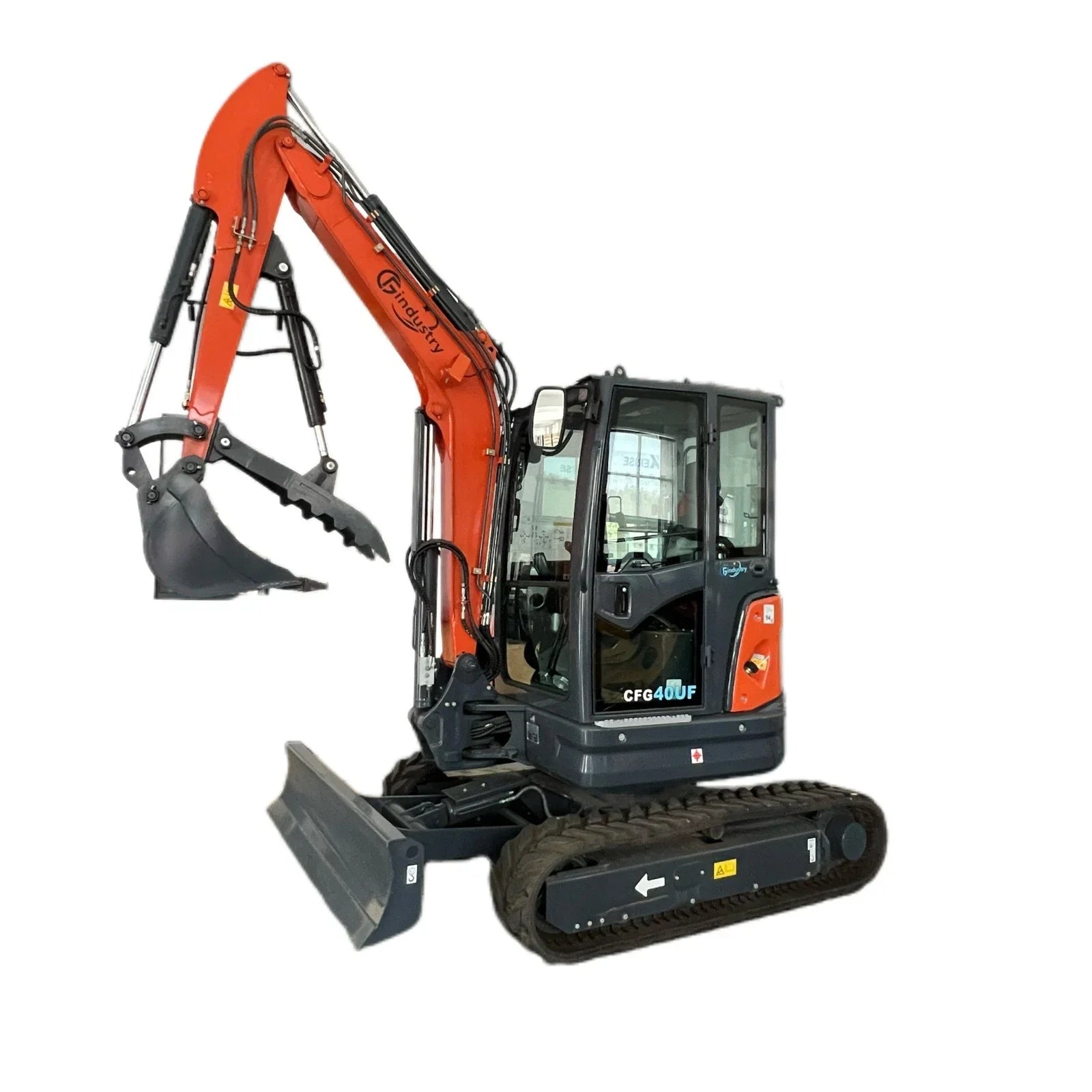

Uses 35 mm pin attachments. Replaced Radio with Hydraulic Thumb.

Dimension:

  • Operating Weight: 3.8 Ton (8,377 lb)
  • Overall Length: 4,890 mm (192.5 in)
  • Overall Width: 1,700 mm (67 in)
  • Overall Height: 2,555 mm (100.5 in)
  • Track Size: 300*55*84 (W*P*L)

Working Range:

  • Max Digging Depth: 3,320 mm (131 in)
  • Max Digging Height: 5,045 mm (198 in)
  • Max Dumping Height: 3,520 mm (138 in)
  • Max Reach at Ground: 5,575 mm (219 in)

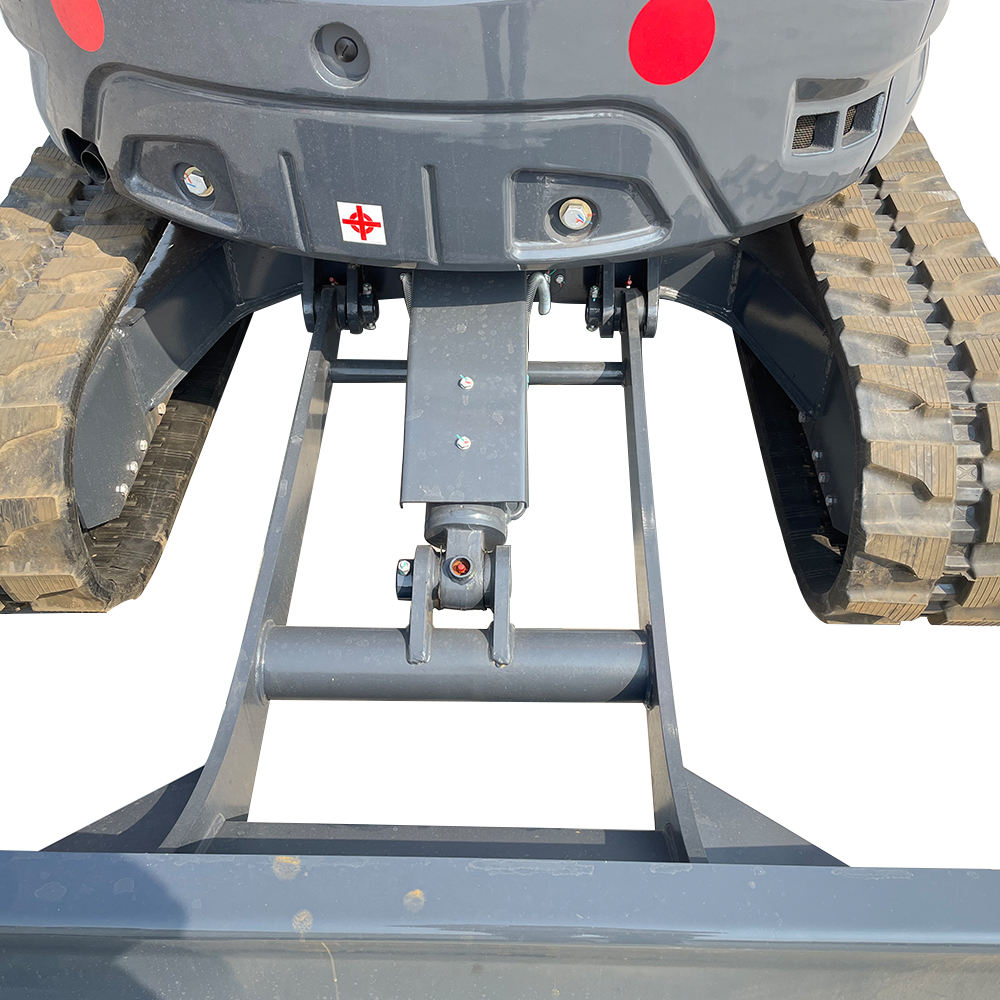

  • Dozer Blade Width: 1,700 mm (67 in)
  • Dozer Blade Height: 366 mm (14 in)
  • Blade Max Lifting Height: 336 mm (13 in)
  • Blade Max Drop Depth: 336 mm (13 in)

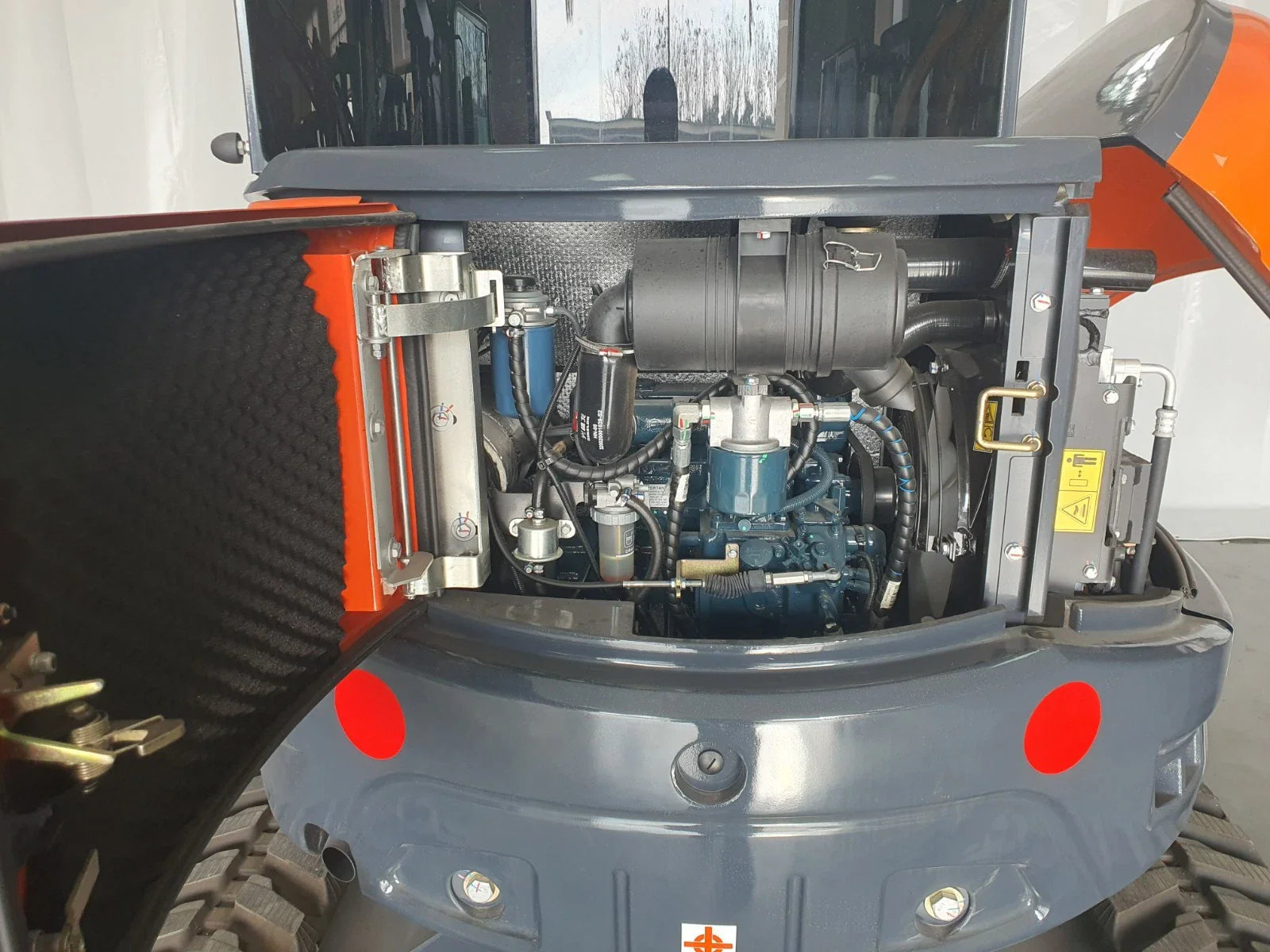

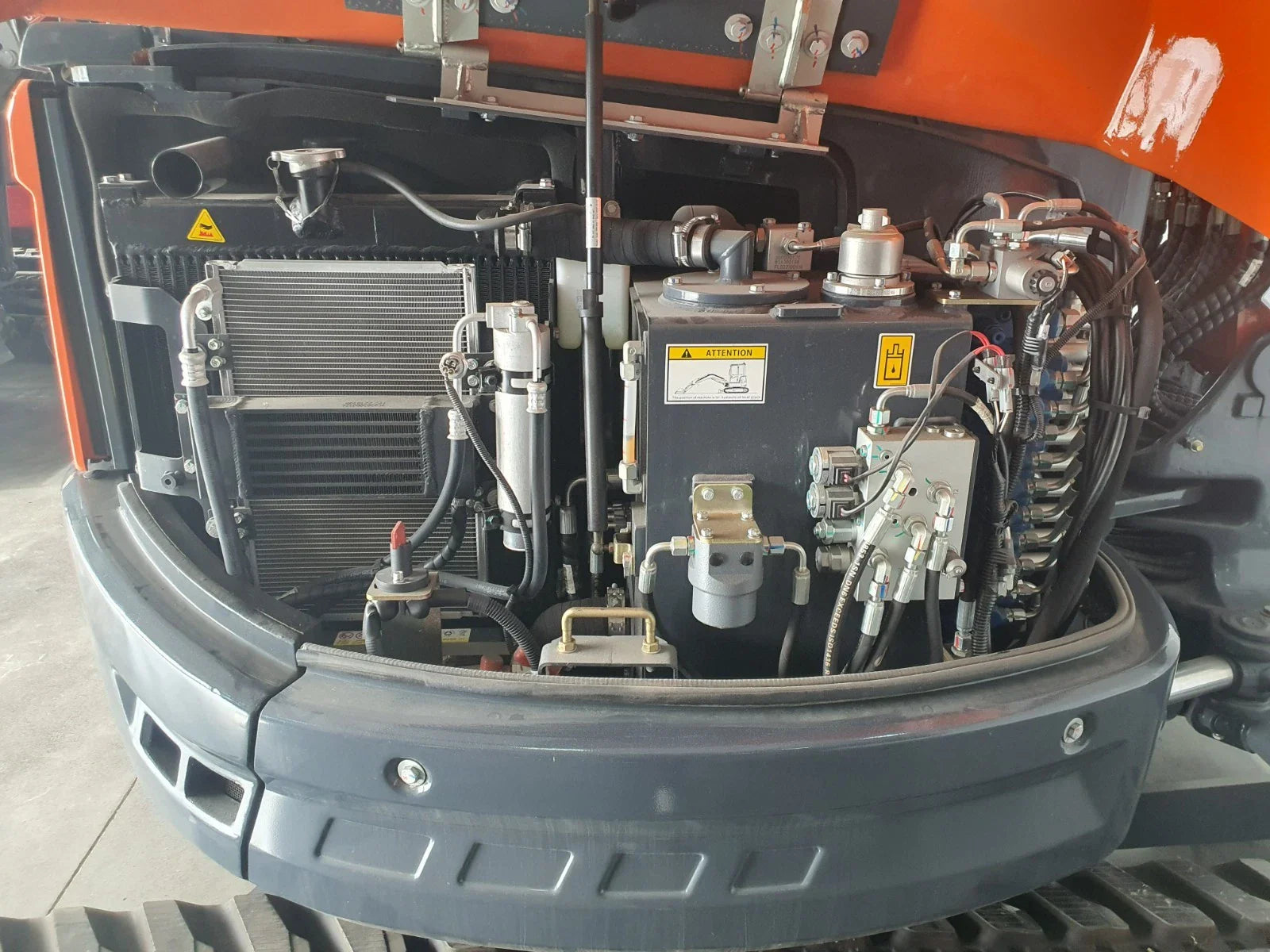

Engine:

  • Engine Brand: Kubota
  • Fuel Type: Diesel
  • Model: D1703-E4B
  • Rated Power: 18.2 kW (24.4 HP)
  • Displacement: 1,647 cc
  • Fuel Capacity: 40 L (10.6 gal)
  • Hydraulic Flow Rate: 67.2 L/min (17.75 gal/min)
  • Hydraulic Pressure: 24.5 MPa (3,553 psi)
  • Hydraulic Tank Capacity: 41 L (10.8 gal)
  • Battery: 12 V

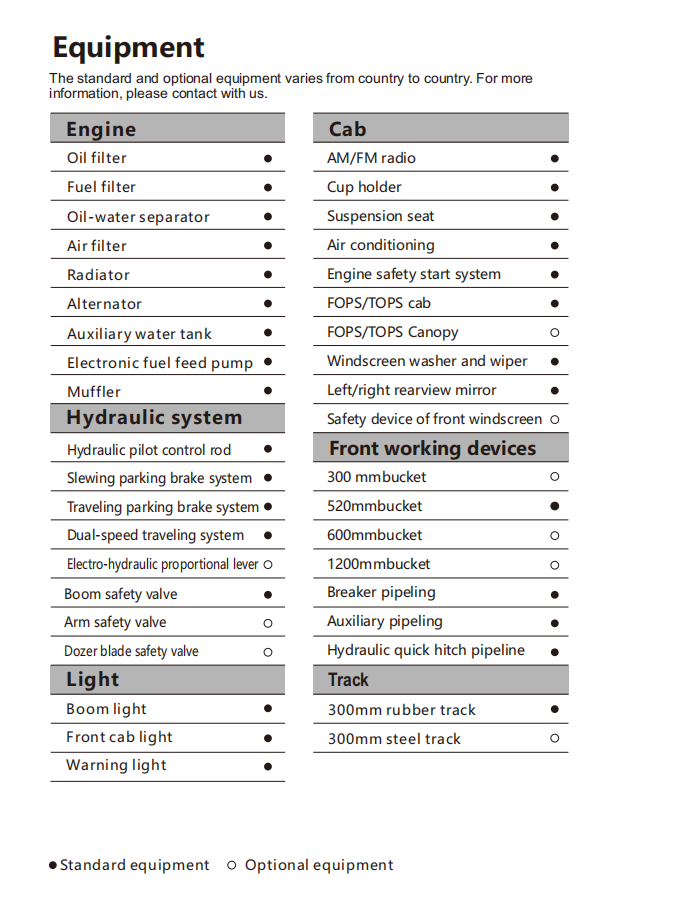

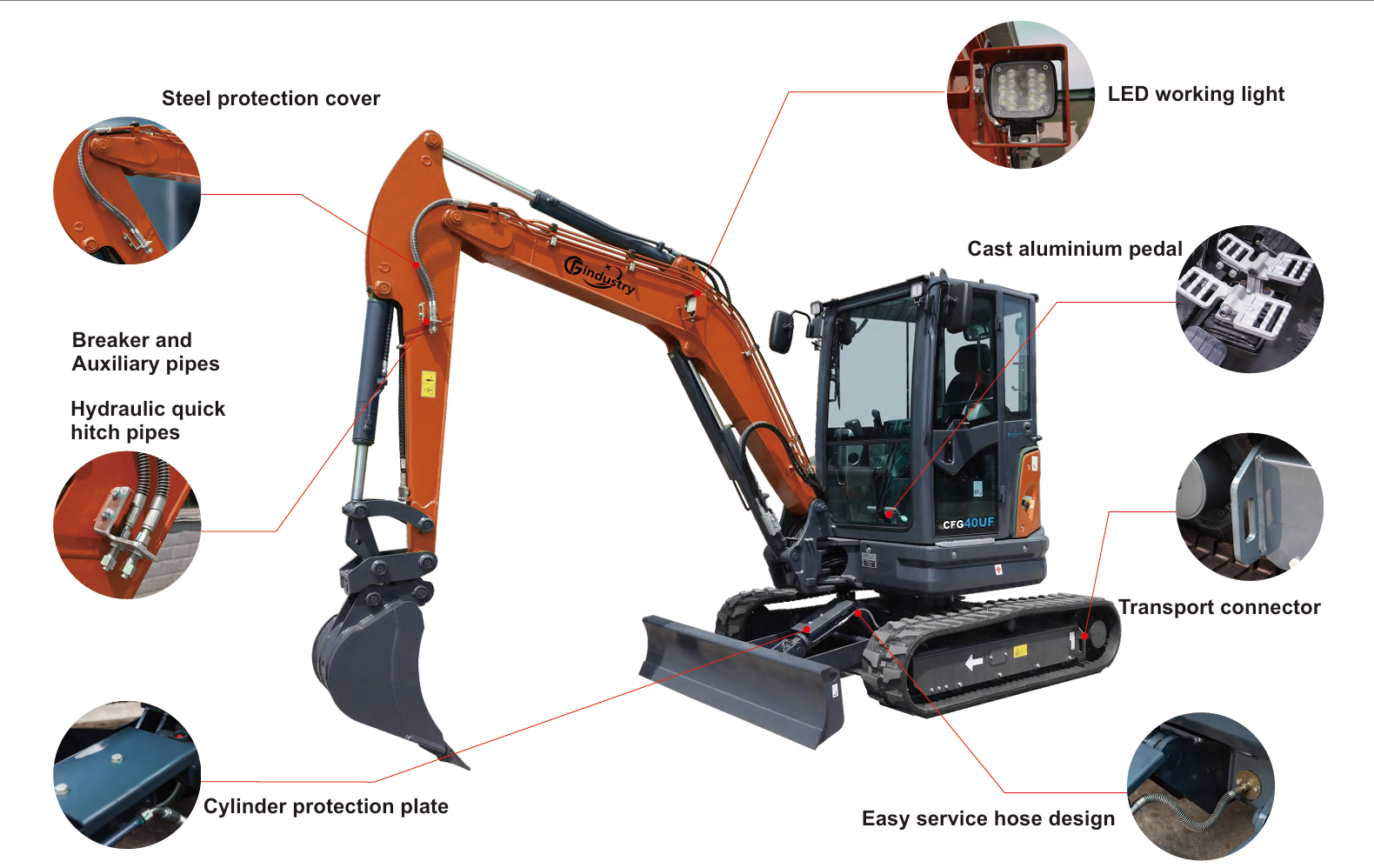

Features:

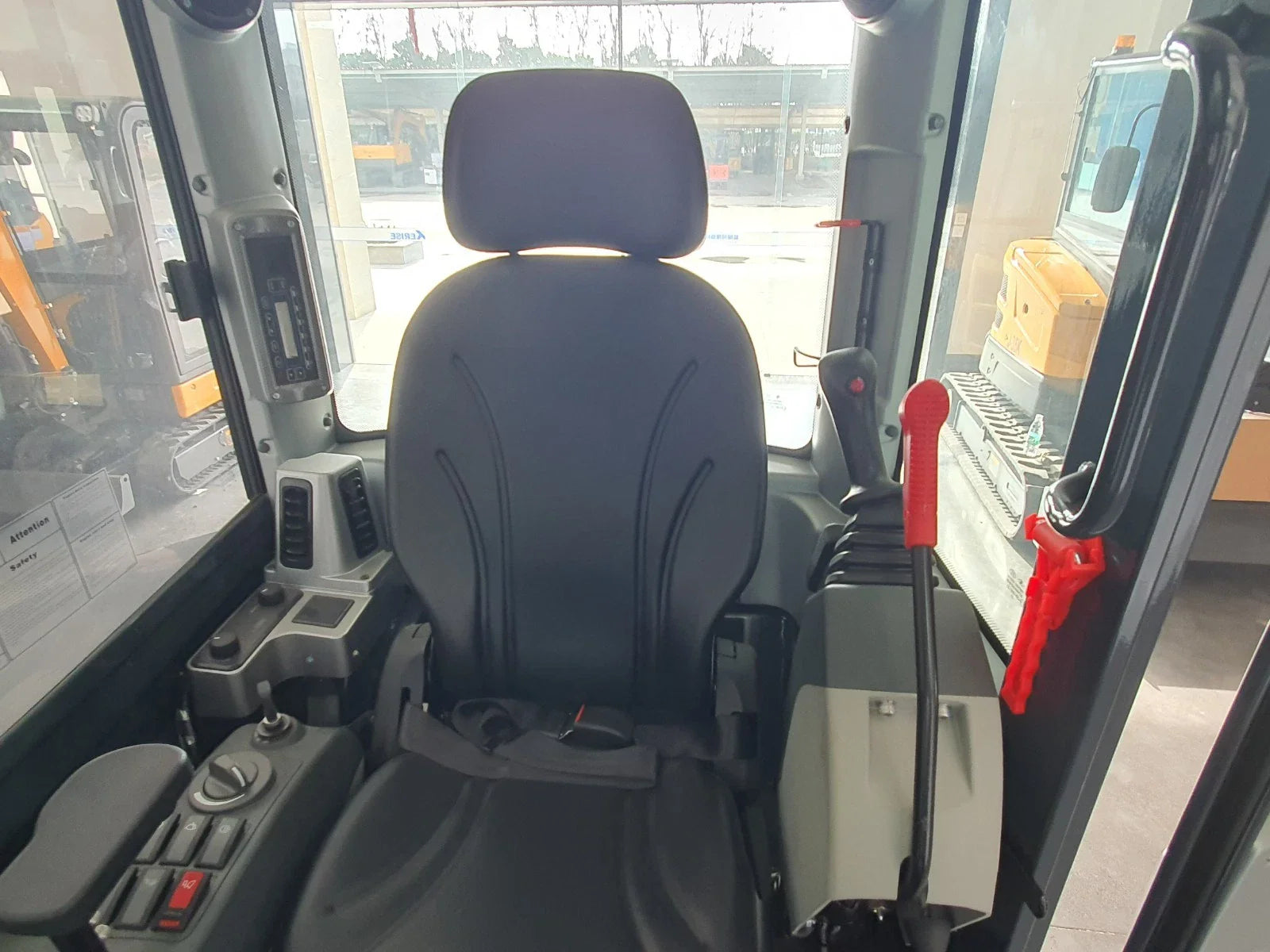

  • Enclosed Cab
  • LED Lights
  • AM/FM Radio
  • AC
  • Rearview Mirror

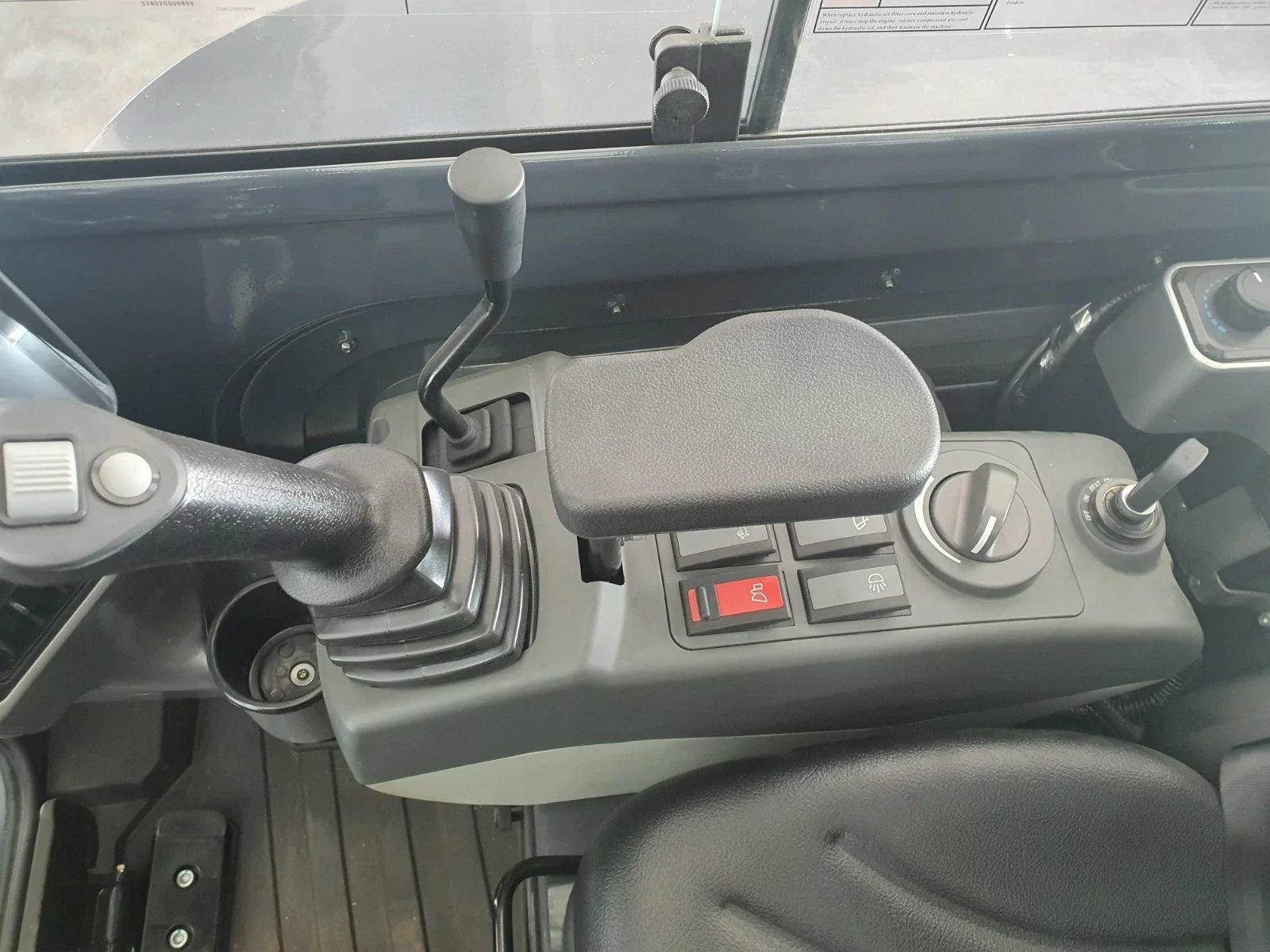

  • Pilot Control
  • Side Swing Boom
Product manual (PDF) CFG40UF_MANUAL.pdf

Product Warranty

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

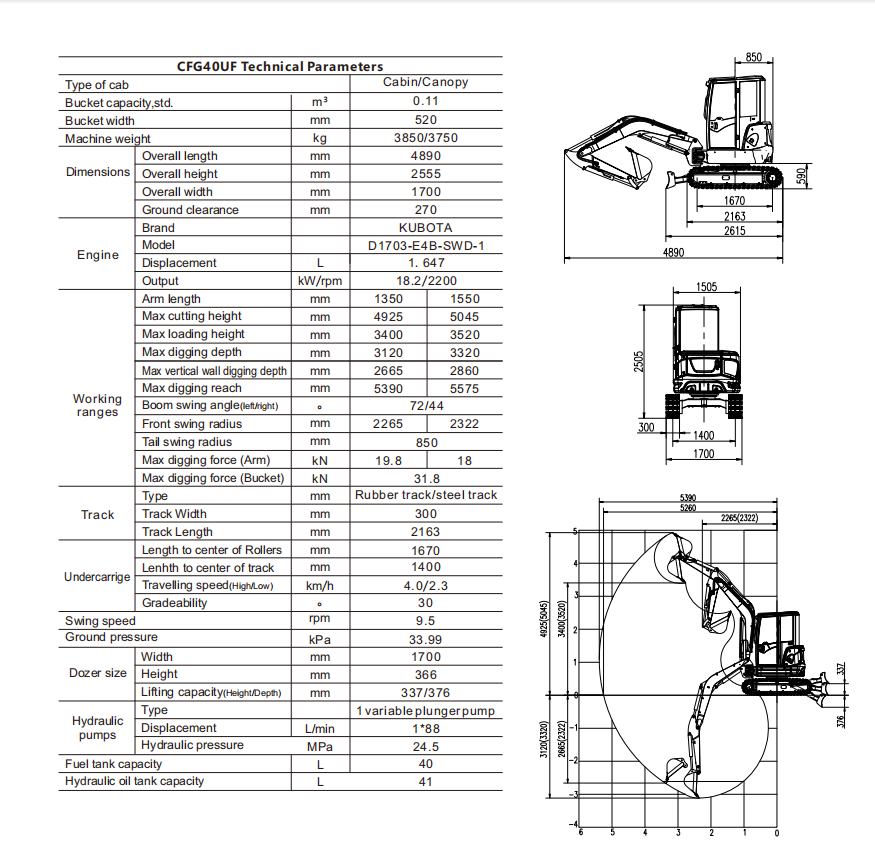

Specifications

DIMENSION
Operating Weight 3.8 Ton 8377 lb
Overall Length 4890 mm 192.5 in
Overall Width 1700 mm 67 in
Overall Height 2555 mm 100.5 in
Track Size 300*55*84 (W*P*L)
WORKING RANGE
Max Digging Depth 3320 mm 131 in
Max Digging Height 5045 mm 198 in
Max Dumping Height 3520 mm 138 in
Max Reach at Ground 5575 mm 219 in
Dozer Blade Width 1700 mm 67 in
Dozer Blade Height 366 mm 14 in
Blade Max Lifting Height 336 mm 13 in
Blade Max Drop Depth 336 mm 13 in
ENGINE
Engine Brand Kubota
Fuel Type Diesel
Model D1703-E4B
Rated Power 18.2 kW 24.4 HP
Displacement 1647 cc
Fuel Capacity 40 L 10.6 gal
Hydraulic Flow Rate 67.2 L/min 17.75 gal/min
Hydraulic Pressure 24.5 MPa 3553 psi
Hydraulic Tank Capacity 41 L 10.8 gal
Battery 12V
