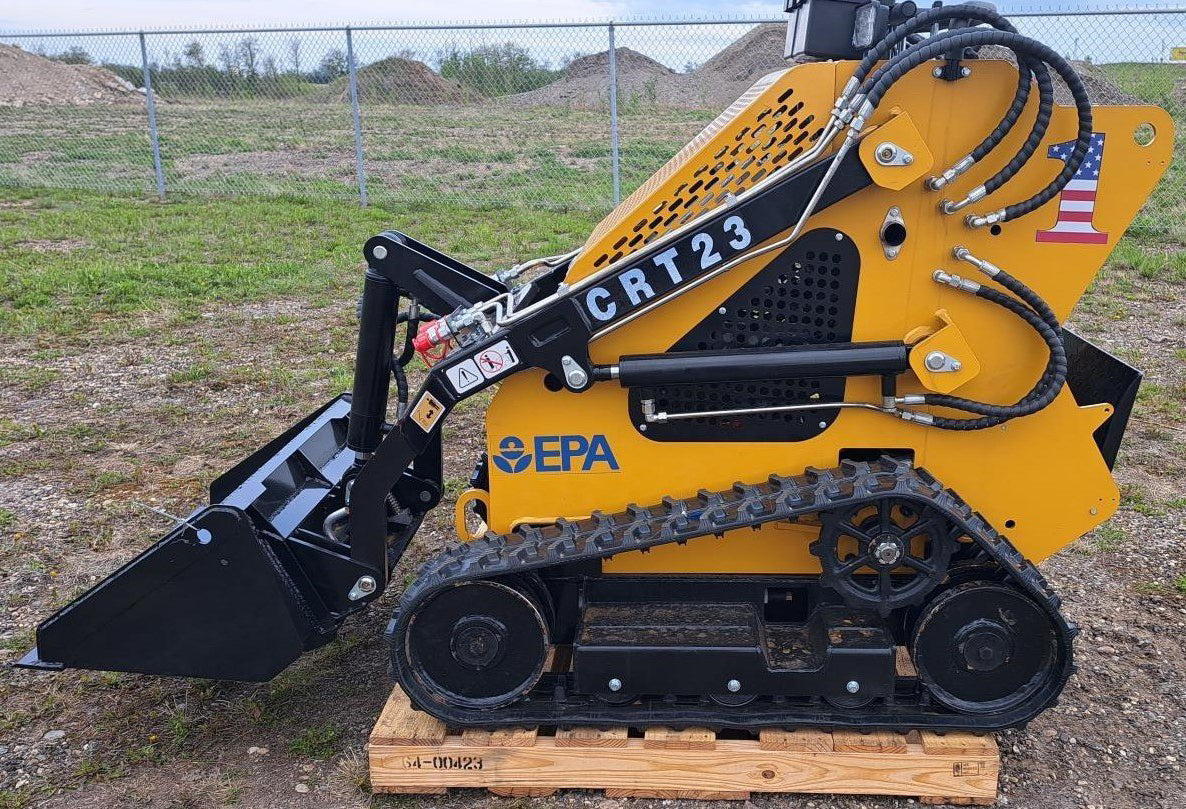

Cfgindustrial 1 Ton Mini Crawler Skid Steer with 23HP RATO R740 EPA Engine | CRT23

Manual

Exploded View Parts List

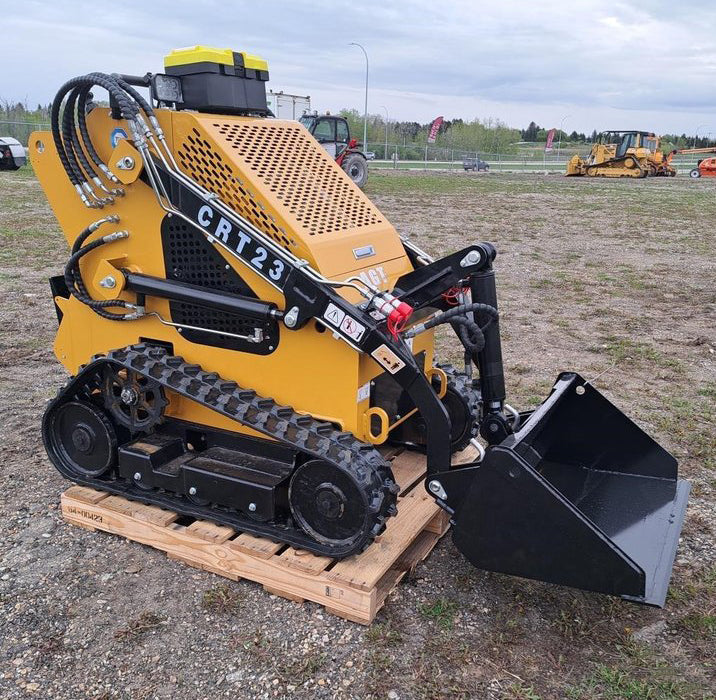

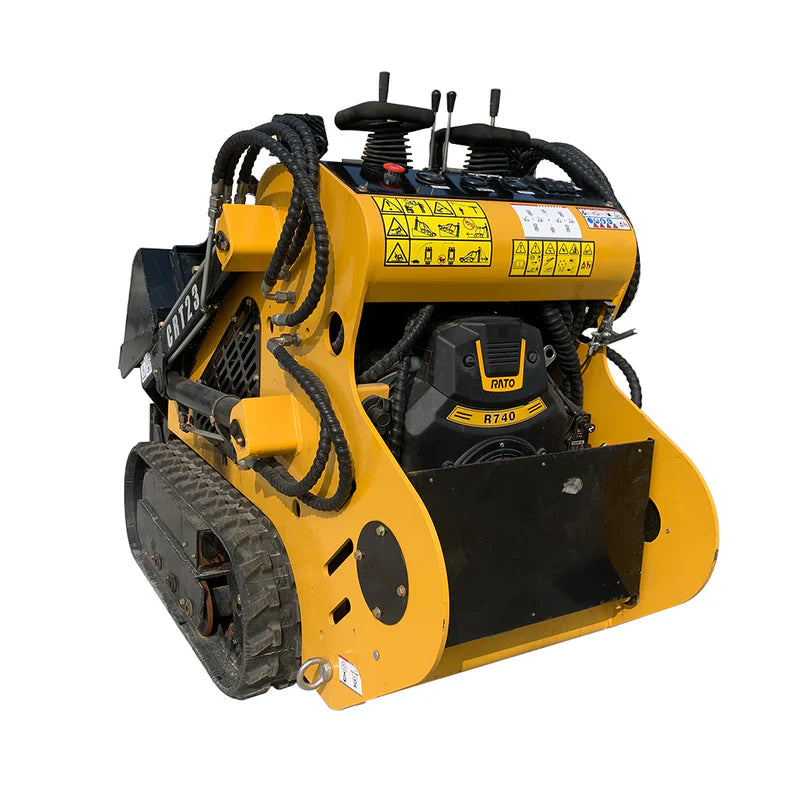

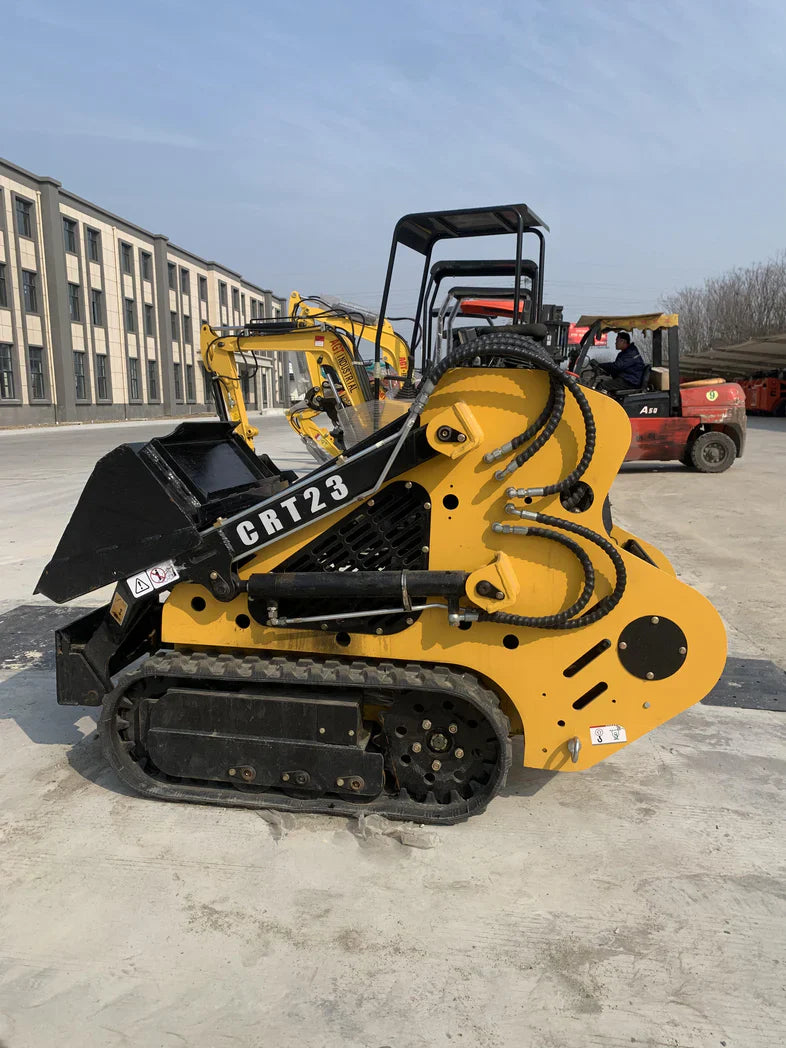

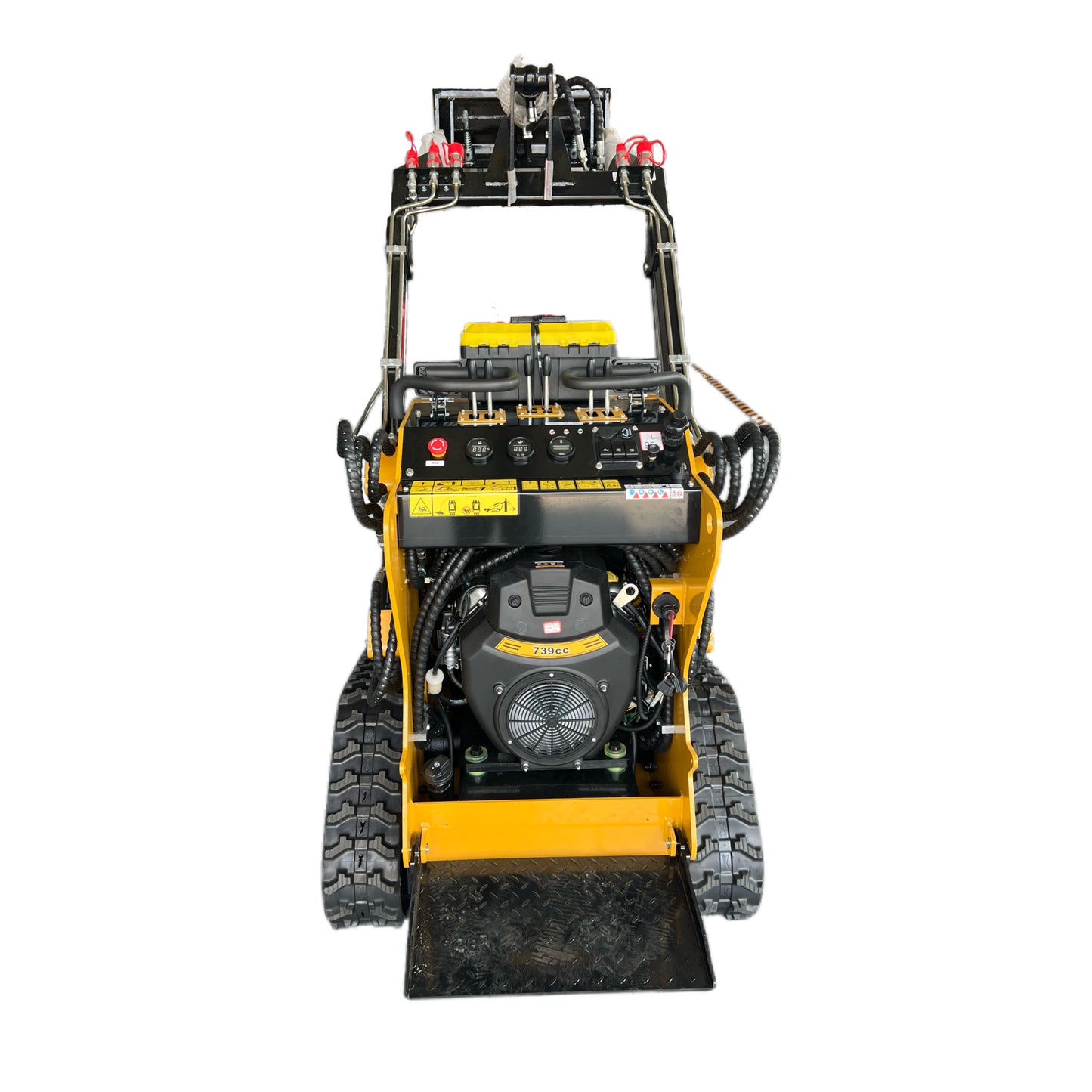

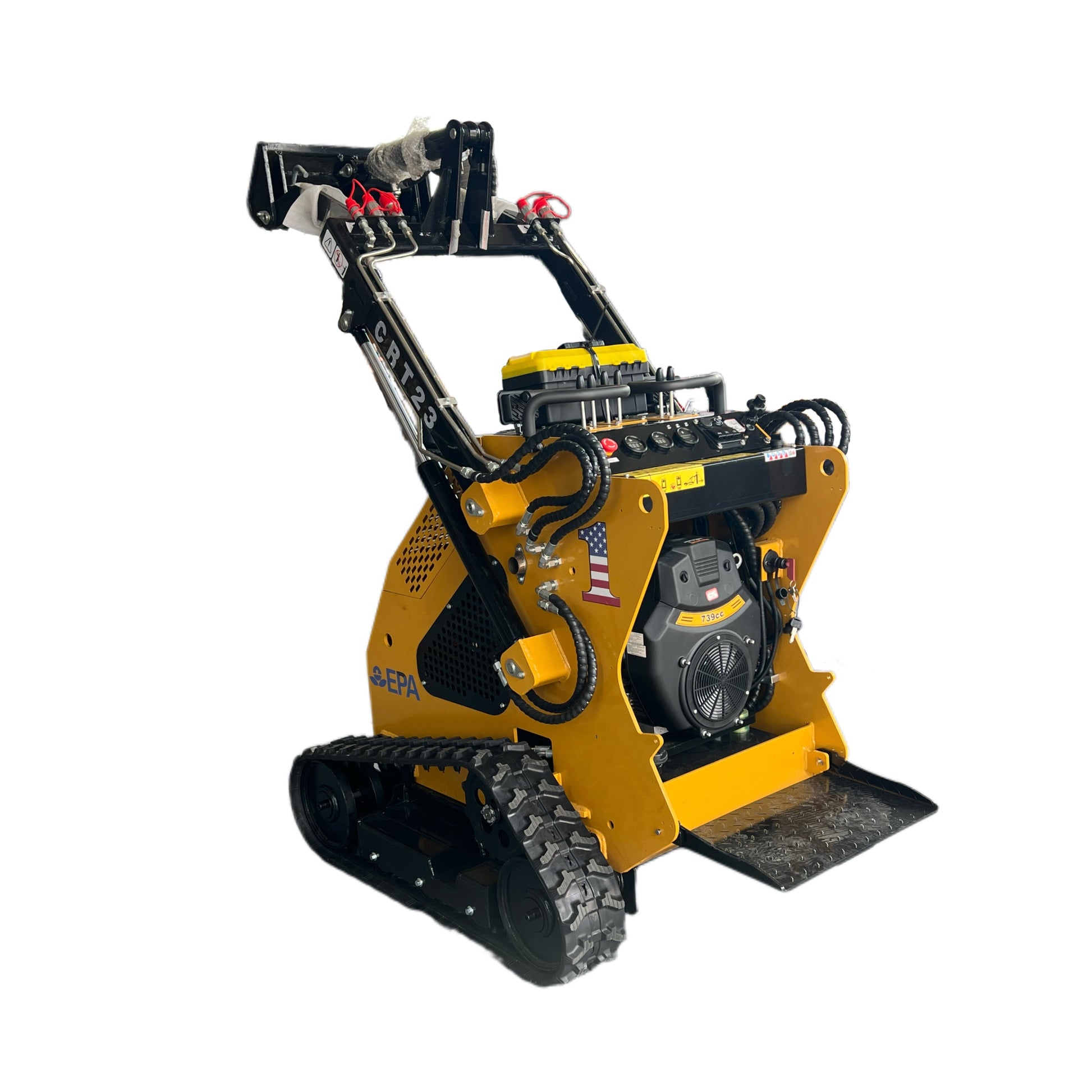

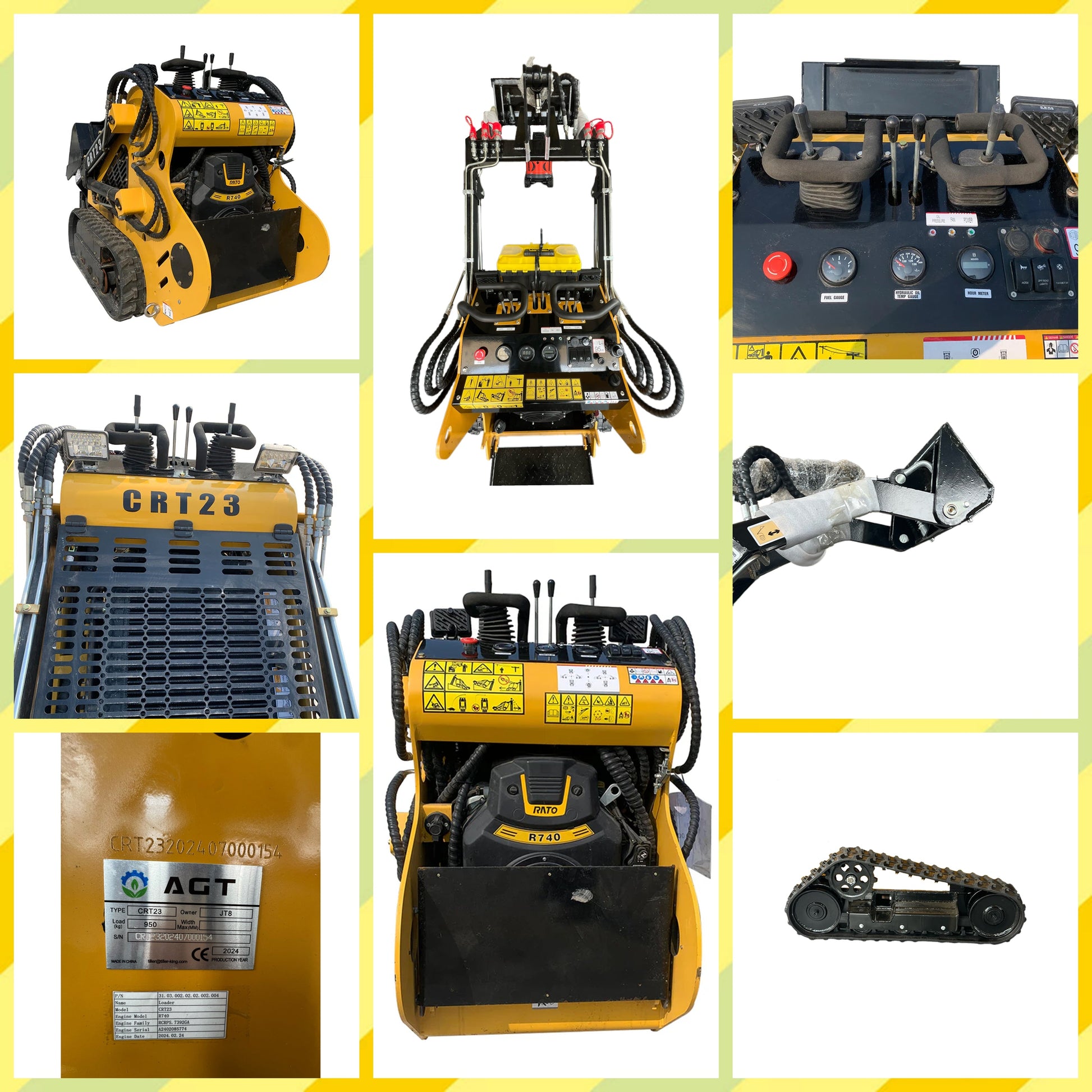

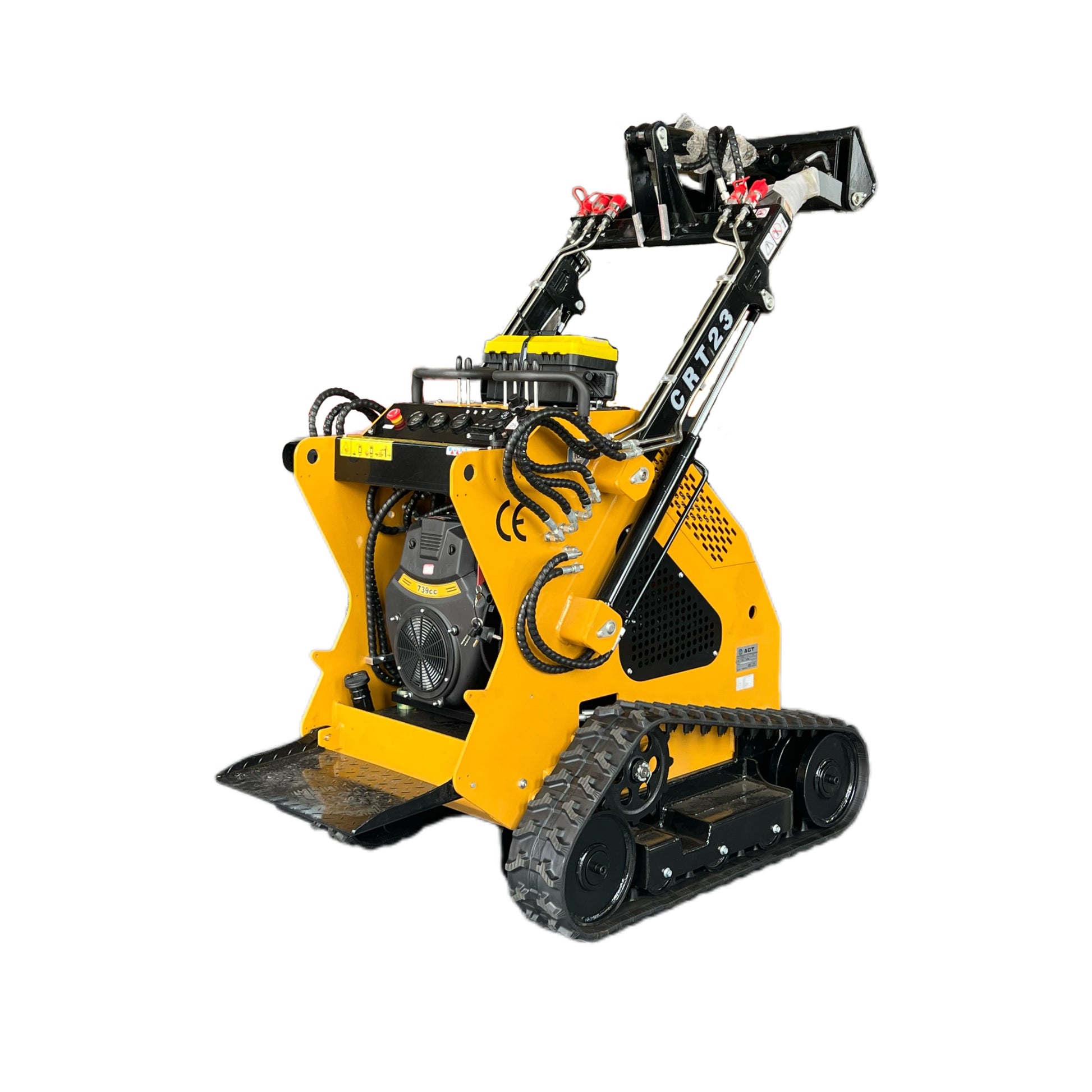

The Mini Tracked Skid Steer Loader is a compact and versatile piece of heavy equipment perfect for businesses and industrial projects. With a powerful 23hp RATO R740 EPA engine, this loader provides a maximum lifting force of 200 kg and a maximum unloading height of 1612 mm. The skid-steer design makes it easy to maneuver in tight spaces, and the tracked mounting style ensures stability on various terrains. The compact dimensions and lightweight design make it easy to transport and use in a variety of settings, making it a valuable addition to any construction site or industrial project.

Technical Data:

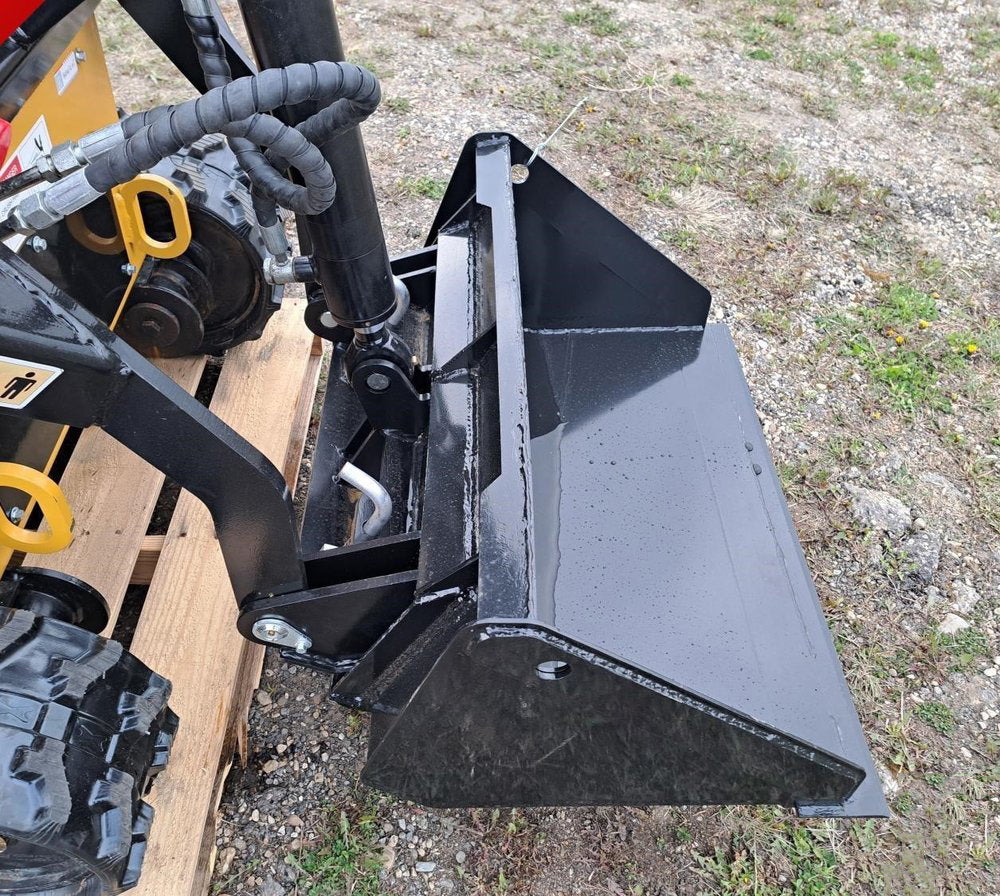

• Bucket Capacity: 0.1 m³

• Travel Speed: 4 km/h

• Max Lifting Force: 200 kg

• Max Working Height: 2,285 mm

• Max Pin Height: 1,967 mm

• Max Unloading Height: 1,575 mm

• Reach at Max Unloading Height: 661 mm

• Wheelbase: 905 mm

• Ground Clearance: 163 mm

• Bucket Discharge Angle: 23°

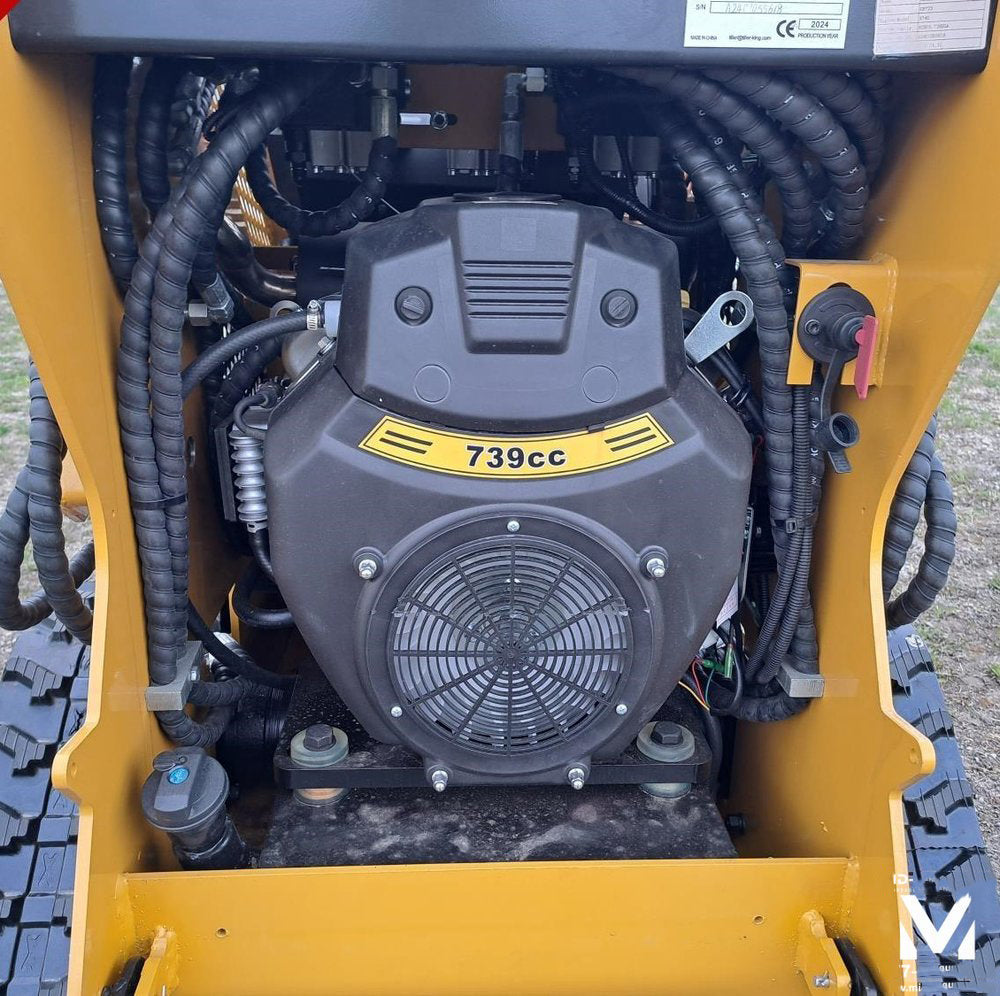

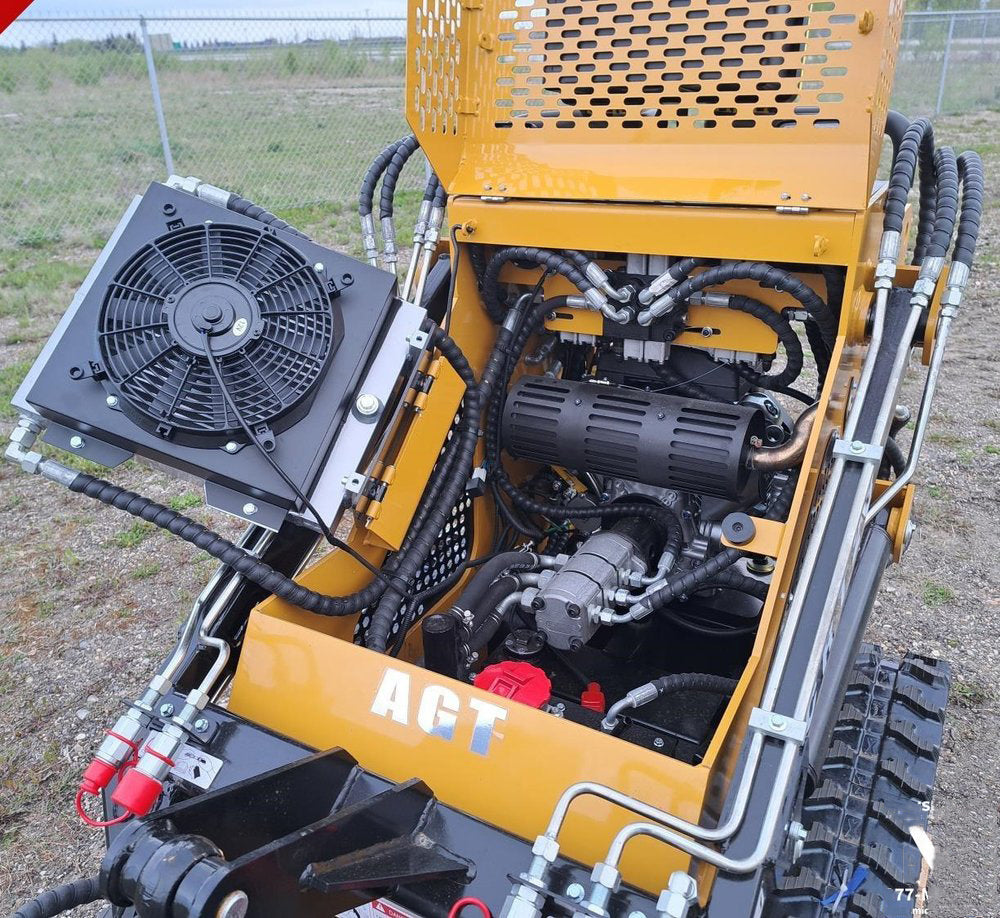

Engine:

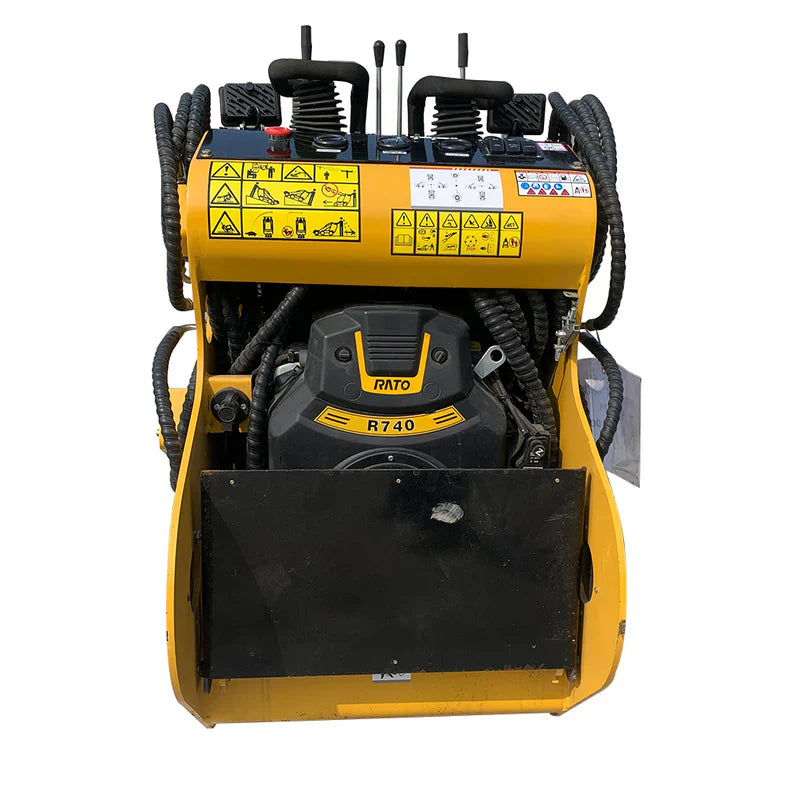

• Rato R740D (2-cylinder, fan-cooled gasoline)

• Max Horsepower: 24 ps

• Max Power: 17 kW @ 3600 rpm

• Fuel Type: 92# Gasoline

• Fuel Tank: 19.6 L

• Engine Oil Capacity: 1.6 L

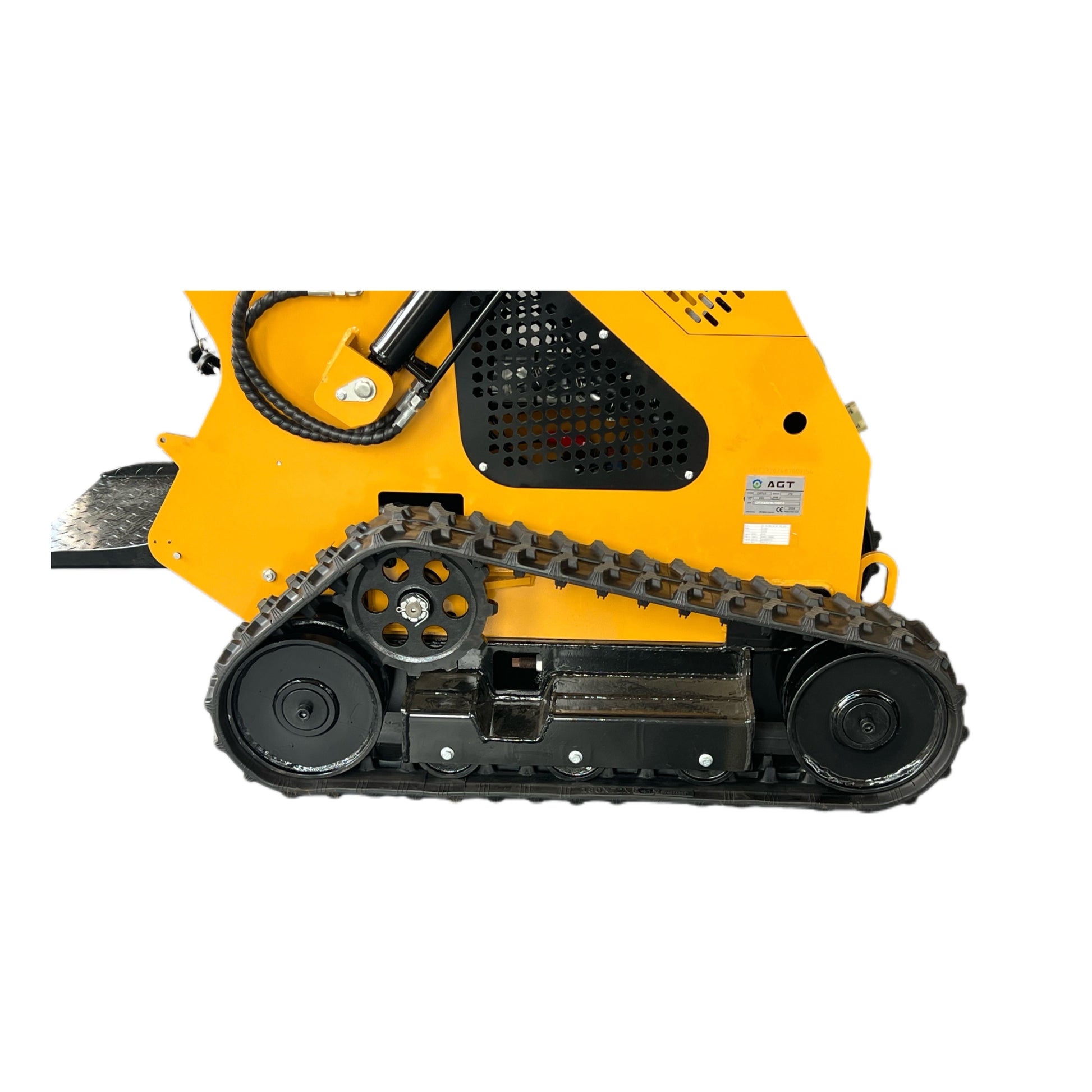

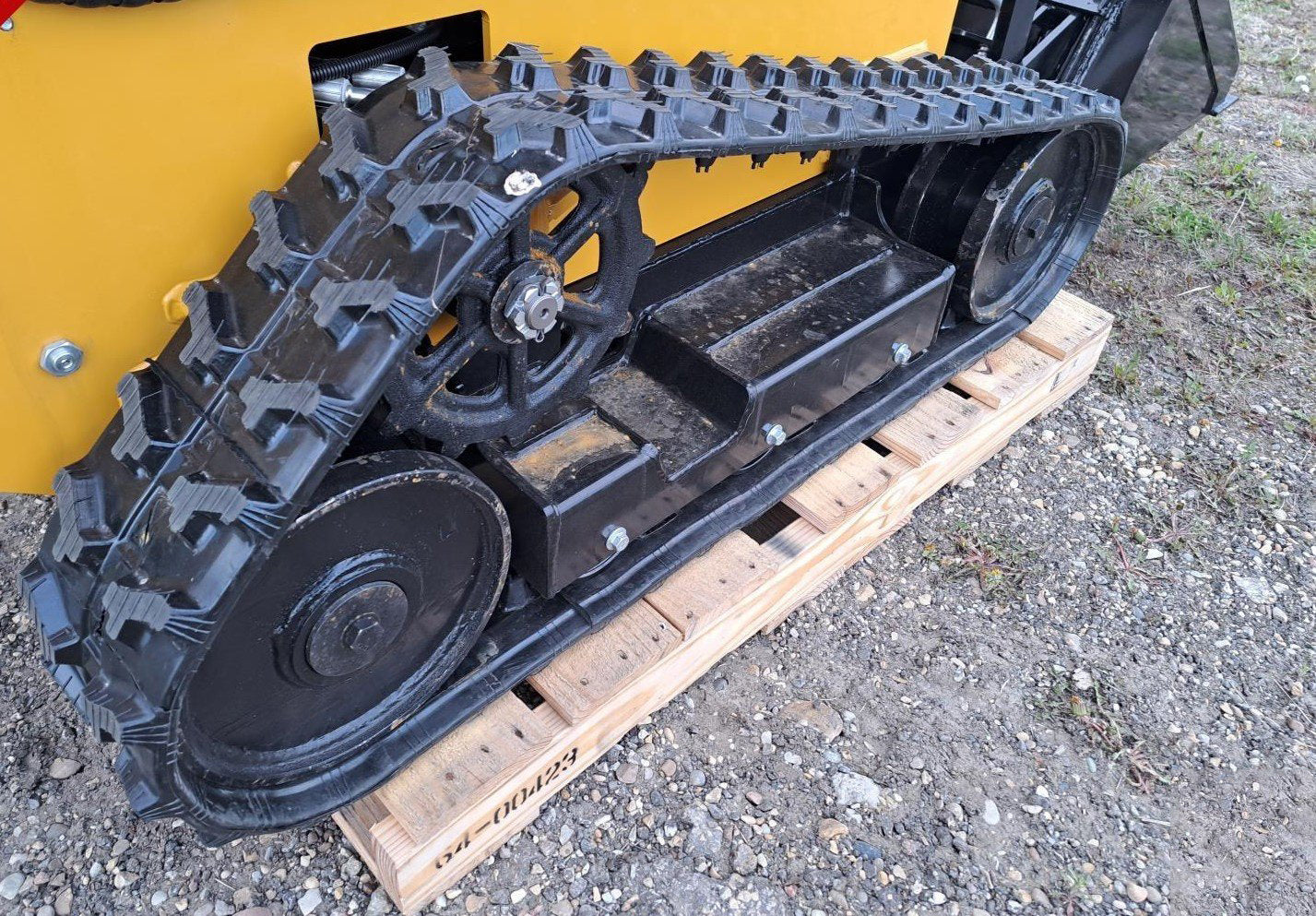

Tracks:

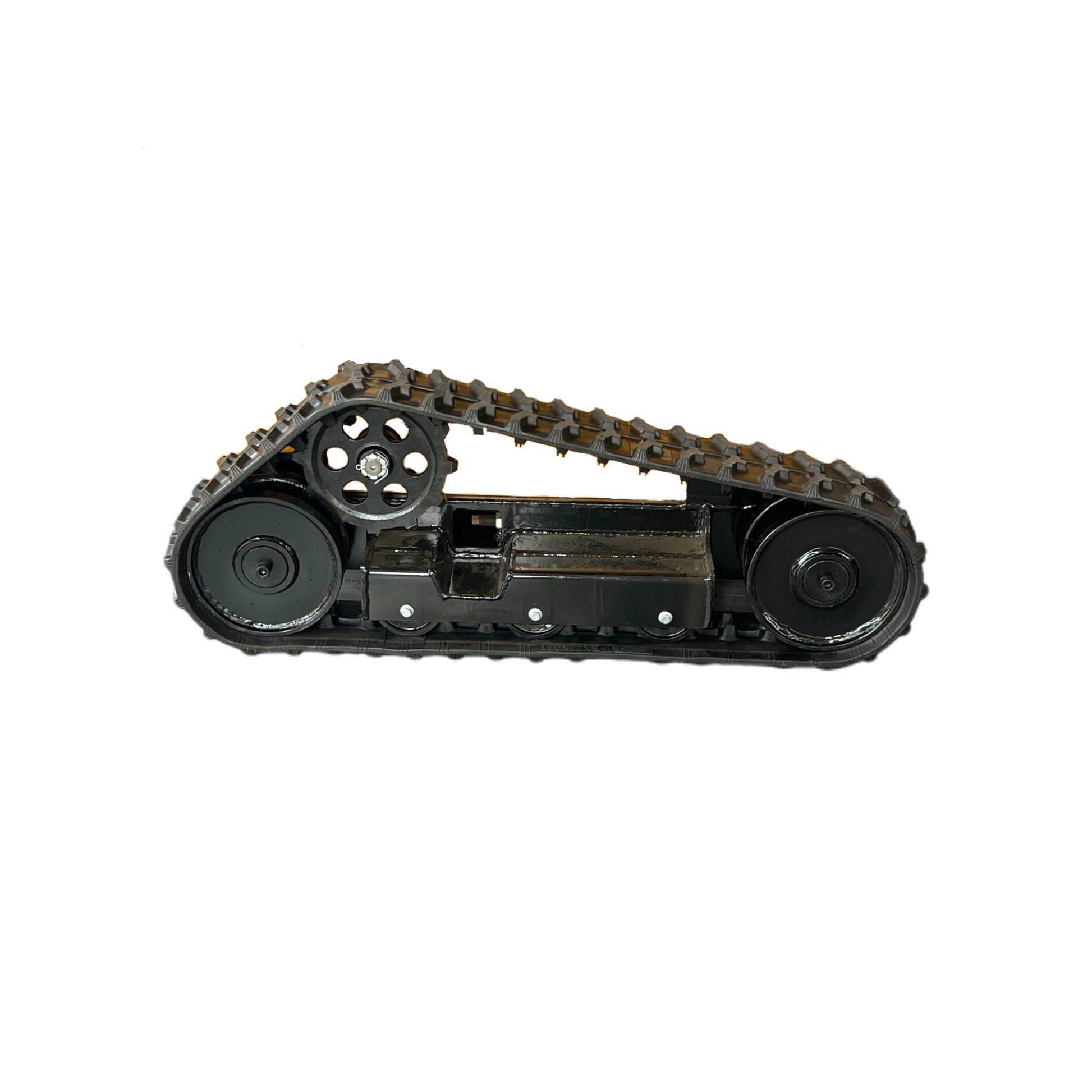

• Rubber Tracks - 180 mm * 72 pitch * 37 sections

Dimensions:

• Bucket Width: 1,120 mm

• Overall Length: 2,135 / 2,432 mm

• Overall Width: 904 mm

• Overall Height: 1,364 mm

• Body Width: 810 mm

• Slewing Radius: 1,493 mm

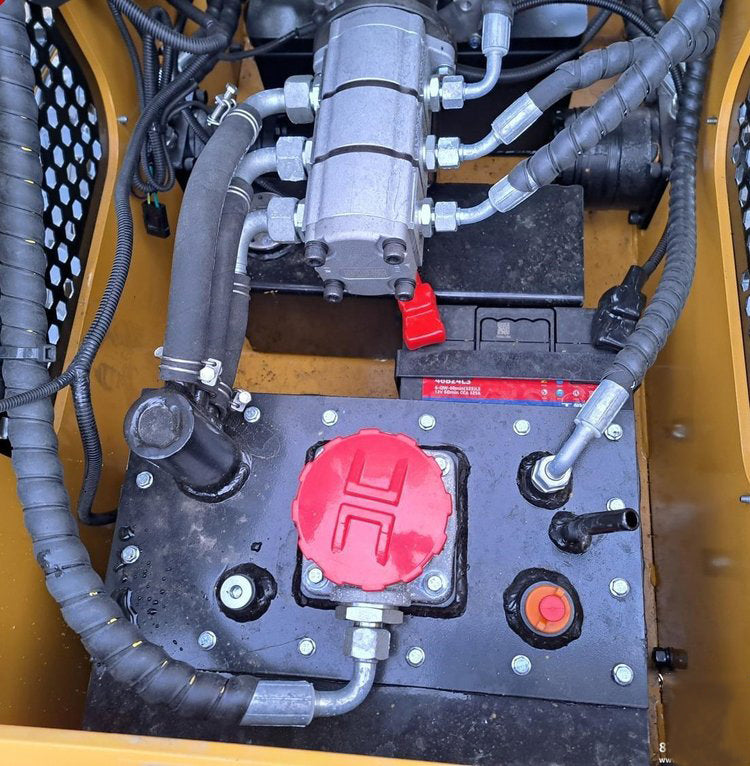

• Hydraulic Tank: 33 L
