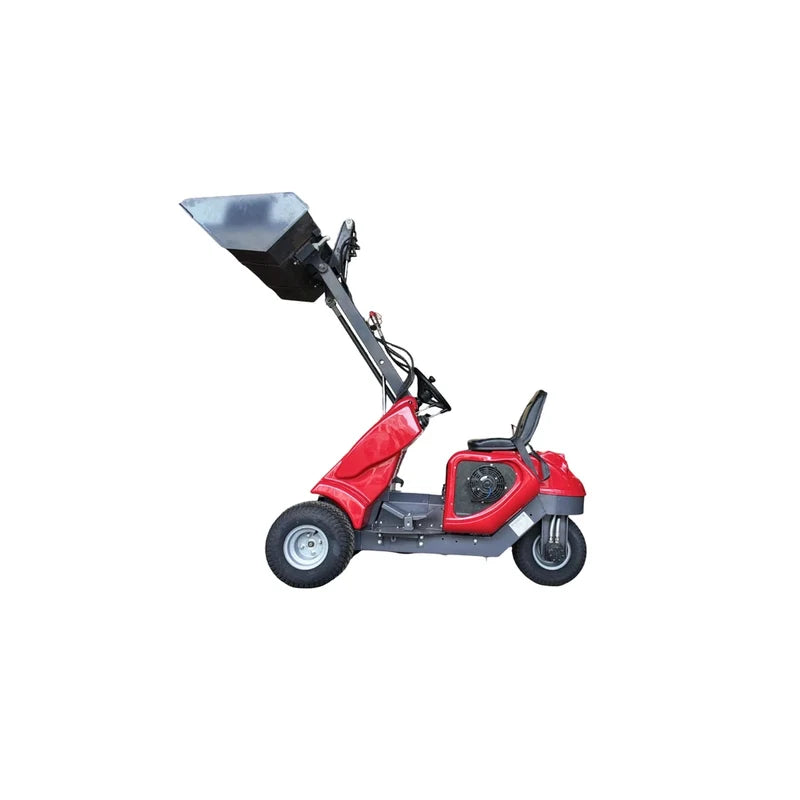

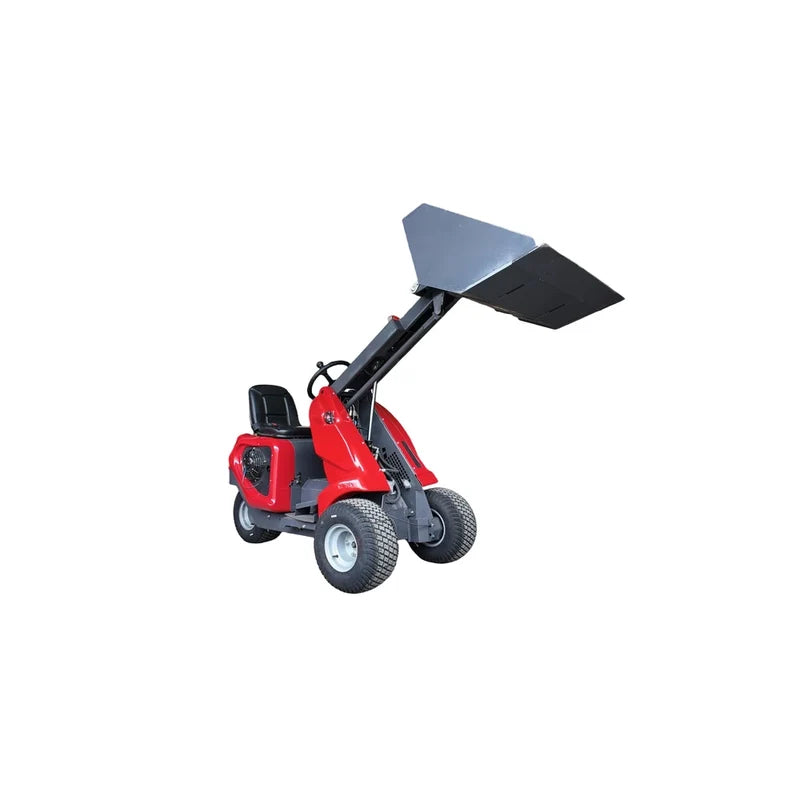

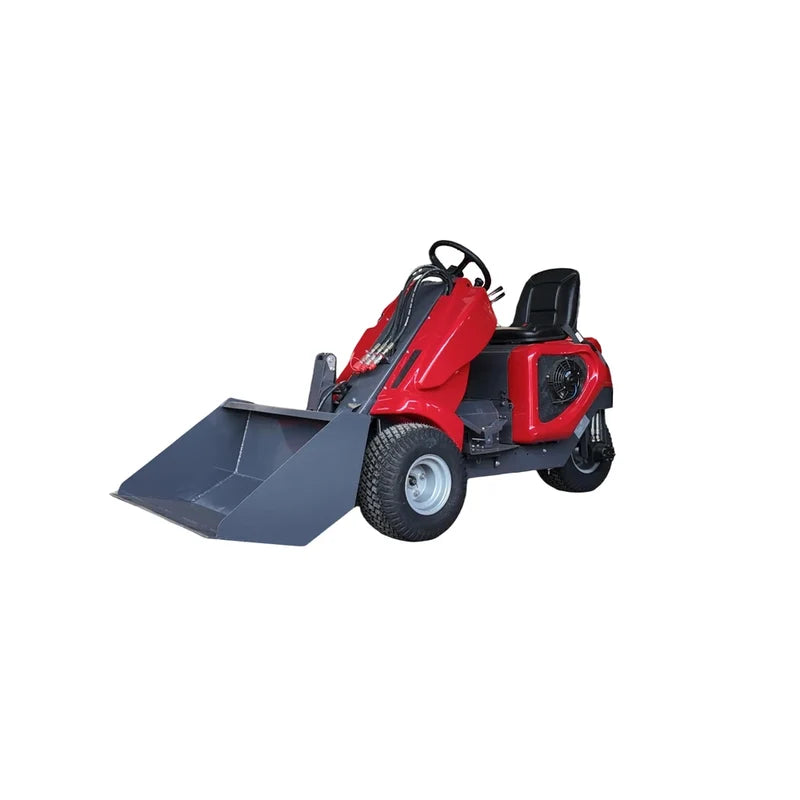

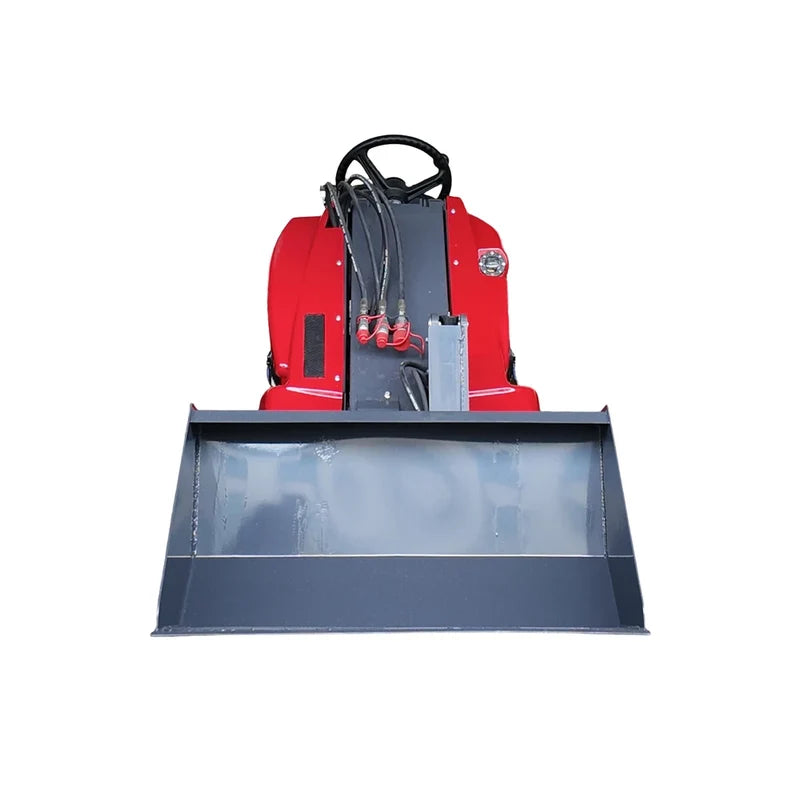

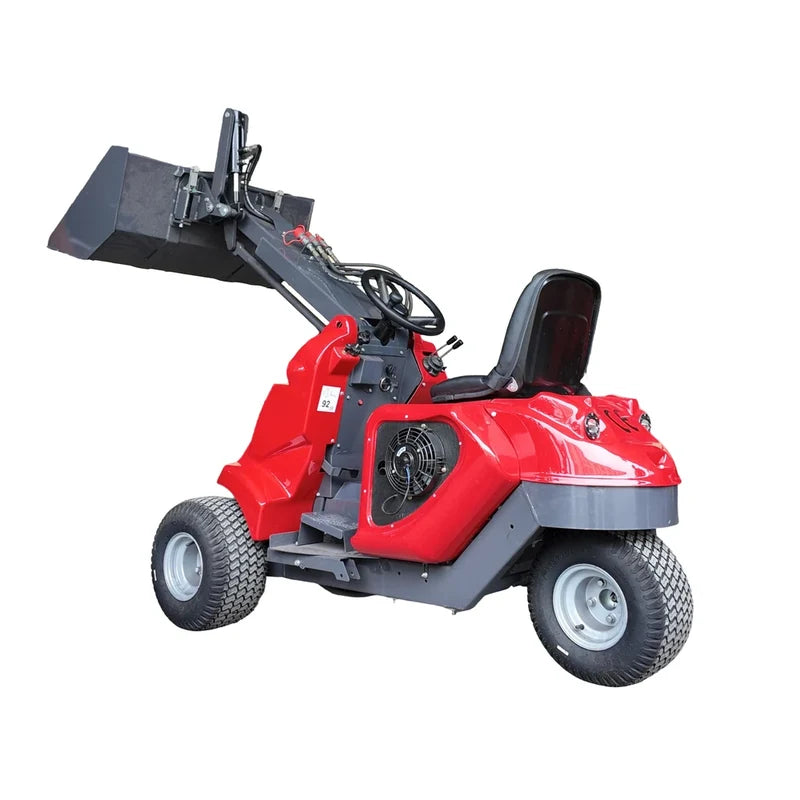

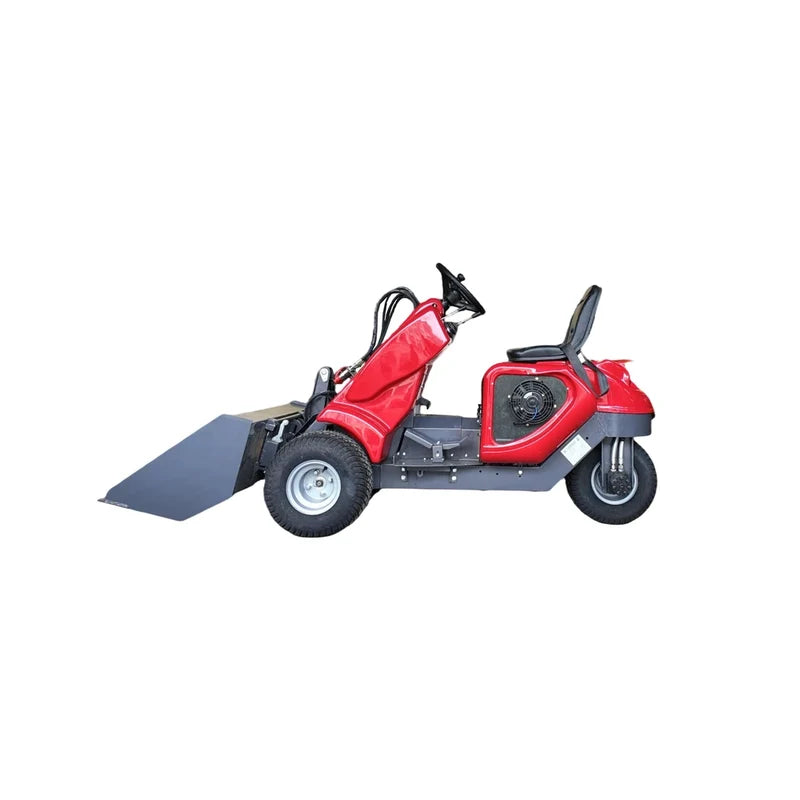

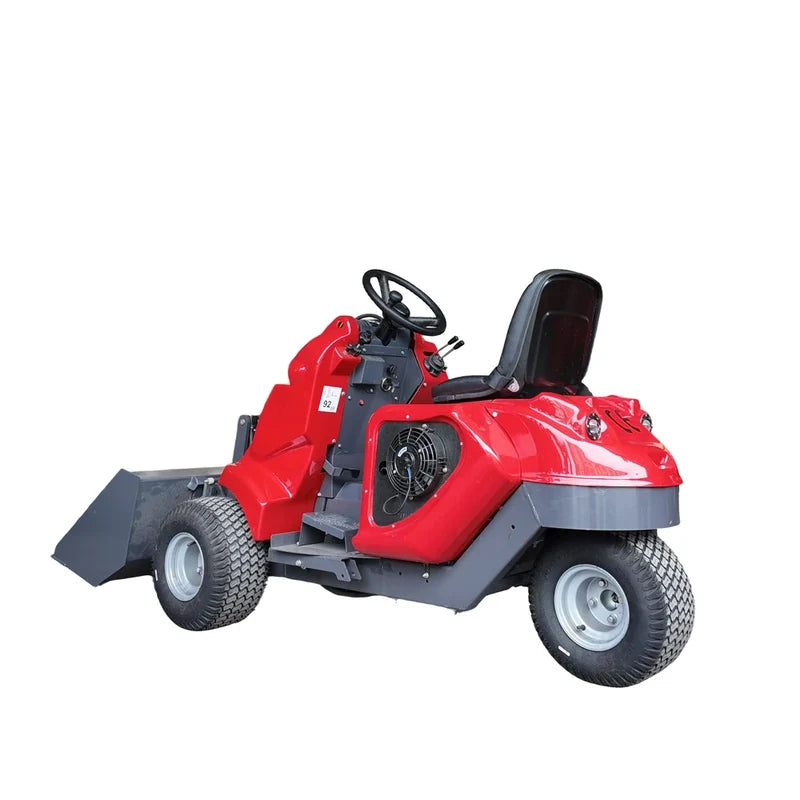

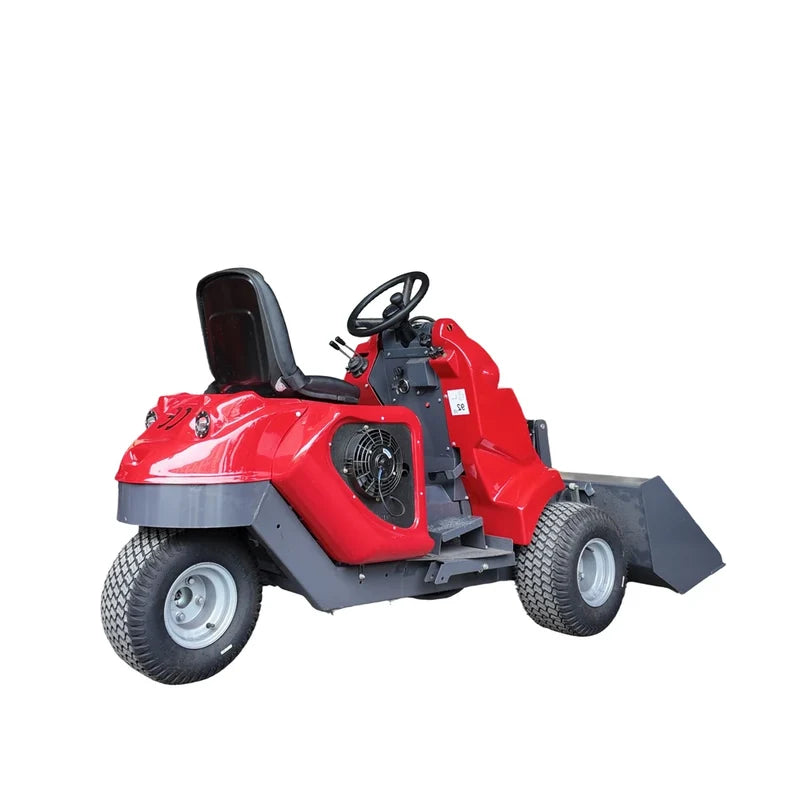

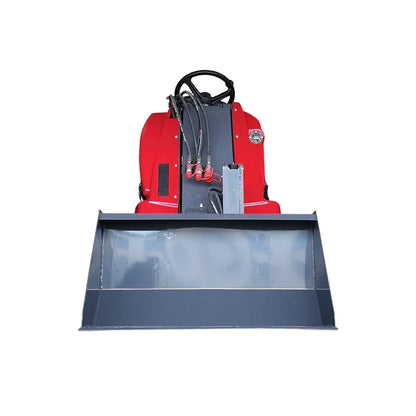

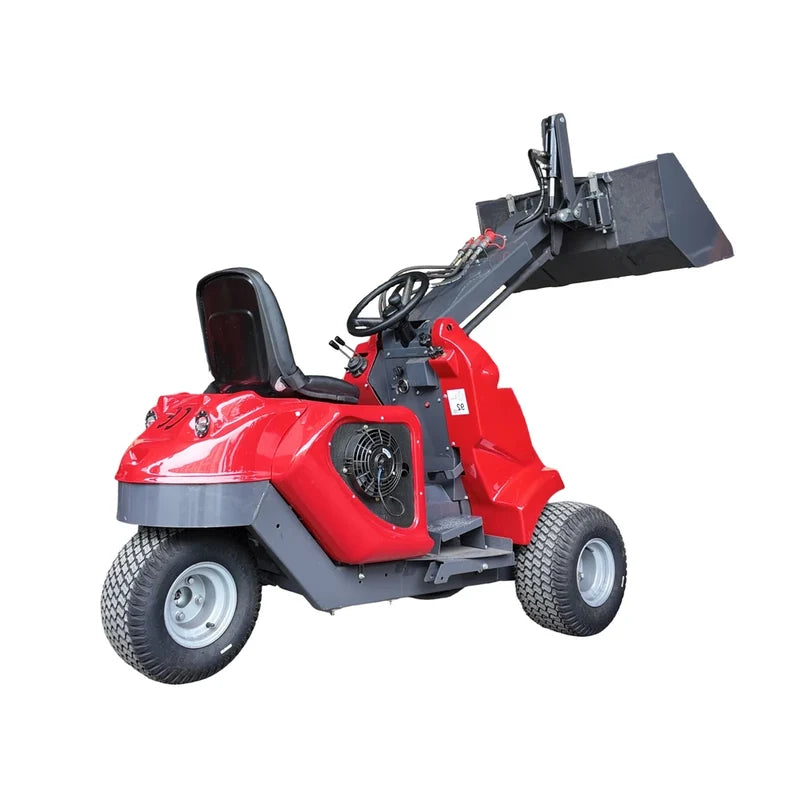

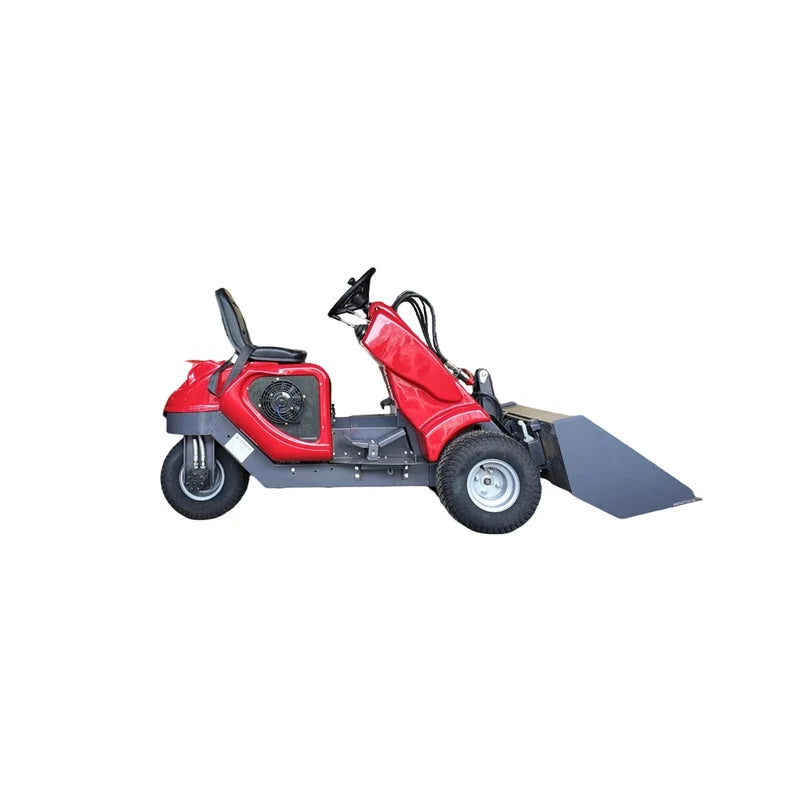

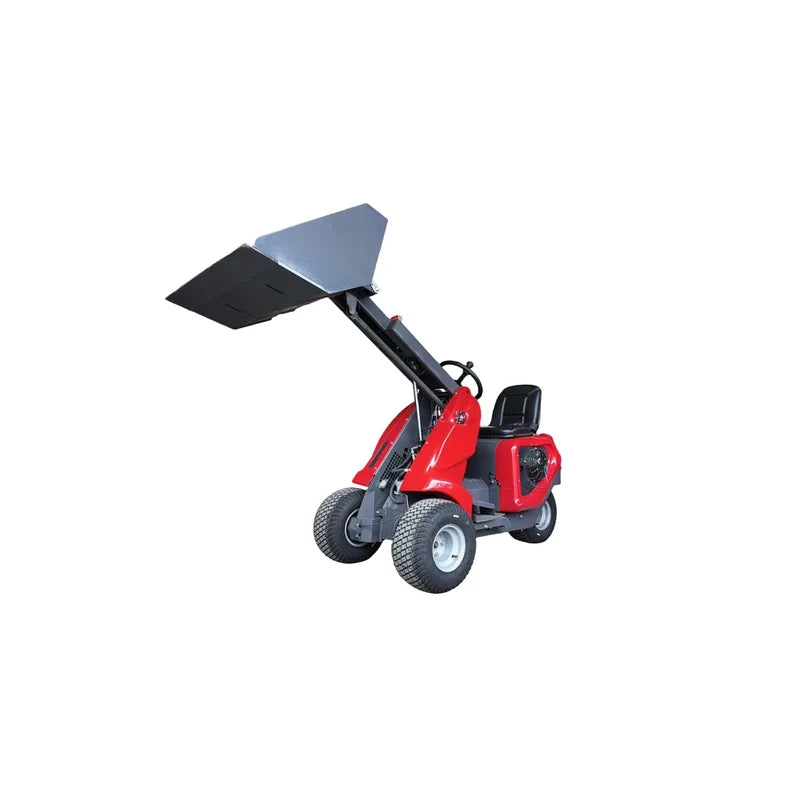

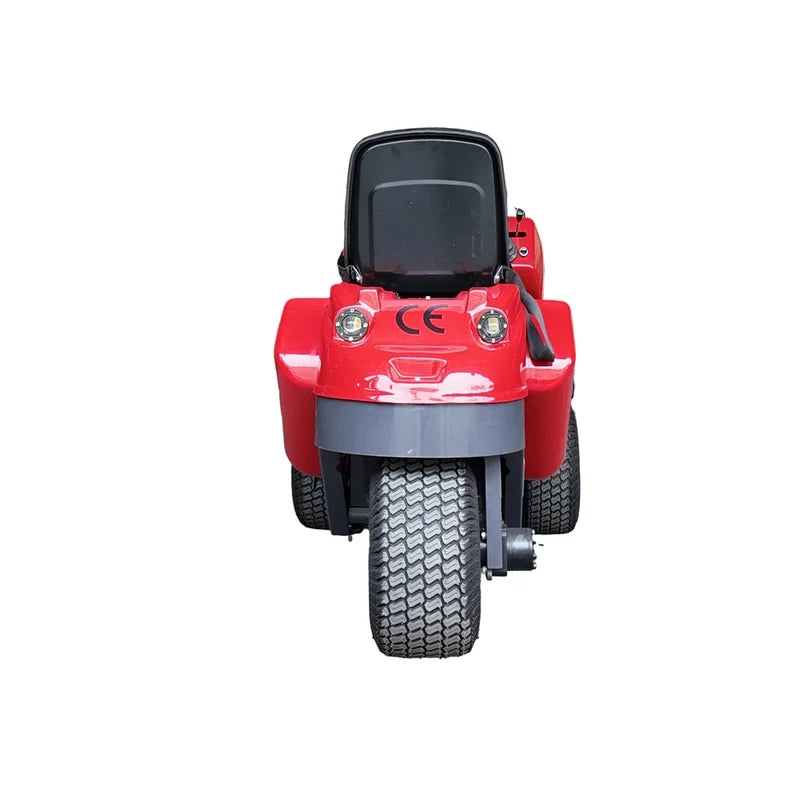

0.5 Ton Mini Wheeled Loader w/ Rato R740D 23HP Gasoline Engine | HR230-E

The HR230 Mini Wheel Loader brings professional material-handling capability to the smallest of job sites. Powered by a Rato R740D gasoline engine producing 23 HP, it lifts up to 200 kg to a working height of 1,880 mm — perfect for landscaping, farm chores, stable and barn work, nursery operations, and residential construction.

Its ride-on articulated design, hydraulic auxiliary ports, and quick-change coupling turn one compact machine into a bucket loader, pallet mover, or attachment carrier in seconds.

Technical Specifications:

• Operating Weight: 460 kg (1,014 lbs / 0.5 Ton)

• Max Lifting Capacity / Force: 200 kg (440 lbs)

• Standard Bucket Capacity: 0.2 m³ (7.06 cu ft)

• Bucket Width: 1,010 mm (39.8 in)

• Travel Speed (Low / High): 12 km/h (7.5 mph)

• Climbing Ability (Gradeability): 30% (approx. 16.7°)

Dimensions:

• Overall Length (w/ Bucket): 1,854 mm (73 in)
• Overall Width: 993 mm (39.1 in)

• Overall Height: 1,304 mm (51.3 in)

• Body Width: 710 mm (28 in)

• Wheelbase: 993 mm (39.1 in)

• Ground Clearance: 180 mm (7.1 in)

• Turning Radius: 993 mm (39.1 in)

Working Range:

• Max Working Height: 1,880 mm (74 in)

• Max Pin Height: 300 mm (11.8 in)

• Max Unloading Height: 1,435 mm (56.5 in)

• Loading Distance at Max Unloading Height: 300 mm (11.8 in)

• Bucket Discharge Angle: 20°

Engine:

• Engine Brand: Rato

• Model: R740D

• Fuel Type: Gasoline

• Max Power: 17 kW (23 HP)

• Number of Cylinders: 2 (V-Twin Cylinder, Air-Cooled)

• Engine Oil Capacity: 1.6 L (0.42 gal)

• Fuel Tank Capacity: 10 L (2.64 gal)

Hydraulic system:

• Main Pump Type: Piston Pump

• Main Pump Brand: PWG

• Main Pump Max Flow Rate: 29 L/min (7.66 GPM)

• Main Pump Rated System Pressure: 20 MPa (2,900 PSI)

• Travel Hydraulic Motor Type: Cycloid Motor (Liyuan / Displacement: 160/315)

• Hydraulic Auxiliary Tool Joint: Plug-type Hydraulic Auxiliary Tool Joint

• Hydraulic Oil Tank Capacity: 10 L (2.64 gal)

Features and Configuration:

• Compact Ride-On Wheel Loader Design

• PWG Hydraulic Piston Pump System

• Hydraulic Pilot-Operated Intelligent Handle

• Pin Type Fixture Coupling / Hydraulic Quick Change Compatible

• Hydraulic Auxiliary Tool Lines

• Bright LED Boom Work Lights

• Tilt-Up Engine Cover for Easy Maintenance
