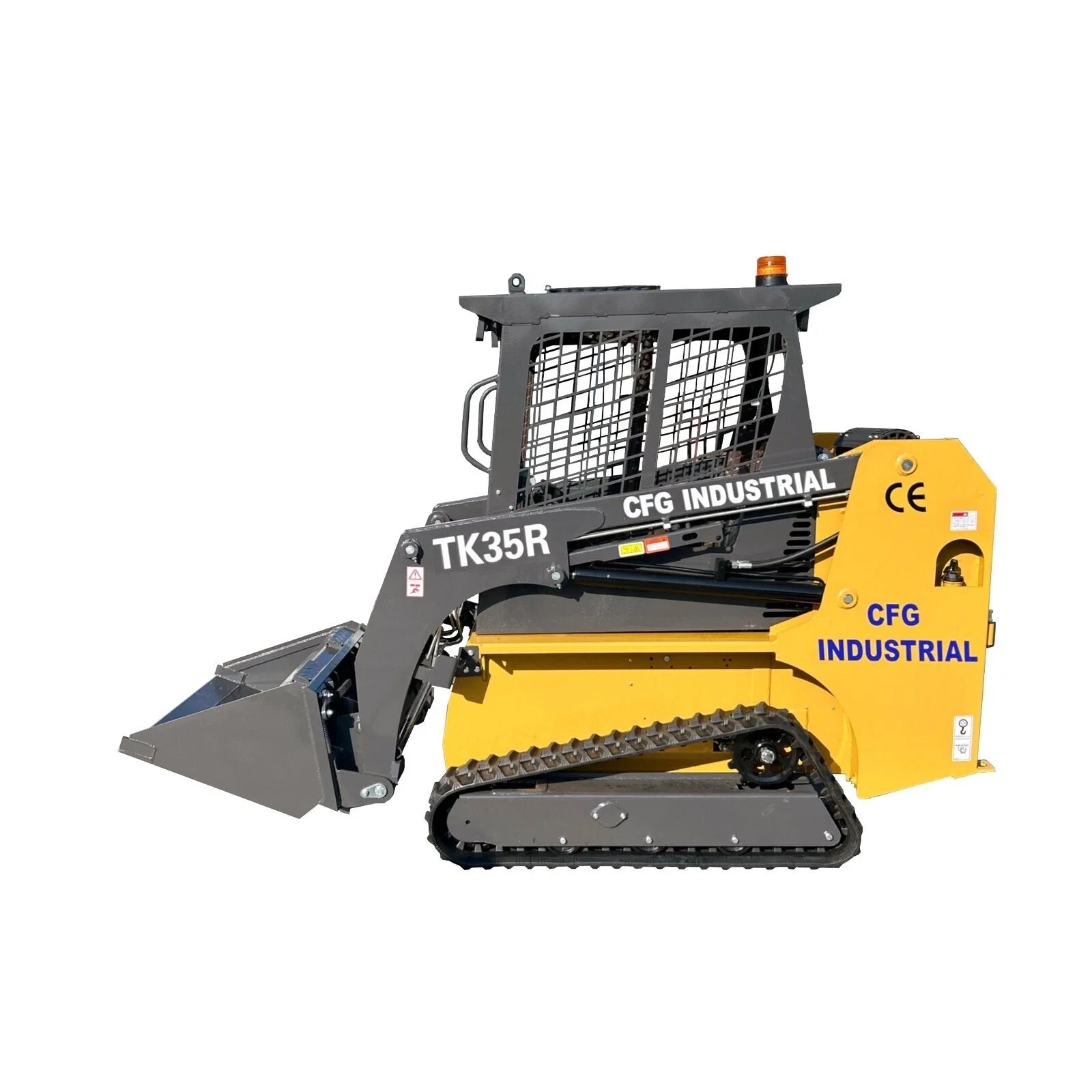

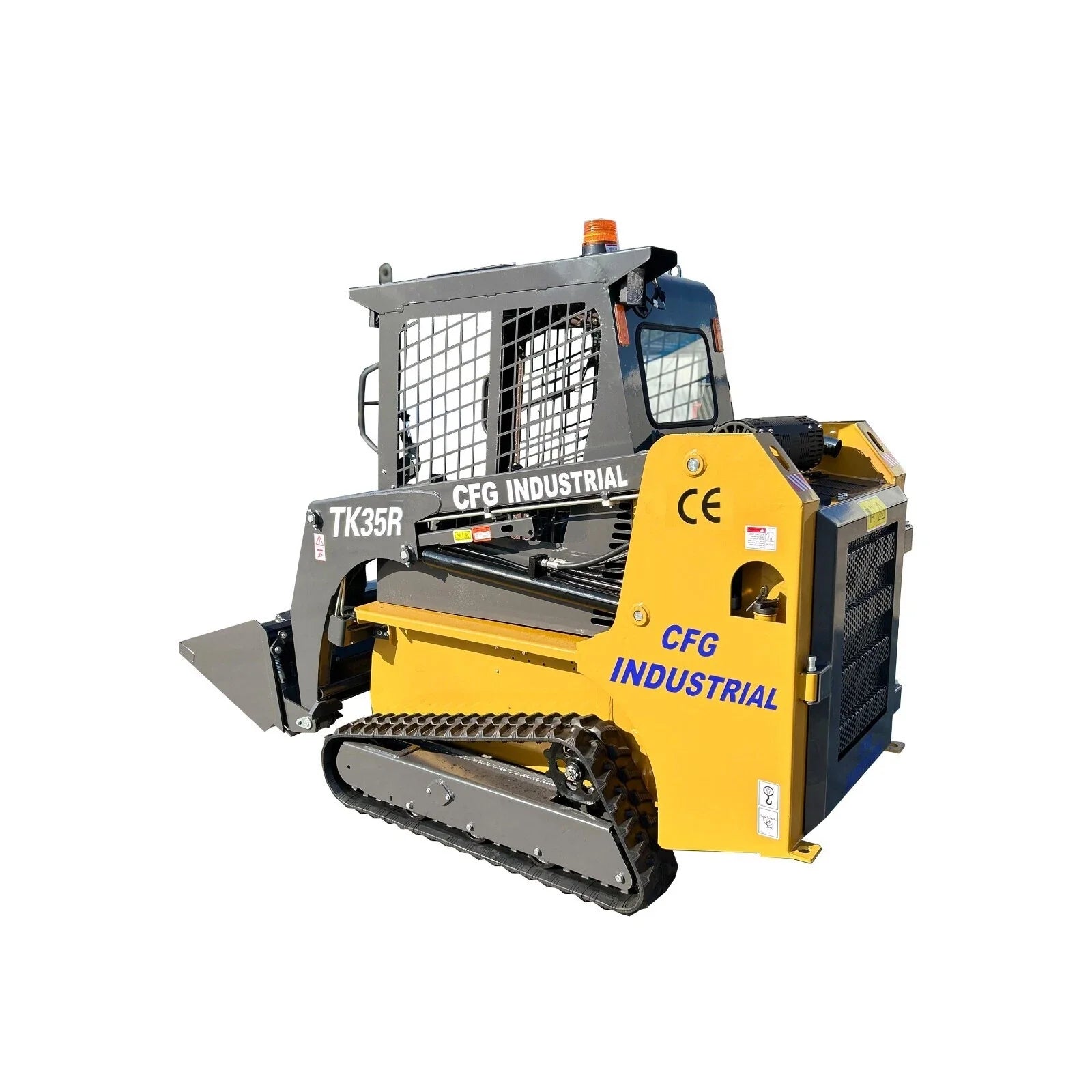

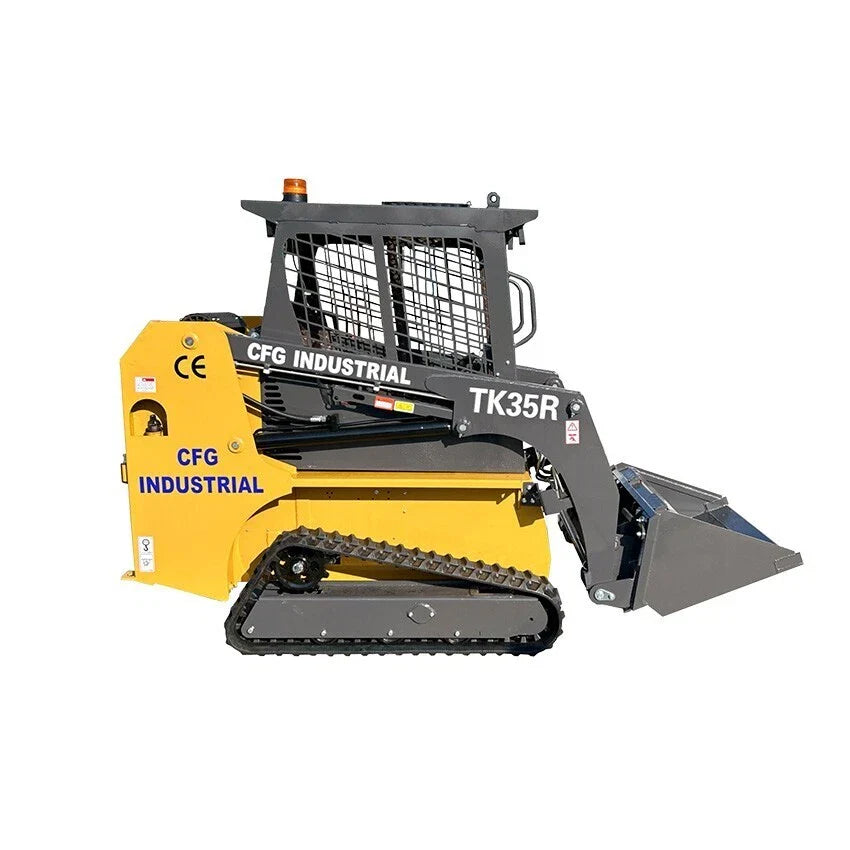

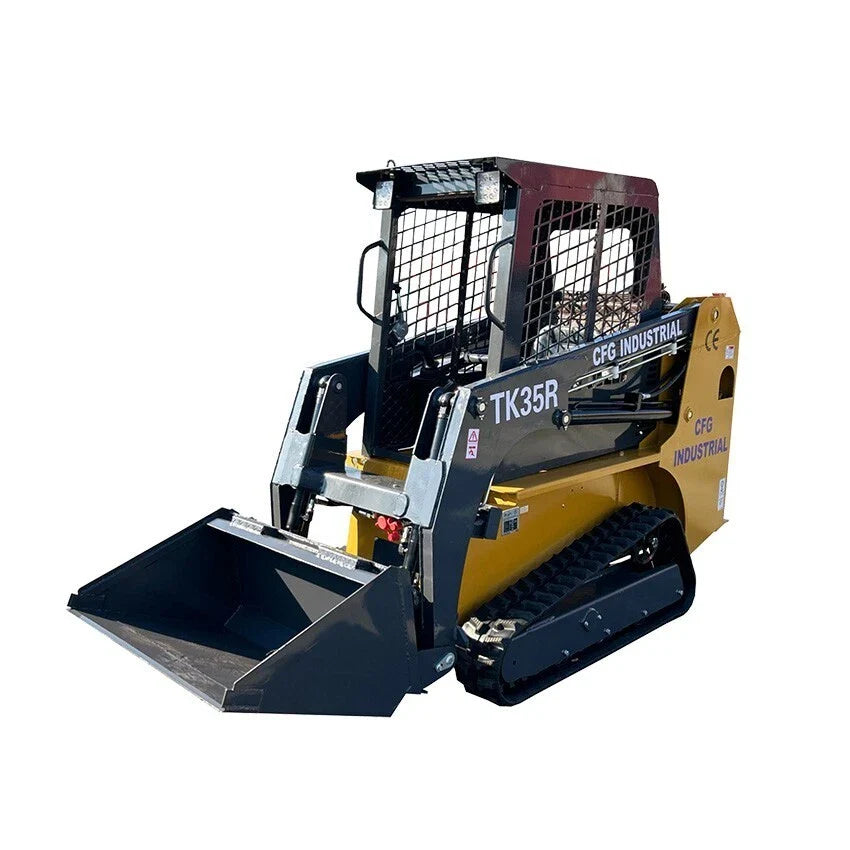

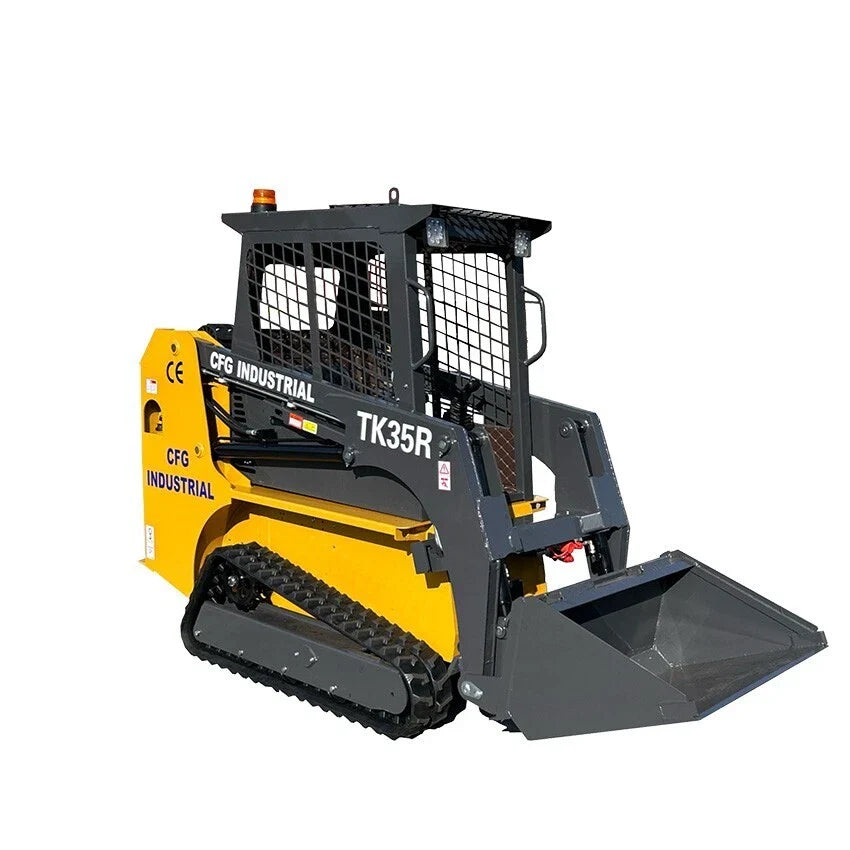

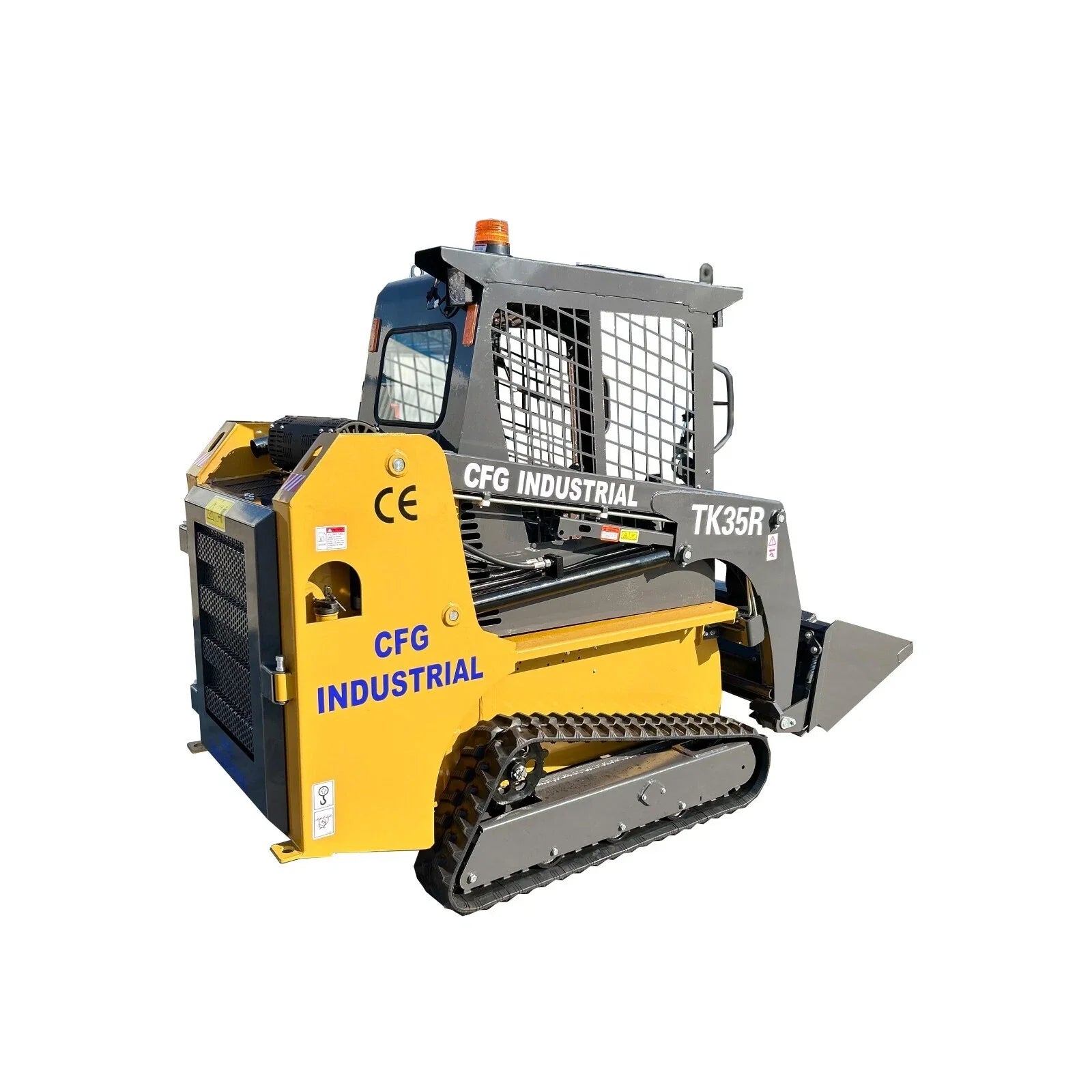

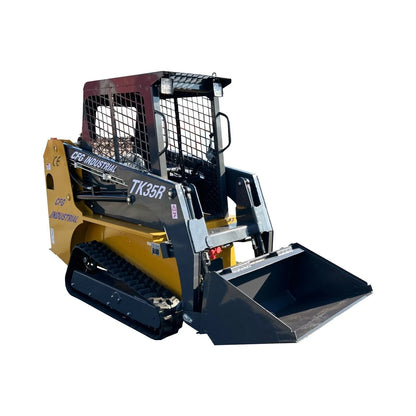

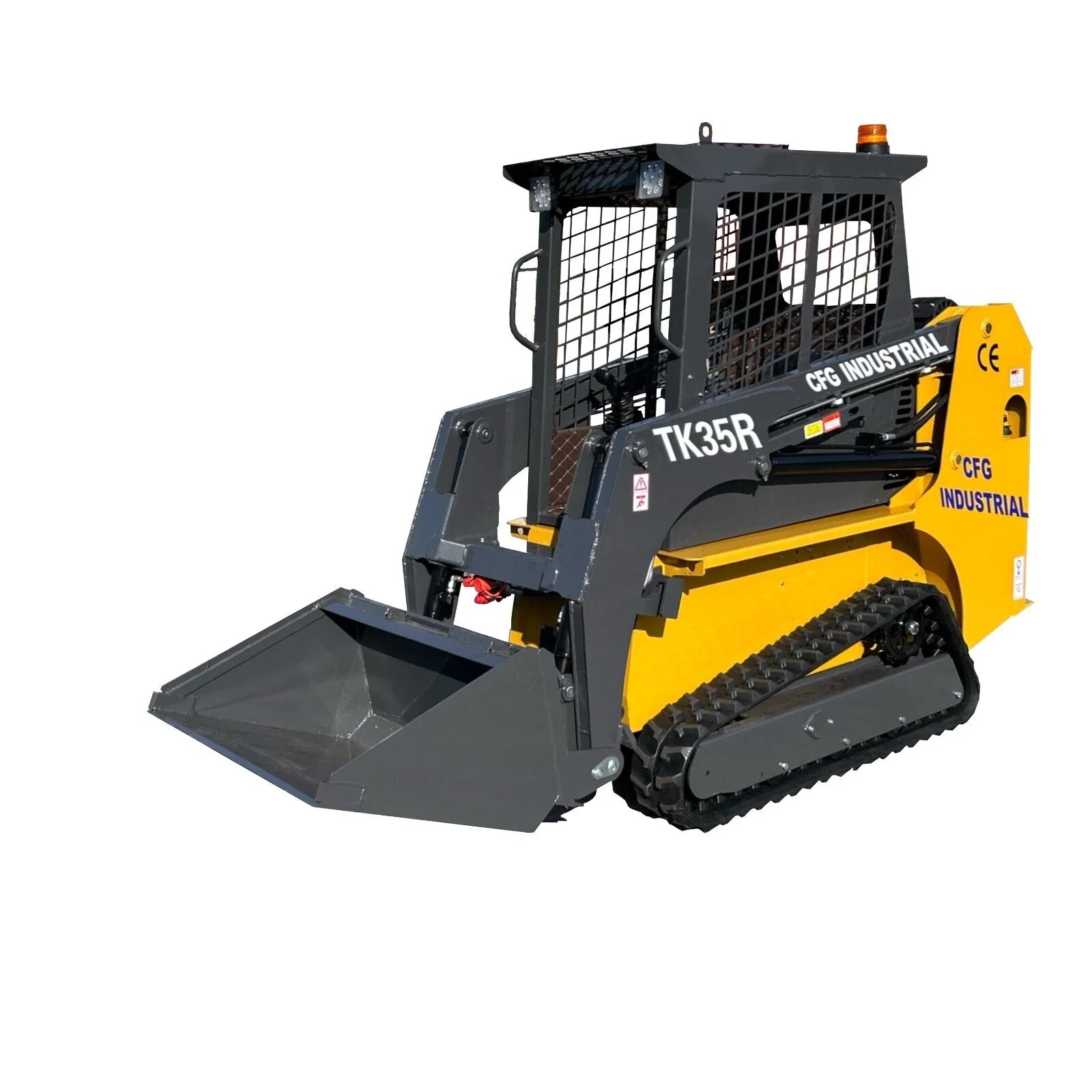

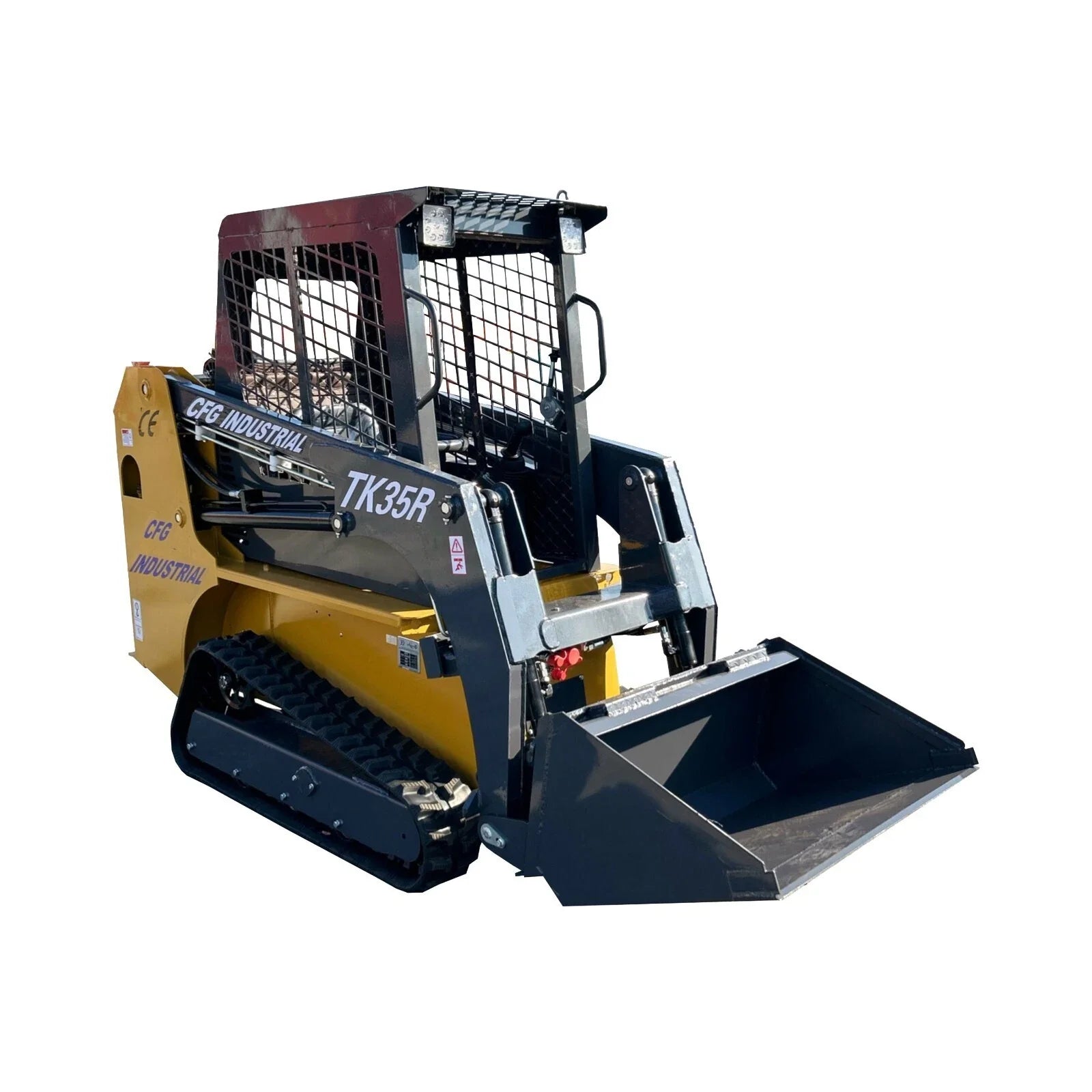

Cfgindustrial 1.5 Ton Mini Skid Steer Track Loader with 32.8 HP RATO 999D Engine | TK35R
Regular price
$12,205.50
$13,400.00
Save$1,194.50
Sold out
SKU:TK35R
Cfgindustrial 1.5 Ton Mini Skid Steer Track Loader with 32.8 HP RATO 999D Engine | TK35R
Cfgindustrial 1.5 Ton Mini Skid Steer Track Loader with 32.8 HP RATO 999D Engine | TK35R
Product Overview
The TK35R is a compact and powerful skid steer loader engineered for tight job sites and versatile operations. With a 1,550 kg operating weight, 380 kg lift force, and a 0.16 m³ bucket, it’s ideal for landscaping, site prep, and farm use. The TK35R features a high-discharge bucket with a 40° tipping angle, making it efficient for loading and dumping.
Technical Data:
- Bucket Capacity: 0.16 m³
- Max Lifting Force: 380 kg
- Max Working Height: 3,686 mm
- Max Unloading Height: 1,933 mm
- Reach at Max Unloading Height: 650 mm
- Wheelbase: 1,127 mm
- Ground Clearance: 145 mm
- Bucket Discharge Angle: 40°
DIMENSION:
- Operating Weight: 1.5 Ton (3,307 lb)
- Overall Length: 2,911 mm (114.5 in)
- Overall Width: 912 mm (36 in)
- Overall Height: 910 mm (36 in)
- Bucket Width: 914 mm (36 in)
- Bucket Capacity: 0.16 m³ (0.2 yd³)

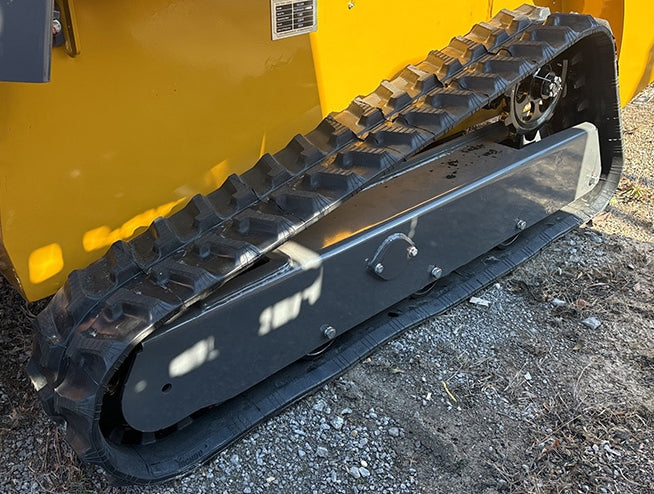

- Tracks Size: 200*72*45 (W*P*L)
WORKING RANGE:
- Max Working Height: 3,686 mm (145 in)
- Max Unloading Height: 1,933 mm (76 in)
- Max Lifting Force: 380 kg (838 lb)
- Max Travel Speed: 9 km/h (5.6 mph)

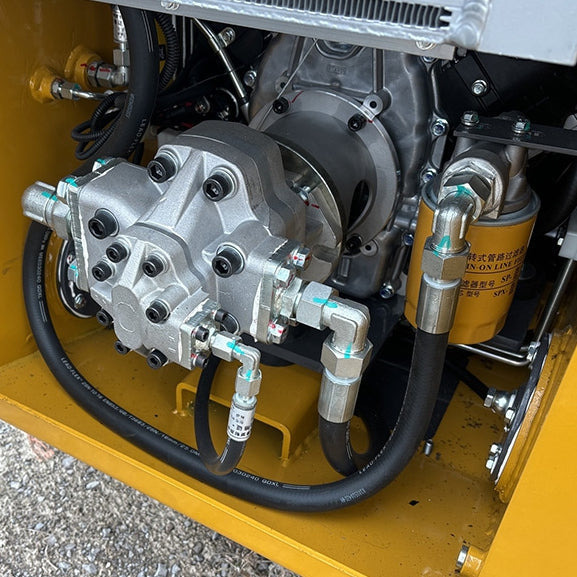

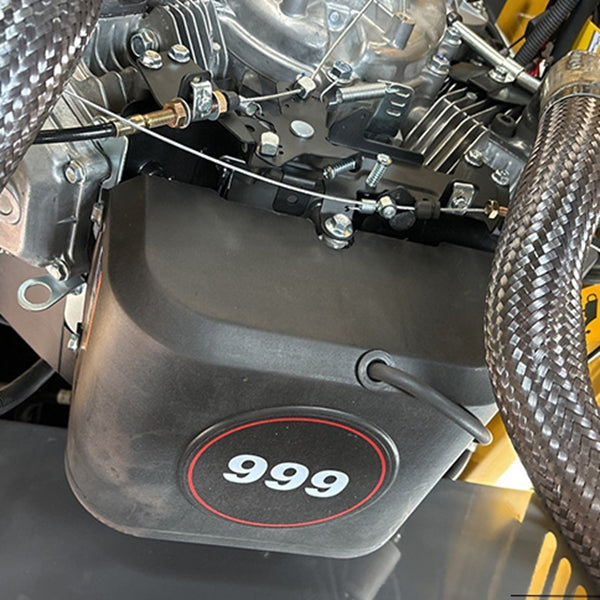

ENGINE:
- Brand / Model: Rato 999D
- Fuel Type: Gasoline
- Max Power: 18.2 kW (24.4 HP)
- Displacement: 999 cc
- Fuel Tank: 28 L (7.4 gal)
- Hydraulic Tank Capacity: 40 L (10.5 gal)
Product Warranty
Specifications

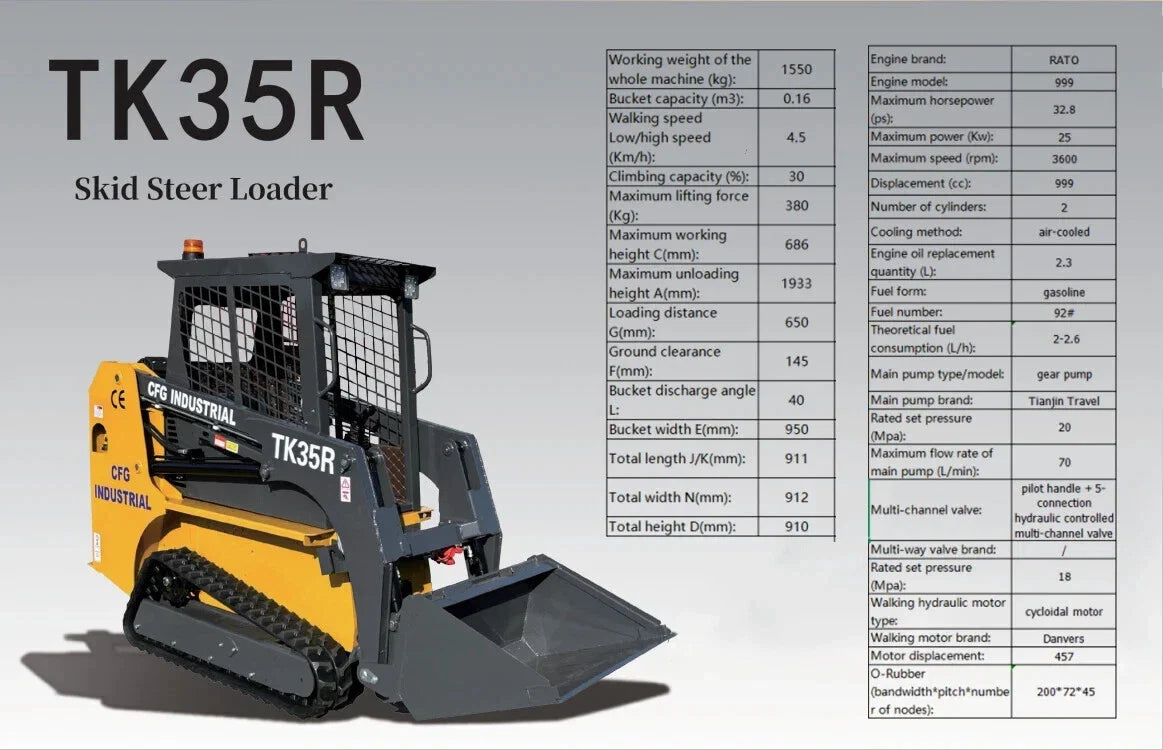

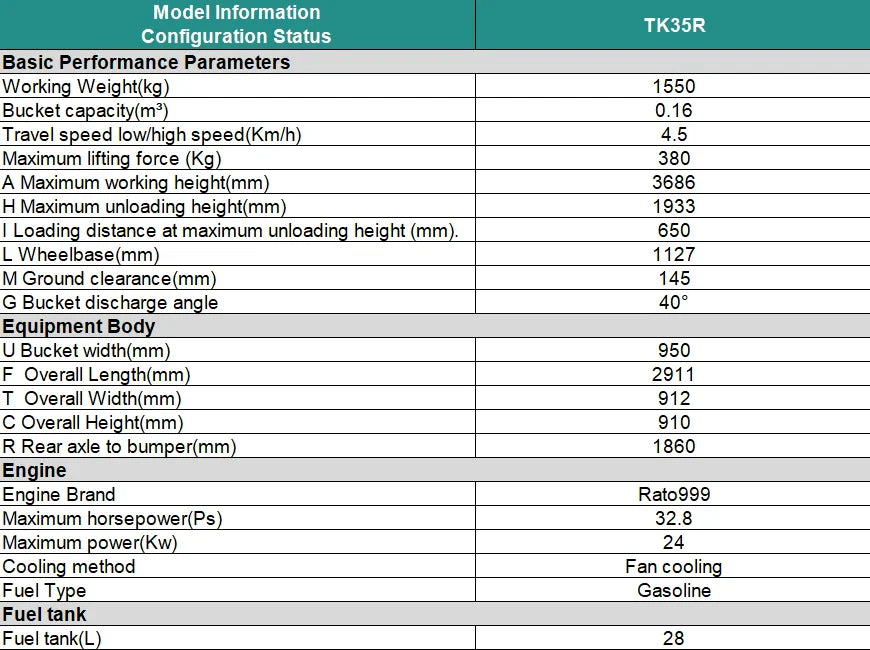

| TECHNICAL DATA | |
|---|---|
| Bucket Capacity | 0.16 m³ |
| Max Lifting Force | 380 kg |
| Max Working Height | 3686 mm |
| Max Unloading Height | 1933 mm |
| Reach at Max Unloading Height | 650 mm |
| Wheelbase | 1127 mm |
| Ground Clearance | 145 mm |
| Bucket Discharge Angle | 40° |
| DIMENSION | |
| Operating Weight | 1.5 Ton (3,307 lb) |
| Overall Length | 2,511 mm (114.5 in) |
| Overall Width | 912 mm (36 in) |
| Overall Height | 910 mm (36 in) |
| Bucket Width | 914 mm (36 in) |
| Bucket Capacity | 0.16 m³ (0.2 yd³) |
| Tracks Size | 200*72*45(W*P*L) |
| WORKING RANGE | |
| Max Working Height | 3,686 mm (145 in) |
| Max Unloading Height | 1,933 mm (76 in) |
| Max Lifting Force | 380 kg (838 lb) |
| Max Travel Speed | 9 km/h (5.6 mph) |
| ENGINE | |
| Brand / Model | Rato 999D |
| Fuel Type | Gasoline |
| Max Power | 18.2 kW (24.4 HP) |
| Displacement | 999 cc |
| Fuel Tank | 28 L (7.4 gal) |
| Hydraulic Tank Capacity | 40 L (10.5 gal) |
