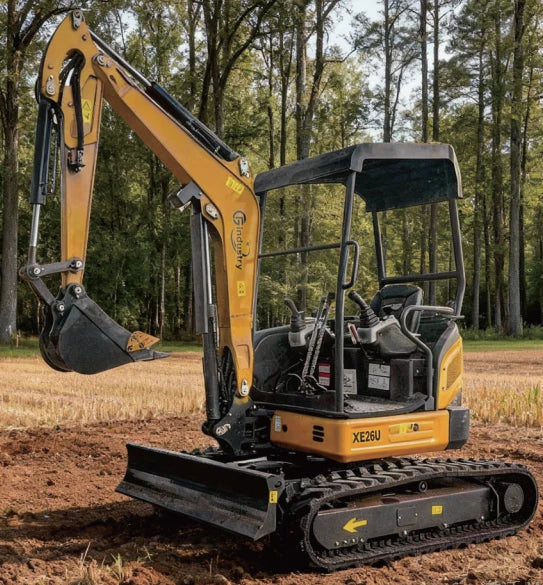

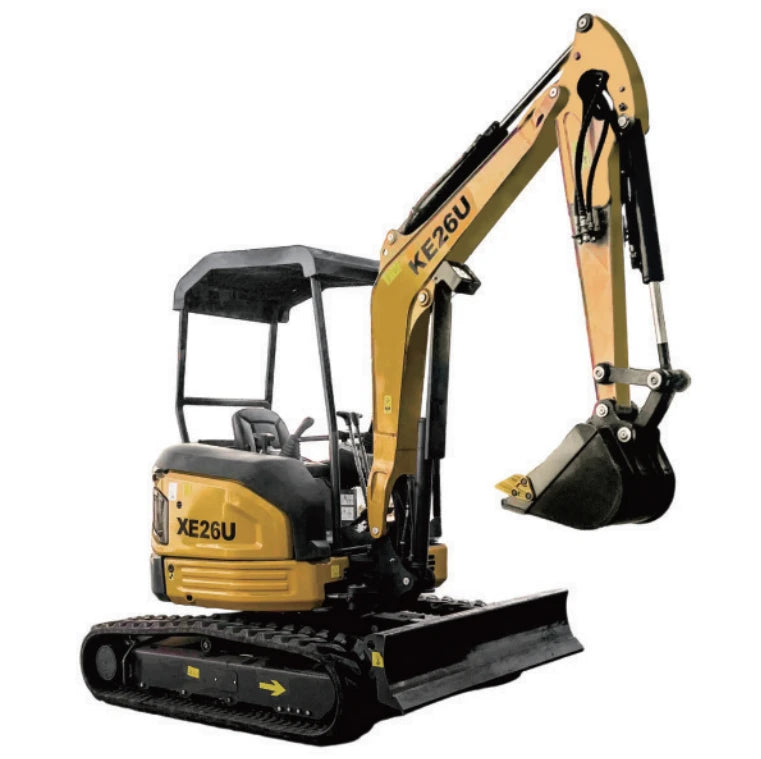

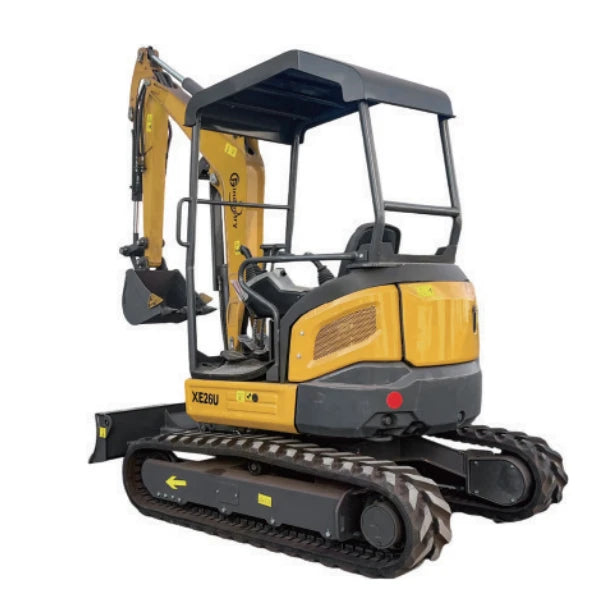

2.7 Ton Mini Excavator with Kubota 19 HP D1105 Diesel Engine | XE26U

The XE26U is a 2.7-ton mini excavator powered by a Kubota D1105 3-cylinder diesel engine. Designed for demanding excavation and construction work, it combines a compact footprint with strong digging performance, extended working reach, and excellent maneuverability.

With a maximum digging depth of 2,800 mm, maximum digging radius of 4,750 mm, and maximum digging height of 4,390 mm, the XE26U is well suited for landscaping, trenching, utility work, residential construction, farm projects, and general excavation.

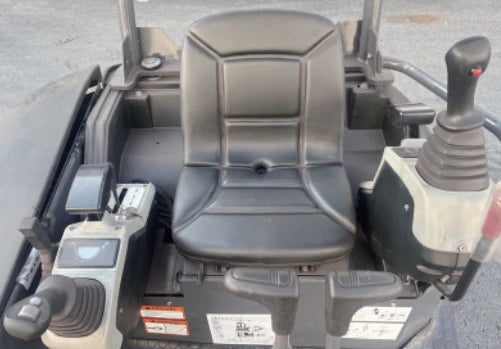

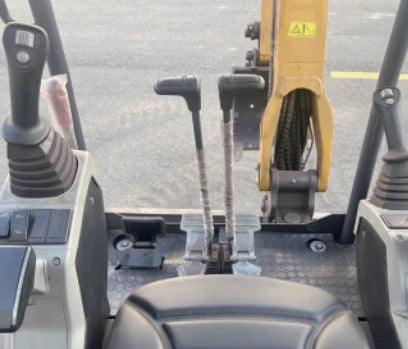

The machine features hydraulic pilot controls, a side-swing boom, a reinforced chassis, lower-mounted boom cylinders, and a comfortable operator station for efficient everyday operation.

Dimensions:

• Working Weight(kg): 2680

• Bucket capacity(m2): 0.06

• Travel speed low/high speed (Km/h): 2/3.1

• Climbing ability(%): ≤30

• Maximum Digging Height(mm): 4390

• Maximum Unloading Height(mm): 3120

• Maximum Digging Depth(mm): 2800

• Max. digging radius(mm): 4750
• Side swing Angle (L/R): 60/50

• Overall Length(mm): 4190

• Overall Width(mm): 1500

• Overall Height(mm): 2580

• Bulldozer Width/Height: 1560/300

• Hydraulic oil tank (L): 22

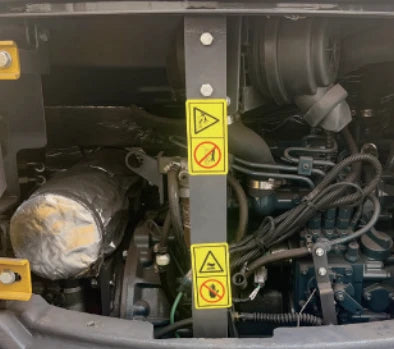

Engine:

• Engine Brand: Kubota

• Model: D1105

• Fuel Type: Diesel

• Max Power: 14.2 kW (approx. 19 HP)

• Number of Cylinders: 3 (Water-Cooled)

• Fuel Tank Capacity: 33 L (8.72 gal)
