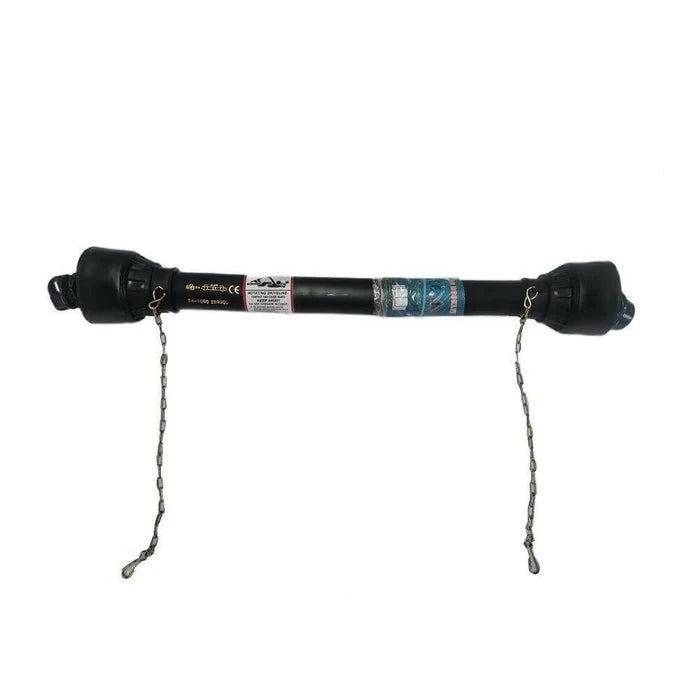

PTO Shaft, 1-3/8", Series 4, 6 Spline, 39.37-51.5" | T4-1000AP
Regular price
$123.99
Sold out
SKU:T4-1000AP
PTO Shaft, 1-3/8", Series 4, 6 Spline, 39.37-51.5" | T4-1000AP
PTO Shaft, 1-3/8", Series 4, 6 Spline, 39.37-51.5" | T4-1000AP
Product Overview
Features
1. Spline & Round End: Tractor End: 1-3/8" x 6 Spline; Implement End: 1-3/8" x Round End. Constructed in the 6-spline end.

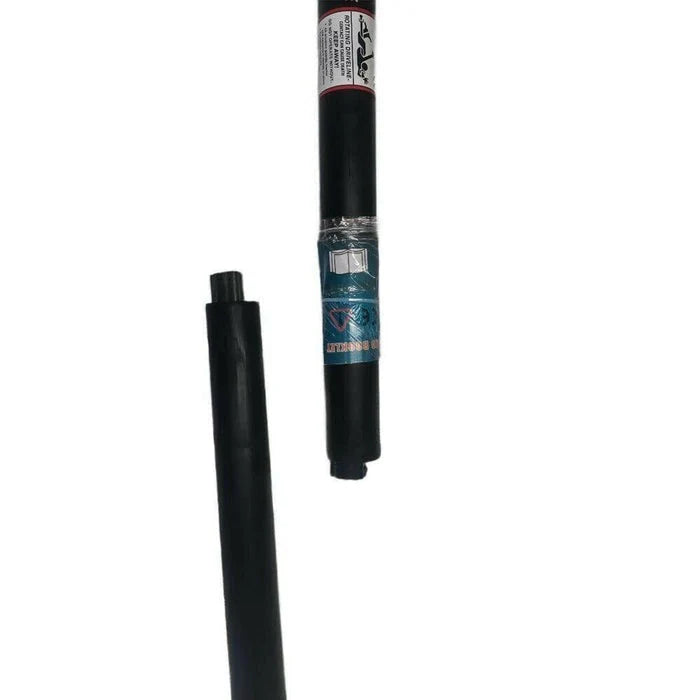

2. Telescope Tube Design: Compressed Length: 39.37" ; Extended Overall Length: 51.5".
3. It has 35 HP - 53 HP Speed, 26 KW - 39 KW, and 460 N.m - 360 N.m torque at 540 rpm - 1000 rpm. It allows two sides of the PTO drive line shaft to spin at different speeds.
4. Quality T4 PTO Shaft: This T4 PTO shaft is a well-forged series 4 driveline shaft with CE certification.

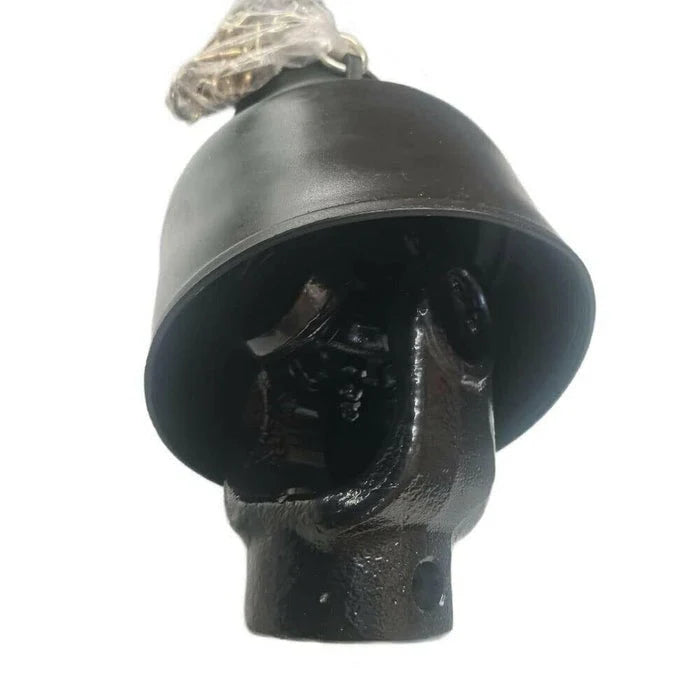

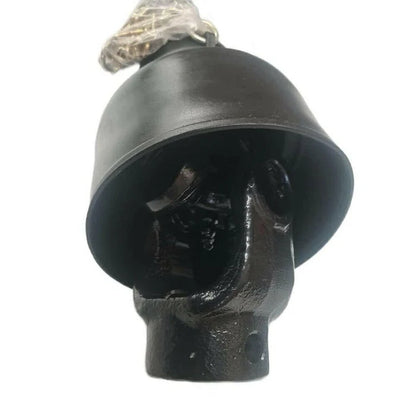

5. It consists of a solid 16 Mn carburized steel universal joint and Drive Shaft Material 45 # Forged Pieces.
Product Description
AGT PTO shaft has a standard size of 1 3/8", which can match perfectly with the same size and type of implements and tractors, featuring superior driving force for your machinery.

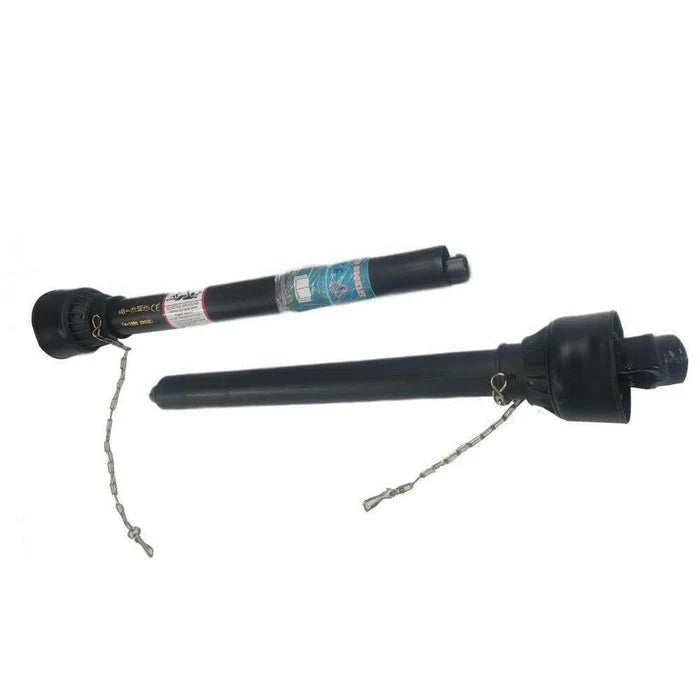

Tiller PTO shaft is designed with a telescoping steel tube, a universal joint and yokes.
PTO shafts are durable and robust in working with all kinds of agricultural machinery.
Safer Use & Compact: The PTO extender shaft is full-tested and well-assembled in a compact structure, ready for hassle-free direct replacement as a high-efficient power transmission tool. The security chain and plastic shield avoid potential dangers in the transmission process.
Wide Application: The PTO shaft transfers the power from the tractor to the PTO powered attachment. It is widely used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, fertilizer spreaders, and more.
Specifications
| Max Length | 51 1/2 Inches |
| Retracted Length | 39 3/8 Inches |
| Product Width | 5 1/2 Inches |
| Product Height | 5 1/2 Inches |
| Package Size | 6" x 6" x 41" |
| Undershelf Capacity | 23.15 lb |
| Steel Tube | 16 Mn |
| Drive Shaft Material | 45 # Forged Pieces |
| Spline End | 1-3/8-in Z6, 1-3/8-in Round Hole |
| PTO Speed | 540 rpm - 1000 rpm |
| PTO Torque | 460 N.m - 360 N.m |
| Tractor Power | 35 HP - 53 HP |
