Cfgfindustrial Hydraulic Boom Hose for 12-Series Mini Excavator | YGZC

Overview:

High-performance OEM replacement hydraulic hose assembly specially designed for 12-Series Mini Excavator Boom Assemblies. Built with a 2SN double-steel-wire braid structure, this hose withstands extreme working pressures up to 5,800 PSI, ensuring maximum fluid flow, leak-free operation, and long service life under heavy-duty excavation conditions.

Key Specifications:

• Application: 12-Series Mini Excavator Boom Assembly

• Hose Standard: DIN EN 853 2SN / SAE 100R2AT

• Internal Diameter (ID): 1/4" (DN6)

• Reinforcement: 2SN Heavy-Duty Double-Wire Braid (Steel)

• Max Working Pressure: 400 BAR / 5,800 PSI

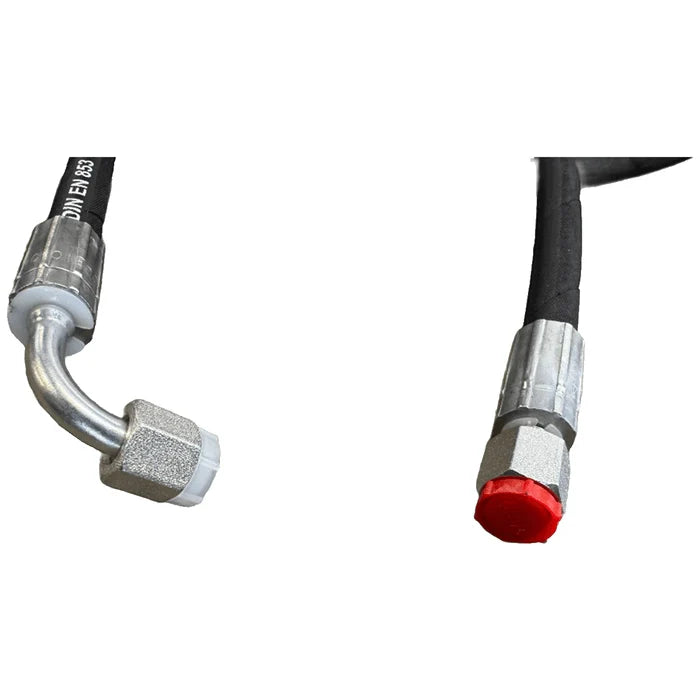

• Fitting Configuration: 1x 90° Elbow Crimp Fitting + 1x Straight Crimp Fitting (Pre-crimped, Plug-and-Play)

• Part Number / SKU: YGZC

Product Highlights:

• Direct-Fit OEM Replacement: Pre-crimped fittings ensure seamless, leak-proof connection with your 12-series mini excavator's boom hydraulic system.

• Ultra High-Pressure Resistance: Rated for up to 5,800 PSI to easily handle intense hydraulic pressure spikes during heavy digging and lifting.

• Double-Wire Braid Construction: Engineered with twin high-tensile steel wire braids for exceptional abrasion resistance, flexibility, and burst protection.

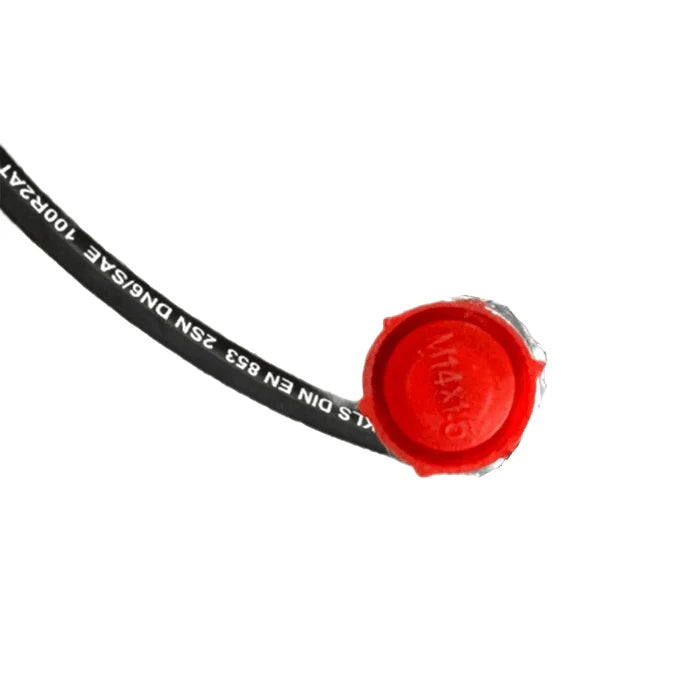

• Pre-Crimped Plug & Play: Ready to install right out of the box with standard protective caps included to prevent contamination during shipping.
