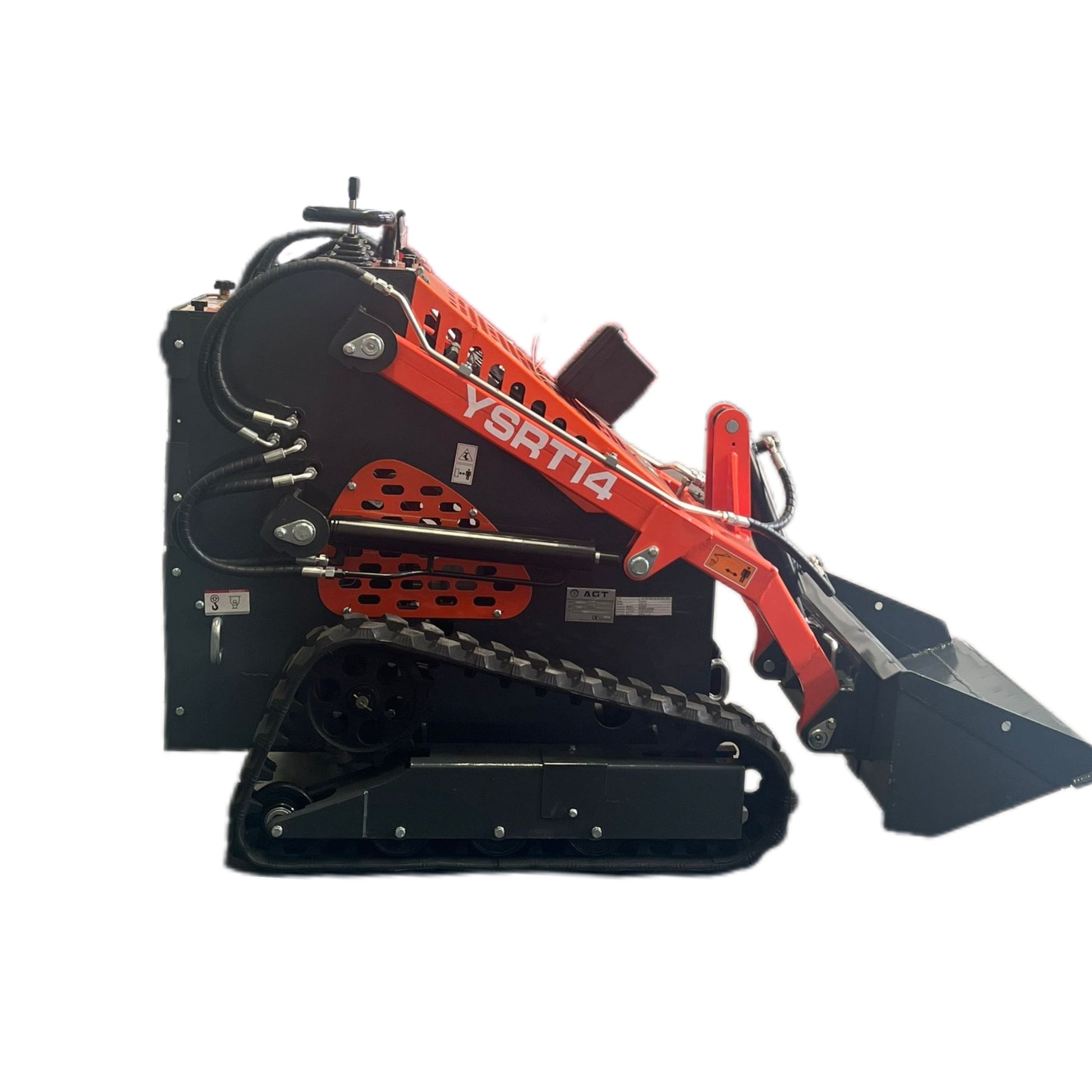

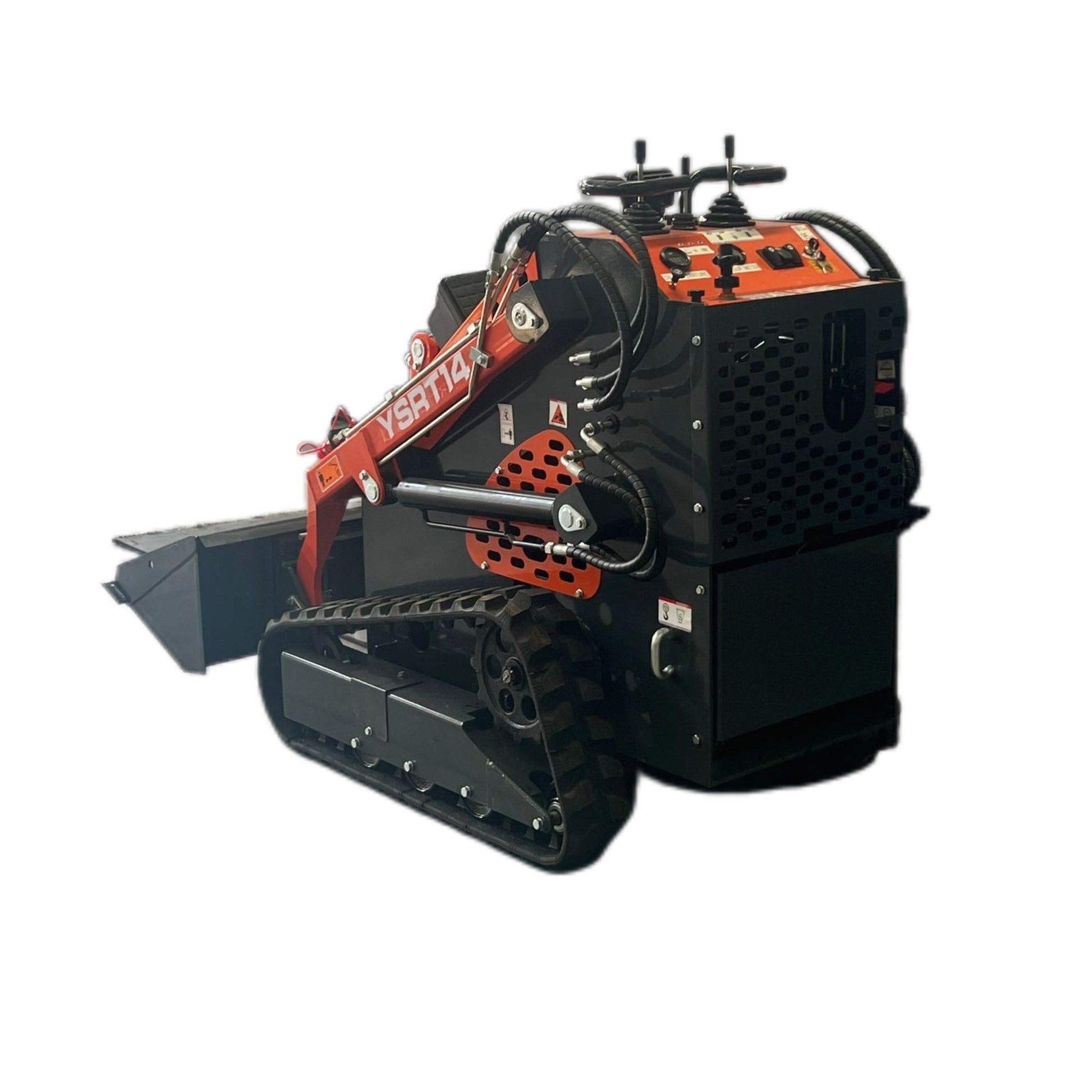

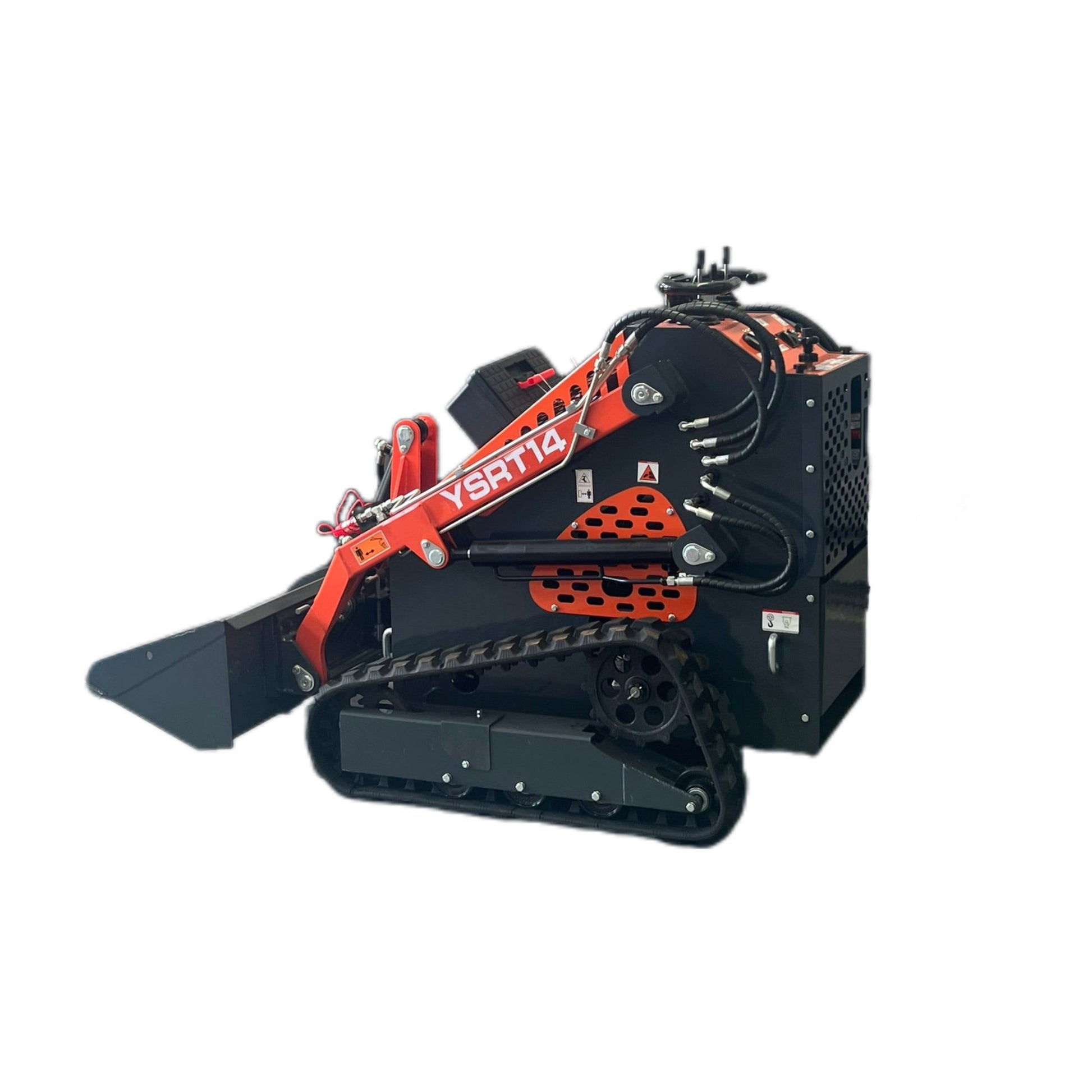

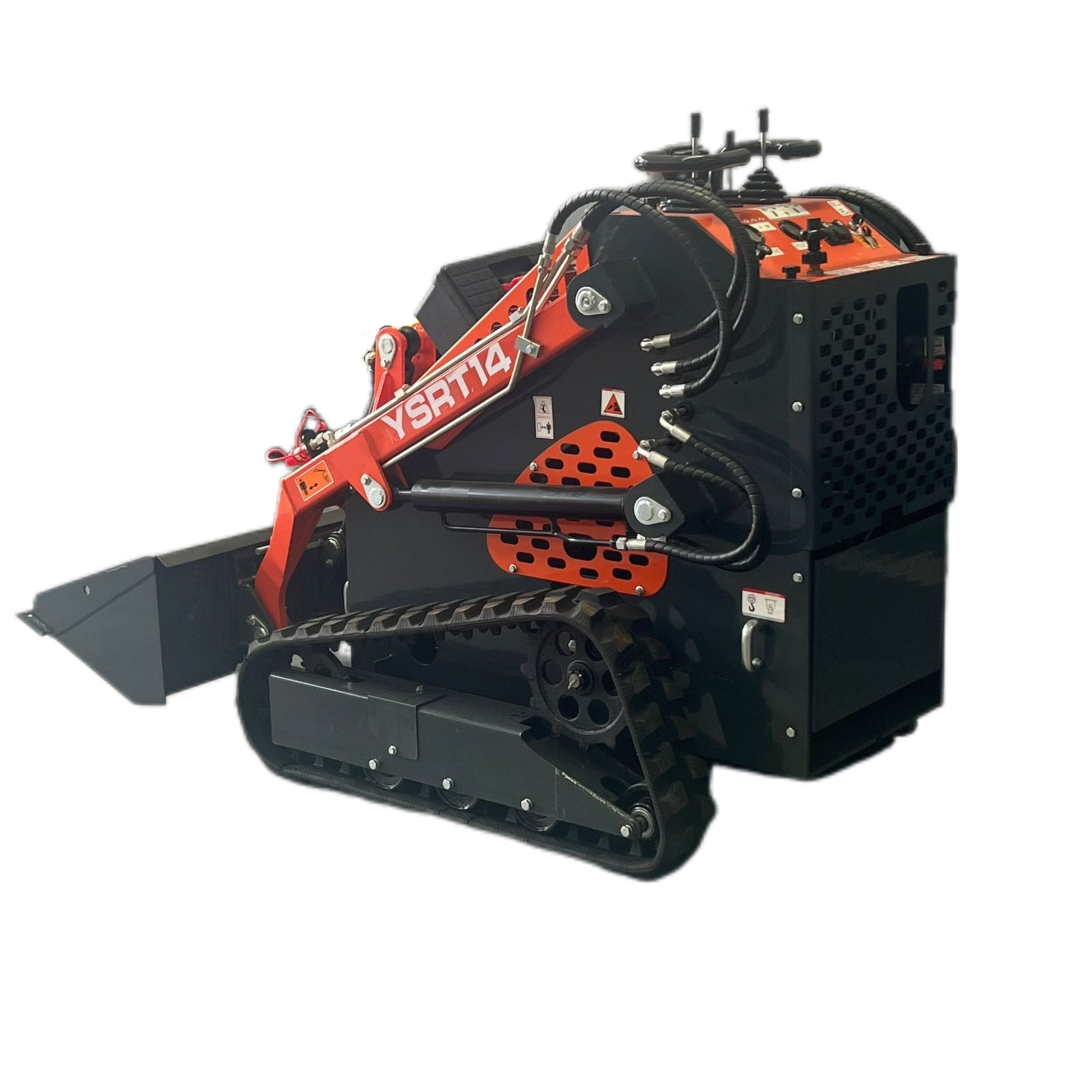

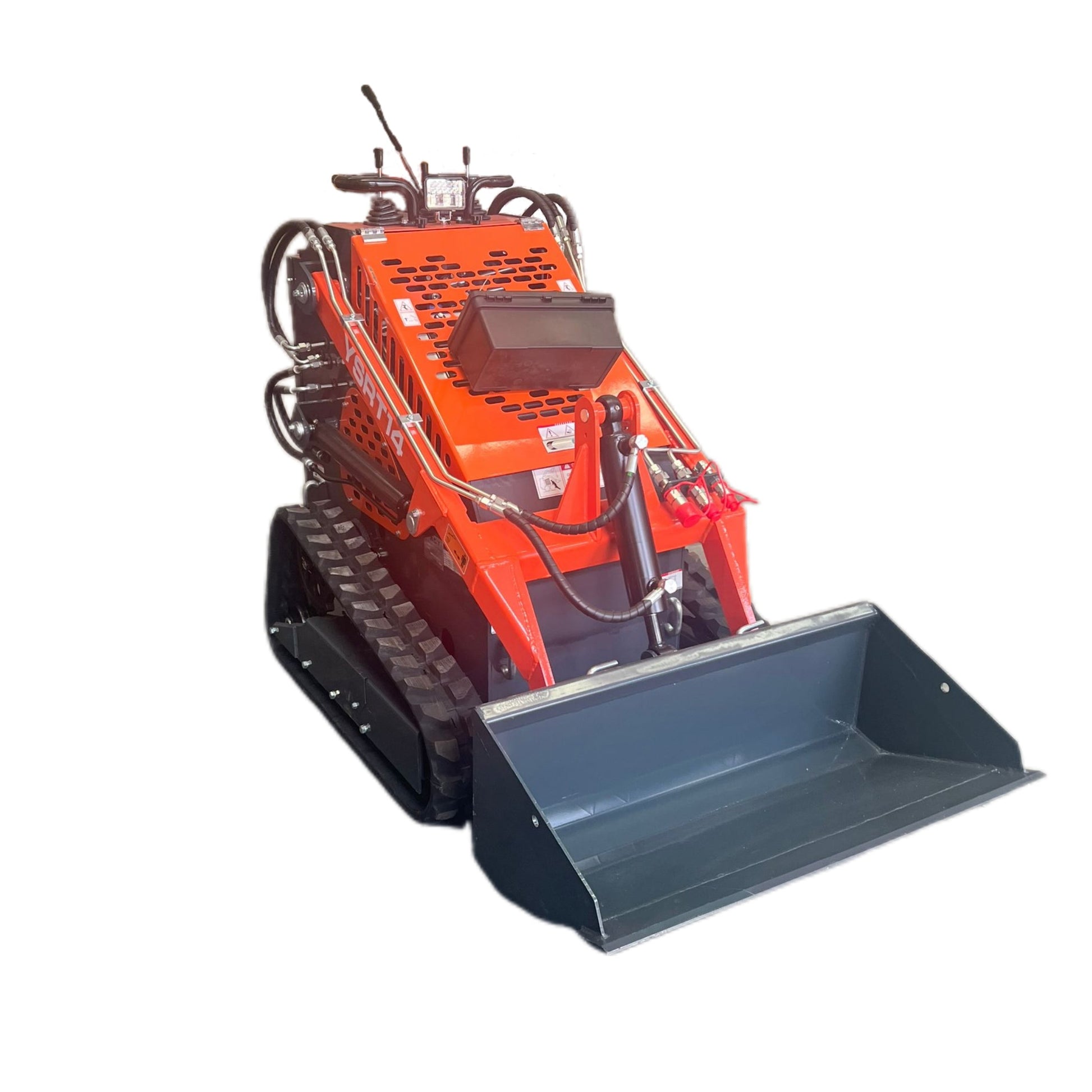

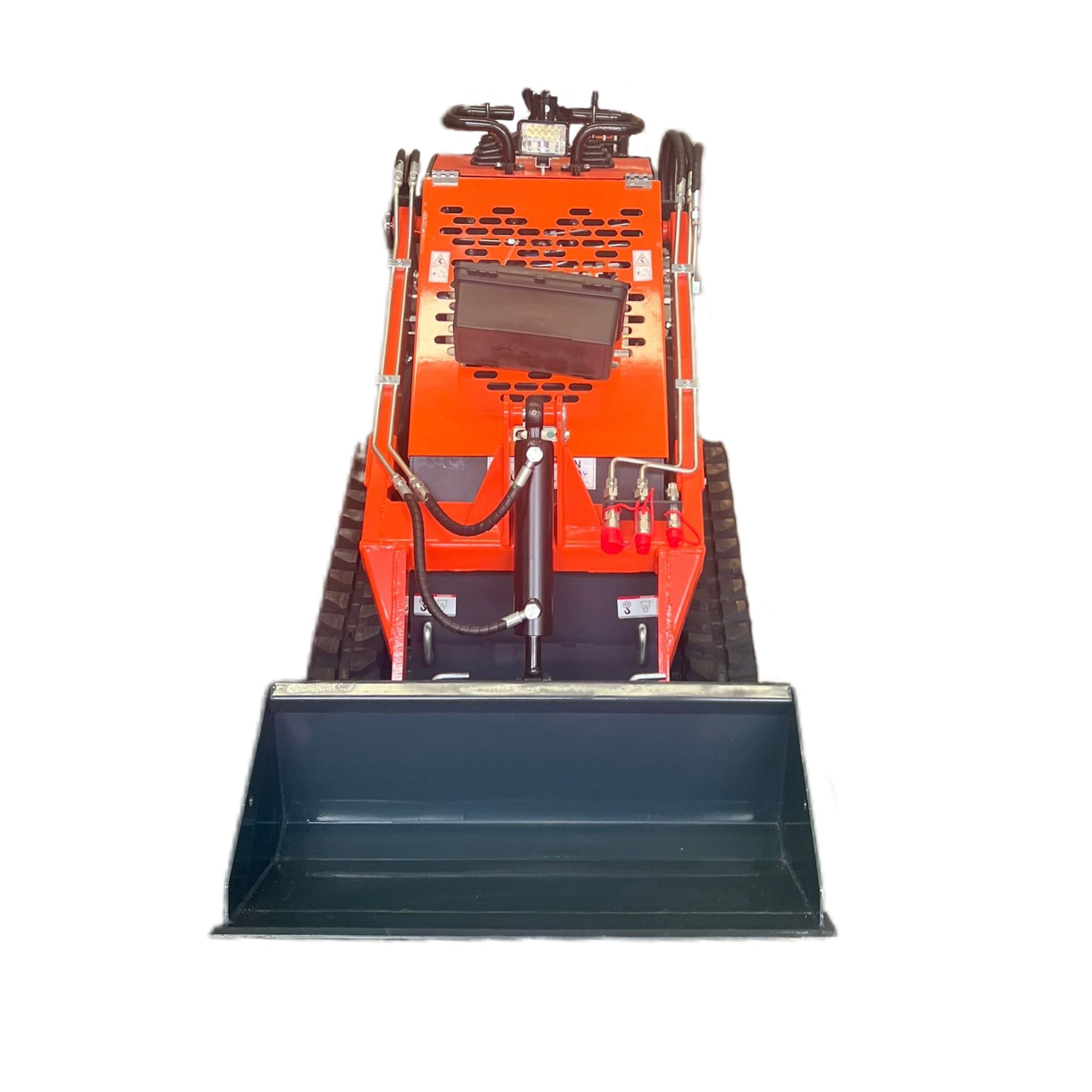

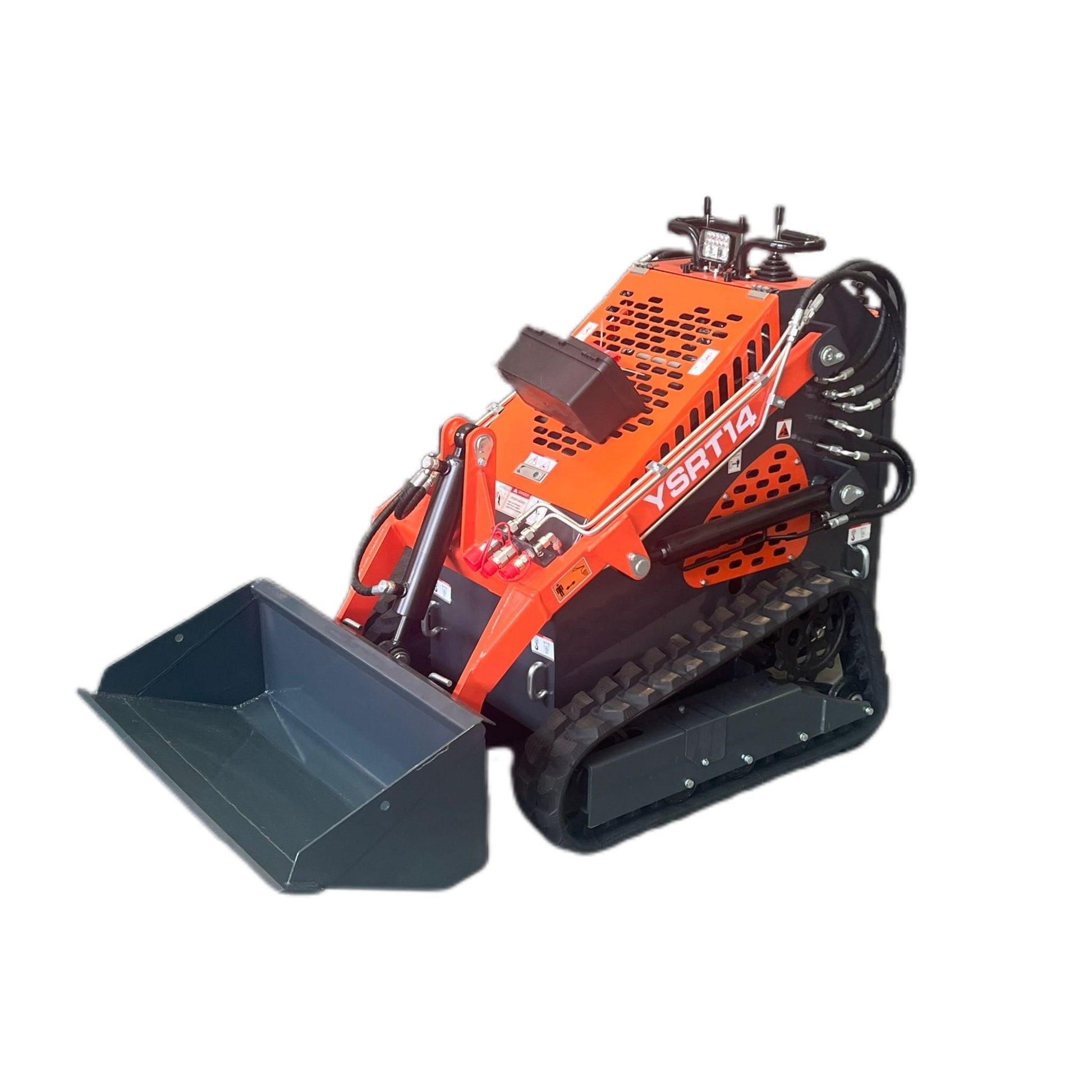

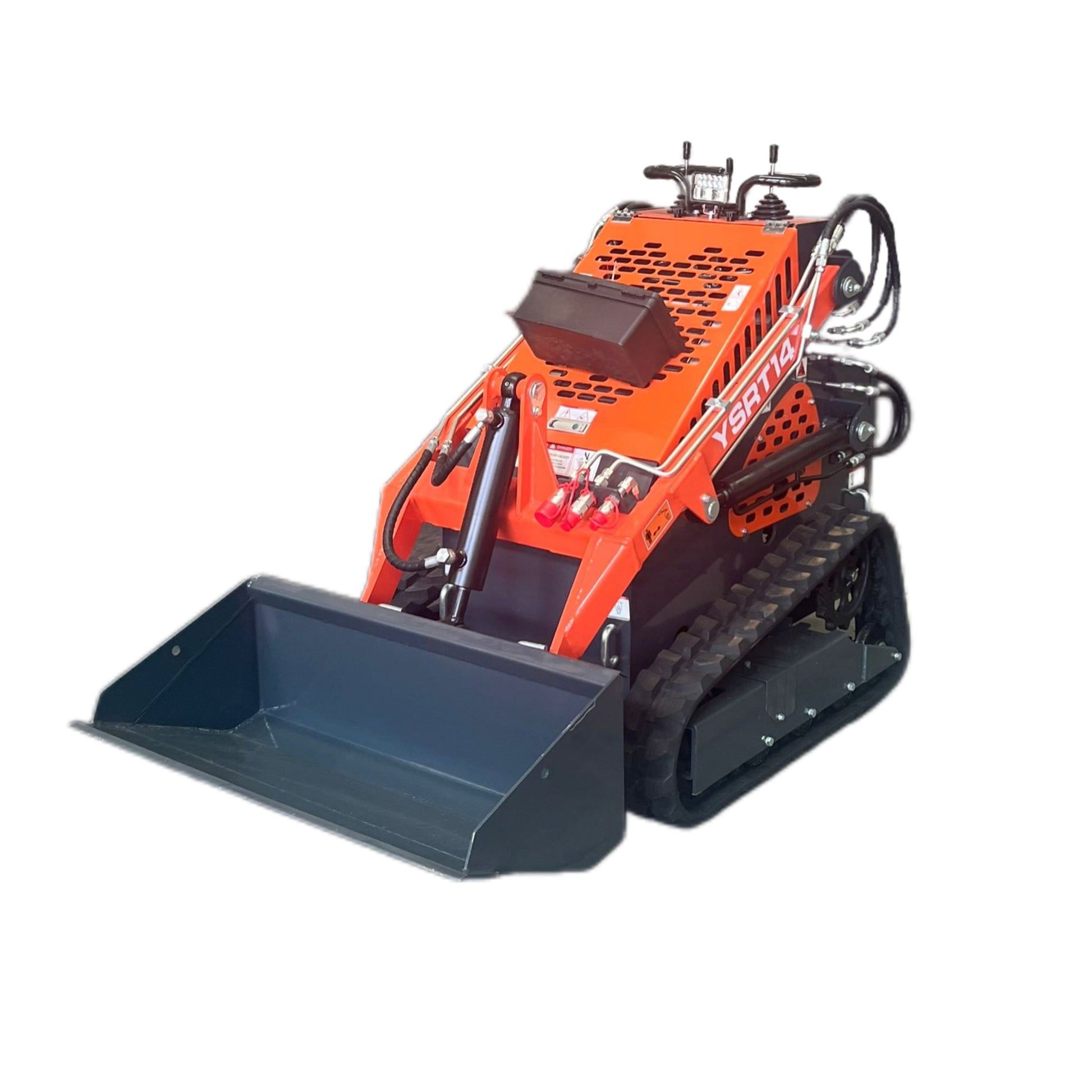

Cfgindustrial 0.75 Ton Stand-on Skid Steer Track Loader Crawler | AGT-YSRT14

The AGT-YSRT14 comes packed with features to make your work easier. lt's got a bucket you can switch out for different tasks, extra hydraulics for more versatility, and starts up with just the push of a button.

Related Videos:

In-Action Video

How to change the engine oil

How to change the hydraulic fluid

How to charge the breaker attachment

Technical Data:

• Engine: B&S XR2100
• Max Power: 13.5
• Starting Mechanism: Electric Start
• Maximum Lift Capacity at Maximum Height: 828 lbs
• Travel Speed: 3.7 km/h
• Maximum Dumping Height: 61.6 inches
• Unloading Distance: 17.5 inches
• Maximum Angle of Operation: 30 degrees
• Auxiliary Hydraulics: Yes
• Hydraulic Oil Cooler: Equipped


DIMENSION:

• Operating Weight: 0.75 Ton (1,500 lb)
• Overall Length: 1,930 mm (76 in)

• Overall Width: 997 mm (39 in)

• Overall Height: 1,346 mm (53 in)

• Bucket Width: 997 mm (39 in)

• Bucket Capacity: 0.12 m³ (0.15 yd³)

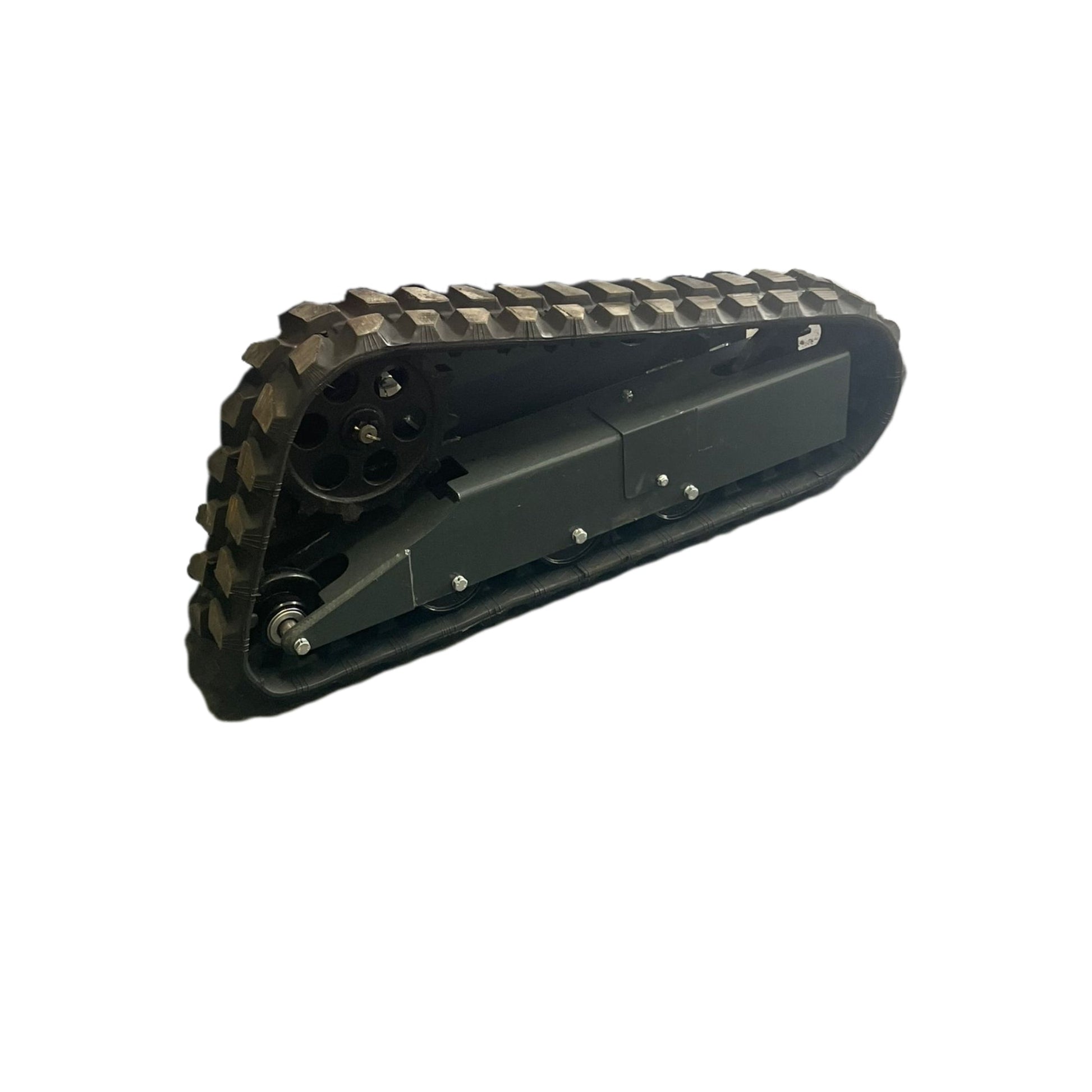

• Tracks Size: 150*72*36 (V*P*L)

WORKING RANGE:

• Max Working Height: 2,490 mm (98 in)
• Max Unloading Height: 1,564 mm (61.5 in)
• Max Lifting Force: 220 kg (485 lb)
• Bucket Capacity: 60 L (0.08 Cubic Yard)
• Travel Speed: 3.7 km/h (2.3 mph)

ENGINE:

• Brand/Model: B&S XR2100
• Fuel Type: Gasoline

• Max Power: 10 kW (13.5 HP)

• Displacement: 420 cc

• Fuel capacity: 6.6 L (1.7 Gal)

• Hydraulic Flow Rate: 21.6 L/min (4.7 GPM)
• Hydraulic Pressure: 17 MPa (2,465 PSI)
• Hydraulic Tank Capacity: 26 L (6.9 gal)

Additional Features:

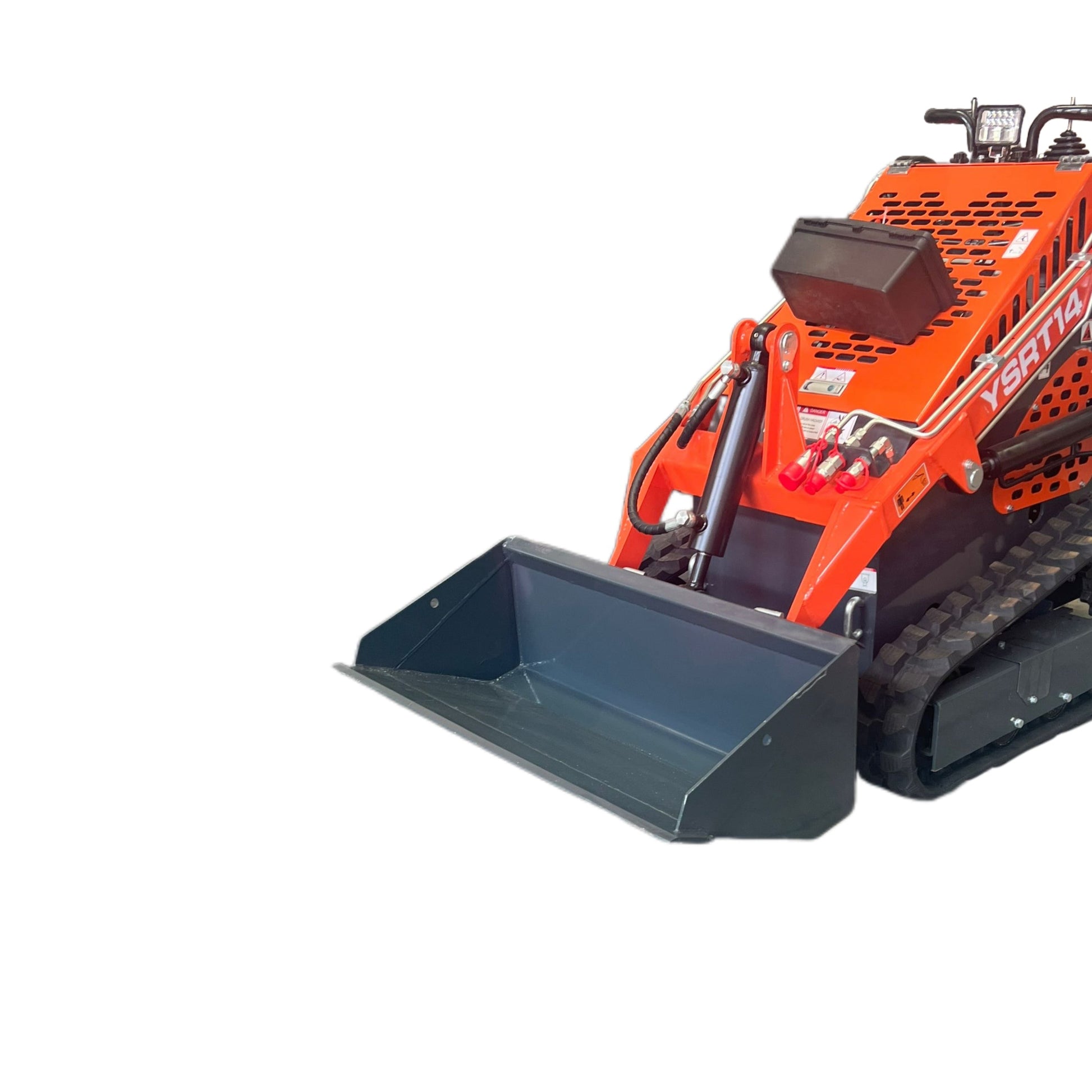

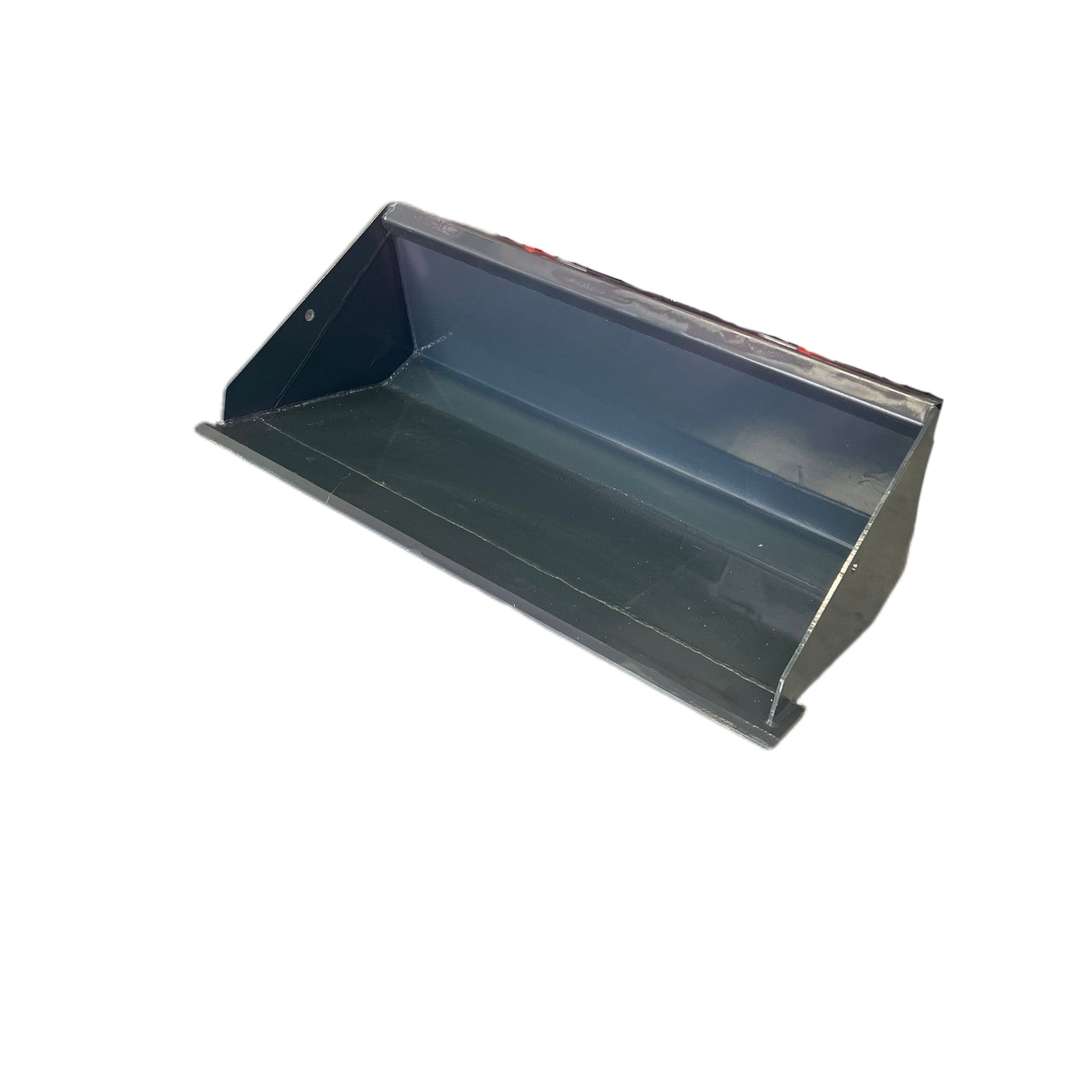

• Attachments: Standard bucket with quick-attach system; compatible with various attachments

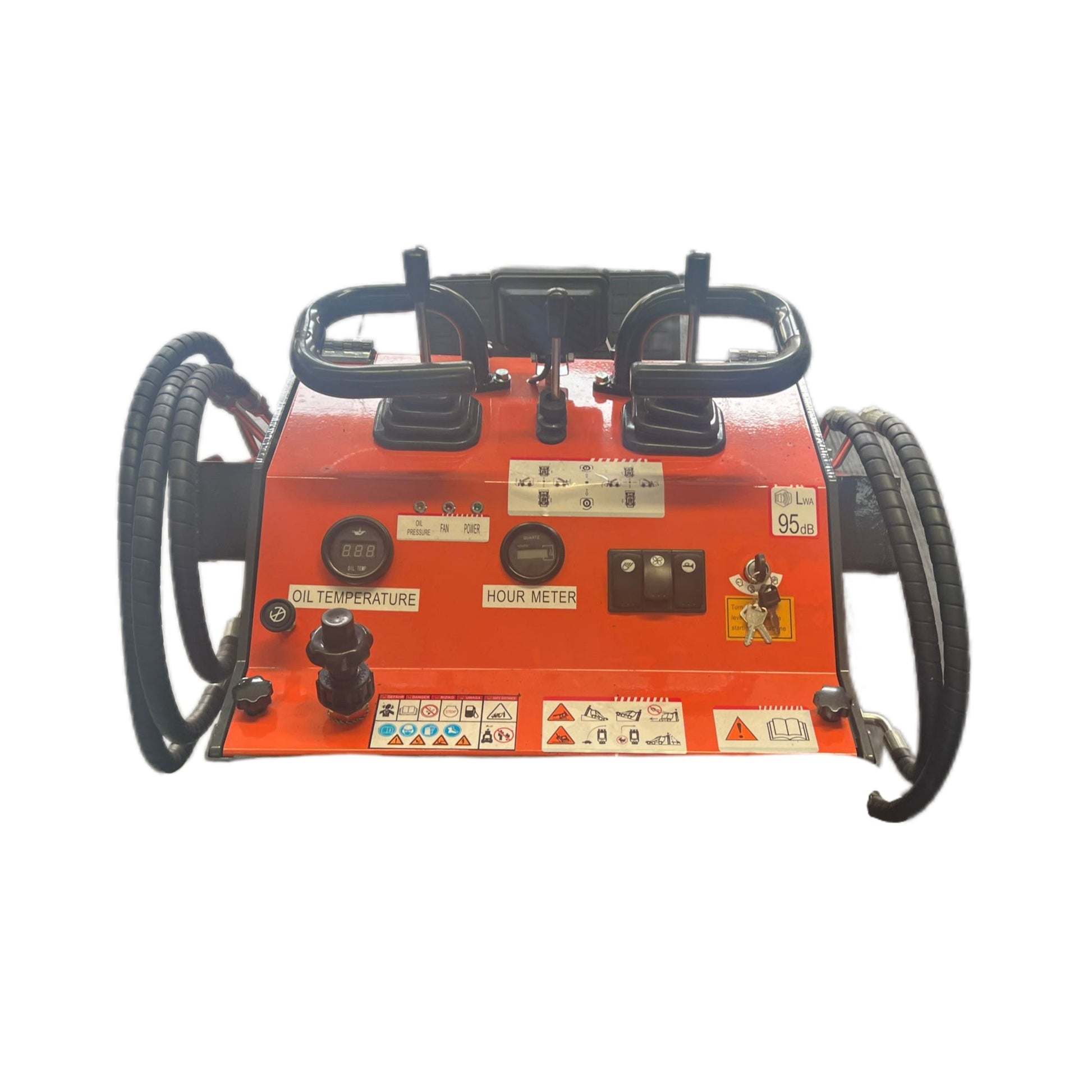

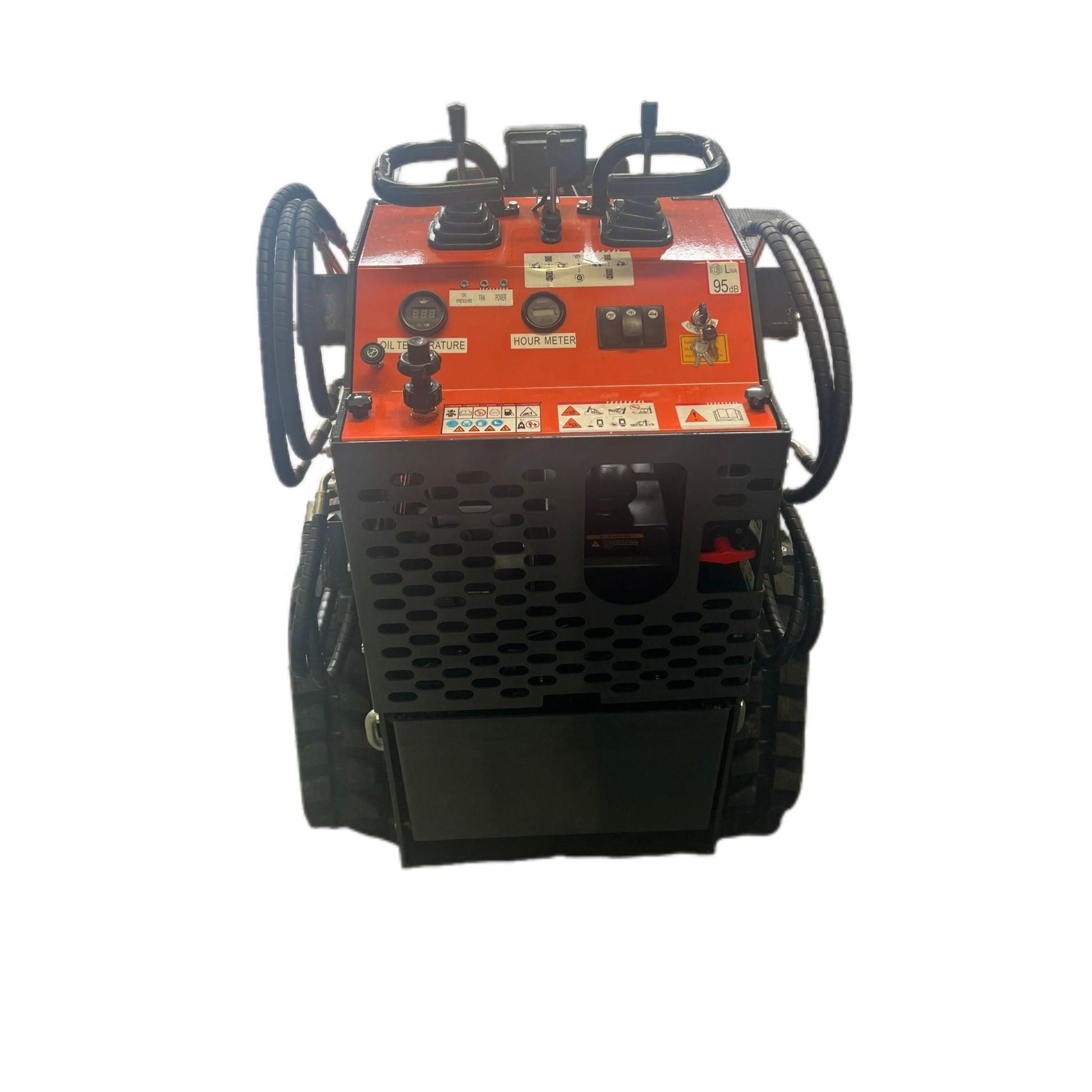

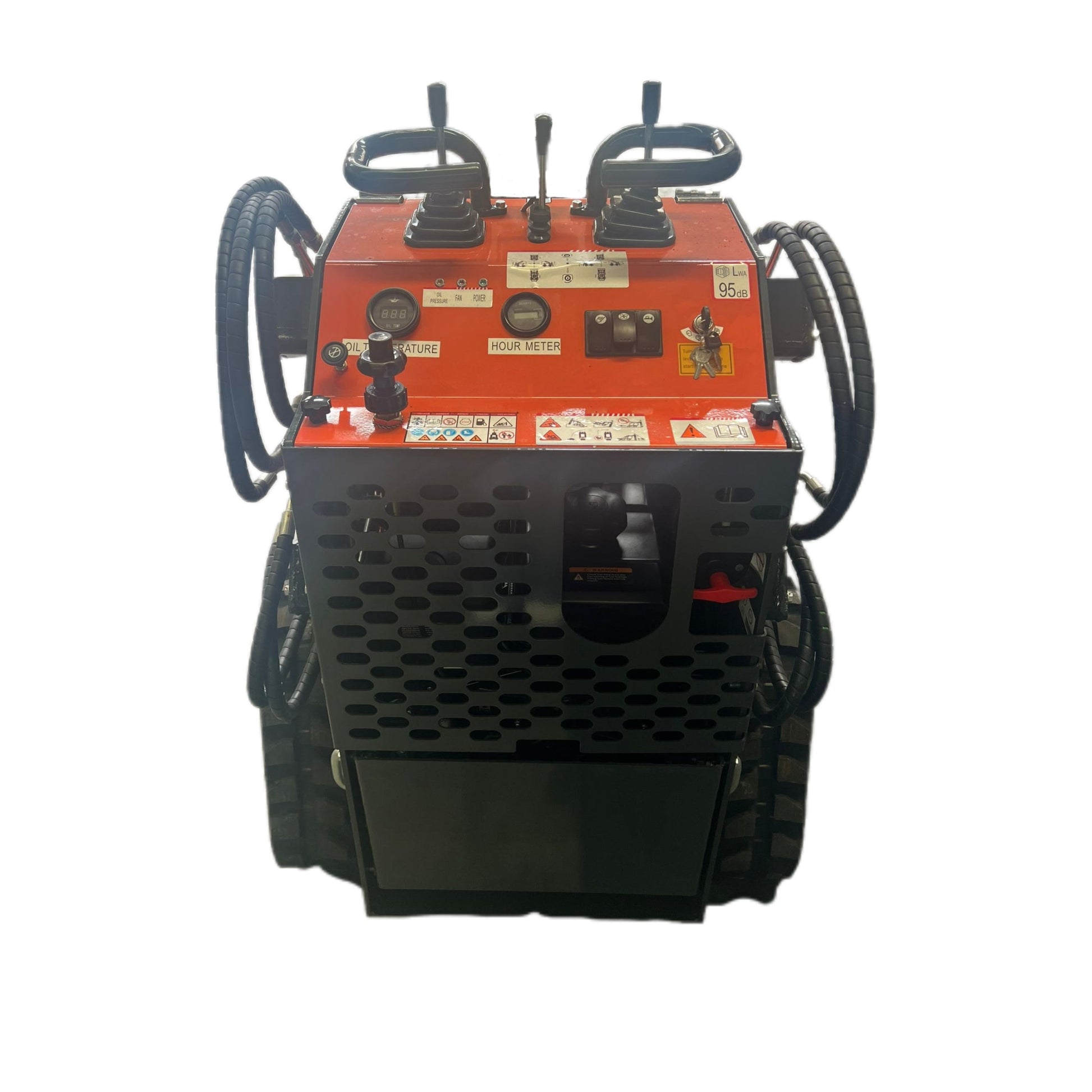

• Controls: Hand-operated bucket control

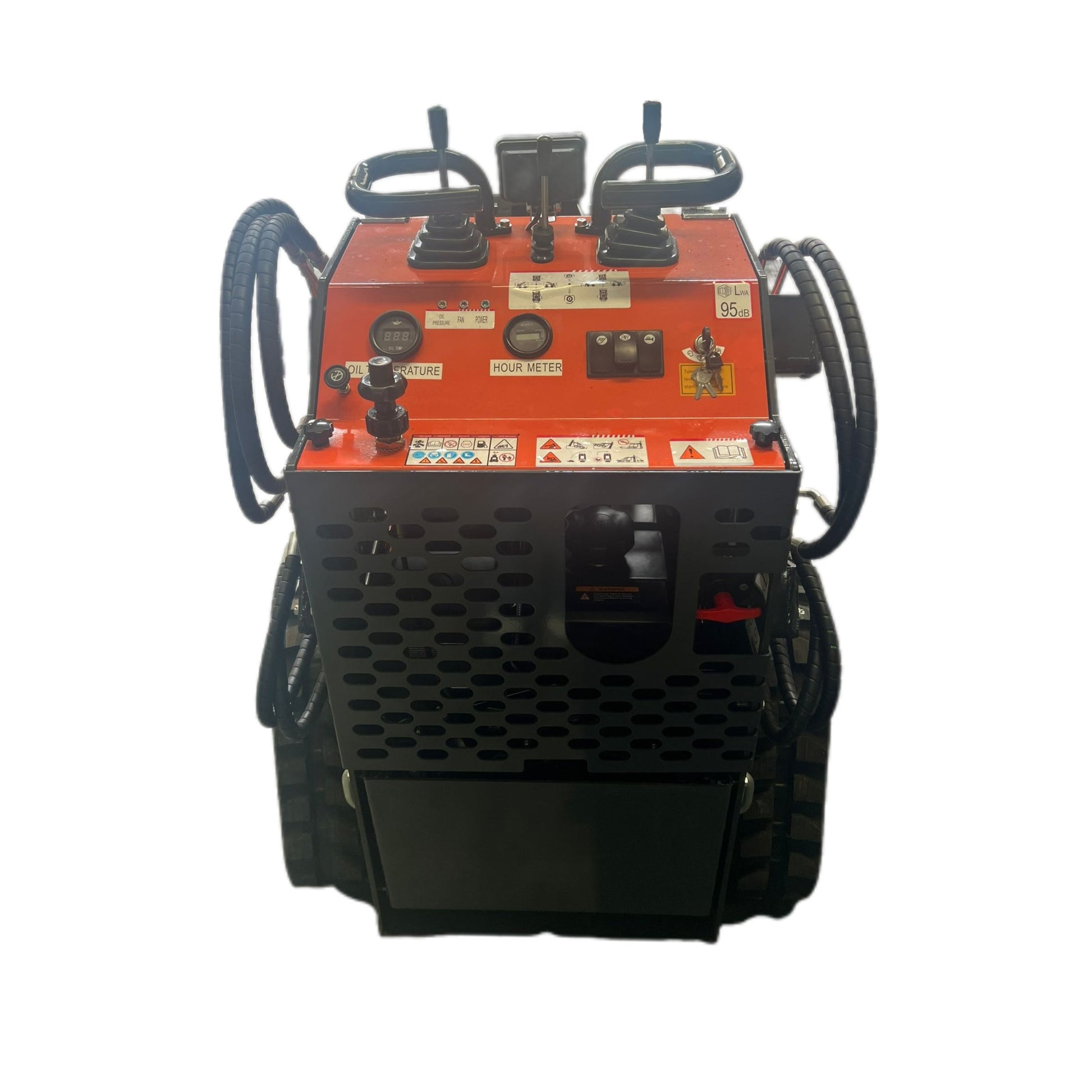

• Operator Station: Stand-on platform
• Additional Equipment: Work light and tool box
