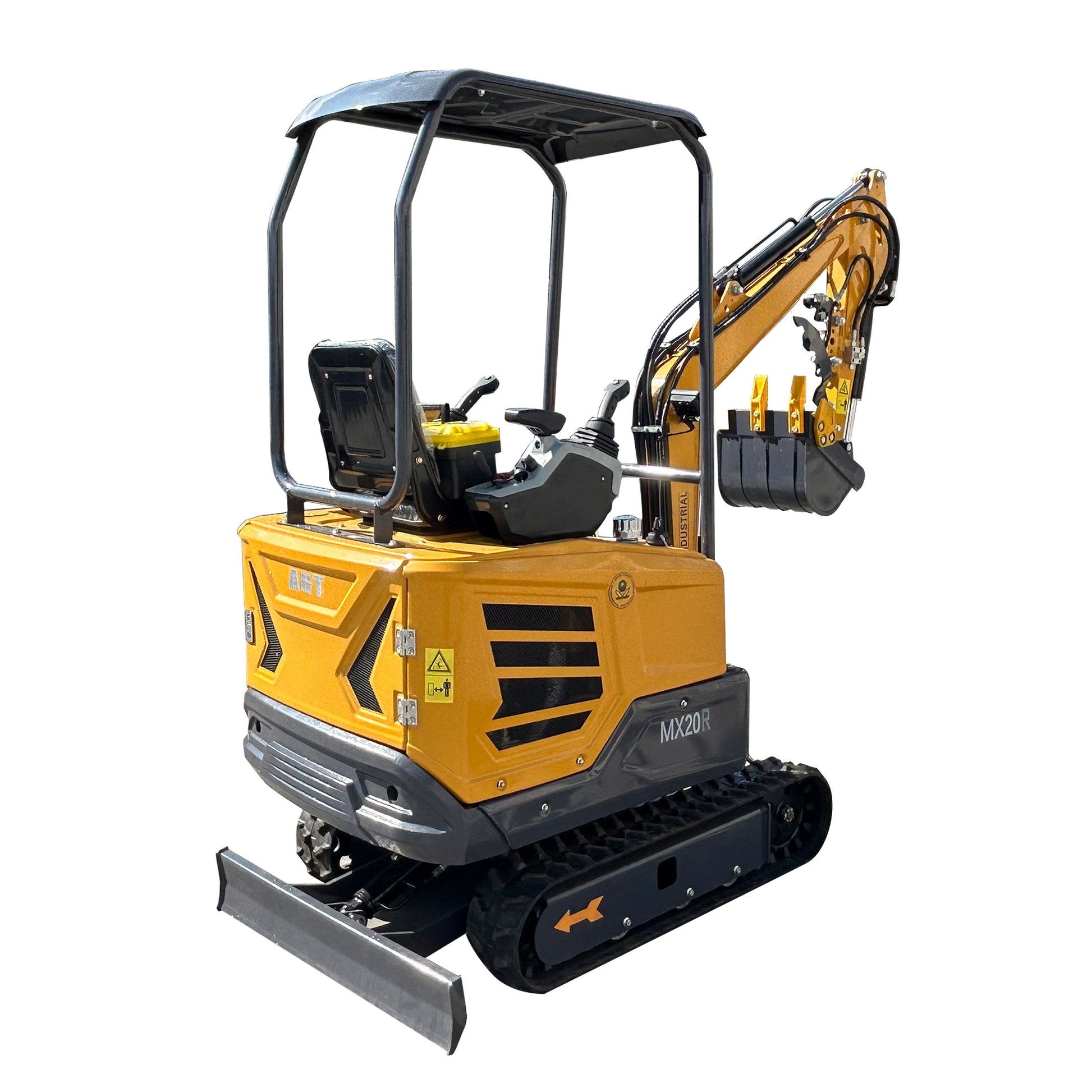

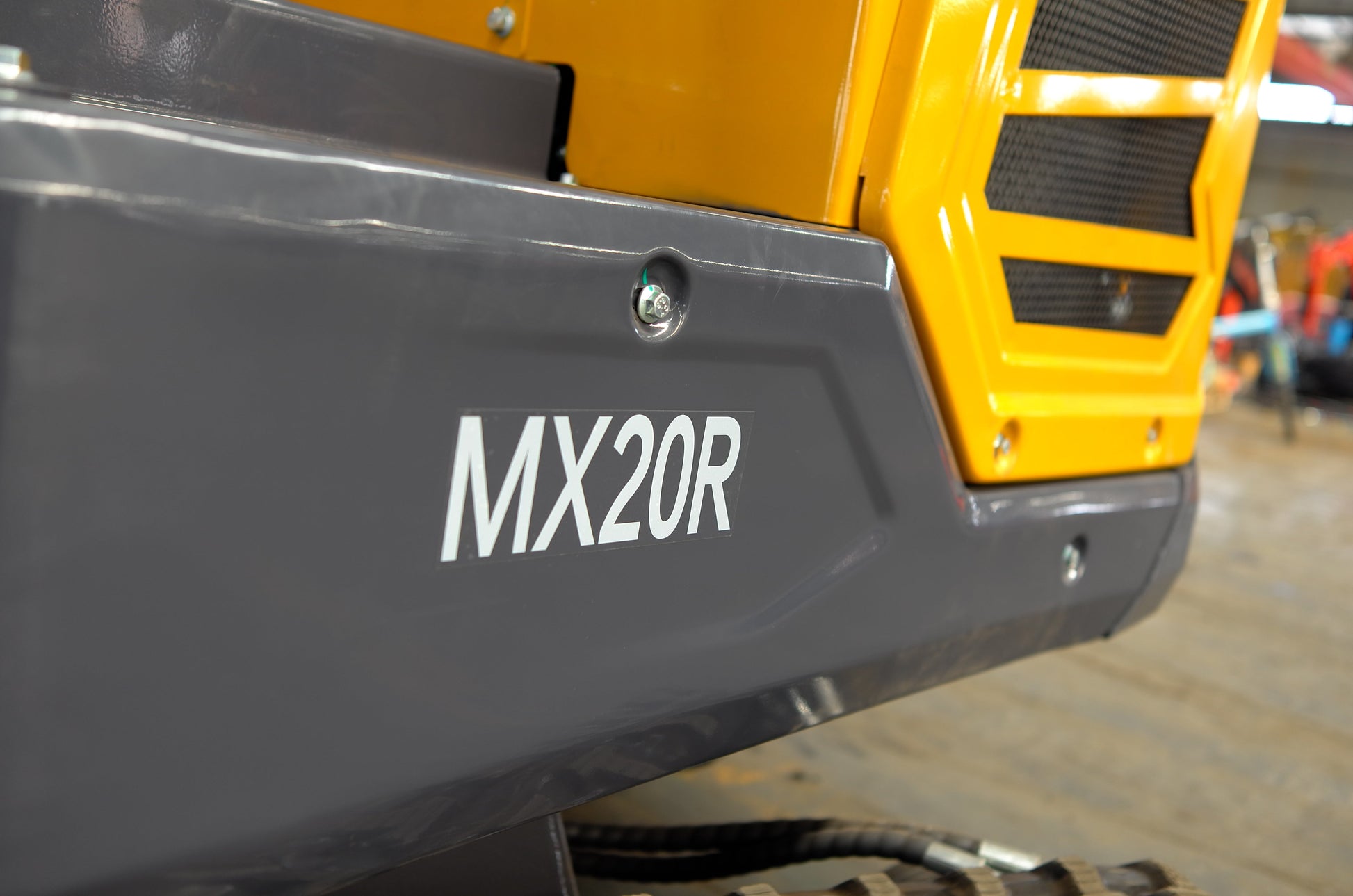

Cfgindustrial 1.2 Ton Mini Excavator Digger with 23 HP Rato Engine & Hydraulic Thumb | MX20R

Cfgindustrial 1.2 Ton Mini Excavator Digger with 23 HP Rato Engine & Hydraulic Thumb | MX20R

1 14
$7,555.05
Sold out
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Details

Free shipping within the U.S. (except Hawaii, Alaska, and Puerto Rico).

Delivery in 5 - 15 Business Days
Details

Please Allow for 2 to 3 Business Days to Process Order, 5 to 15 Business Days to Deliver. Times are for reference only. Specific delivery times will be adjusted based on inventory changes.
Payment:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Afterpay
View full details

Product Overview

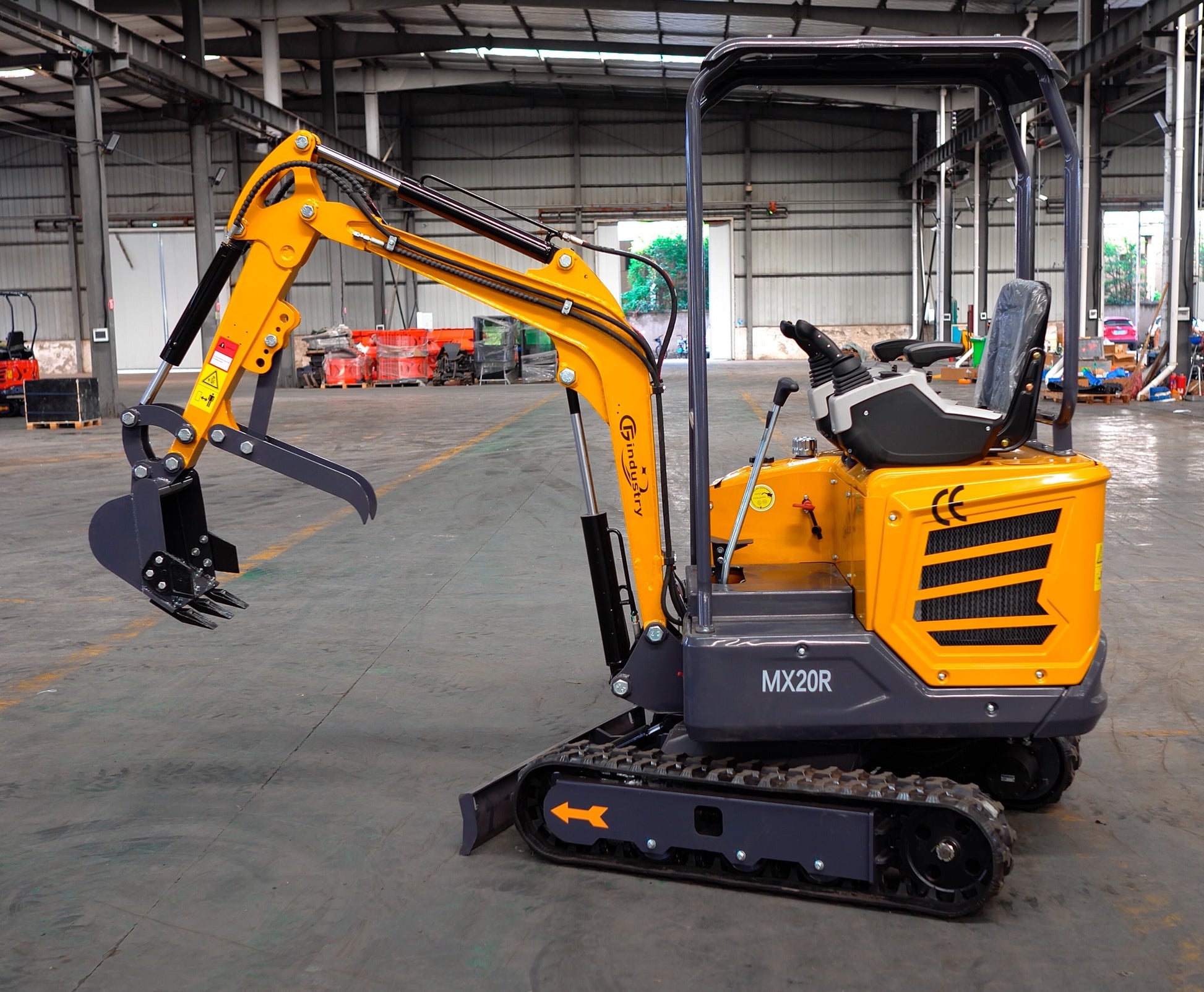

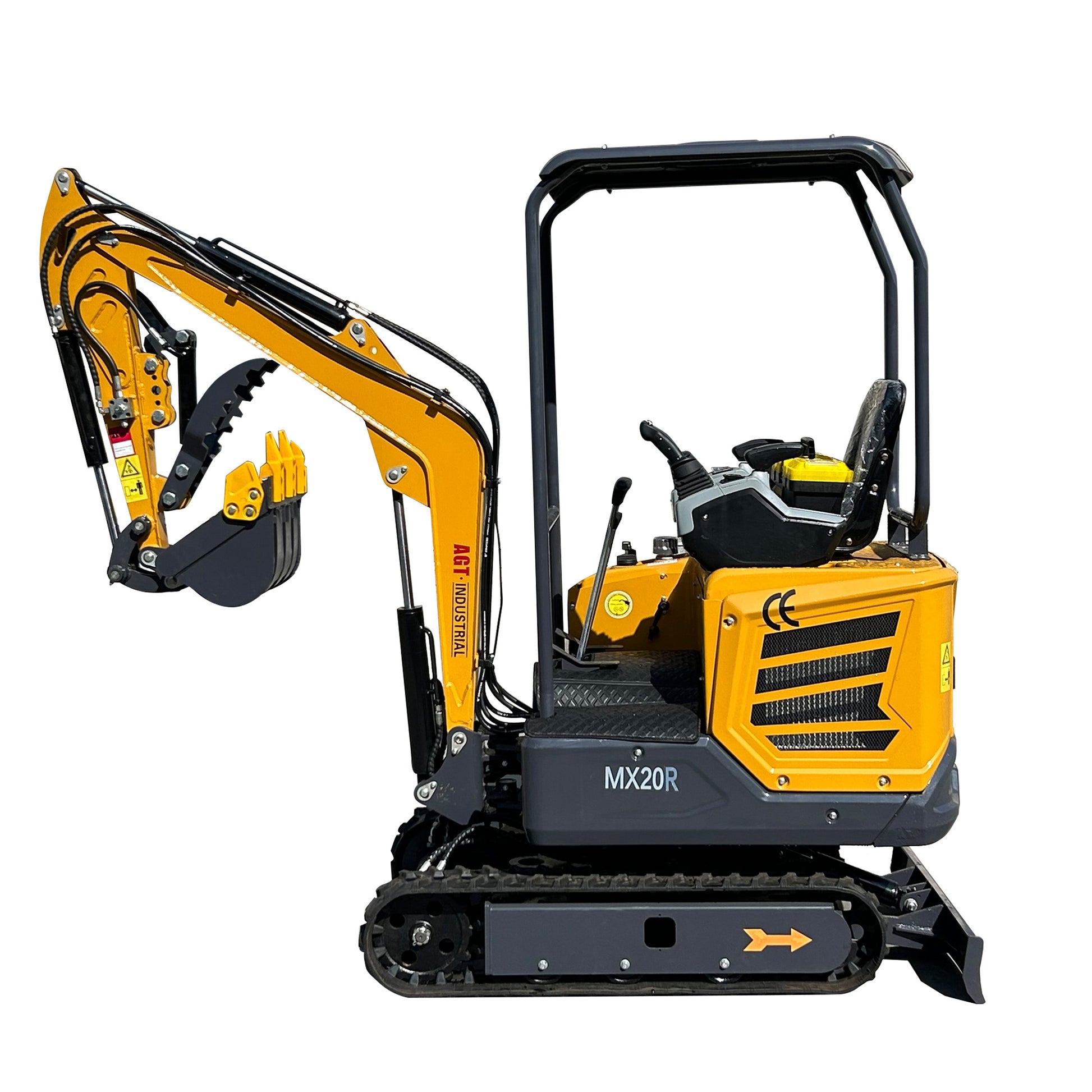

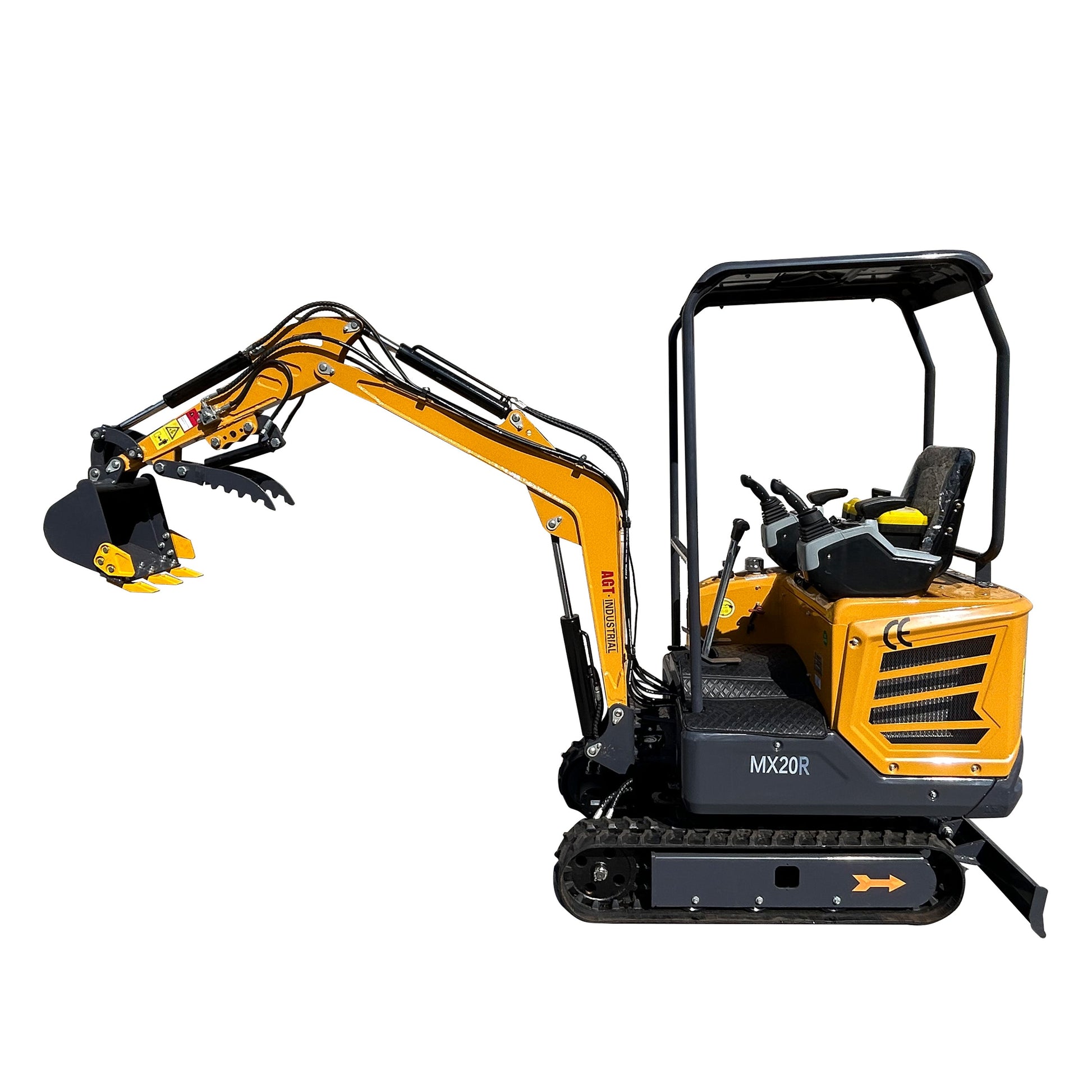

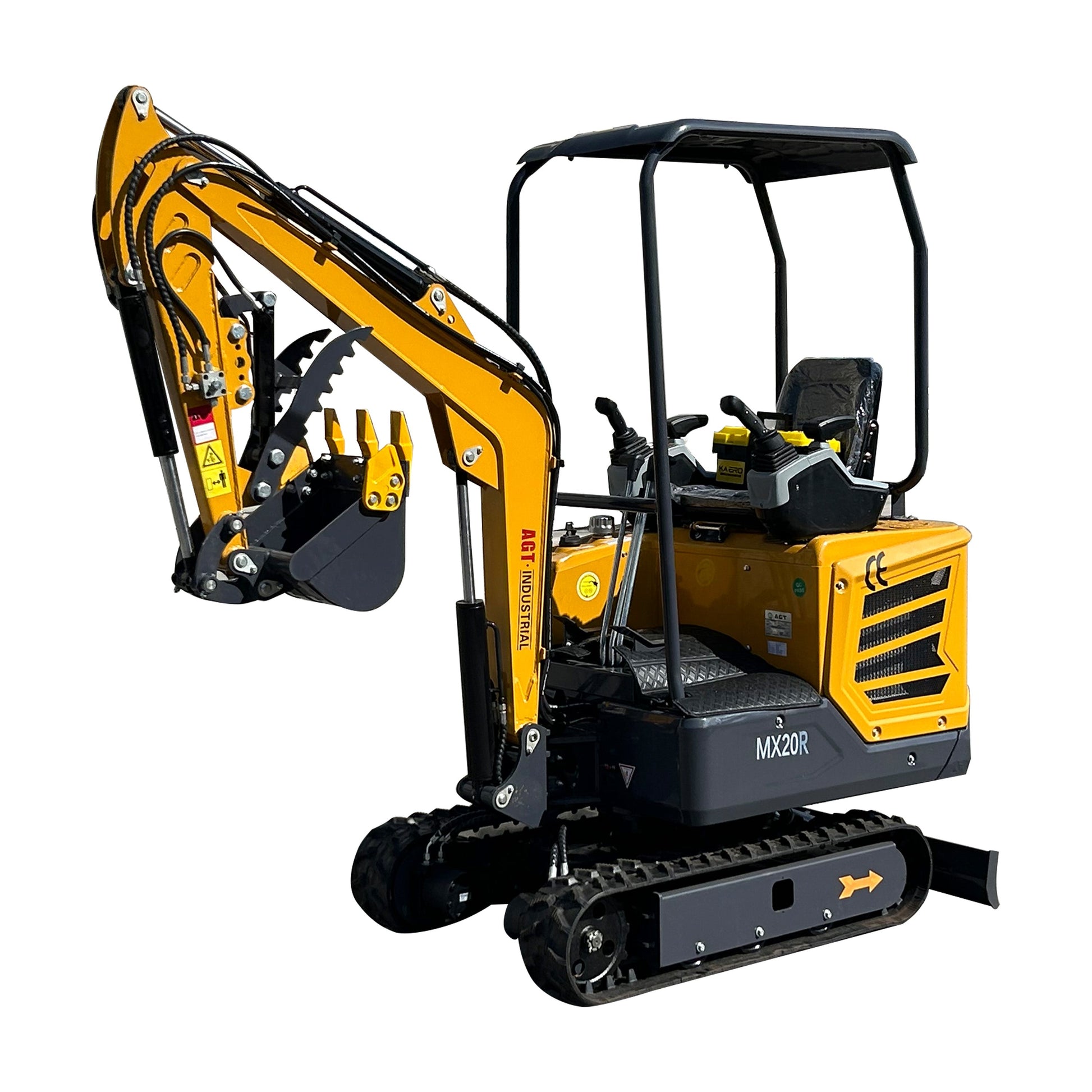

Dig, load, and maneuver confidently with the MX20R mini excavator powered by a high-output Rato gasoline engine. Engineered for tight job sites, urban tasks, and precision work, the MX20R delivers excellent digging performance, durable hydraulics and operator comfort without compromising on power.

Dimension:

  • Operating Weight: 1.2 Ton (2,400 lbs)
  • Overall Length: 3,200 mm (126 in)
  • Overall Width: 936 mm (37 in)
  • Overall Height: 2,210 mm (87 in)
  • Track Size: 180*72*41 (Width*Pitch Length*Links)

Working Range:

  • Max Digging Depth: 2,257 mm (89 in)
  • Max Digging Height: 2,890 mm (114 in)
  • Max Dumping Height: 1,958 mm (77 in)
  • Max Reach at Ground: 3,305 mm (130 in)
  • Blade Width: 1000 mm (39.5 in)
  • Blade Height: 180 mm (7 in)
  • Blade Max Lifting Height: 288 mm (11 in)
  • Blade Max Drop Depth: 146 mm (5.5 in)

Engine:

  • Engine Brand: Rato
  • Fuel Type: Gasoline
  • Model: R740D
  • Rated Power: 17 kW (23 HP)
  • Displacement: 740 cc
  • Fuel Capacity: 8.7 L (2.3 gal)
  • Hydraulic Tank Capacity: 14.2 L (3.7 gal)

Features:

  • Hydraulic Thumb
  • Side Swing Boom
  • LED Light
  • Pilot Control
  • 849 mm Min. Tail Radius

Product Features

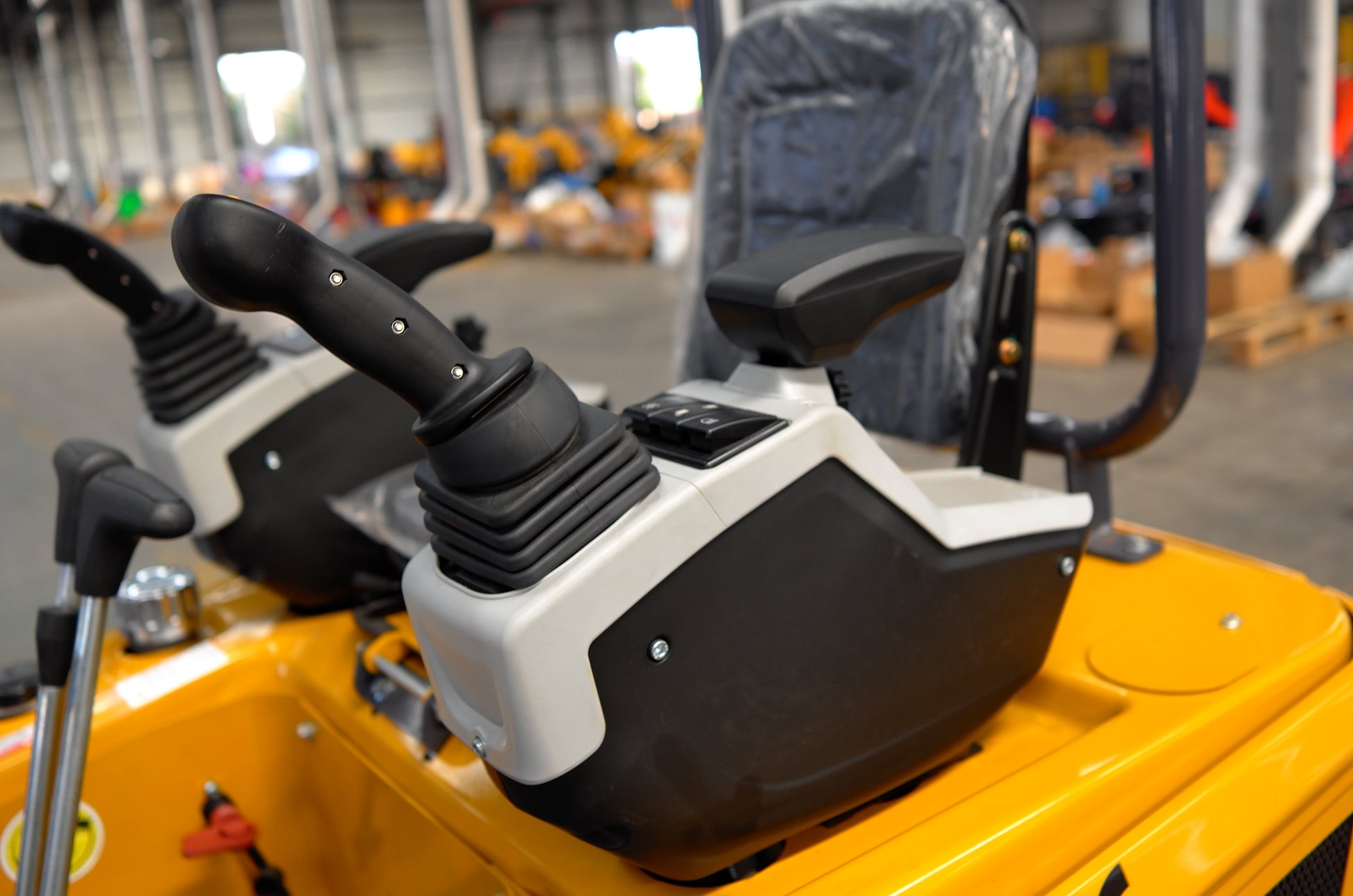

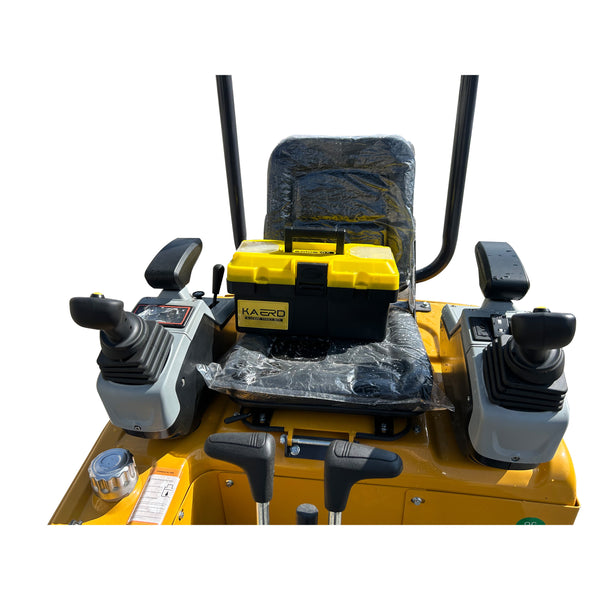

PILOT CONTROL

PILOT CONTROL

Sit back and operate the excavator with ease

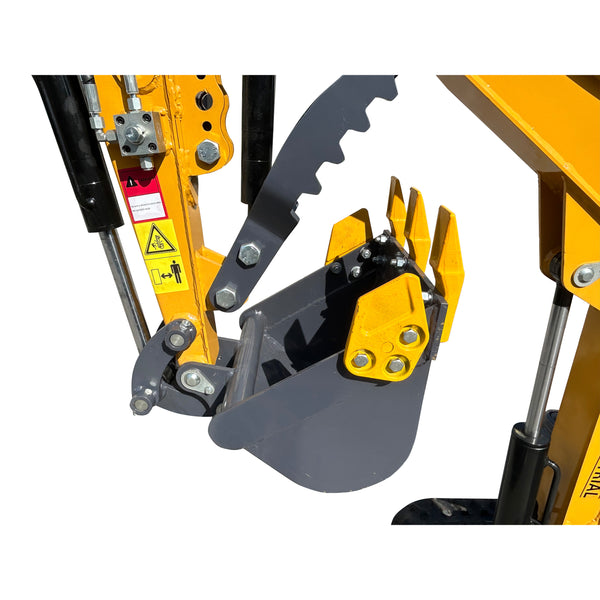

HYDRAULIC THUMB

HYDRAULIC THUMB

Grabs and handles materials with ease

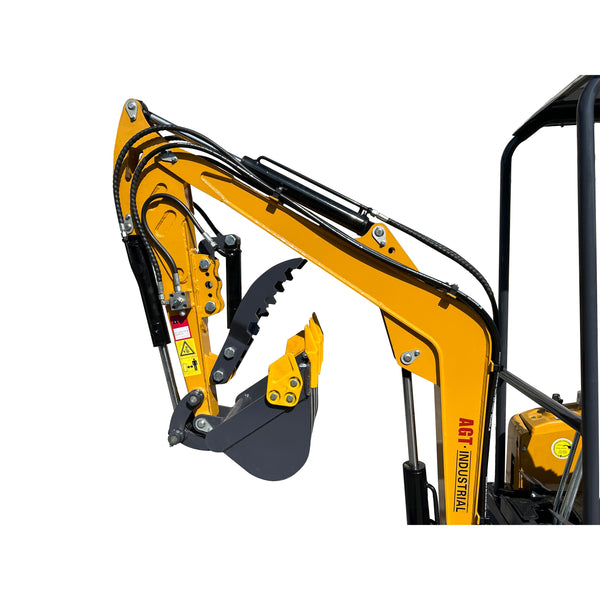

SIDE SWING BOOM

SIDE SWING BOOM

To operate close to a wall or in a limited space

Product Warranty

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

DIMENSION
Operating Weight 1.2 Ton 2,400 lbs
Overall Length 3,200 mm 126 in
Overall Width 936 mm 37 in
Overall Height 2,210 mm 87 in
Track Size 180*72*41 (Width*Pitch Length*Links)
WORKING RANGE
Max Digging Depth 2,257 mm 89 in
Max Digging Height 2,890 mm 114 in
Max Dumping Height 1,958 mm 77 in
Max Reach at Ground 3,305 mm 130 in
Blade Width 1000 mm 39.5 in
Blade Height 180 mm 7 in
Blade Max Lifting Height 288 mm 11 in
Blade Max Drop Depth 146 mm 5.5 in
ENGINE
Engine Brand Rato
Fuel Type Gasoline
Model R740D
Rated Power 17 kW 23 HP
Displacement 740cc
Fuel Capacity 8.7 L 2.3 gal
Hydraulic Tank Capacity 14.2 L 3.7 gal
