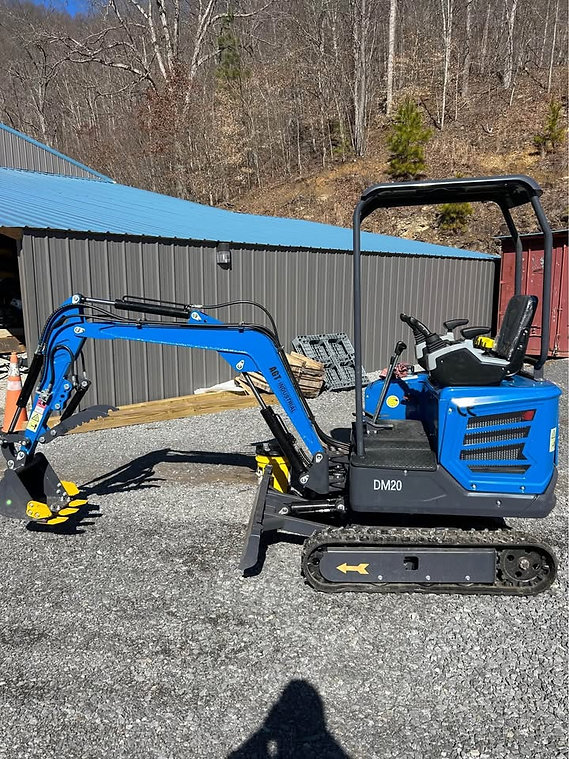

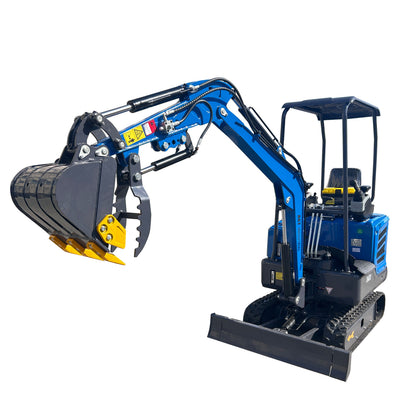

Cfgindustrial 1.3 Ton Mini Excavator with 13.7 HP Kubota D722 Diesel Engine | DM20
Cfgindustrial 1.3 Ton Mini Excavator with 13.7 HP Kubota D722 Diesel Engine | DM20
Product Overview
Designed for medium-sized projects.

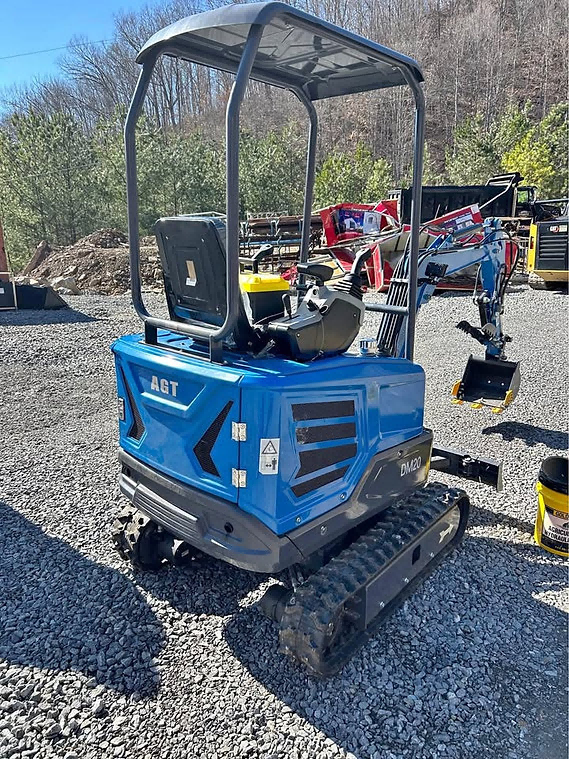

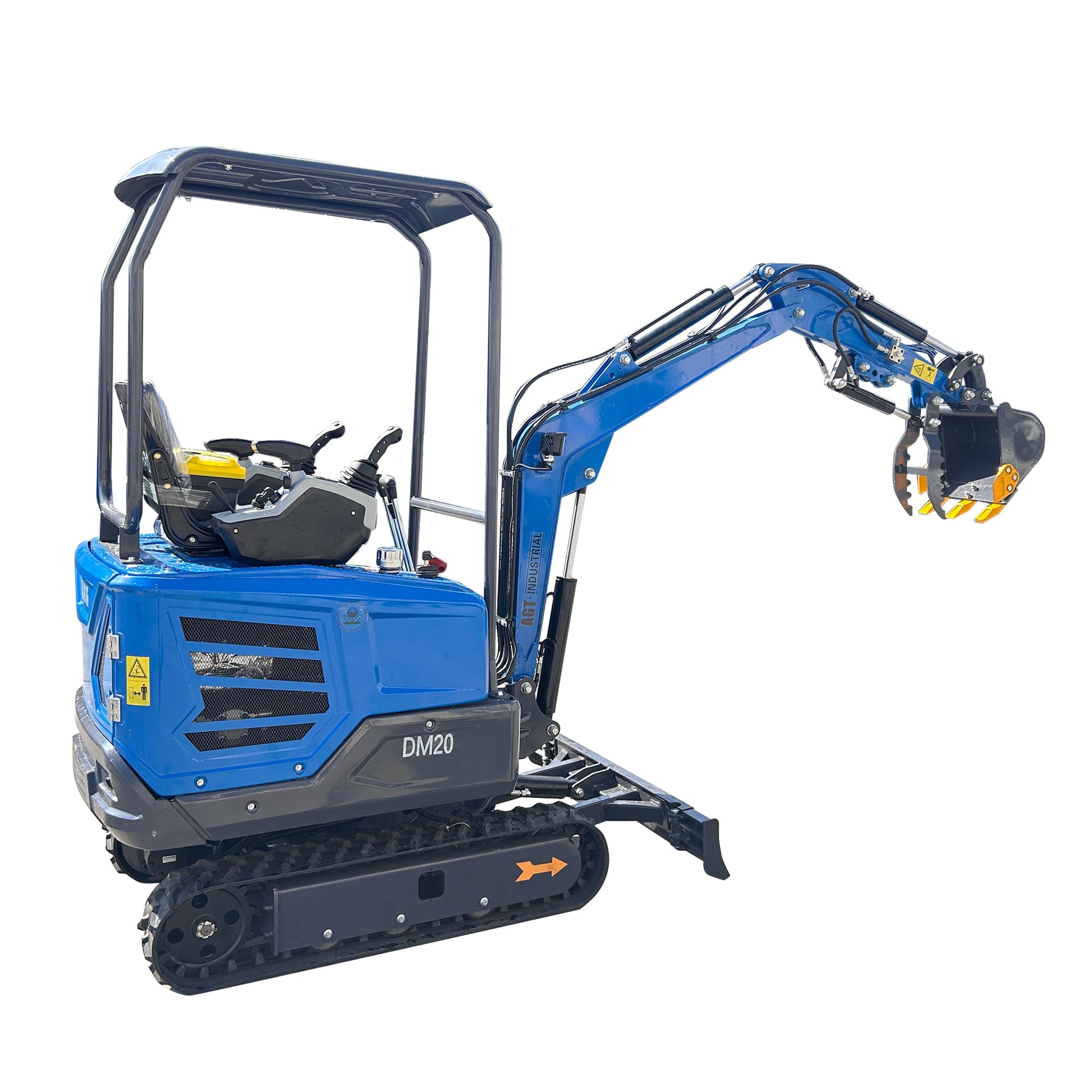

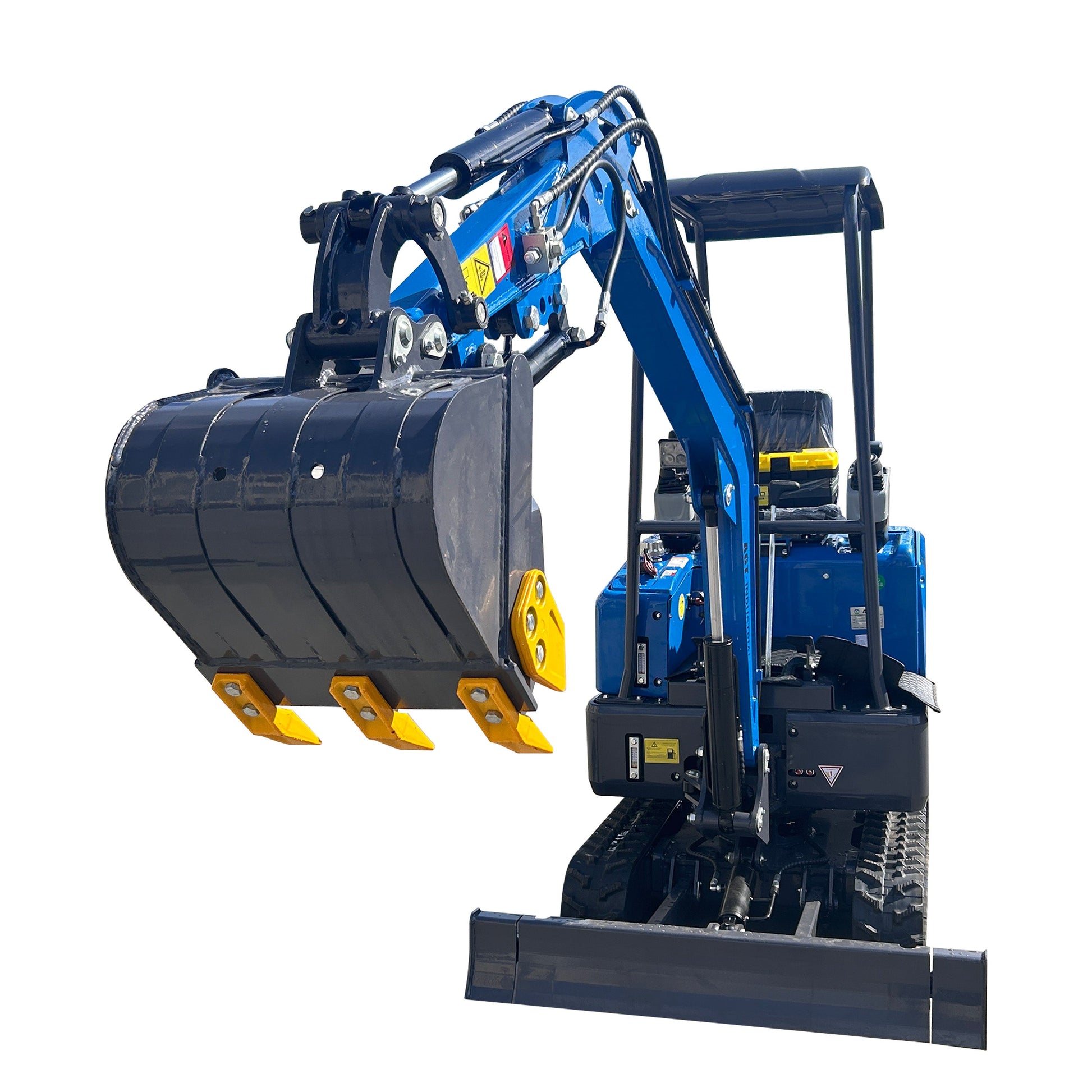

With a compact design, 1.3 ton operating weight and a digging depth of 7.4 feet, the DM20 delivers reliable power and efficiency intight workspaces like farms, gardens, orchards, and construction sites.

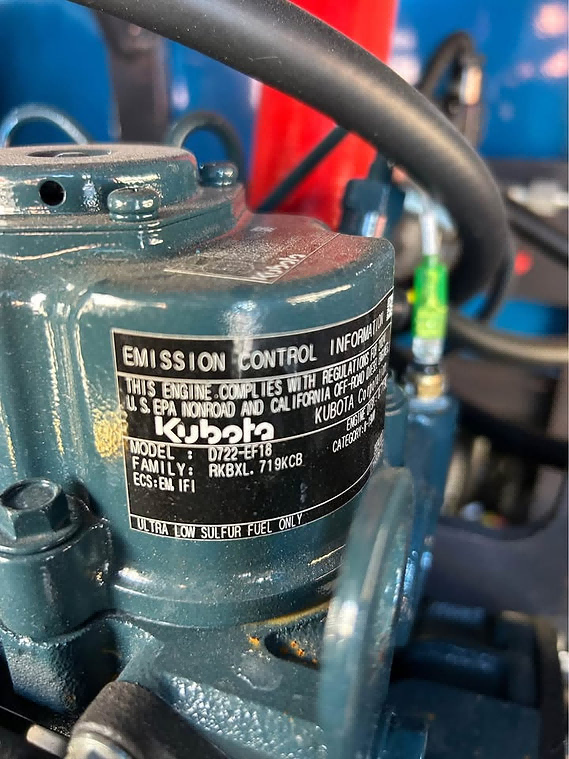

Powered by a Kubota D722 diesel engine, the DM20 features a 3-cylinder water-cooled system, expandable tracks, and a reinforced structure built for daily use.

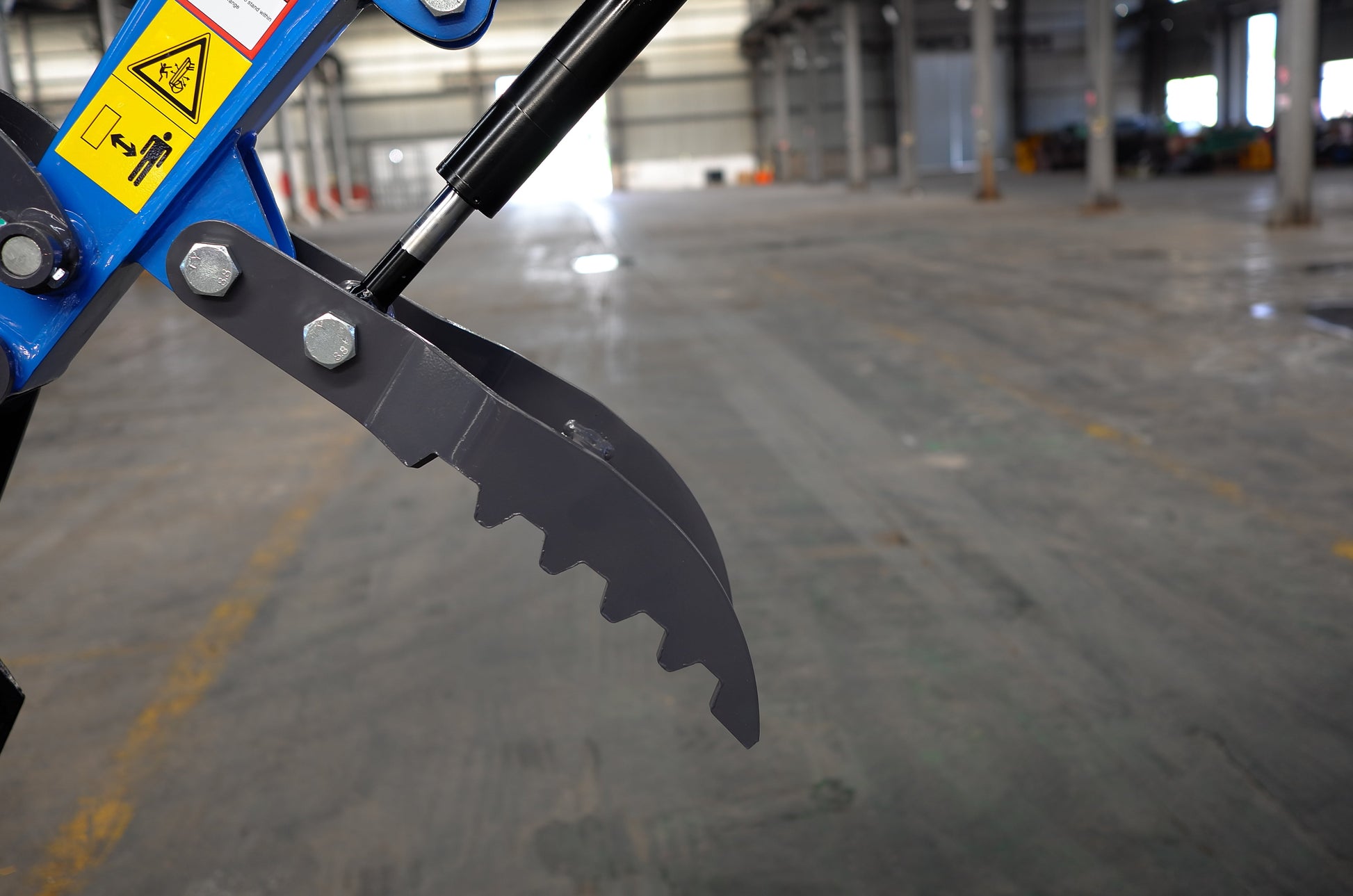

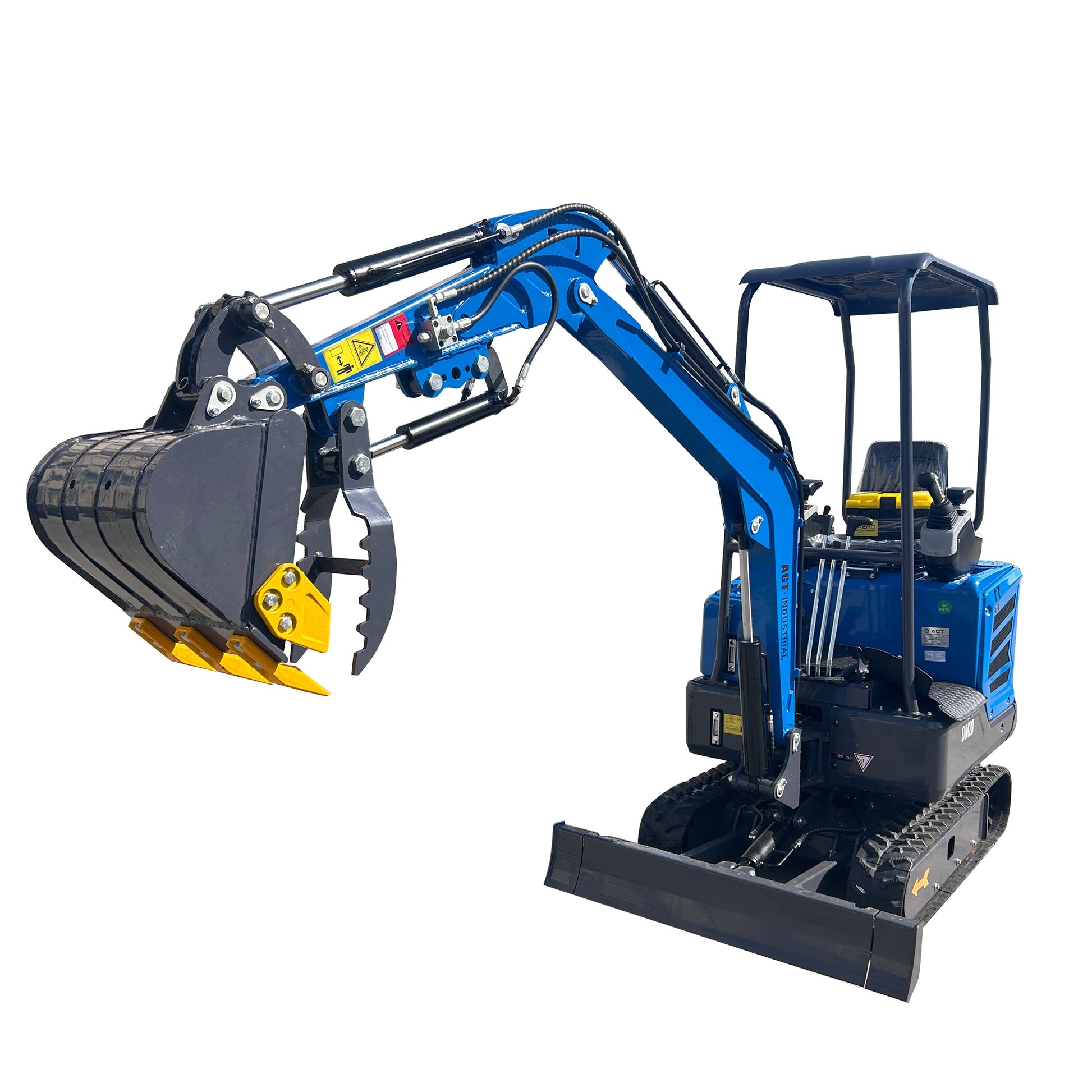

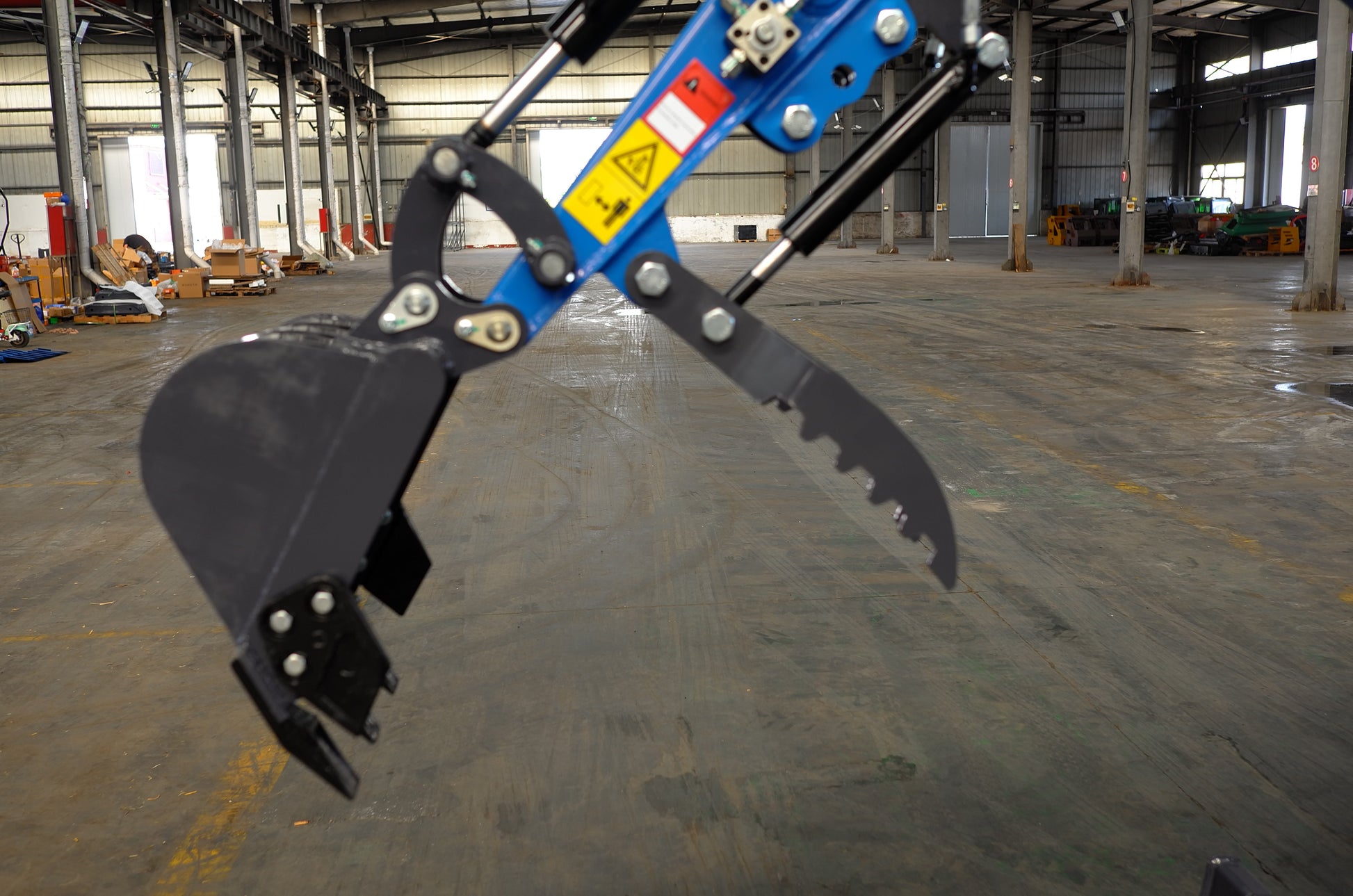

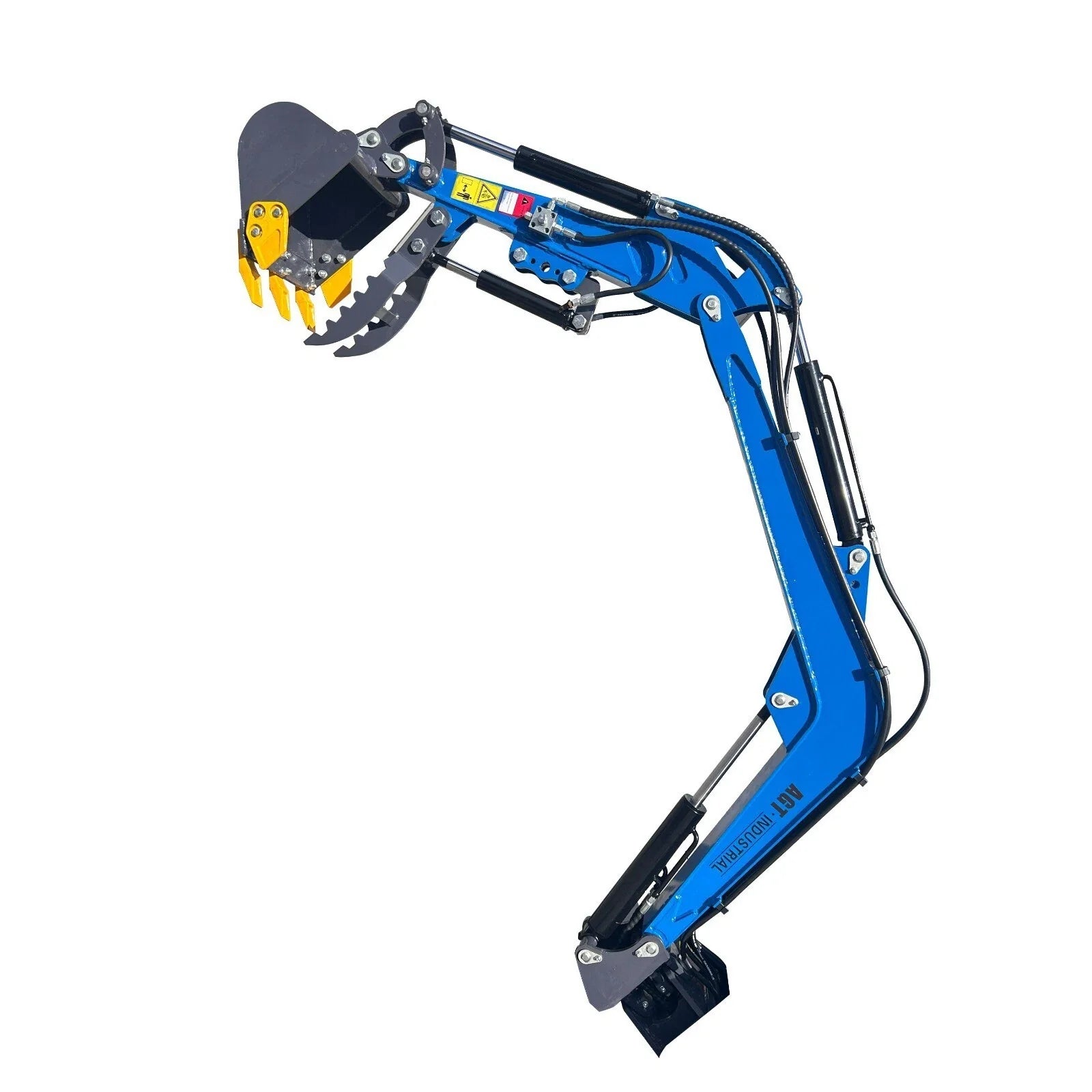

The hydraulic blade and side-swing boom provide versatility, while the factory-installed hydraulic thumb and auxiliary line make it attachment-ready. ldeal for augers.rakes, tilt buckets, grapples, and more.
Dimension:
Working Range:
Engine:
Features:
Product Features
Product Warranty
Specifications
| Model Information | |
|---|---|
| Configuration Status | √ Standard, △ Optional, × None |
| Model | DM20 |
| Basic Performance Parameters | |
| Working Weight (kg) | 1300 |

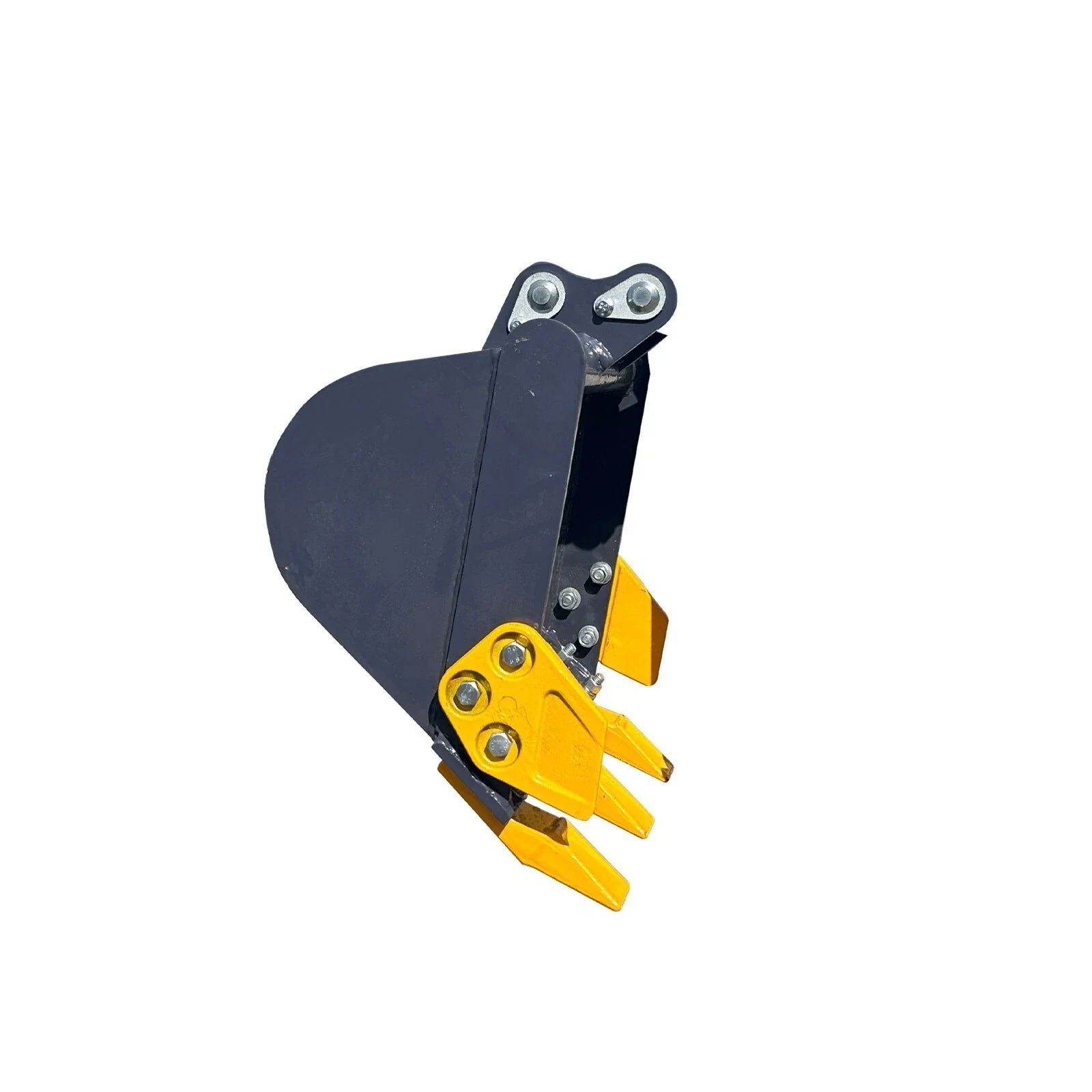

| Bucket capacity (m³) | 0.03 |
| Travel speed low/high speed (Km/h) | 0–2 |
| Climbing ability (%) | 30 |
| Turn speed (r/min) | 10 |
| A: Maximum Digging Height (mm) | 2890 |
| B: Maximum Unloading Height (mm) | 1958 |
| C: Maximum Digging Depth (mm) | 2257 |
| D: Maximum Vertical Excavation Depth (mm) | 2090 |
| E: Maximum Excavation Radius (mm) | 3305 |
| F: Minimum radius of Gyration (mm) | 1584 |
| G: Minimum tail radius of Gyration (mm) | 849 |
| H: Maximum Lifting height of Bulldozer | 288 |
| I: Maximum Digging height of Bulldozer | 146 |
| Equipment Body | |
| J: Overall Length (mm) | 3200 |
| K: Overall Width (mm) | 936 |
| L: Overall Height (mm) | 2210 |
| Bulldozer Width/Height (mm) | 1000 / 180 |
| Engine | |
| Engine Brand | Kubota |
| Engine model | D722 |
| Maximum horsepower (ps) | 13.7 |
| Maximum power (kW) | 10.2 |
| Maximum speed (rpm) | 2500 |
| Number of cylinders | 3 |
| Cooling method | Water cooling |
| Engine oil replacement (L) | 3.8 |
| Fuel type | Diesel |
| Fuel Label | 92# |

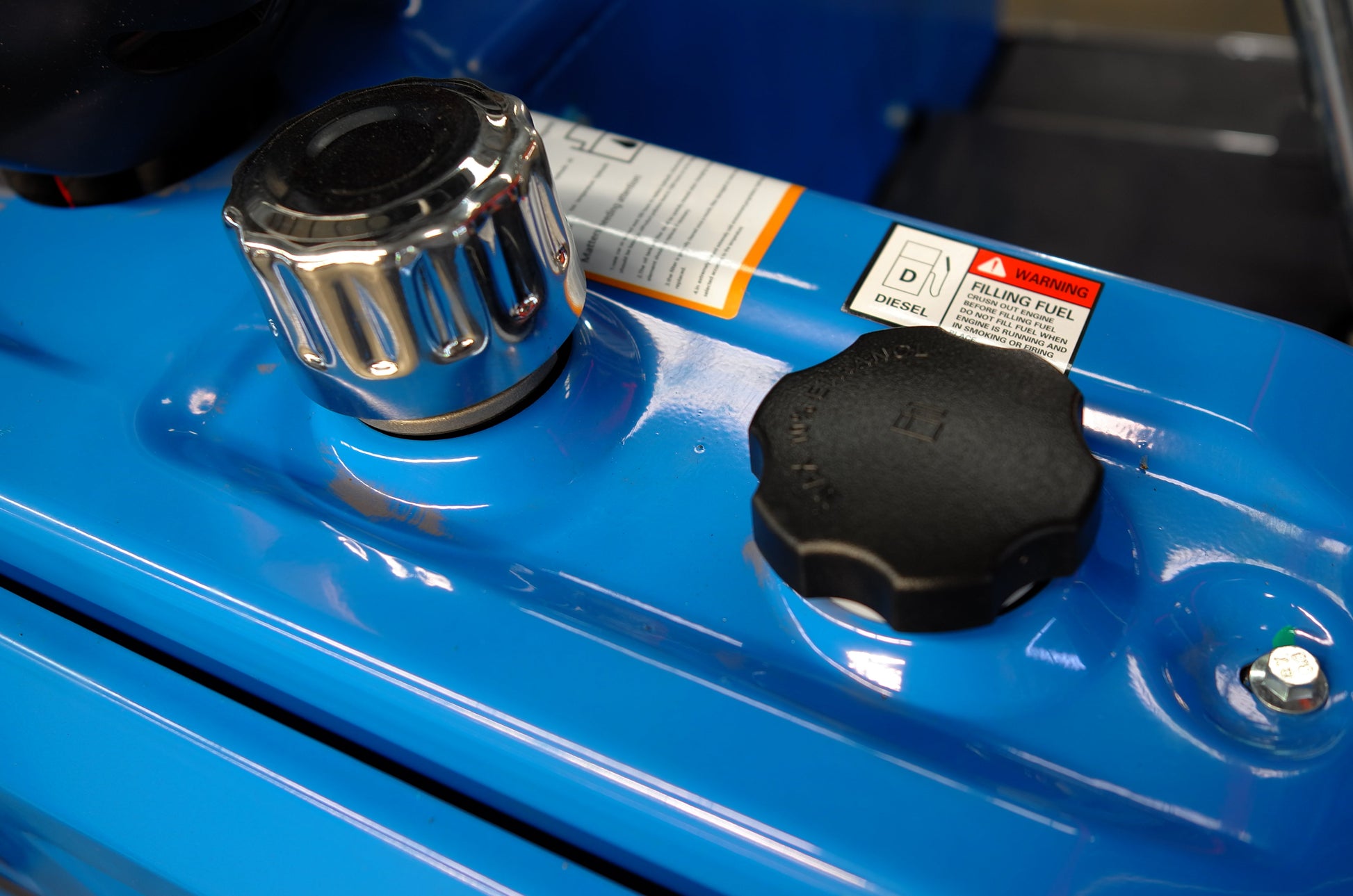

| Fuel Tank | |
| Fuel tank (L) | 8.7 |
| Hydraulic oil tank (L) | 14.2 |
