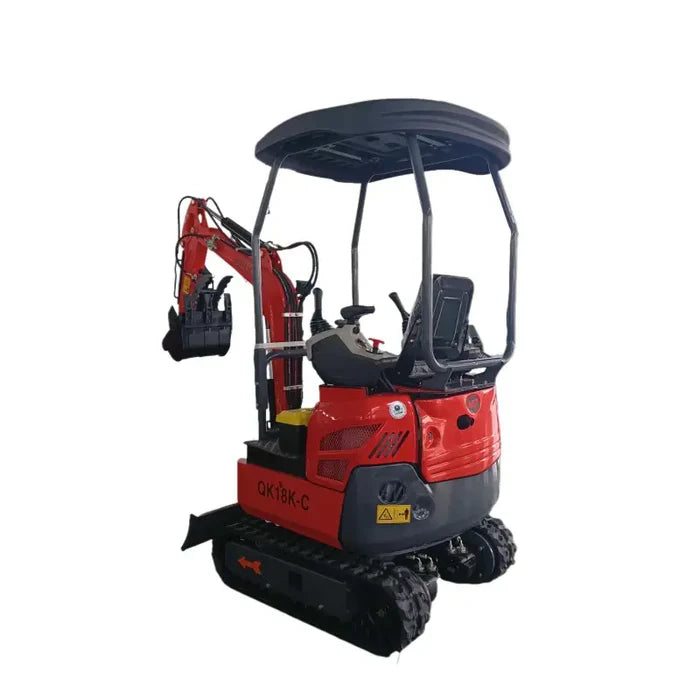

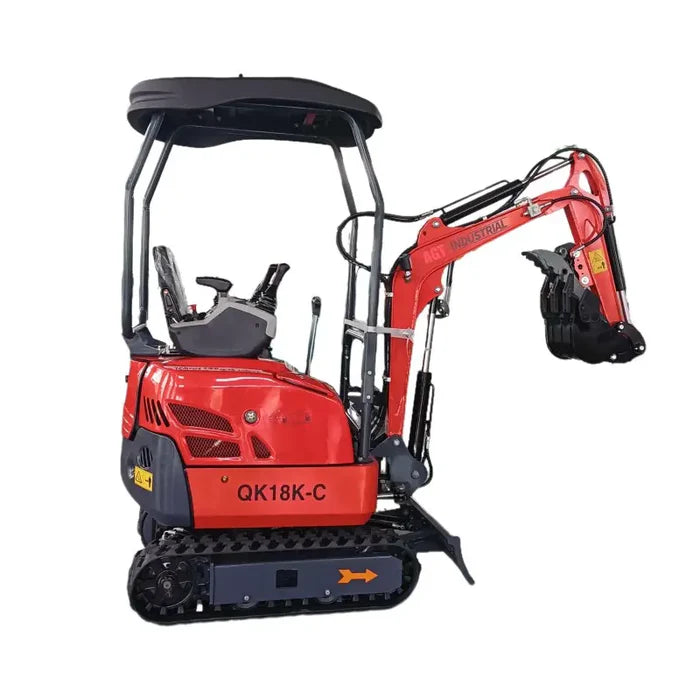

Cfgindustrial 1.4 Ton Mini Excavator with Kubota Engine, Side Swing Boom & Hydraulic Thumb | AGT-KH18K-C / AGT-QK18K-C

The QK18K-C stands out in the 1.8 ton excavator class with its powerful Kubota engine, integrated swing boom, and hydraulic thumb for enhanced versatility. Unlike other excavators in its class, this model is equipped with a robust 12 series boom and arm, offering compatibility with a wider range of attachments.

In Action Video

Manual

TECHNICAL DATA:

• Operation Weight: 1.4 Ton

• Engine: Kubota Engine

• Horse Power: 13.5

• Max Angle: 30 Degree


SPECIFIC DATA:

Engine:

• Brand: Kubota

• Model: D722-EF18

• Type: 3-cylinder, water-cooled diesel

• Power Output: 13.5 HP

• Maximum Speed: 3,600 RPM

Dimensions:

• Total Length: 2,925 mm
• Overall Width: 958 mm
• Total Height: 2,422 mm

• Operating Weight: 1.8 tons
• Bucket Capacity: 0.03m^3
• Maximum Digging Depth: 1,693 mm
• Maximum Digging Height: 2,560 mm

• Maximum Digging Radius: 3,060 mm

• Travel Speed: 0-1.8 km/h

• Climbing Ability: 30%


Hydraulic System:

• Rated Set Pressure: 25 MPa

• Main Pump Type: GP510803

• Maximum Flow Rate of Main Pump: 21.6 L/min

• Multi-Circuit Valve: 4 mechanical + 4 hydraulic

• Rotary Hydraulic Motor Type: BM2-315

• Traveling Hydraulic Motor Type: BM6-315


Additional Features:

• Swing Boom: Allows for precise maneuverability in confined spaces.
• Hydraulic Thumb: Enhances material handling capabilities, ideal for gripping and moving objects.

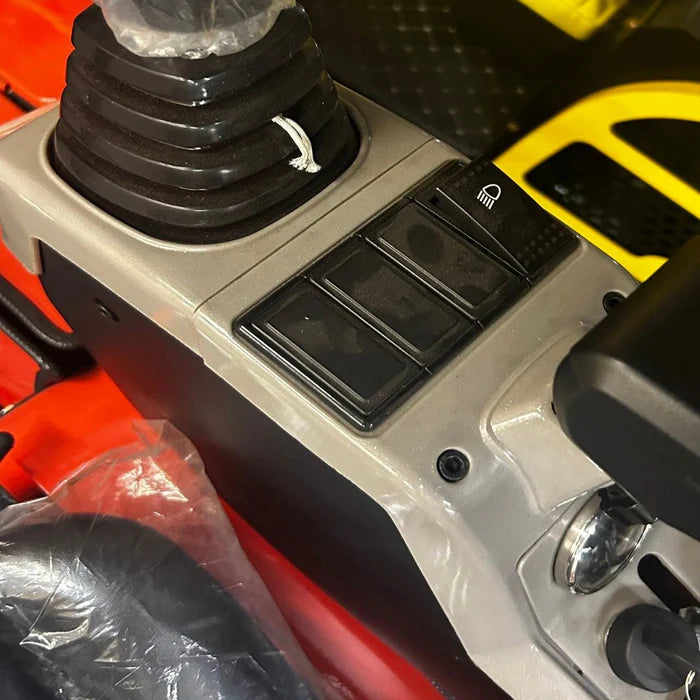

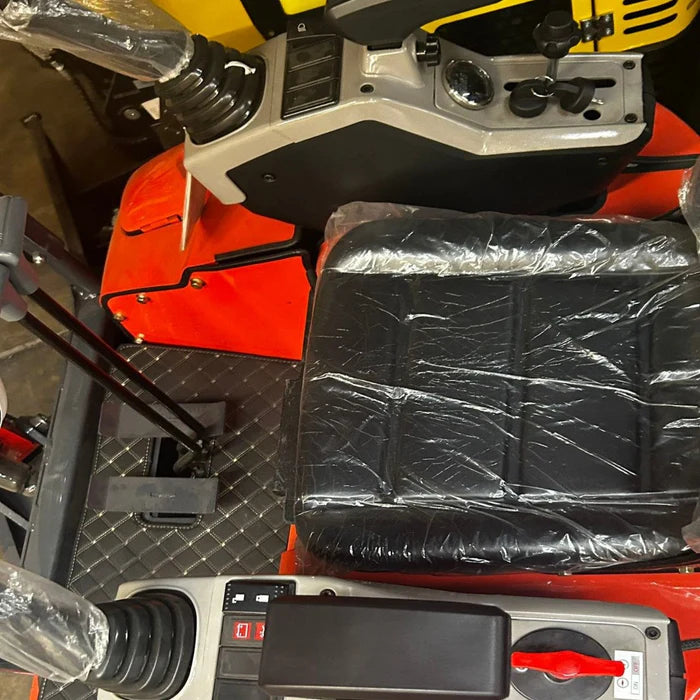

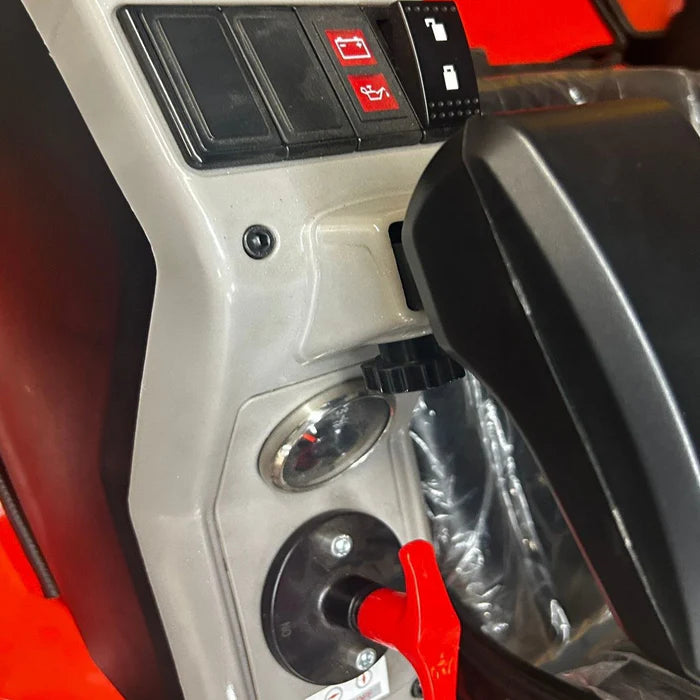

• Pilot Controls with Safety Lockout: Ensures operator safety and precise control.
• Auxiliary Hydraulics: Supports a variety of attachments for increased versatility.
• LED Lights: Provides improved visibility in low-light conditions.
• Backfill Blade: 39 inches wide, useful for grading and backfiling tasks.
• Rubber Tracks: 7 inches wide, designed to minimize ground disturbance and provide traction.

• Bucket: 16-inch digging bucket included.
