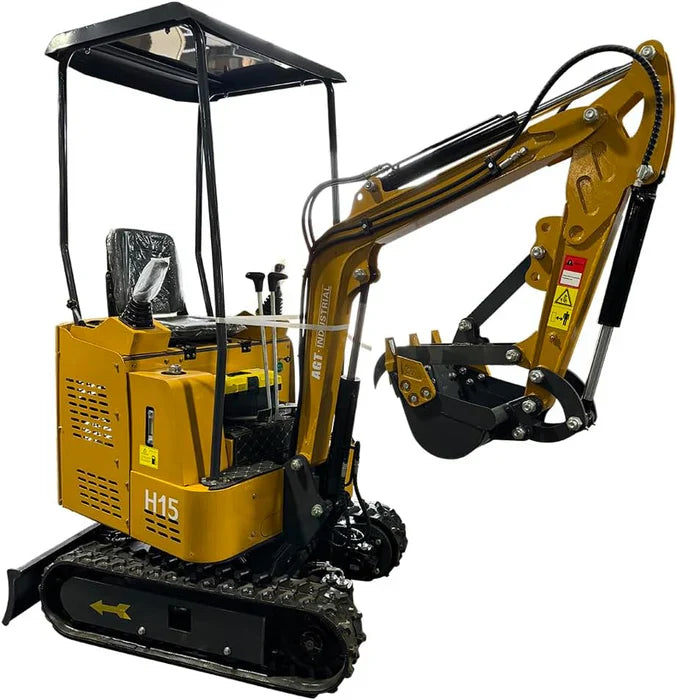

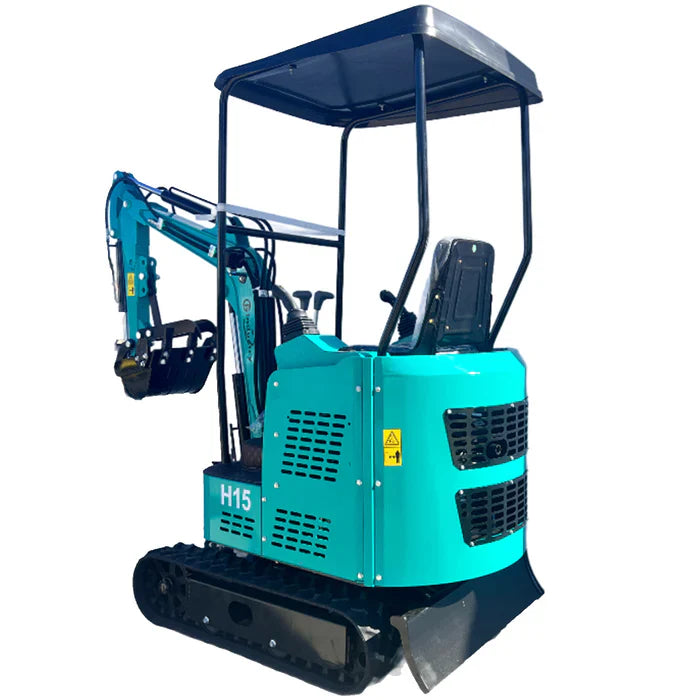

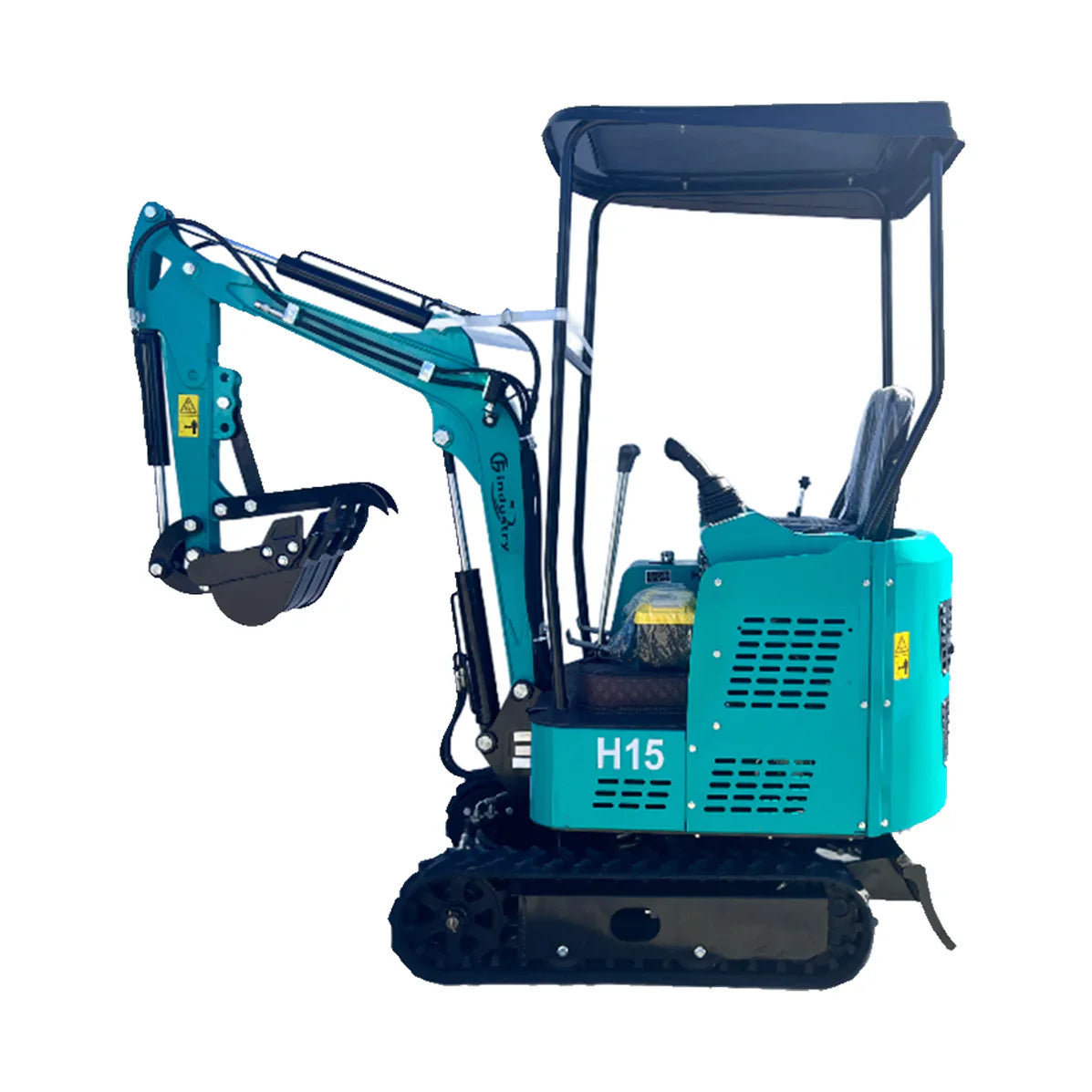

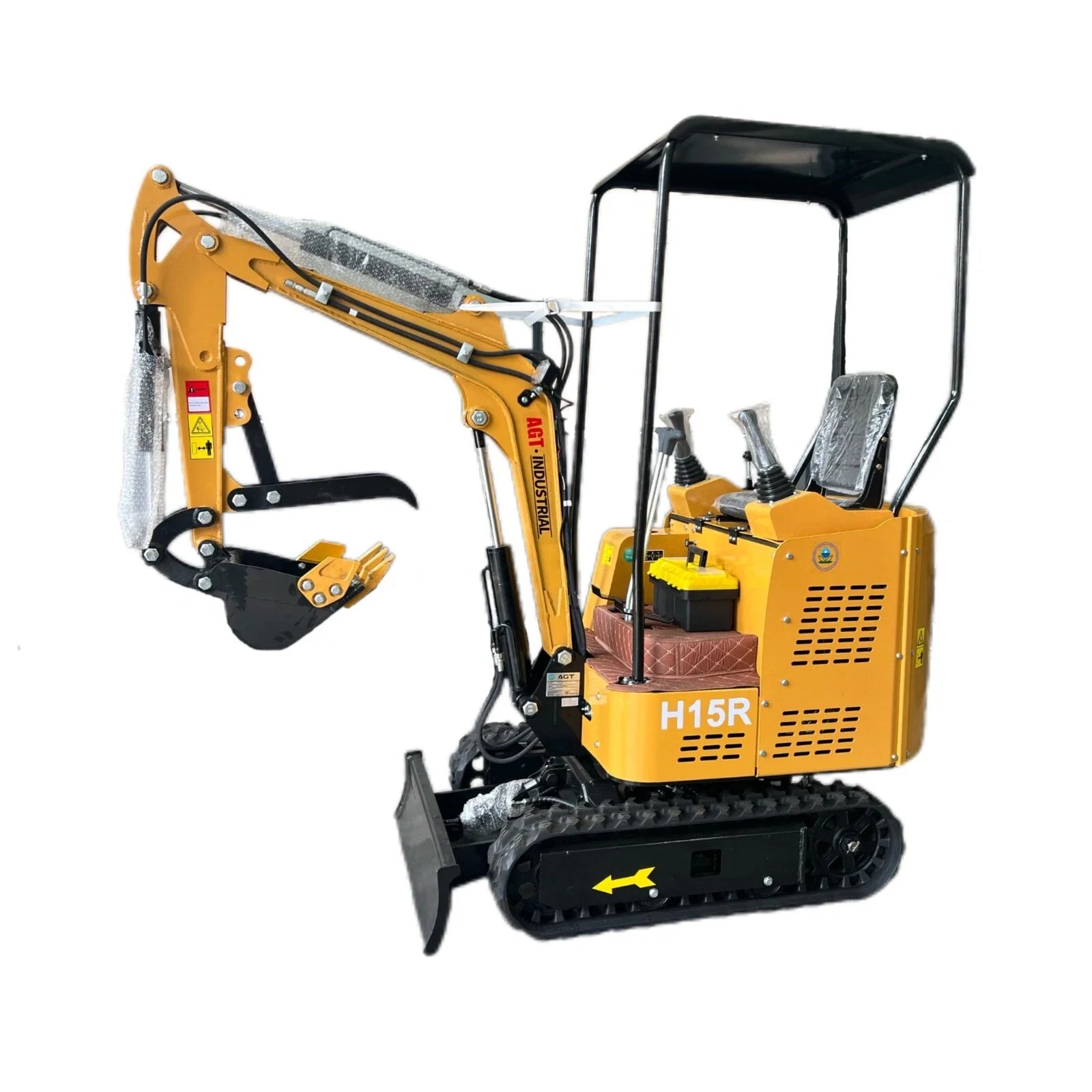

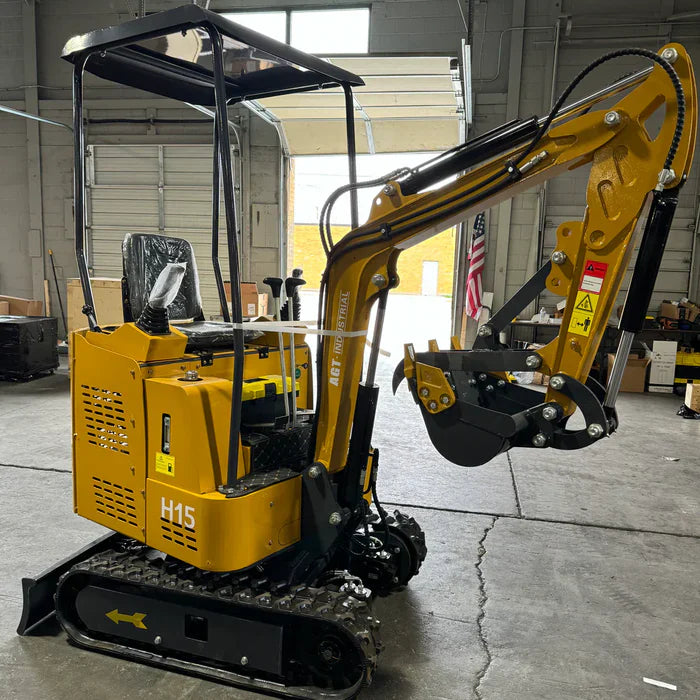

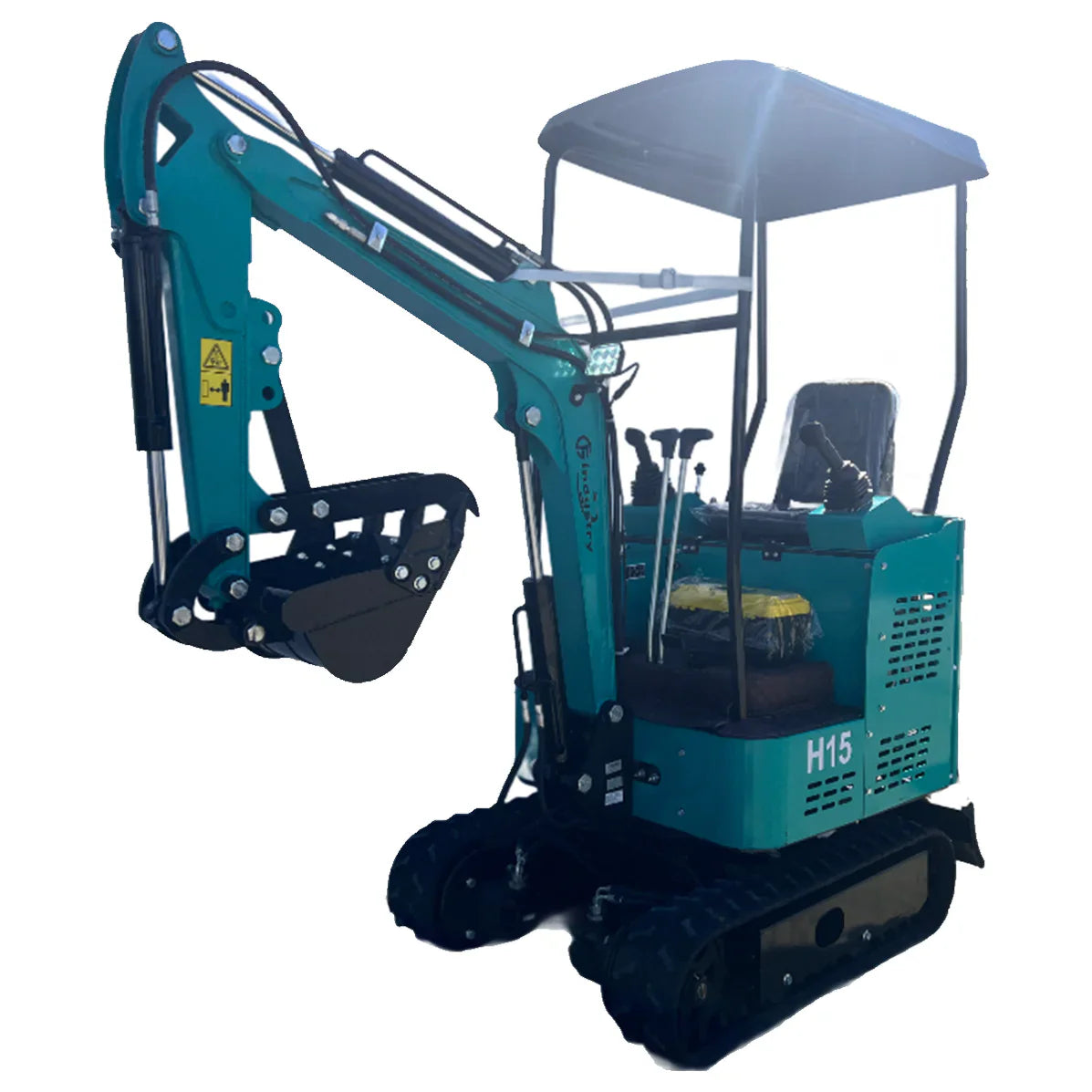

Cfgindustrial 1 Ton, 13.5 HP RATO Engine Mini Excavator with Pilot Control System | AGT-H15R

Cfgindustrial 1 Ton, 13.5 HP RATO Engine Mini Excavator with Pilot Control System | AGT-H15R

1 11
$5,980.99
$6,899.00 Save$918.01 Sold out
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Details

Free shipping within the U.S. (except Hawaii, Alaska, and Puerto Rico).

Delivery in 5 - 15 Business Days
Details

Please Allow for 2 to 3 Business Days to Process Order, 5 to 15 Business Days to Deliver. Times are for reference only. Specific delivery times will be adjusted based on inventory changes.
Payment:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Afterpay
View full details

Product Overview

The AGT-H15R Mini Excavator is perfect for small to medium-sized projects, offering a compact 1 ton design and a maximum digging depth of 5.41 feet. ldeal for tight spaces like gardens, parks, and orchards, it combines maneuverability with enhanced safety features, including internal hydraulic hoses and rear-opening compartments for easy maintenance.

Manual

Hydraulic Pump: PGP51063G3LP

Dimension:

  • Operating Weight: 1 Tons (2,200 lbs)
  • Overall Length: 2,140 mm (84 in)
  • Overall Width: 1,000 mm (40 in)
  • Overall Height: 2,190 mm (86 in)
  • Track Width: 180*72*37 (Width*Pitch Length*Links)

Working Range:

  • Max Digging Depth: 1,650 mm (65 in)
  • Max Digging Height: 2,610 mm (102.5 in)
  • Max Dumping Height: 1,850 mm (73 in)
  • Max Reach at Ground: 2,815 mm (111 in)
  • Blade Width: 950 mm (37 in)
  • Blade Height: 220 mm (8.5 in)
  • Blade Max Lifting Height: 295 mm (11.5 in)
  • Blade Max Drop Depth: 270 mm (10.5 in)

Engine:

  • Engine Brand: Rato
  • Fuel Type: Gasoline
  • Model: R420D
  • Rated Power: 10 kW (13.5 HP)
  • Displacement: 420 cc
  • Fuel Capacity: 6.6 L (1.7 gal)
  • Fuel Consumption: 0.5-1.1 L/hr
  • Hydraulic Flow Rate: 45 L/min (4.2 GPM)
  • Hydraulic Pressure: 18 MPa (2,320 PSI)
  • Hydraulic Tank Capacity: 18 L (4.7 gal)

Features:

  • Pilot Control
  • LED Light

Product Warranty

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.
