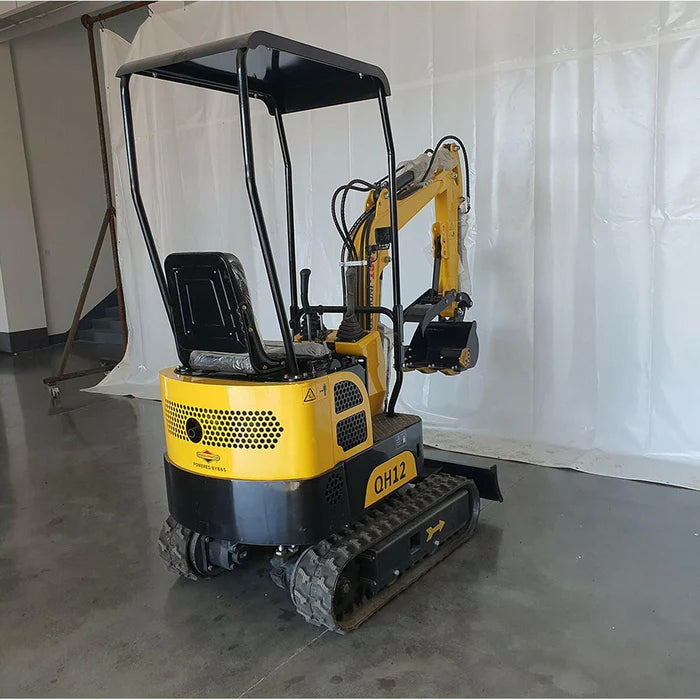

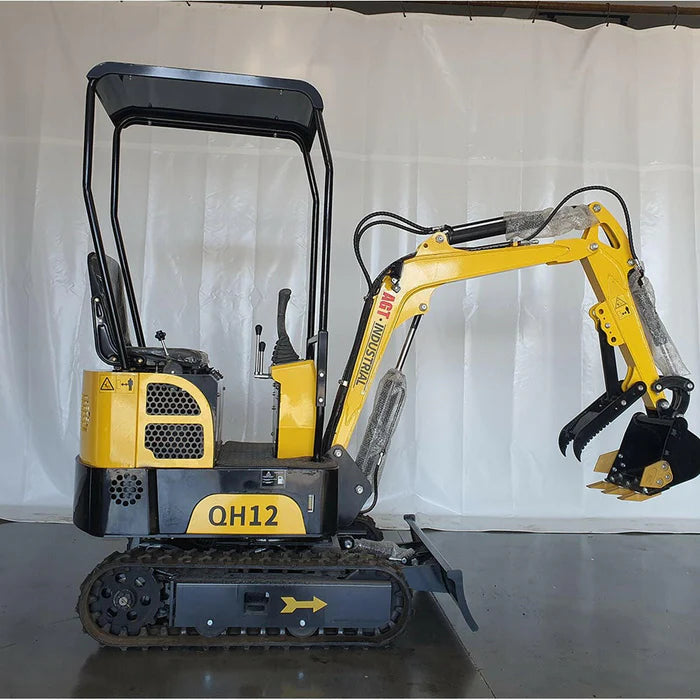

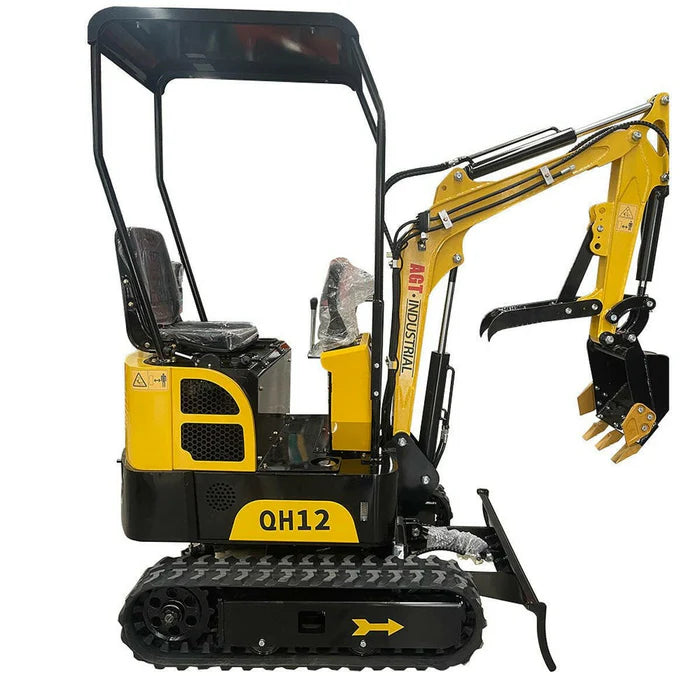

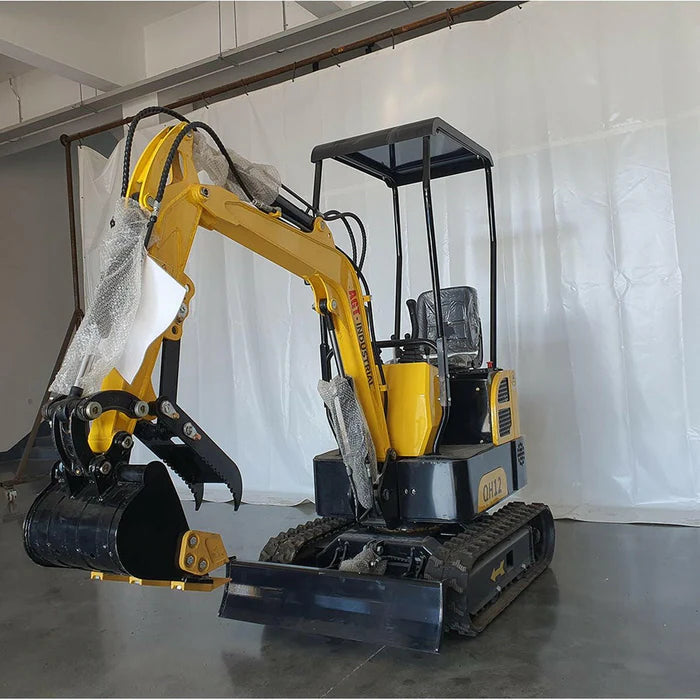

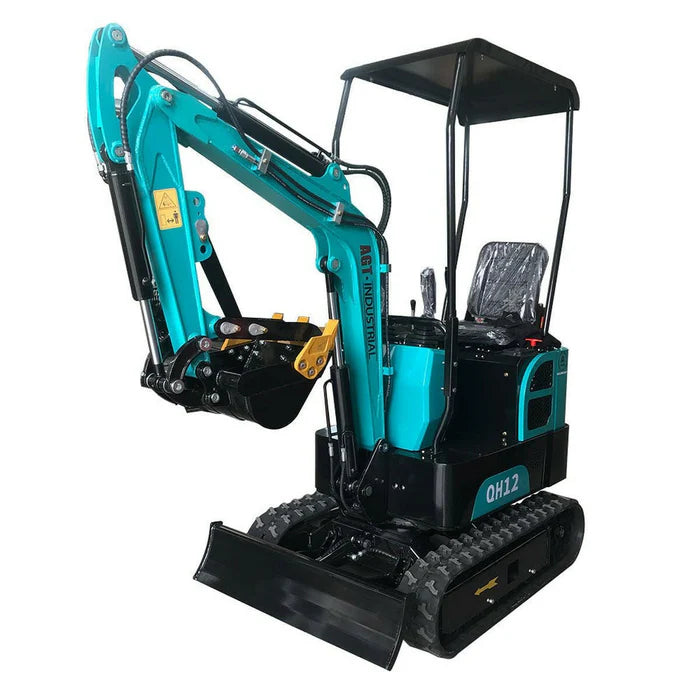

Cfgindustrial 1 Ton Mini Excavator with B&S Engine | AGT-QH12

The Mini Excavator is built compact for agility, eliminating management hitches on farms yet large enough for deeper digs. Get yours today!

Manual

In Action Video

Hydraulic Thumb Installation

Fan Installation

DIMENSION:

• Operating Weight: 1 Ton (2,200 lbs)

• Overall Length: 2,220 mm (87 in)

• Overall Width: 1.000 mm (39 in)

• Overall Height: 2,220 mm (87 in)

• Track Size: 180*72*37 (Width*Pitch Length*Links)


WORKING RANGE:

• Max Digging Depth: 1,650 mm (65 in)

• Max Digging Height: 2,400 mm (94.5 in)

• Max Dumping Height: 1,670 mm (66 in)

• Max Reach at Ground: 3,400 mm (134 in)

• Dozer Blade Width: 910 mm (35 in)

• Dozer Blade Height: 230 mm (9 in)

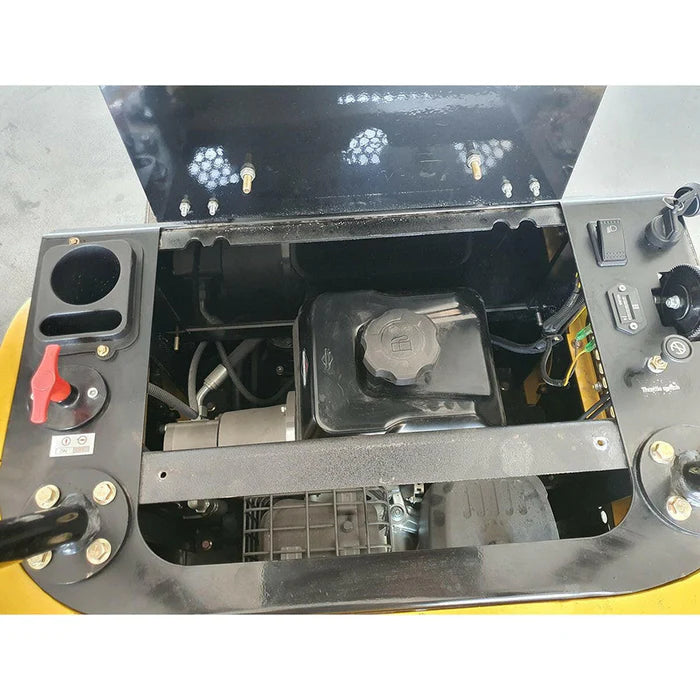

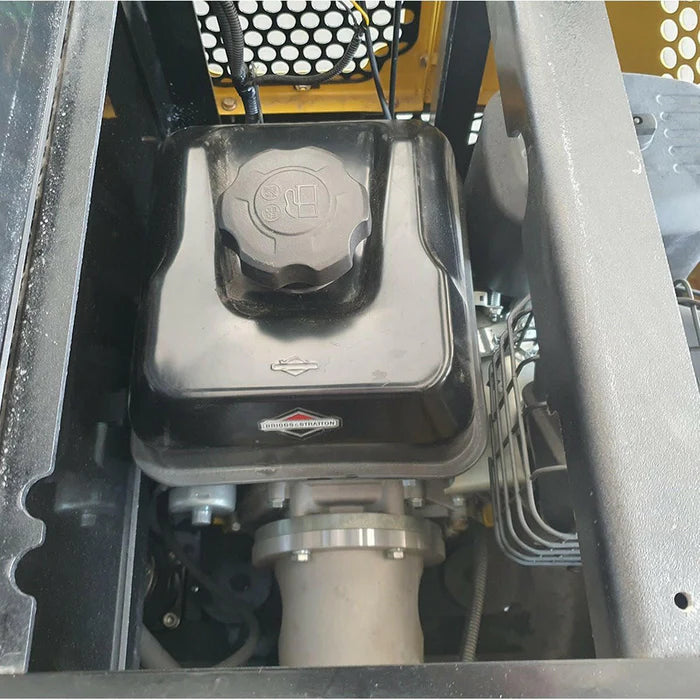

ENGINE:

• Engine Brand: B&S
• Fuel Type: Gasoline

• Model: XR

• Rated Power: 10 kW (13.5 HP)

• Displacement: 420 cc

• Fuel Capacity: 6.6 L (1.7 gal)
• Fuel Consumption: 0.5-1.2 L/h


FEATURES:

• 25.5" Tail Swing
