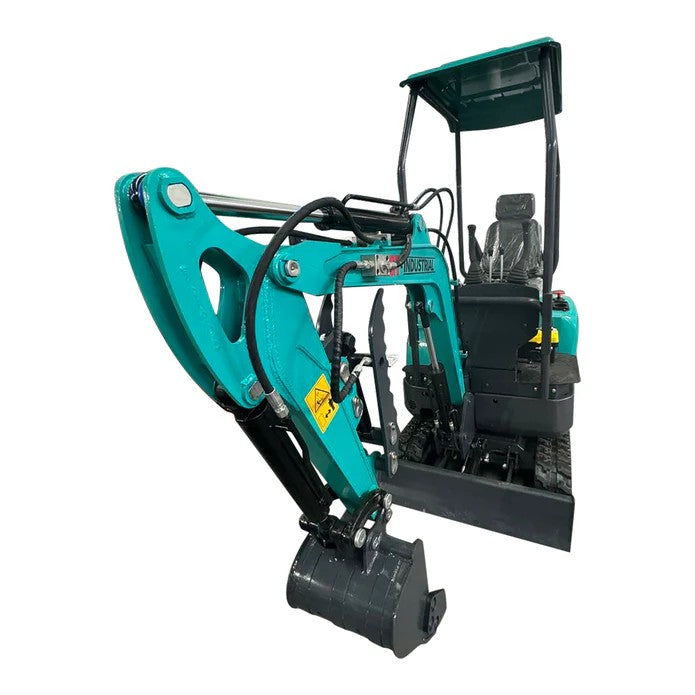

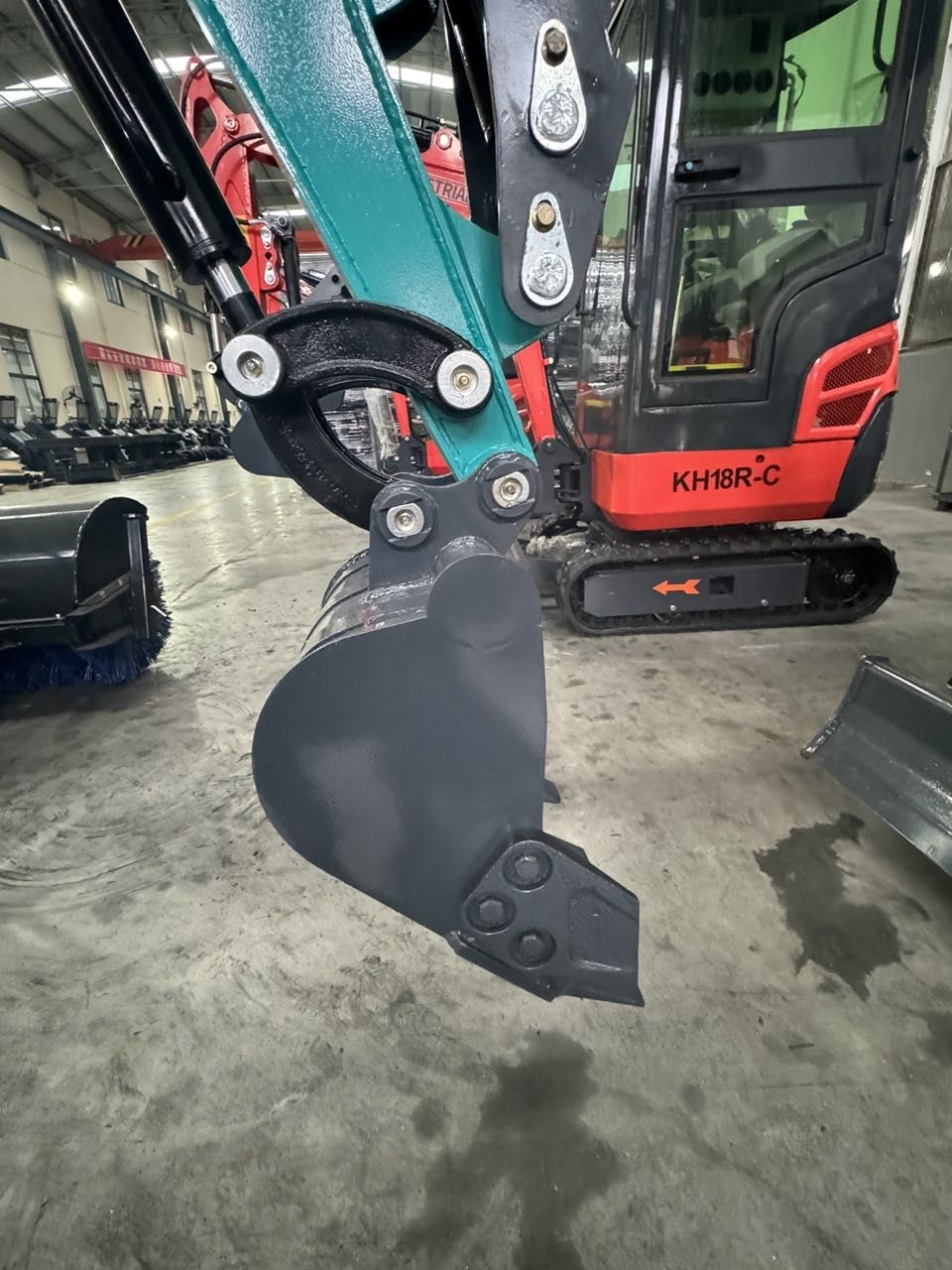

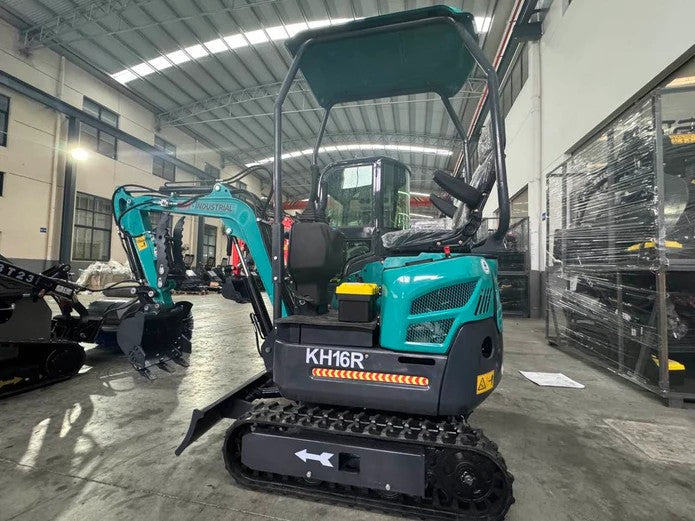

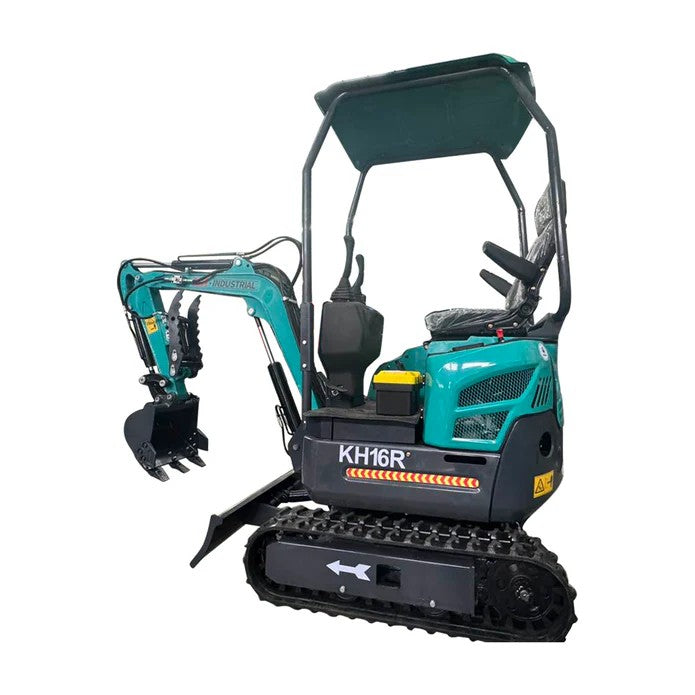

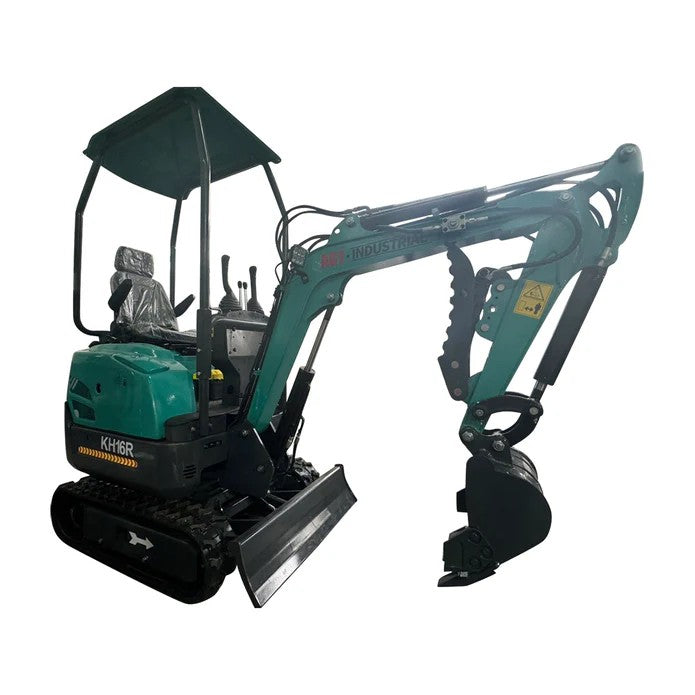

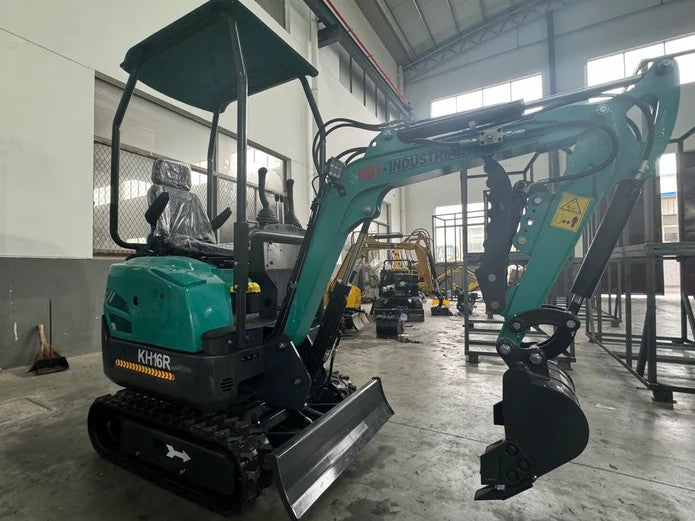

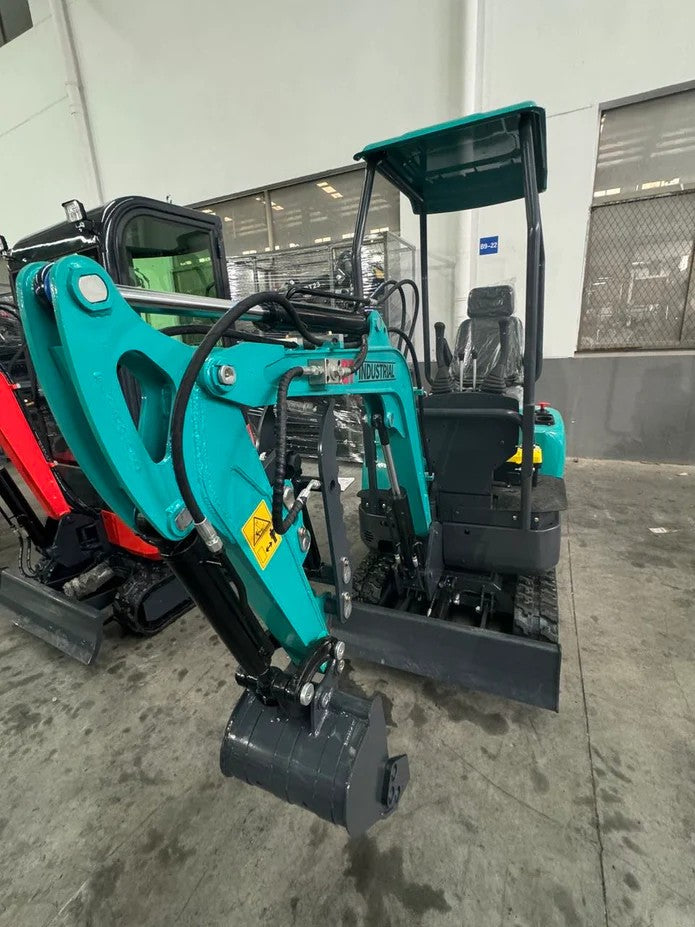

Cfgindustrial 1 Ton Mini Excavator with Hydraulic Thumb & Gasoline RATO Engine | AGT-KH16R
Regular price
$8,667.45
Sold out
SKU:AGT-KH16R

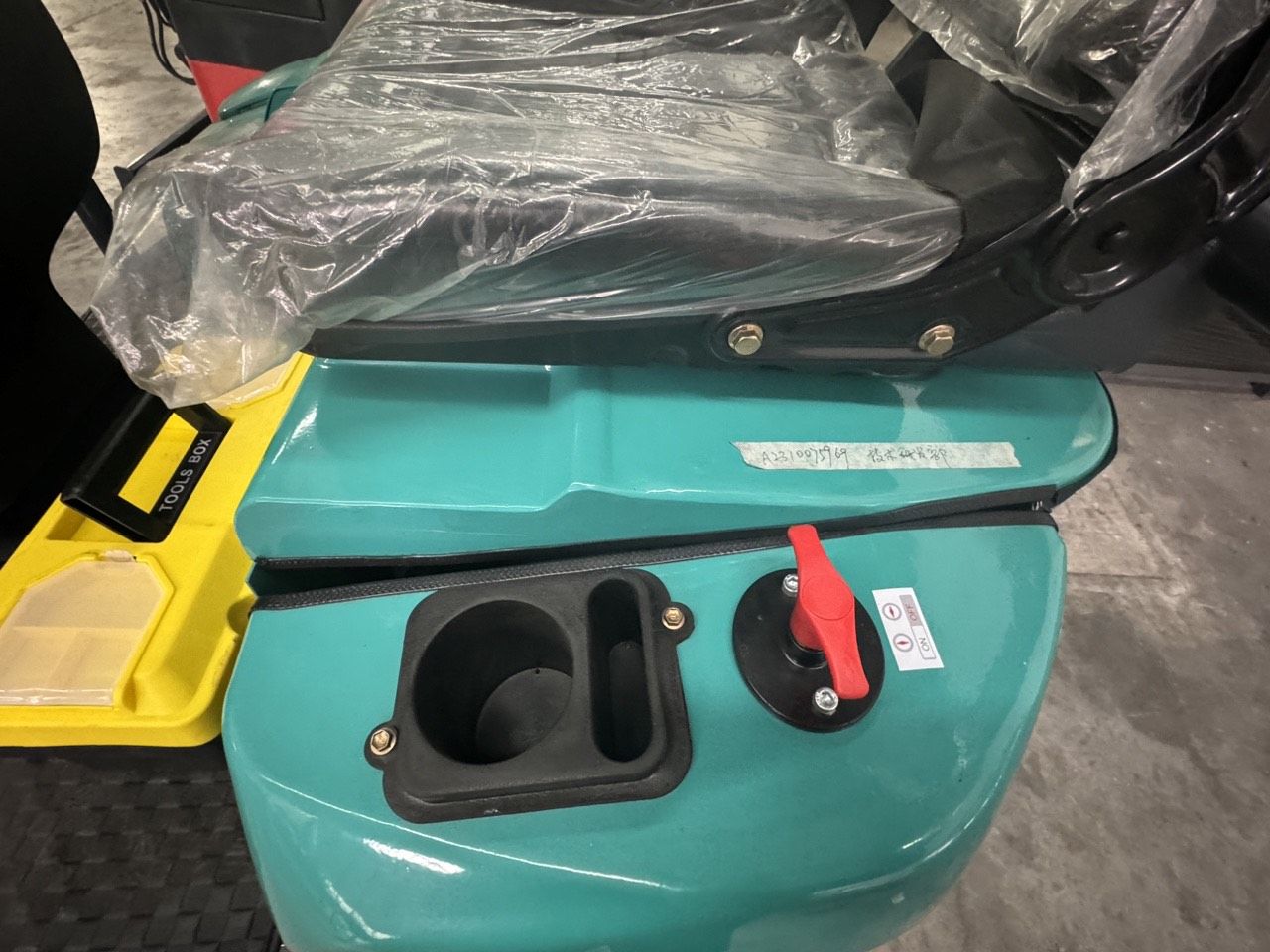

Cfgindustrial 1 Ton Mini Excavator with Hydraulic Thumb & Gasoline RATO Engine | AGT-KH16R
Cfgindustrial 1 Ton Mini Excavator with Hydraulic Thumb & Gasoline RATO Engine | AGT-KH16R
Product Overview
The KH16R is a compact and versatile 1 ton mini excavator designed for various excavation tasks.
Dimension:
Working Range:
Features:
Engine:
Product Warranty
Specifications
| Basic Performance Parameters | |
|---|---|
| Model | KH16R |
| Working Weight (kg) | 900 |
| Bucket Capacity (m³) | 0.016 |
| Travel Speed Low/High (Km/h) | 0–1.8 |
| A: Maximum Digging Height (mm) | 2400 |
| B: Maximum Unloading Height (mm) | 1960 |
| C: Maximum Digging Depth (mm) | 1670 |
| E: Maximum Digging Radius (mm) | 3060 |
| Body | |
| Model | QK16R |
| J: Overall Length (mm) | 2870 |
| K: Overall Width (mm) | 910 |
| L: Overall Height (mm) | 2283 |
| Bulldozer Width / Height (mm) | 907 / 210 |
| Engine | |
| Engine Brand | RATO |
| Engine Model | R420D |
| Max. Power (kW) | 8.6 |
| Max. Speed (rpm) | 3600 |
| Cylinders | 1 |
| Cooling Method | Fan Cooling |
| Engine Oil Change Quantity (L) | 1.1 |
| Fuel Type | 92# Gasoline |
| Theoretical Fuel Consumption (L/h) | 0.5–1.2 |
| Hydraulic System | |
| Main Pump Type / Model | Gear Pump / 06 |
| Main Pump Brand | Tianjin Xingzou |
| Rated Set Pressure (Mpa) | 23.5 |
| Max. Flow Rate of Main Pump (L/min) | 21.6 |
| Multi-way Valve | 8 manually operated multi-way valves |
| Brand of Multi-way Valve | Hua Sheng |
| Rated Set Pressure (Mpa) | 16 |
| Hydraulic Linear Motor Type | BM6-310 |
| Linear Motor Brand | Li Yuan |
| Hydraulic Servo Motor Type | BM2-250 |
