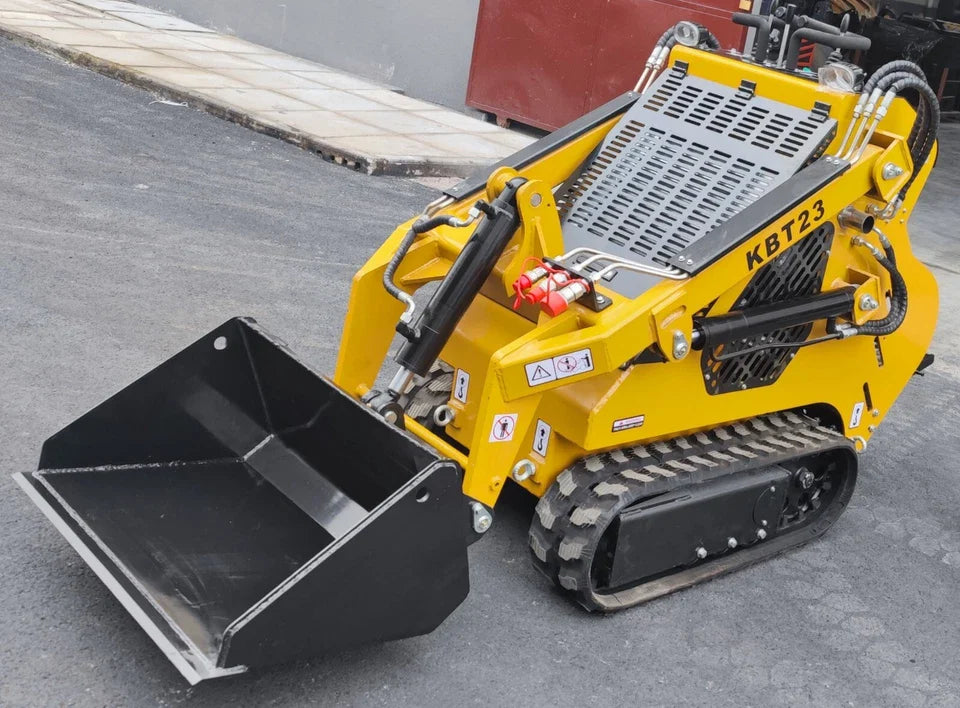

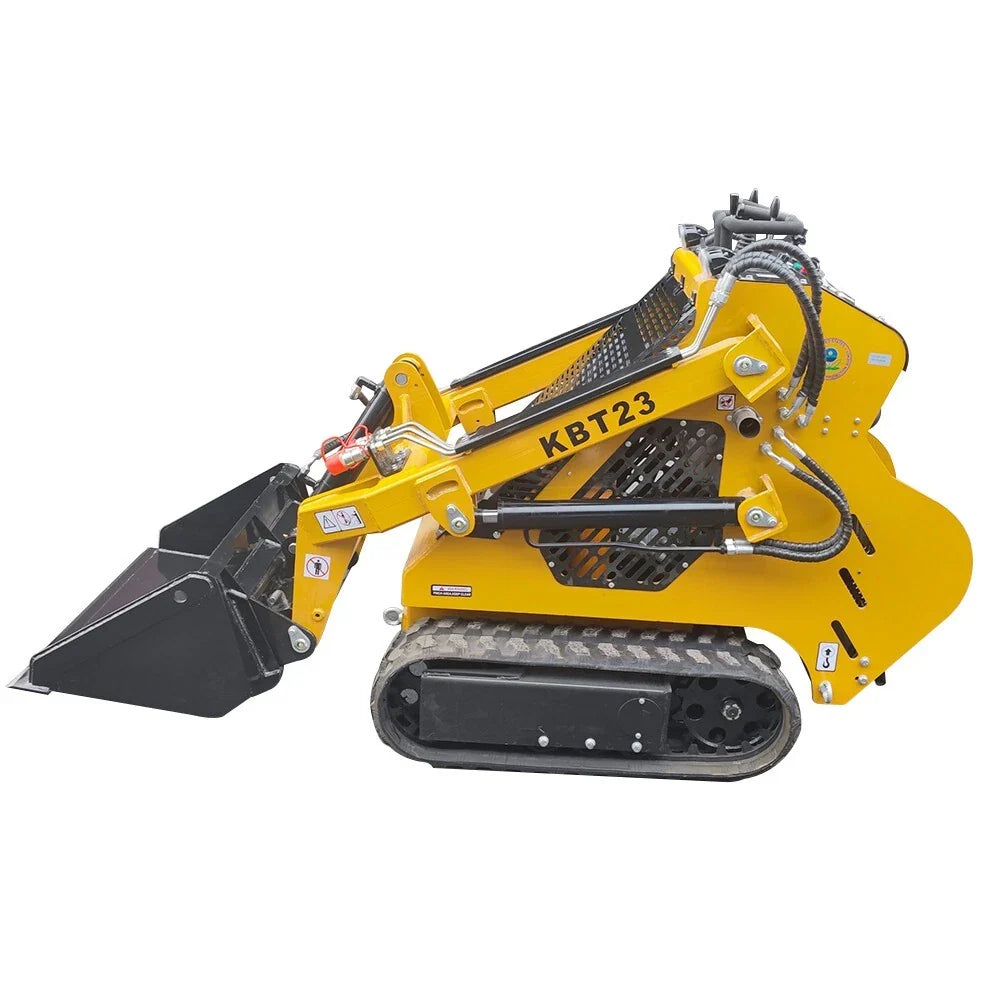

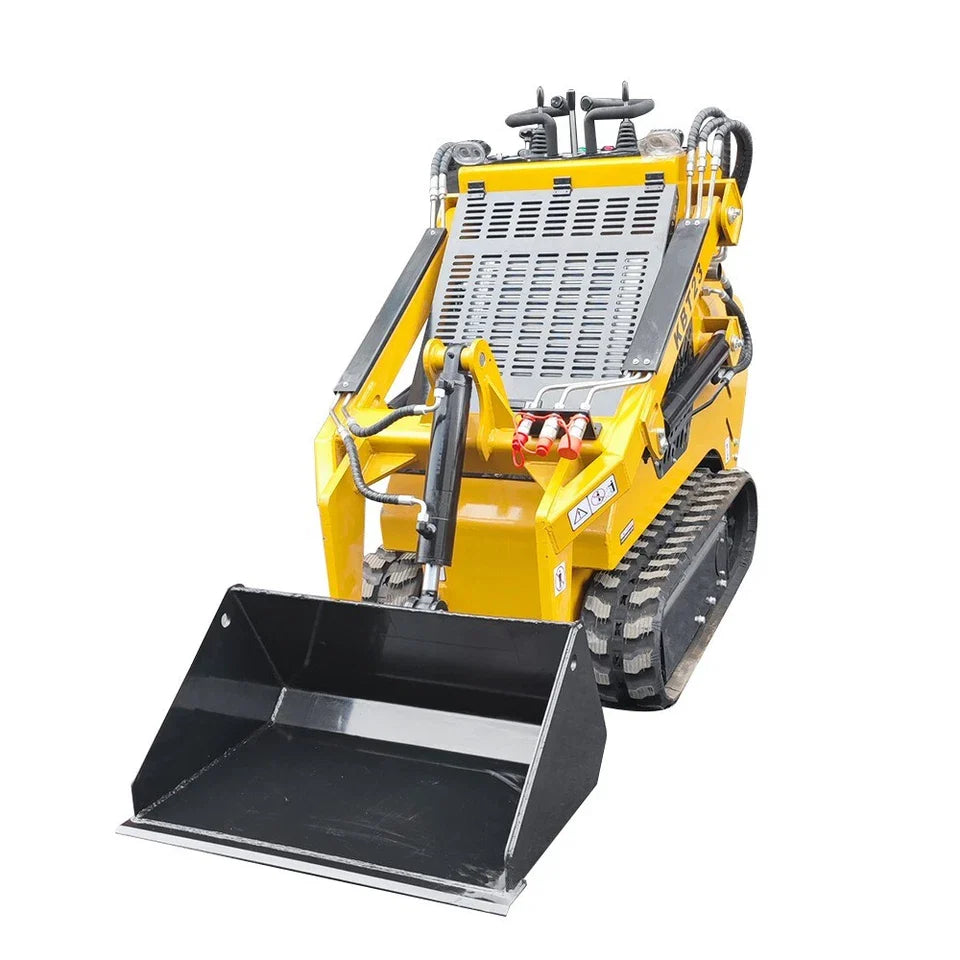

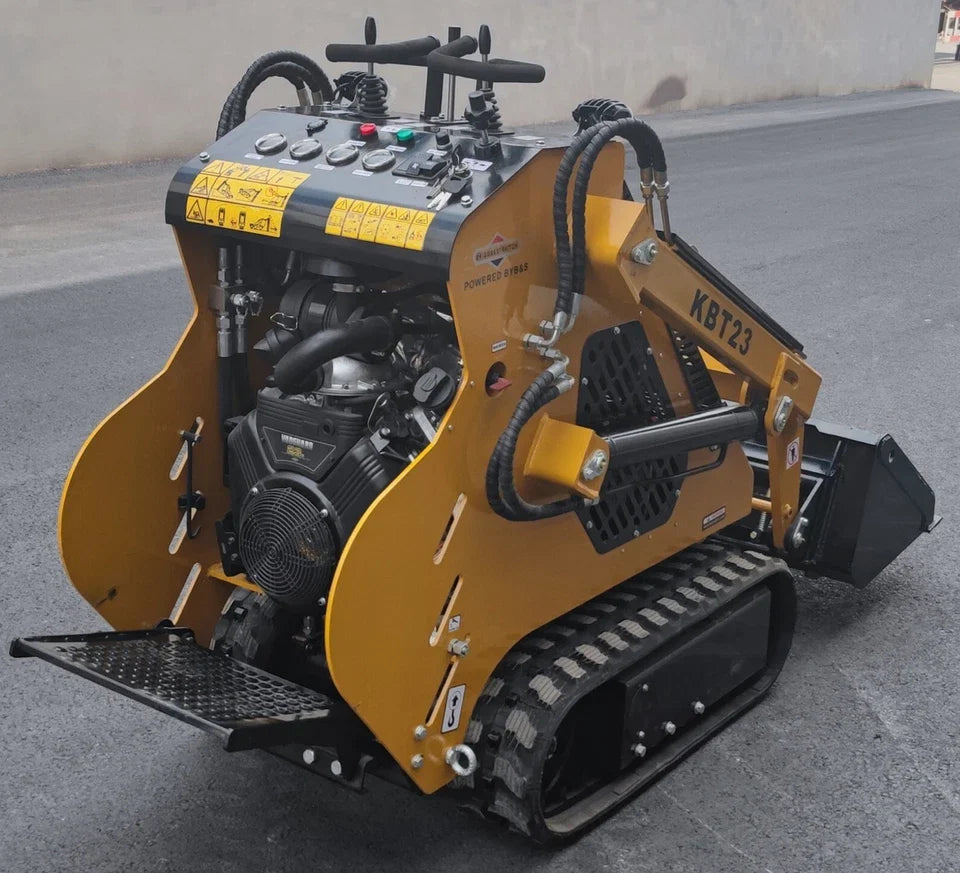

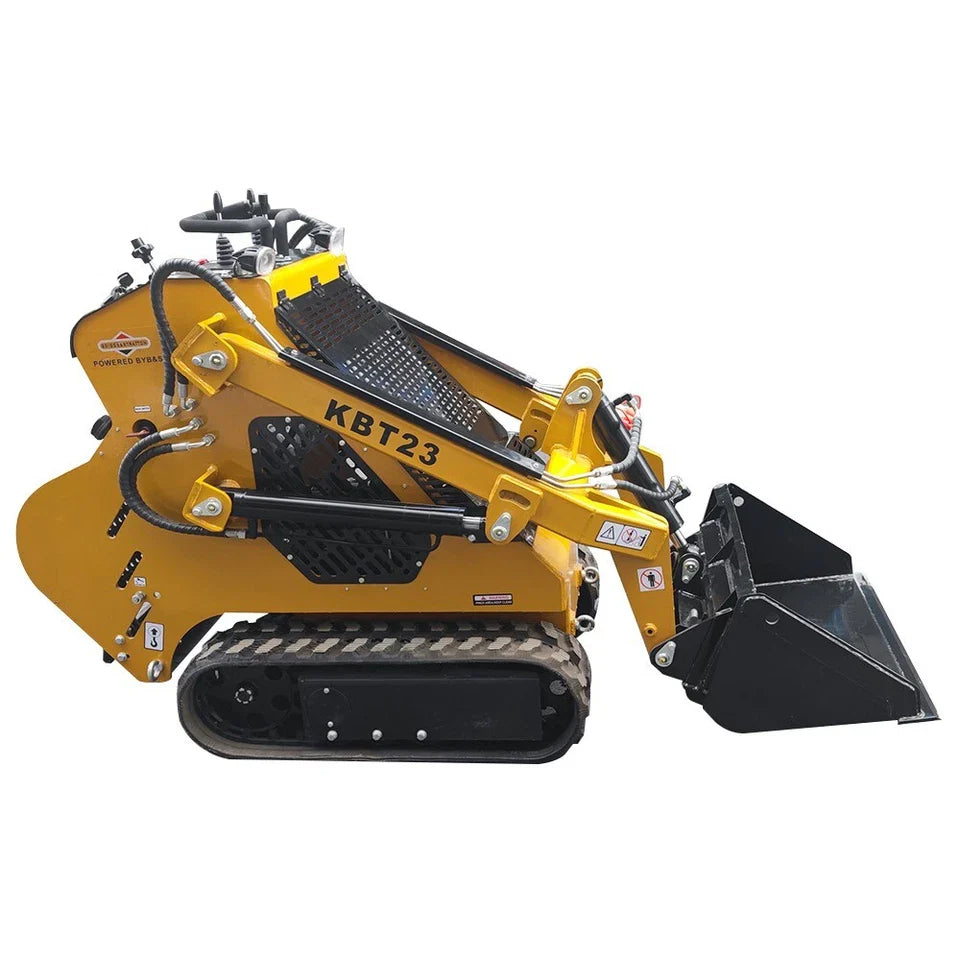

Cfgindustrial 1 Ton Mini Skid Steer Track Loader with B&S Gas Engine | CFG-KBT23

Learn about the KBT23 mini skid steer loader - a versatile power loader tailored to accomplish challenging tasks in tight spaces! This powerful machine is a compact 860 kg machine that can effortlessly maneuver through tight project areas at speeds of up to 5.5 km/hour and conquer slopes of up to 30°.

TECHNICAL DATA:

• Operation Weight: 0.95 Ton

• Engine: B&S

• Max Angle: 30 Degrees


DIMENSION:

• Operating Weight: 0.9 Ton (1,984 lb)

• Overall Length: 2,160 mm (85 in)

• Overall Width: 889 mm (35 in)

• Overall Height: 1,270 mm (50 in)

• Bucket Width: 890 mm (35 in)

• Bucket Capacity: 0.12 m³ (0.15 yd³)
• Tracks Size: 200*72*32 (W*P*L)

WORKING RANGE:

• Max Working Height: 2,450 mm (96.5 in)
• Max Unloading Height: 1,428 mm (56 in)

• Max Lifting Force: 220 kg (485 lb)

• Travel Speed: 5.5 km/h (3.4 mph)

ENGINE:

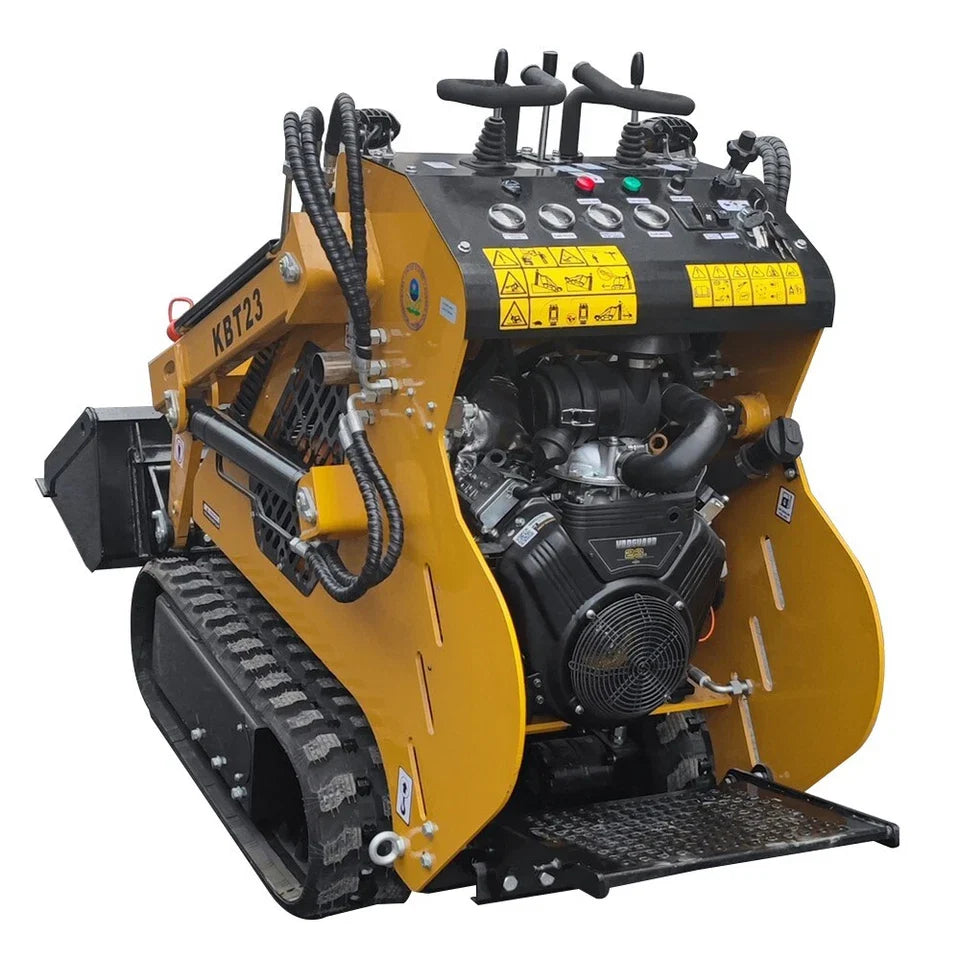

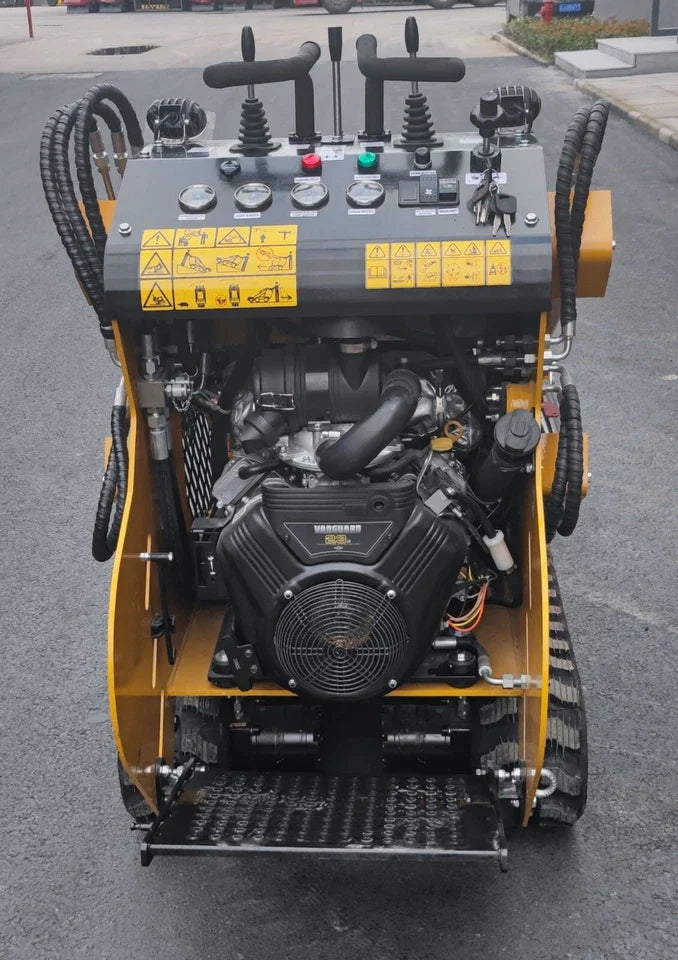

• Brand / Model: B&S Vanguard 3864

• Fuel Type: Gasoline

• Max Power: 17 kW (23 HP)

• Displacement: 627 cc

• Fuel Tank: 25 L (6.6 gal)

• Hydraulic Flow Rate: 43.2 L/min (11.4 GPM)
• Hydraulic Pressure: 16 MPa (2,320 PSI)
• Hydraulic Tank Capacity: 25 L (6.6 gal)
